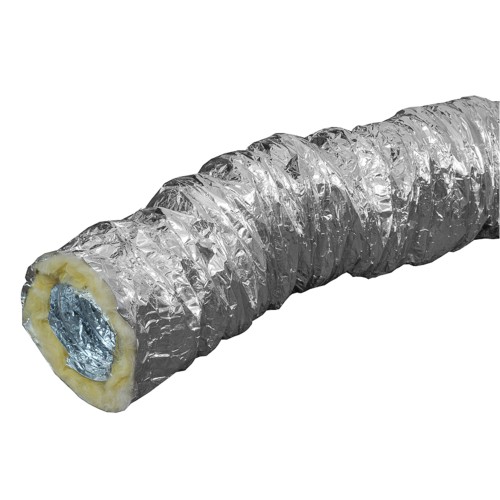

aluflex SONO insulated air ducts, silencers FAS
Construction:
- Made from perforated flexible air duct
- With 16kg/m³ glass wool insulation 25mm thick
- Metalized polyester outer jacket
Instalation:
- For duct fixing can be used special tapes or clamps
Temperature range (°C): -30 ... +140
Max air speed (m/sec): 30
Maximum pressure (Pa): 2500
Min. bend radius: 0,6 Ø + 25mm
Sizes [mm]: Ø100; Ø125; Ø150; Ø160; Ø200; Ø250; Ø315
Length [m]: 10
Colors: Metallic
View products
Flexible air ducts Aluflex SONO for heating, cooling, ventilation and air conditioning systems under low and medium pressure. Reduces noise transfer through ducts. Effectively prevents condensation and heat or cold loss.
| Article | Description | EAN | Length | Connection | |
|---|---|---|---|---|---|
|
FAS100
|
air-duct with wire, acoustically insulated, Aluflex SONO, Ø100mm-10m
|
4750492221105
|
10 m | Ø 100 mm |
|
FAS125
|
air-duct with wire, acoustically insulated, Aluflex SONO, Ø125mm-10m
|
4750492221112
|
10 m | Ø 125 mm |
|
FAS160
|
air-duct with wire, acoustically insulated, Aluflex SONO, Ø160mm-10m
|
4750492221136
|
10 m | Ø 160 mm |
|
FAS200
|
air-duct with wire, acoustically insulated, Aluflex SONO, Ø200mm-10m
|
4750492221143
|
10 m | Ø 200 mm |
| Type | ØD [mm] |
ØD1 [mm] |
L [mm] |
m [kg] |
| FAS100 | 102 | 150 | 10 000 | 3,10 |
| FAS125 | 127 | 175 | 10 000 | 3,50 |
| FAS160 | 162 | 210 | 10 000 | 4,20 |
| FAS200 | 202 | 250 | 10 000 | 5,50 |
