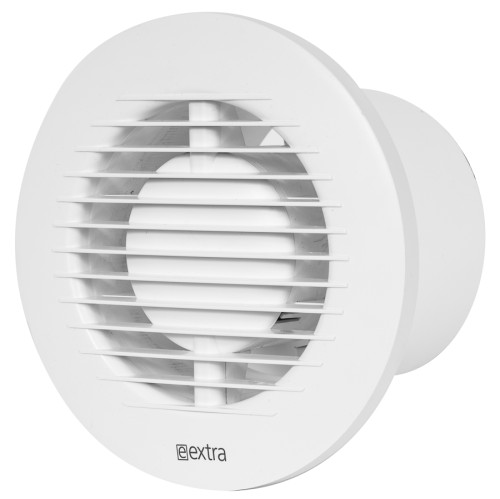

electric fans E-EXTRA series EA

Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama Panorama

Construction:

  • Circular frontal side
  • Made from plastic
  • Axial fan
  • Type of bearing: ball bearing
  • Protection against environmental factor: IPX4
  • Insulation class: B



Installation:

  • Can be connected directly to the ventilation shaft or can be mount with all type round air ducts
  • Mounting position: multiple
  • Application: indoors



Electrical connection: 220-240V~ 50Hz
Ambient temperature (°C): +5 ... +40
Sizes [mm]: Ø100; Ø125; Ø150
Colors: White, anthracite, golden, silver



The domestic exhaust fans of the EA series produced by EUROPLAST are efficient, easy to montage and to use. These fans are equipped with a ball bearing, which ensures better performance, longevity and the possibility of mounting them in both walls and ceilings. The fan housing and front grille are made of high-quality and durable ABS plastic that is resistant to temperature and UV rays.

In our assortment, it is possible to choose what you need from a range of sizes that can be connected to 100, 125 and 150 mm round air ducts. It is also possible to choose from various function modifications, from a simple fan to a fan with a timer and a humidity sensor. Fans produced by EUROPLAST are safe because they motor is equipped with thermal fuse.

To ensure protection from air backflow to the room, we recommend equipping the fan with a EUROPLAST EEV series valve.

Functions

Timer

Timer

The device is equipped with a timer. After switching off the fan, the timer keeps it running for a specific time interval that is set up by a controller. The set operating time after switching off the fan is from 1 to 30 minutes.

Ball bearing

Ball bearing

The fan motor is equipped with a ball bearing, which ensures better fan operation and also longevity. Thanks to the ball bearing, the fan can also be used for ceiling mounting.

Humidity sensor

Humidity sensor

The fan is equipped with a humidity level control that may be used to set the level of humidity from ~60%RH - ~90%RH and a delay control that may be used to set the delay from 1 to 30 min. The fan is turned on automatically when a certain humidity level is reached in the room or it may be turned on manually by a switch.

Connection

Suction power

Functions

Colour

Sort by

Article Description EAN Connection Suction power Functions
EA100
EA100
electric fan, circular E-EXTRA, Ø100mm with ball bearing
4750492006894
Ø 100 mm 100 m3/h
Ball bearing
EA100A
EA100A
electric fan, circular E-EXTRA, Ø100mm with ball bearing, anthracite
4750492012505
Ø 100 mm 100 m3/h
Ball bearing
EA100G
EA100G
electric fan, circular E-EXTRA, Ø100mm with ball bearing, gold
4750492025871
Ø 100 mm 100 m3/h
Ball bearing
EA100S
EA100S
electric fan, circular E-EXTRA, Ø100mm with ball bearing, silver
4750492025888
Ø 100 mm 100 m3/h
Ball bearing
EA100T
EA100T
electric fan, circular E-EXTRA, Ø100mm with ball bearing, timer
4750492007556
Ø 100 mm 100 m3/h
Timer
Ball bearing
EA100HT
EA100HT
electric fan, circular E-EXTRA, Ø100mm with ball bearing, timer, humidity sensor
4750492007563
Ø 100 mm 100 m3/h
Timer
Humidity sensor
Ball bearing
EA125
EA125
electric fan, circular E-EXTRA, Ø125mm with ball bearing
4750492006900
Ø 125 mm 150 m3/h
Ball bearing
EA125A
EA125A
electric fan, circular E-EXTRA, Ø125mm with ball bearing, anthracite
4750492012512
Ø 125 mm 150 m3/h
Ball bearing
EA125T
EA125T
electric fan, circular E-EXTRA, Ø125mm with ball bearing, timer
4750492007570
Ø 125 mm 150 m3/h
Timer
Ball bearing
EA125HT
EA125HT
electric fan, circular E-EXTRA, Ø125mm with ball bearing, timer, humidity sensor
4750492007587
Ø 125 mm 150 m3/h
Timer
Humidity sensor
Ball bearing



Type ØA
[mm]
B
[mm]
C
[mm]
ØD
[mm]
EA100 148 80 16 99
EA125 173 80 16 124
EA150 198 80 16 149



Modifications
EAxxx - basic model, white color
EAxxxT - with a timer
EAxxxHT - with timer and a humidity sensor
EAxxxA - anthracite colour
EAxxxS - silver colour
EAxxxG - golden colour



Technical information EA100 EA125 EA150
Voltage (V) 220 - 240
Phase (Hz) 50
Power (W) 15 16 20
Suction power (m3/h) 100 150 200
Noise level: 3m distance, Lp A dB(A) 32 36 40
Protection against environmental factor IPX4
RPM 2550 2360 2100
Ambient temperature (°C) +5 ... +40
Weight (kg) 0,37 0,42 0,52
