electric fans E-EXTRA series EE

Construction:

  • Square shaped
  • Made from plastic
  • Axial fan
  • Type of bearing: slide bearing
  • Protection against environmental factor: IPX4
  • Insulation class: B



Installation:

  • Can be connected directly to the ventilation shaft or can be mount with all type round air ducts
  • Mounting position: horizontal, in wall
  • Application: indoors



Electrical connection: 220-240V~ 50Hz
Ambient temperature (°C): +5 ... +40
Sizes [mm]: Ø100, Ø120, Ø125, Ø150
Colors: White, anthracite, golden, silver



The domestic exhaust fans of the EE series produced by EUROPLAST are efficient, easy to montage and to use. The fan housing and front grille are made of high-quality and durable ABS plastic that is resistant to temperature and UV rays.

In our assortment, it is possible to choose what you need from a range of sizes that can be connected to 100, 120, 125 and 150 mm round air ducts. It is also possible to choose from various function modifications, from a simple fan to a fan with a timer and a humidity sensor. Fans produced by EUROPLAST are safe because they motor is equipped with thermal fuse.

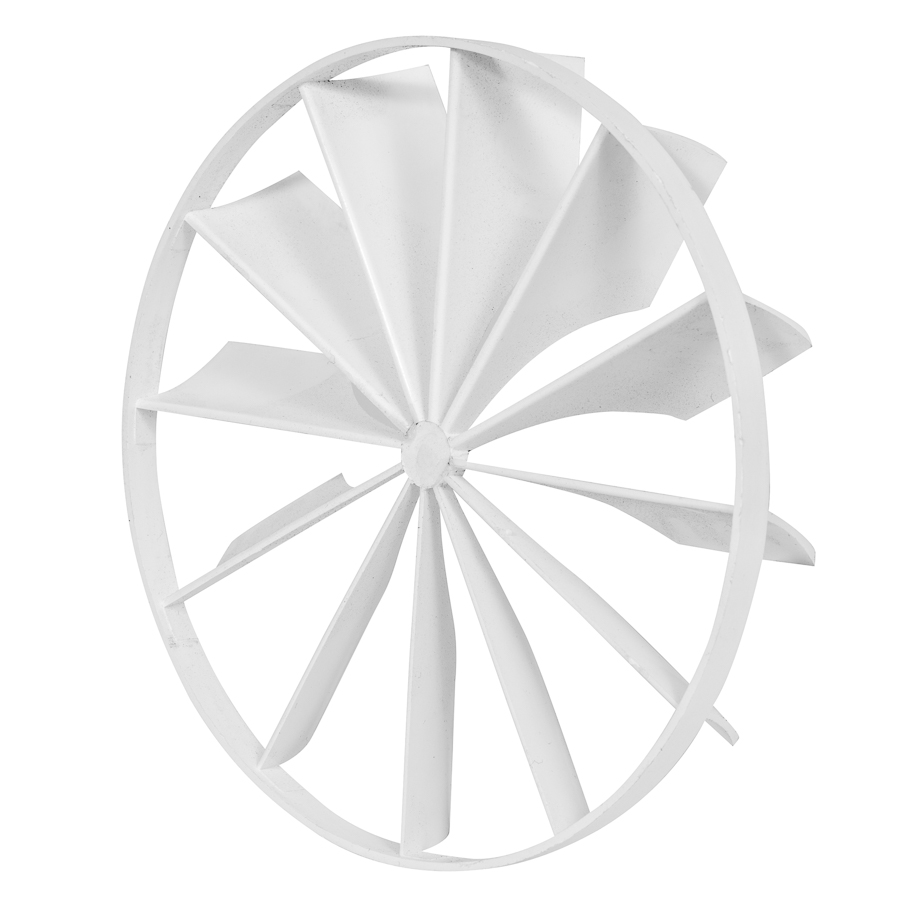

To ensure protection from air backflow to the room, we recommend equipping the fan with a EUROPLAST EEV series valve.

Functions

Timer

Timer

The device is equipped with a timer. After switching off the fan, the timer keeps it running for a specific time interval that is set up by a controller. The set operating time after switching off the fan is from 1 to 30 minutes.

Built-in pull cord switch

Built-in pull cord switch

A device is equipped with a pull-down switch. It is turned on and off by pulling down the string that is located on the bottom of it.

Humidity sensor

Humidity sensor

The fan is equipped with a humidity level control that may be used to set the level of humidity from ~60%RH - ~90%RH and a delay control that may be used to set the delay from 1 to 30 min. The fan is turned on automatically when a certain humidity level is reached in the room or it may be turned on manually by a switch.

Cord with plug

Cord with plug

Fan that is equipped with a cord with plug and shall be connected to a power outlet.

Connection

Functions

Colour

Sort by

Article Description EAN Connection Functions
EE100
EE100

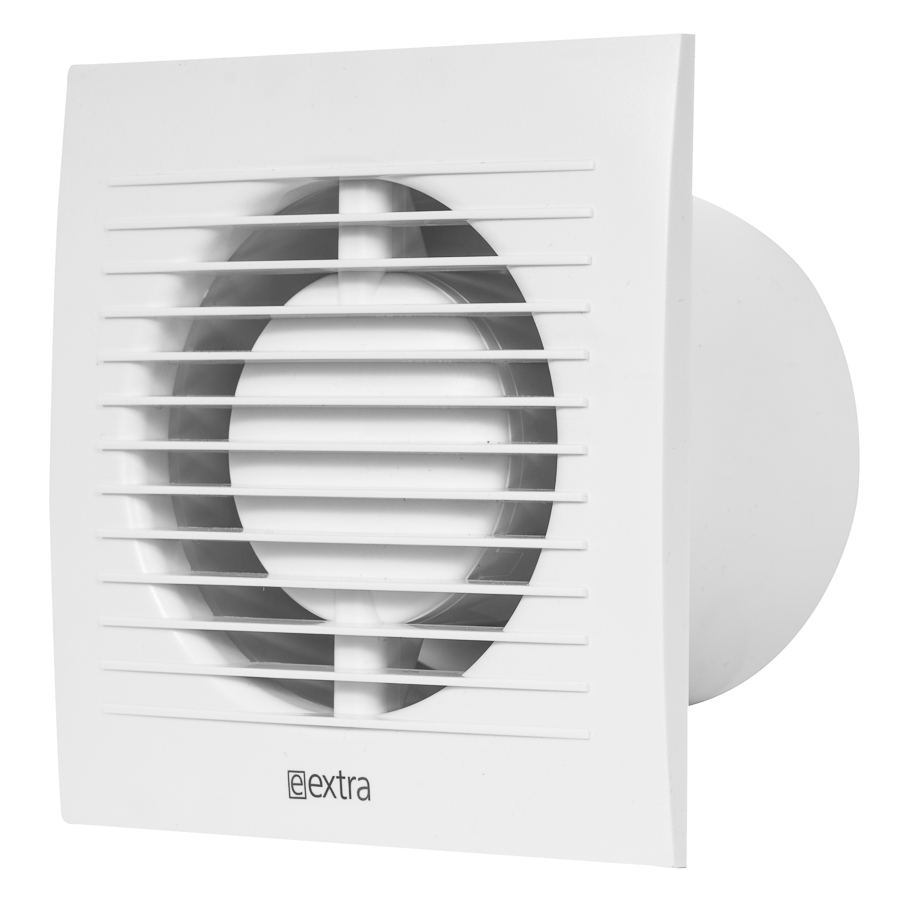

electric fan E-EXTRA, Ø100mm
4750492006917
100 mm
EE100WP
EE100WP

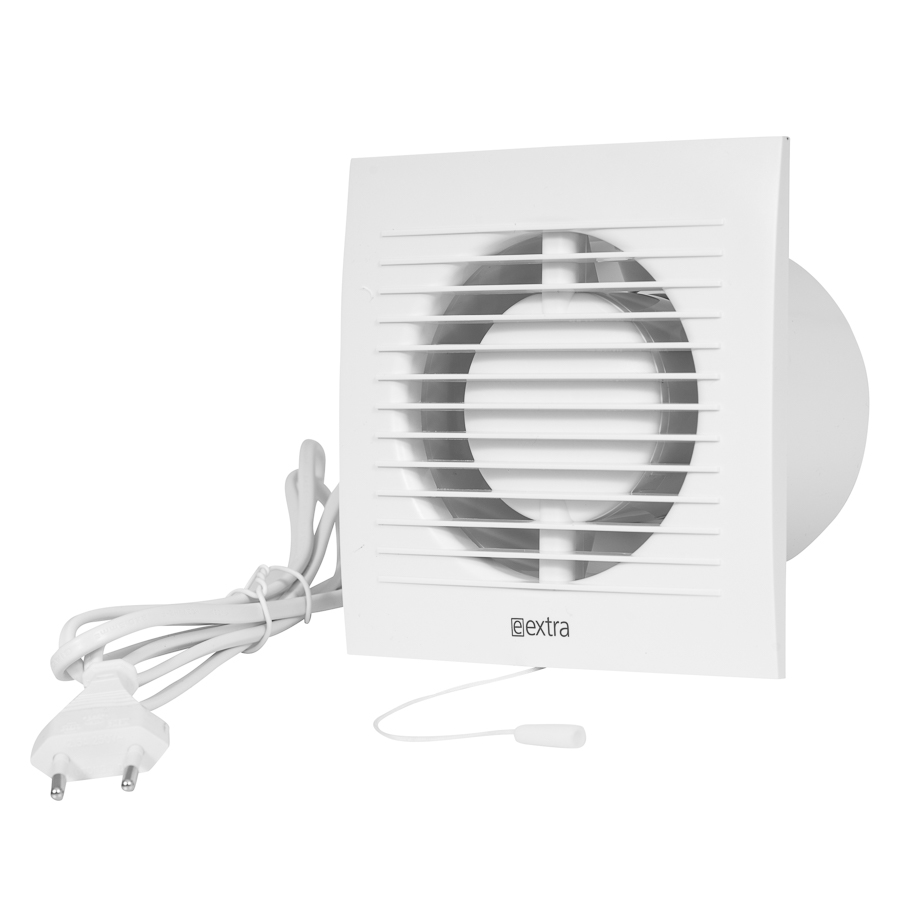

electric fan E-EXTRA, Ø100mm with a cable and switch
4750492007228
100 mm
Built-in pull cord switch
Cord with plug
EE100WPG
EE100WPG

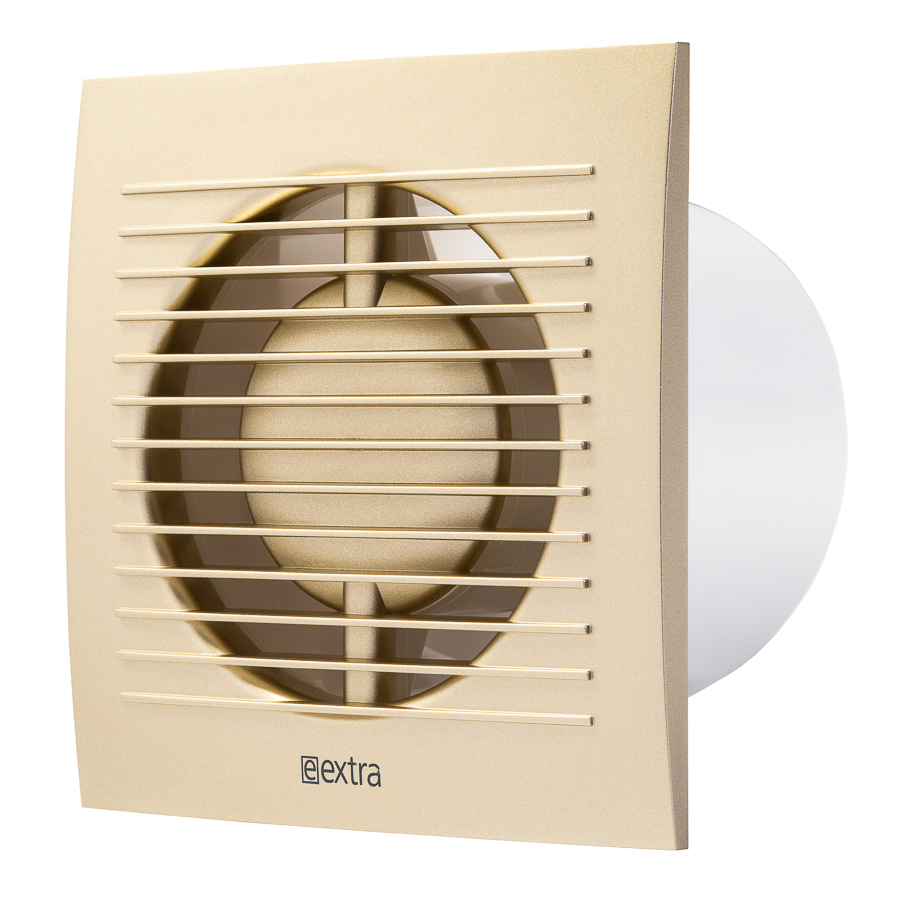

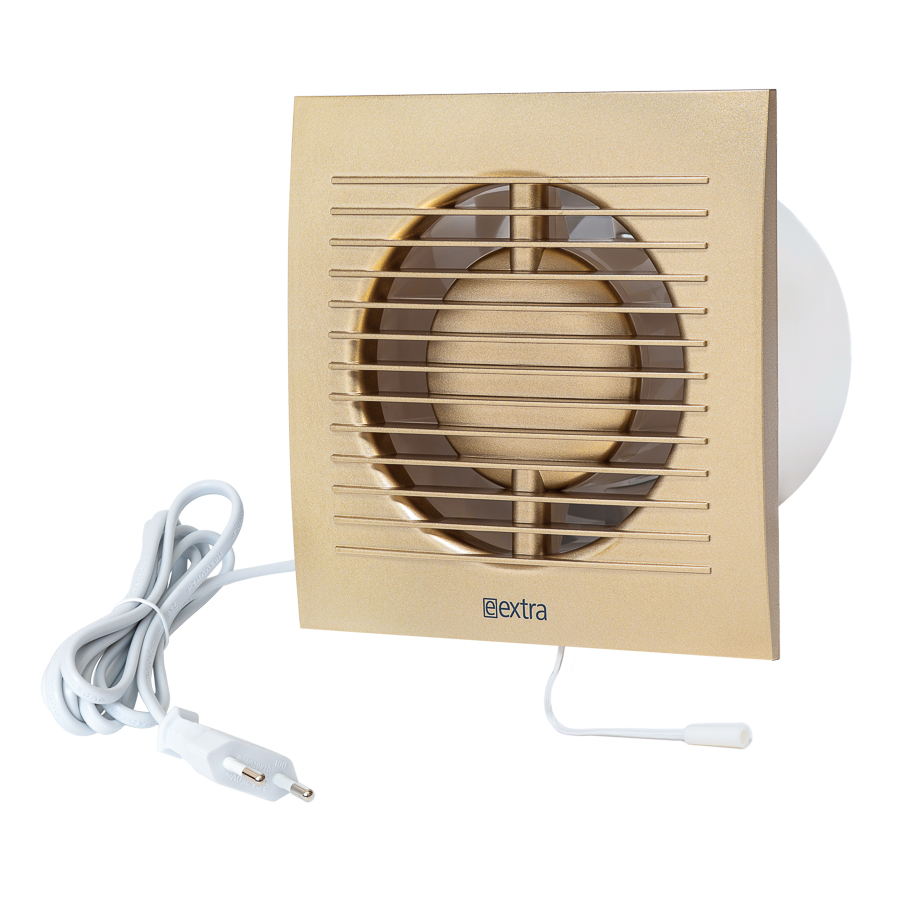

electric fan E-EXTRA, Ø100mm with a cable and switch, gold
4750492007235
100 mm
Built-in pull cord switch
Cord with plug
EE100WPS
EE100WPS

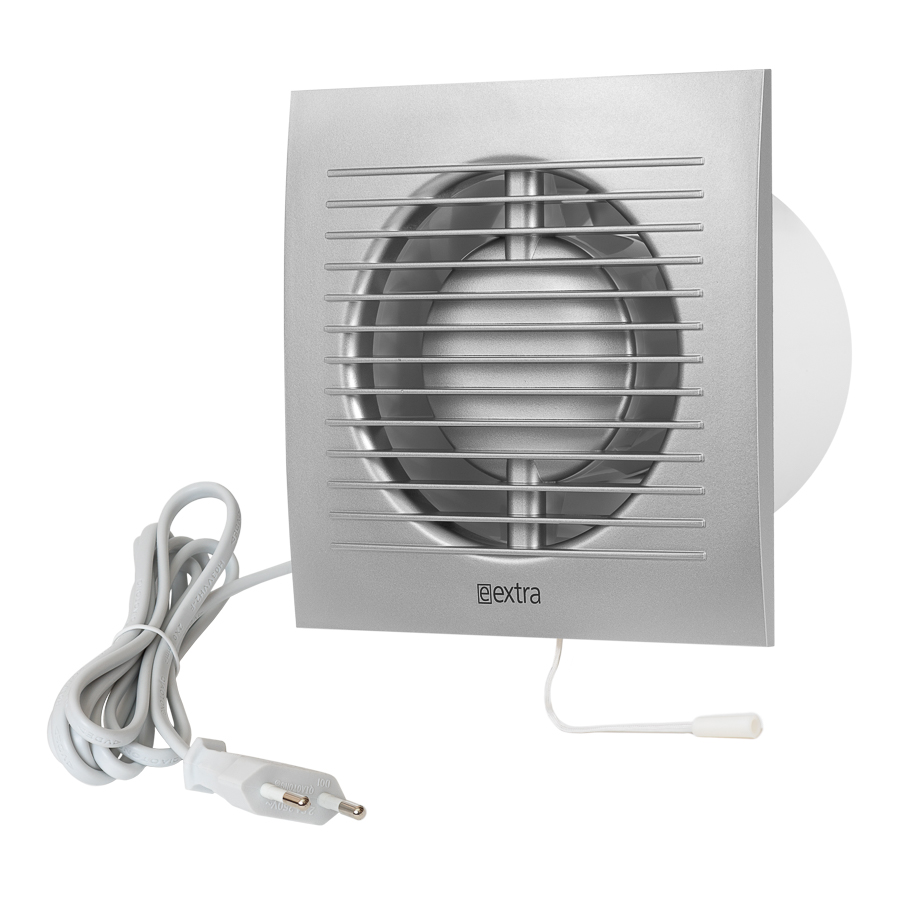

electric fan E-EXTRA, Ø100mm with a cable and switch, silver
4750492007242
100 mm
Built-in pull cord switch
Cord with plug
EE100T
EE100T
electric fan E-EXTRA, Ø100mm with a timer
4750492007198
100 mm
Timer
EE100TA
EE100TA

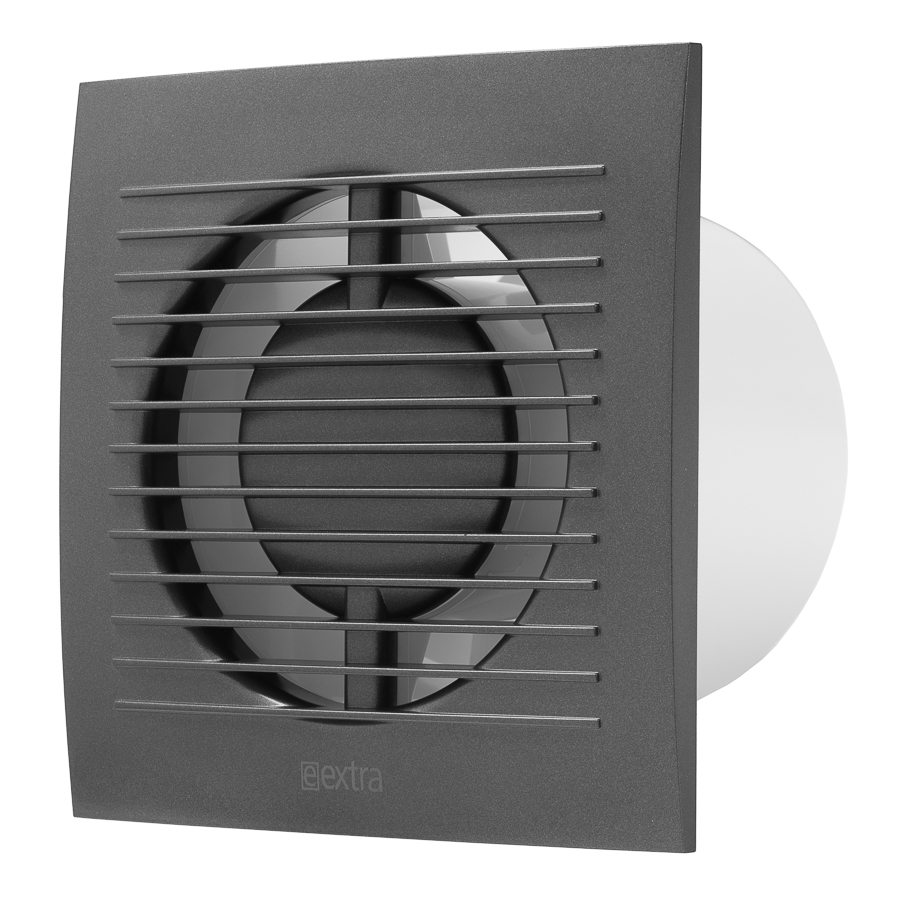

electric fan E-EXTRA, Ø100mm with a timer, anthracite
4750492012543
100 mm
Timer
EE100TG
EE100TG
electric fan E-EXTRA, Ø100mm with a timer, gold
4750492007204
100 mm
Timer
EE100HT
EE100HT
electric fan E-EXTRA, Ø100mm with a timer, humidity sensor
4750492007150
100 mm
Timer
Humidity sensor
EE100HTA
EE100HTA
electric fan E-EXTRA, Ø100mm with a timer, humidity sensor, anthracite
4750492012536
100 mm
Timer
Humidity sensor
EE100HTG
EE100HTG
electric fan E-EXTRA, Ø100mm with a timer, humidity sensor, gold
4750492007167
100 mm
Timer
Humidity sensor

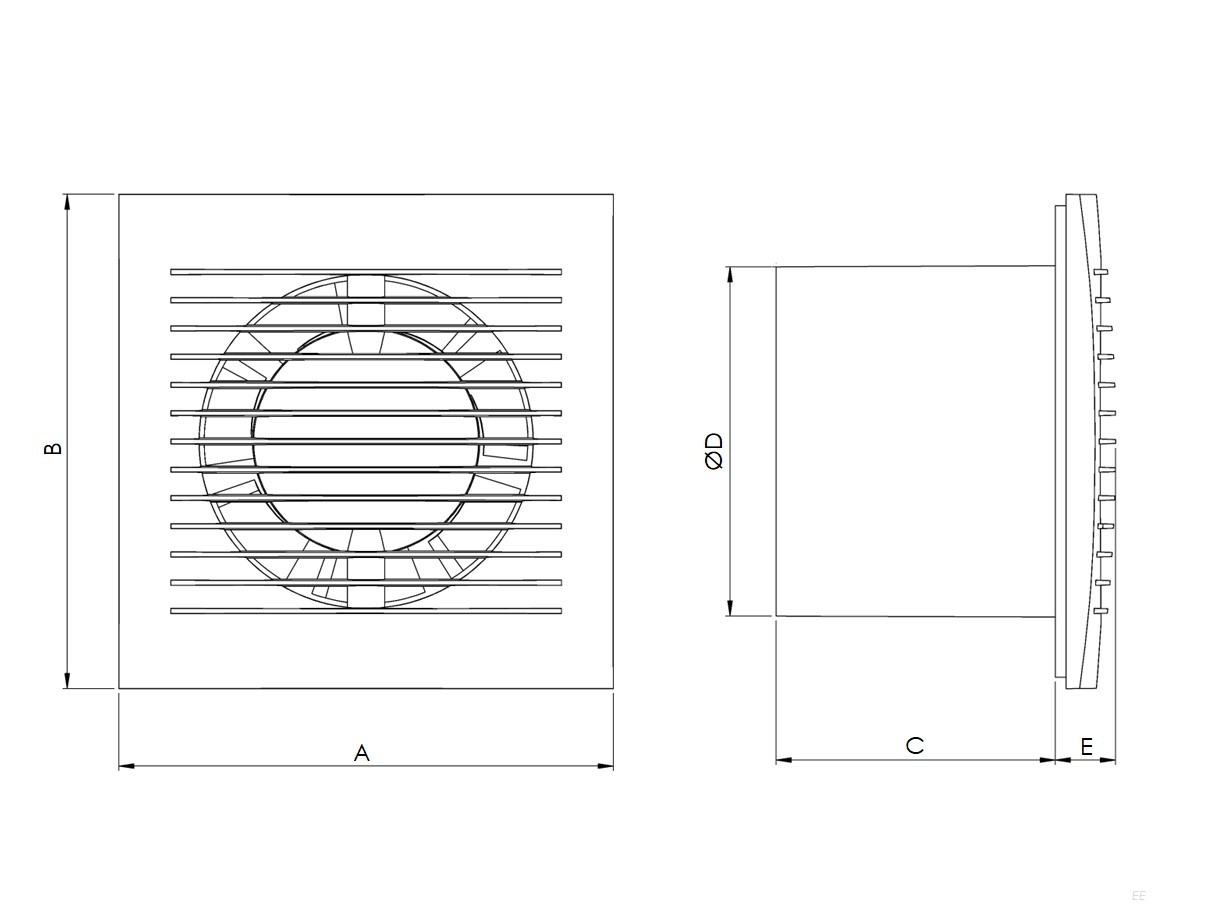

Type A B C D E
EE100 140 140 80 99 16
EE125 165 165 80 124 16
EE150 190 190 80 149 16





Modifications
EExxxT - fan is equipped with a timer function
EExxxHT - fan is equipped with a humidity level control function
EExxxWP - fan that is equipped with a switch and cable

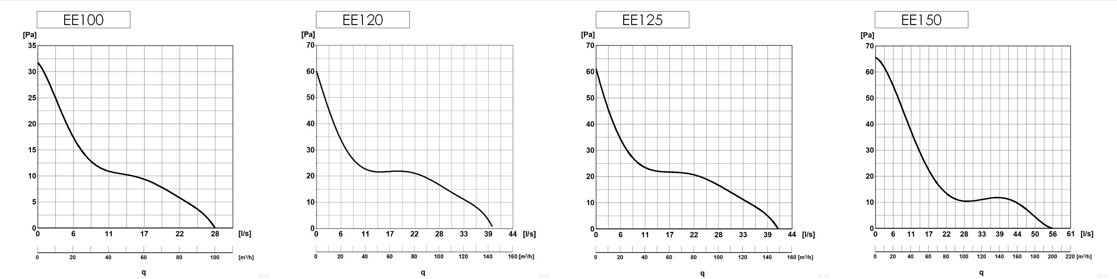

Type Voltage
[V Hz]
Power
[W]
IP Speed
[RPM]
Air flow
[m3/]
Noise level:
3m
distance,
Lp A dB(A)
Temperature
min/max (°C)

Air duct size

(mm)

Weight
[kg]
EE100 220-240V~50Hz 15 IPX4 2550 100 32 +5/+40 100 0,37
EE125 220-240V~50Hz 16 IPX4 2360 150 36 +5/+40 125 0,44
EE150 220-240V~50Hz 20 IPX4 2100 200 40 +5/+40 150 0,56
