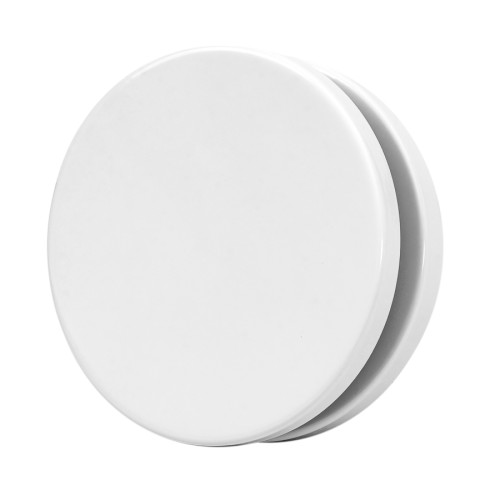

metal supply diffusers DMKP
Construction:
- Made from polymer coated steel
- Adjustable air flow
- Gasket for better airtightness
Installation:
- Wall or ceiling mounting with all types of circular ducts
Colors: White RAL9016, anthracite
Metal diffusers for supply ventilation with low noise levels and new, elegant design.
Functions
Adjustable
The product is equipped with a manual regulator that allows you to regulate the air flow volume.
| Description | Connection | Functions | |
|---|---|---|---|
DMKP100
|
diffuser metal, supply, Ø100mm
|
Ø 100 mm |
|
DMKP100A
|
diffuser metal, supply, Ø100mm, anthracite
|
Ø 100 mm |
|
DMKP125
|
diffuser metal, supply, Ø125mm
|
Ø 125 mm |
|
DMKP125A
|
diffuser metal, supply, Ø125mm, anthracite
|
Ø 125 mm |
|
DMKP160
|
diffuser metal, supply, Ø160mm
|
Ø 160 mm |
|
DMKP200
|
diffuser metal, supply, Ø200mm
|
Ø 200 mm |
|
DMKP80
|
diffuser metal, supply, Ø80mm
|
Ø 80 mm |
|
| Type | ØD [mm] |
ØD1 [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| DMKP80 | 79 | 107 | 70 | 25 | 0,21 |
| DMKP100 | 99 | 135 | 70 | 25 | 0,29 |
| DMKP125 | 124 | 160 | 70 | 25 | 0,36 |
| DMKP160 | 159 | 195 | 74 | 25 | 0,51 |
| DMKP200 | 199 | 230 | 78 | 25 | 0,64 |
| Modifications |
| DMKPxxx – white colour |
| DMKPxxxA – anthracite colour |
