plastic square grilles N

Construction:

  • Manufactured from high-quality ABS plastic
  • Integrated insect screen
  • Standard or adjustable



Installation:

  • Wall or ceiling mounting
  • For indoor or outdoor use
  • Screw or glue fixing in any position



Colors: White, anthracite, silver, golden



EUROPLAST manufactured N-series plastic ventilation grilles are made of high-quality ABS plastic and are long-lasting and temperature and UV-resistant. Grilles are intended to use as decorative and functional elements of outlets for supply or exhaust ventilation systems. They are available in different colors and sizes. Ventilation grilles are equipped with an insect mesh. Grilles can be used on walls or ceilings for interior and exterior of premises. There are different models – with connections to air ducts or for on wall montage, standard versions or manually adjustable.

Functions

Adjustable

Adjustable

The product is equipped with a manual regulator that allows you to regulate the air flow volume.

Insect screen

Insect screen

Product is equipped with an insect mesh, which prevents insects from entering in to the ventilation systems.

Width

Height

Connection

Functions

Colour

Sort by

Article Description EAN Width Height Connection Functions

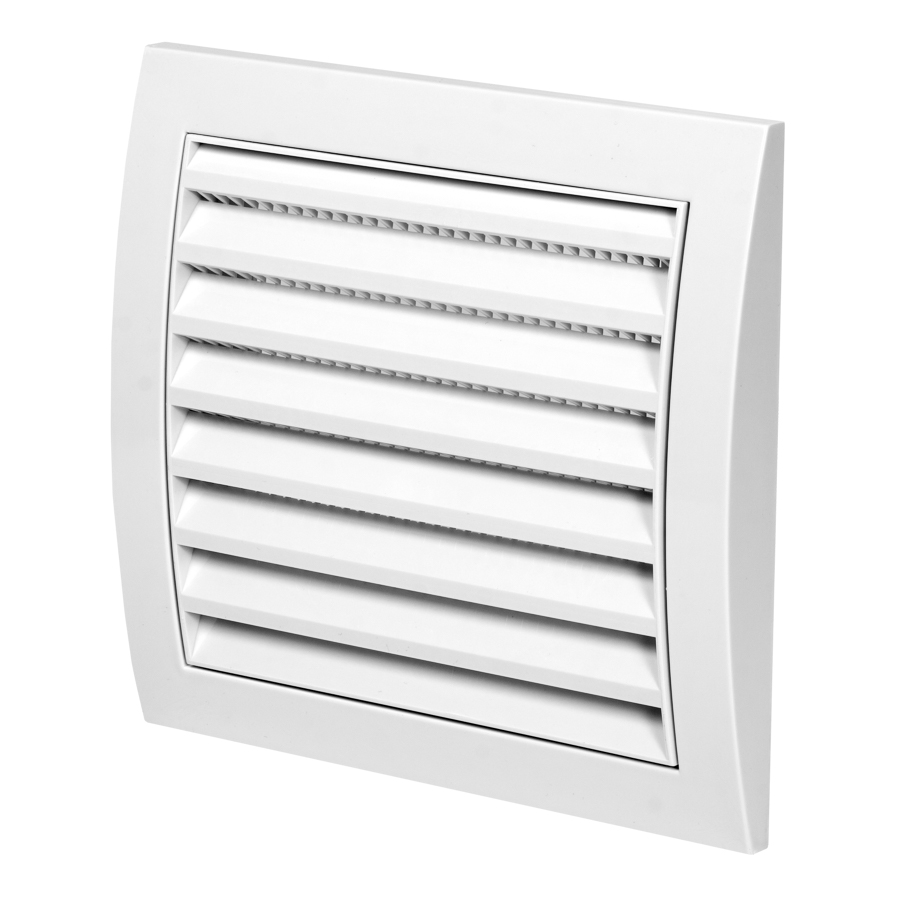

N10
N10
grille plastic, 148x153mm
4750492000281
153 mm 148 mm -
Insect screen
N10R
N10R

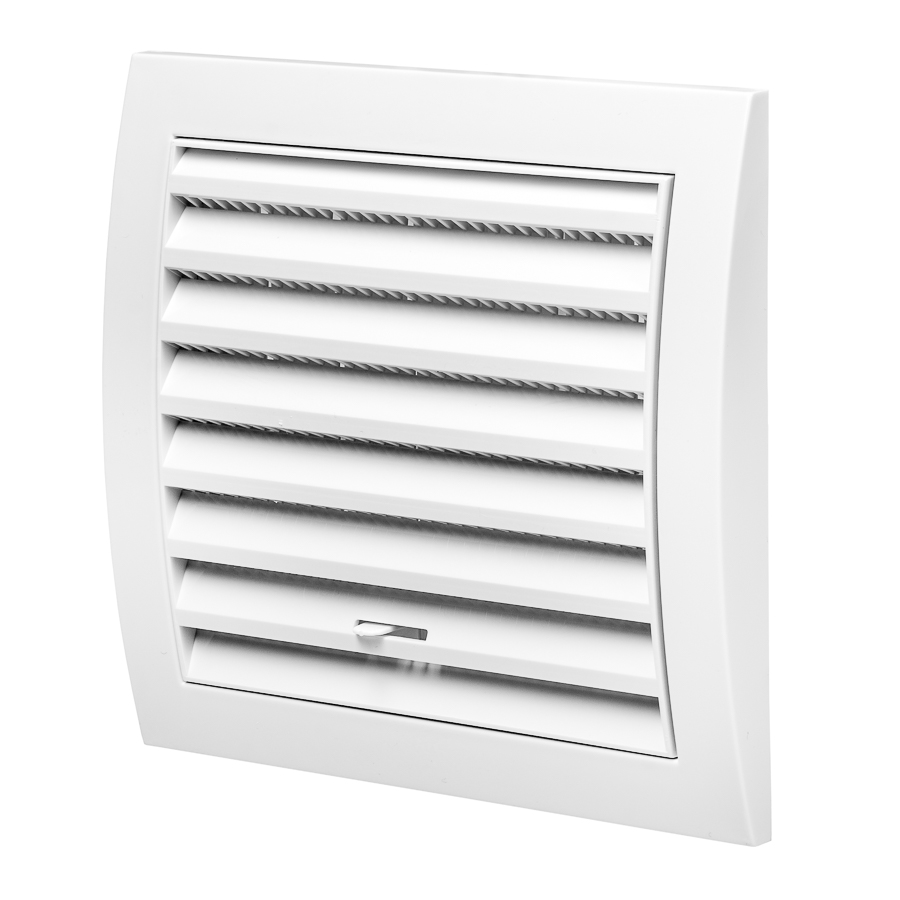

grille plastic, 148x153mm, adjustable
4750492000298
153 mm 148 mm -
Adjustable
Insect screen
N10RA
N10RA

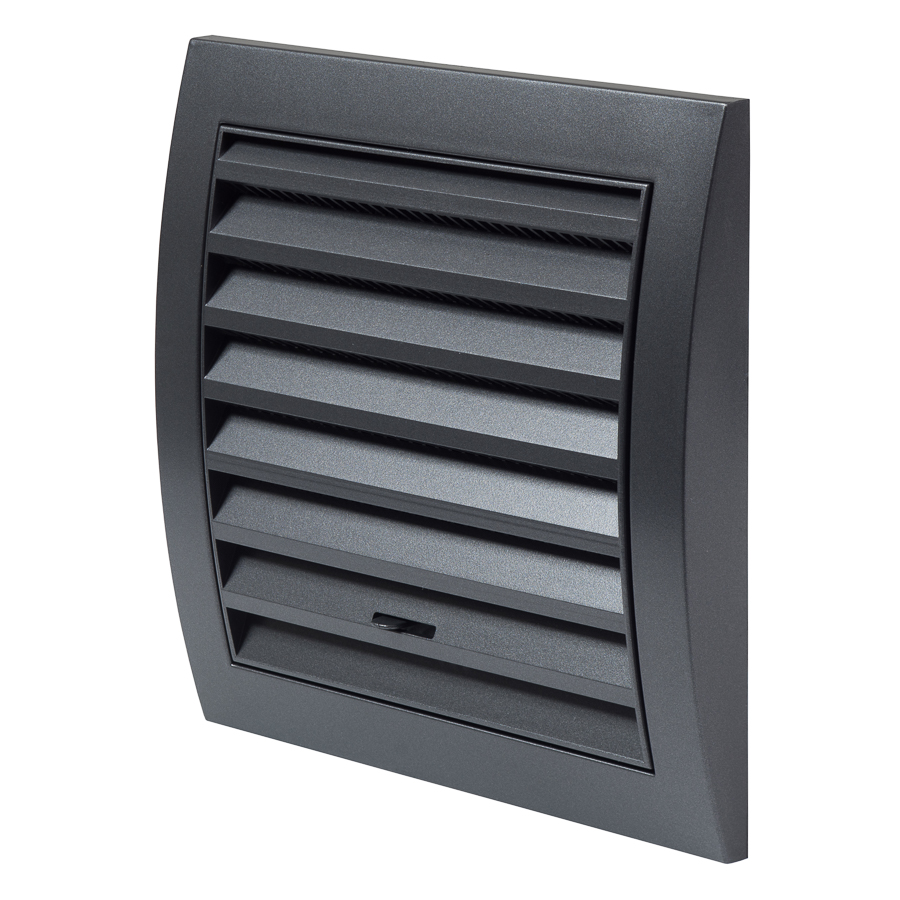

grille plastic, 148x153mm, adjustable, anthracite
4750492011584
153 mm 148 mm -
Adjustable
Insect screen
N10RG
N10RG

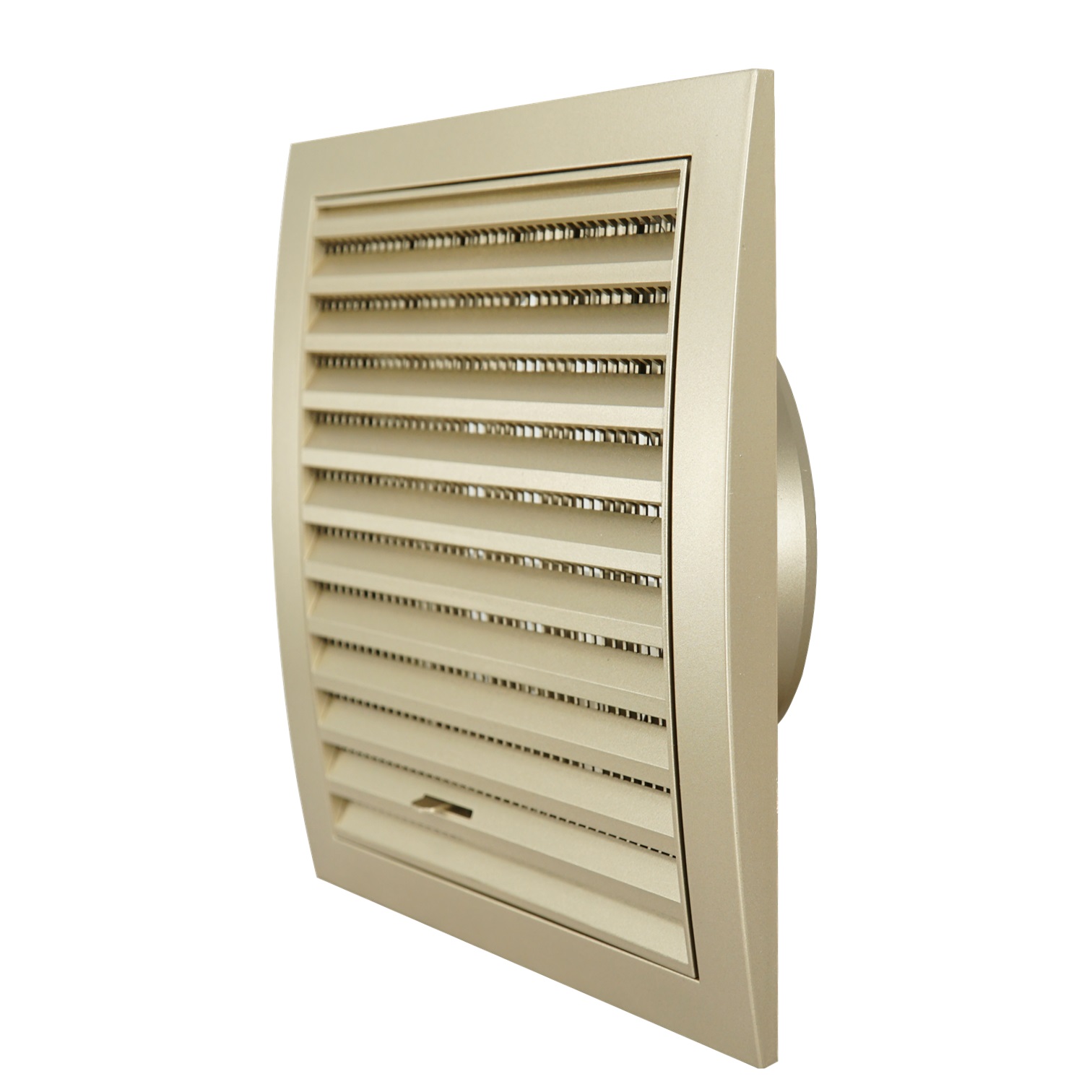

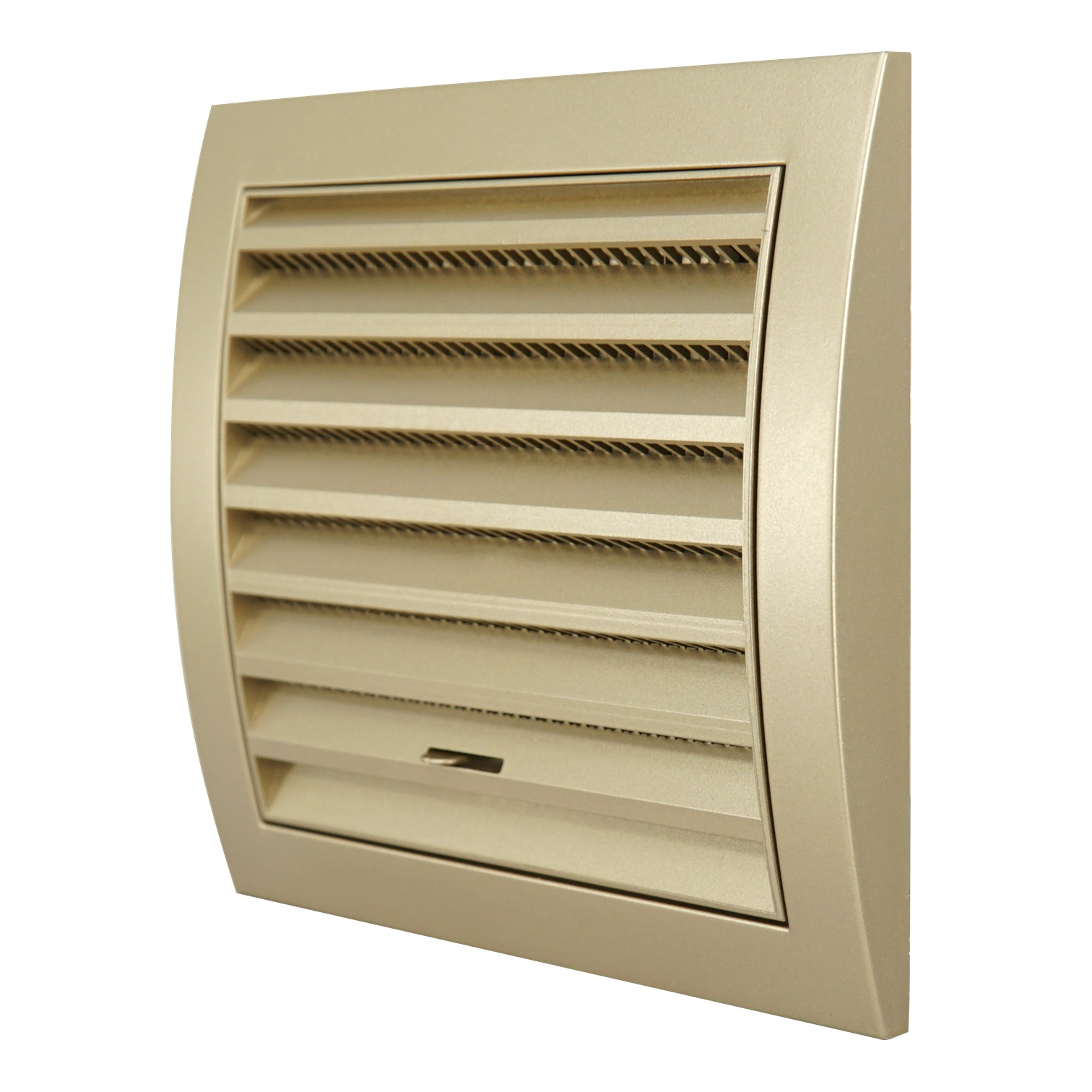

grille plastic, 148x153mm, adjustable, golden
4750492020197
153 mm 148 mm -
Adjustable
Insect screen
N10RS
N10RS

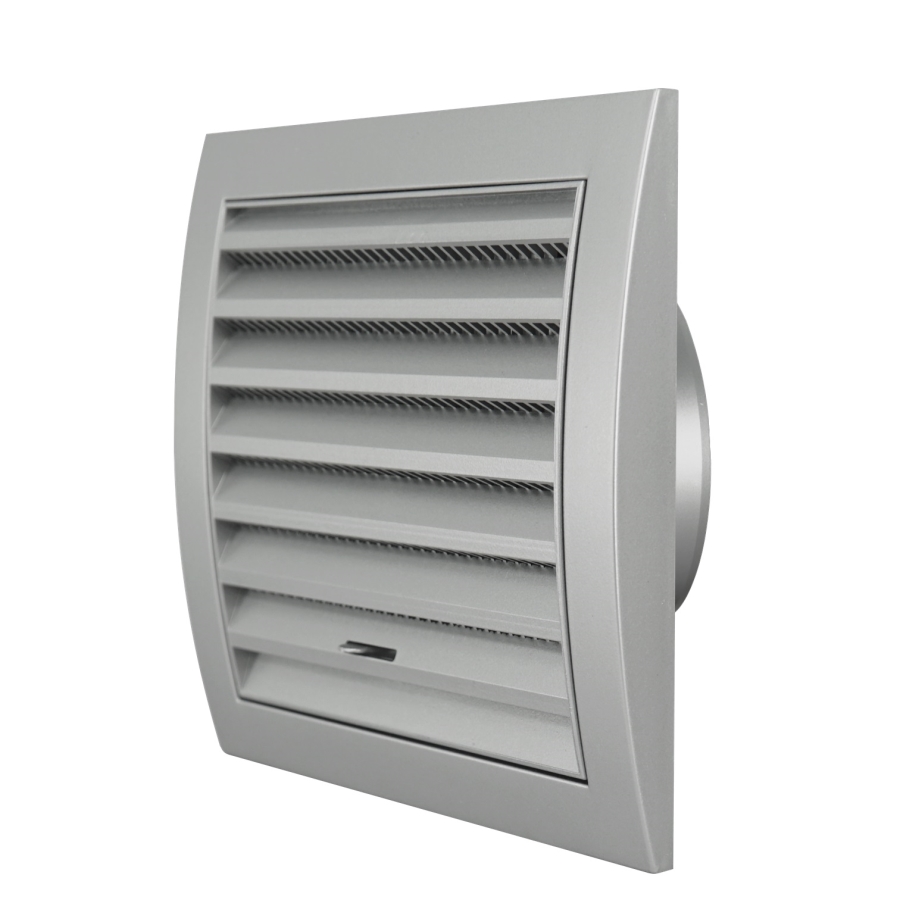

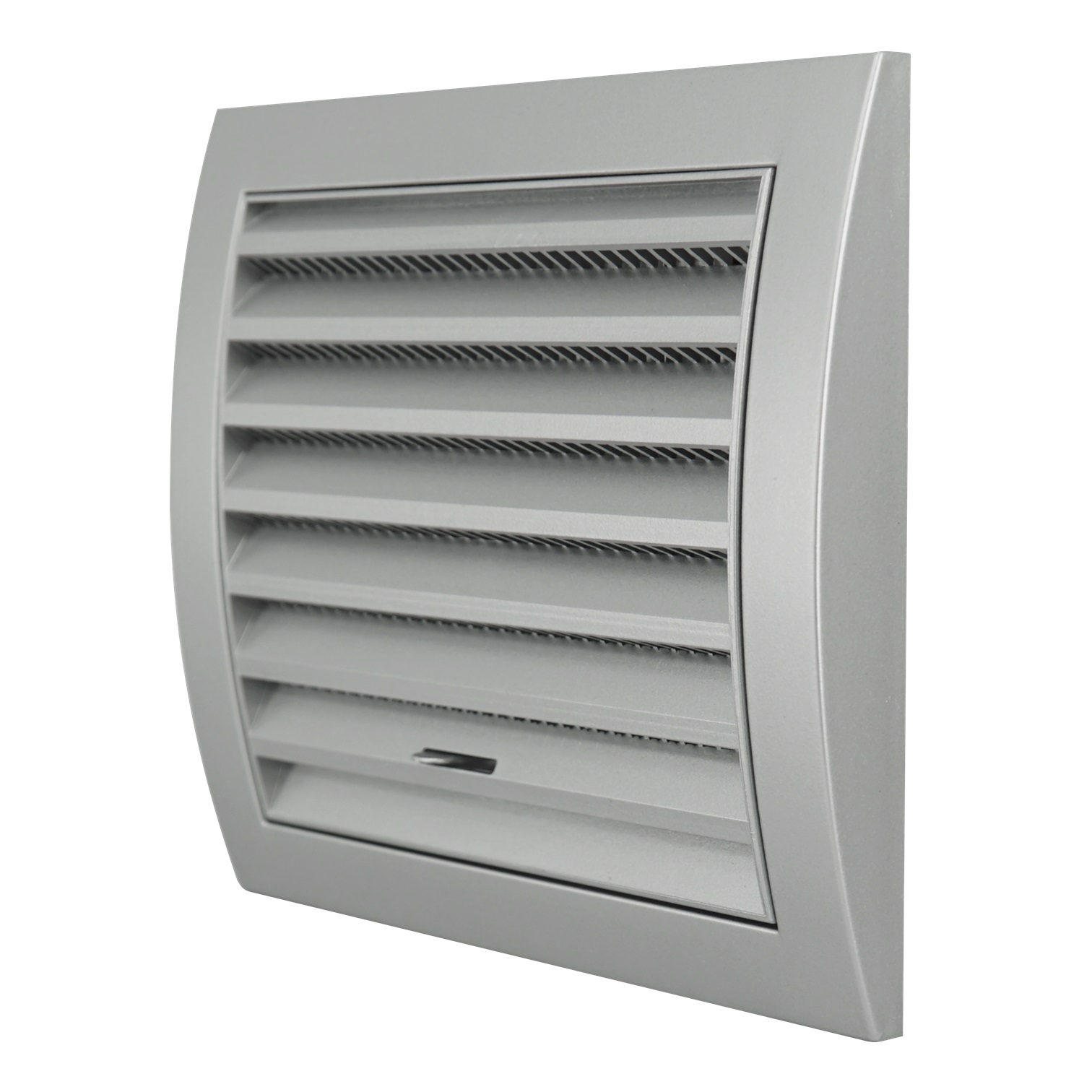

grille plastic, 148x153mm, adjustable, silver
4750492020159
153 mm 148 mm -
Adjustable
Insect screen
N10A
N10A

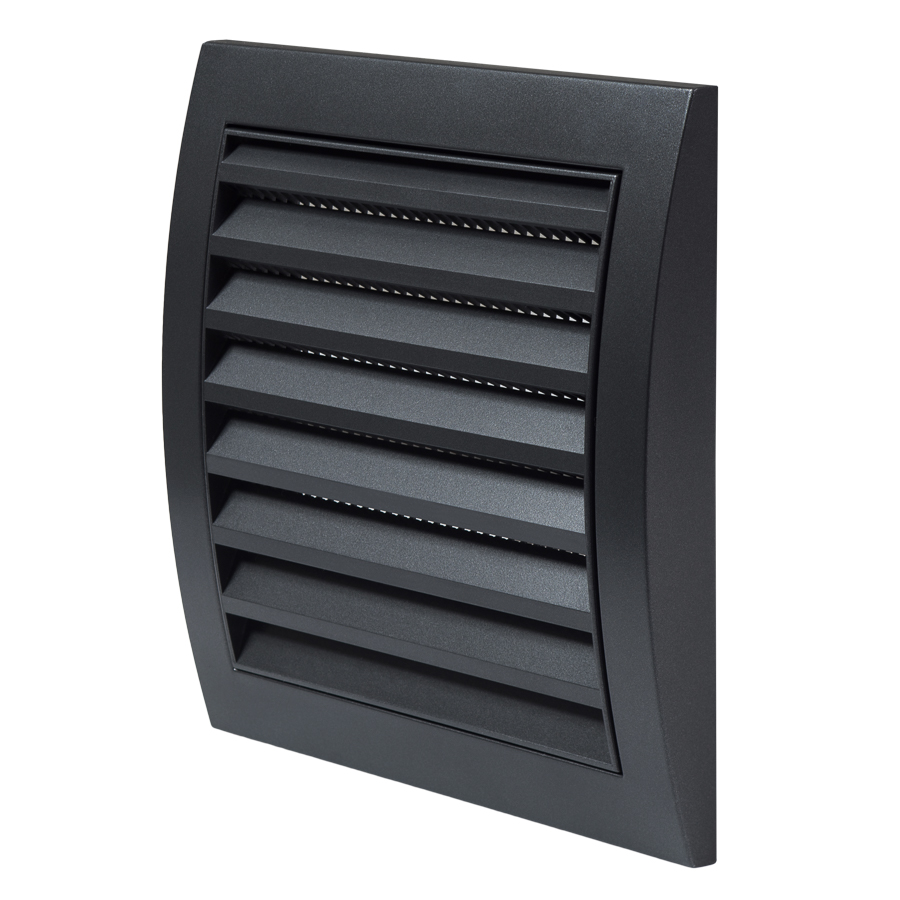

grille plastic, 148x153mm, anthracite
4750492011577
153 mm 148 mm -
Insect screen
ND10
ND10

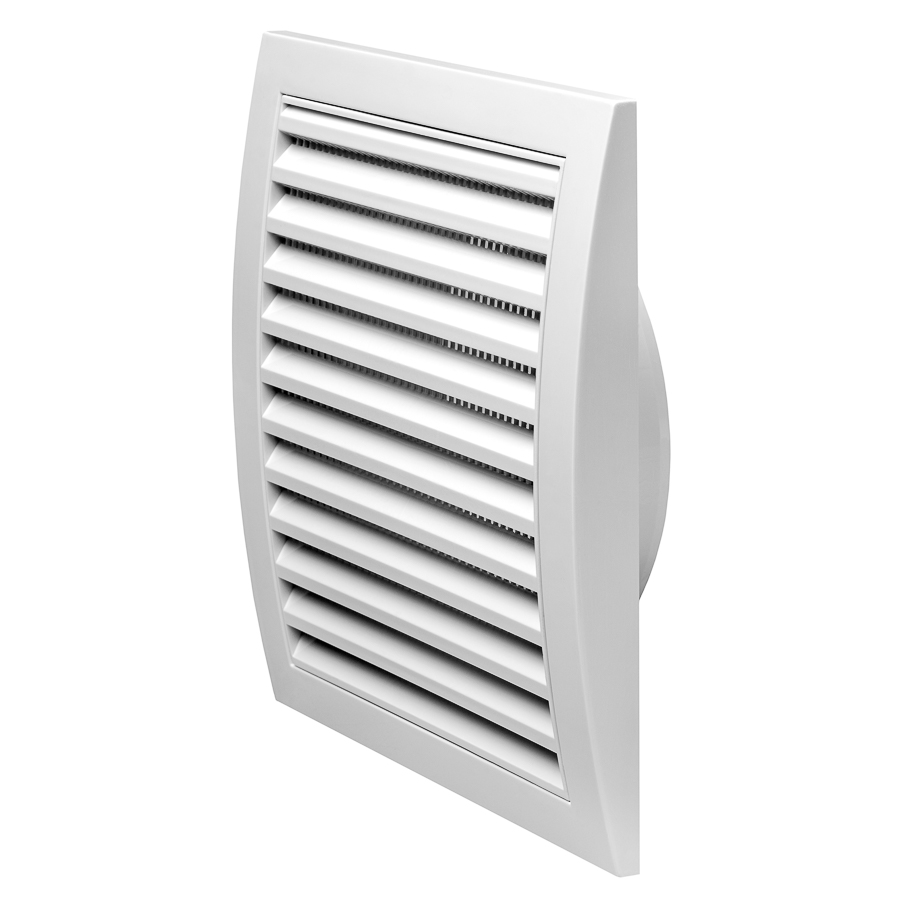

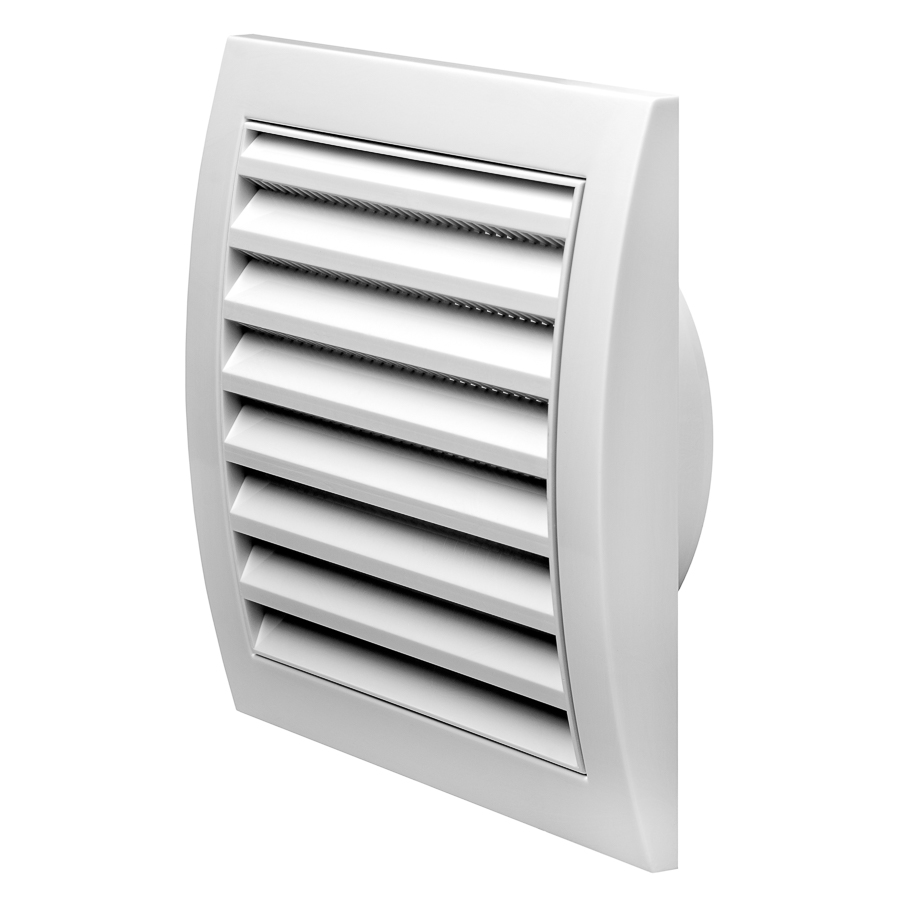

grille plastic, 148x153mm, Ø100mm
4750492000304
153 mm 148 mm Ø 100 mm
Insect screen
ND10R
ND10R

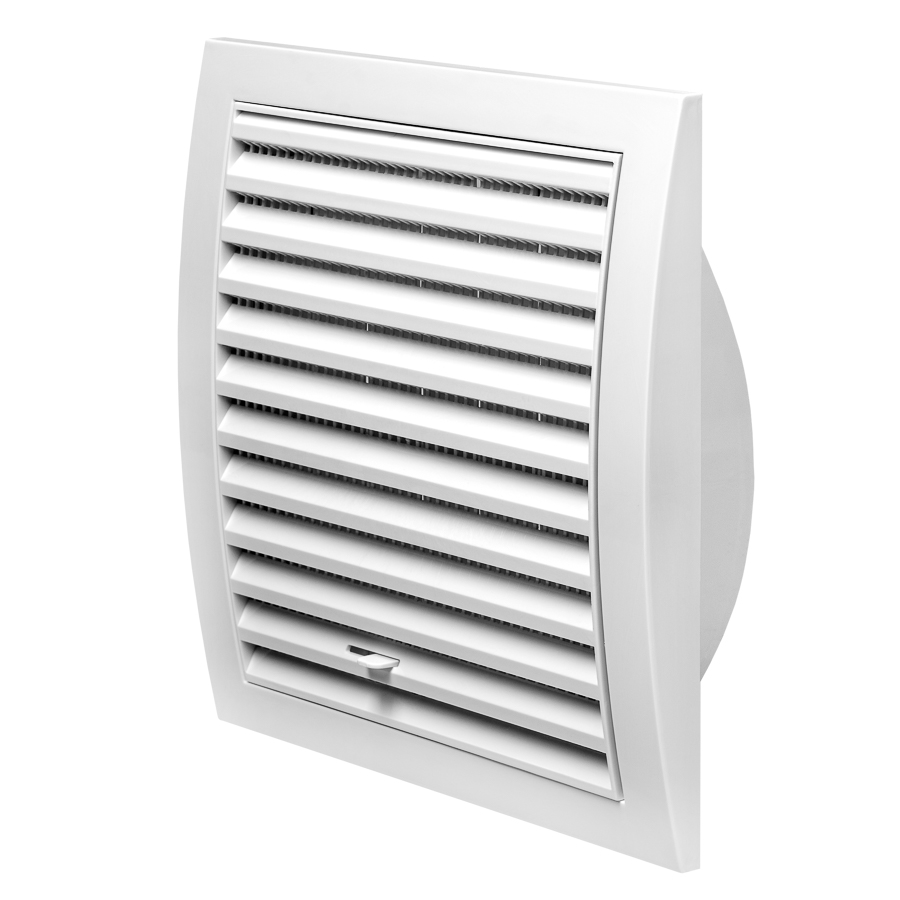

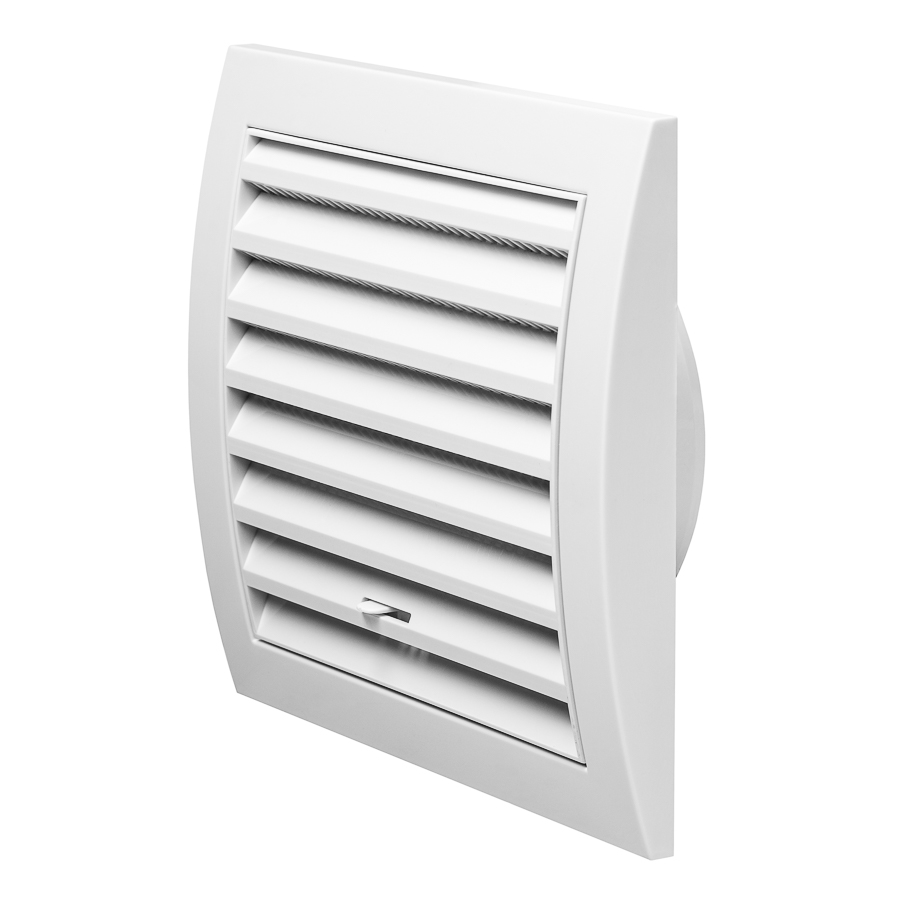

grille plastic, 148x153mm, Ø100mm, adjustable
4750492000311
153 mm 148 mm Ø 100 mm
Adjustable
Insect screen

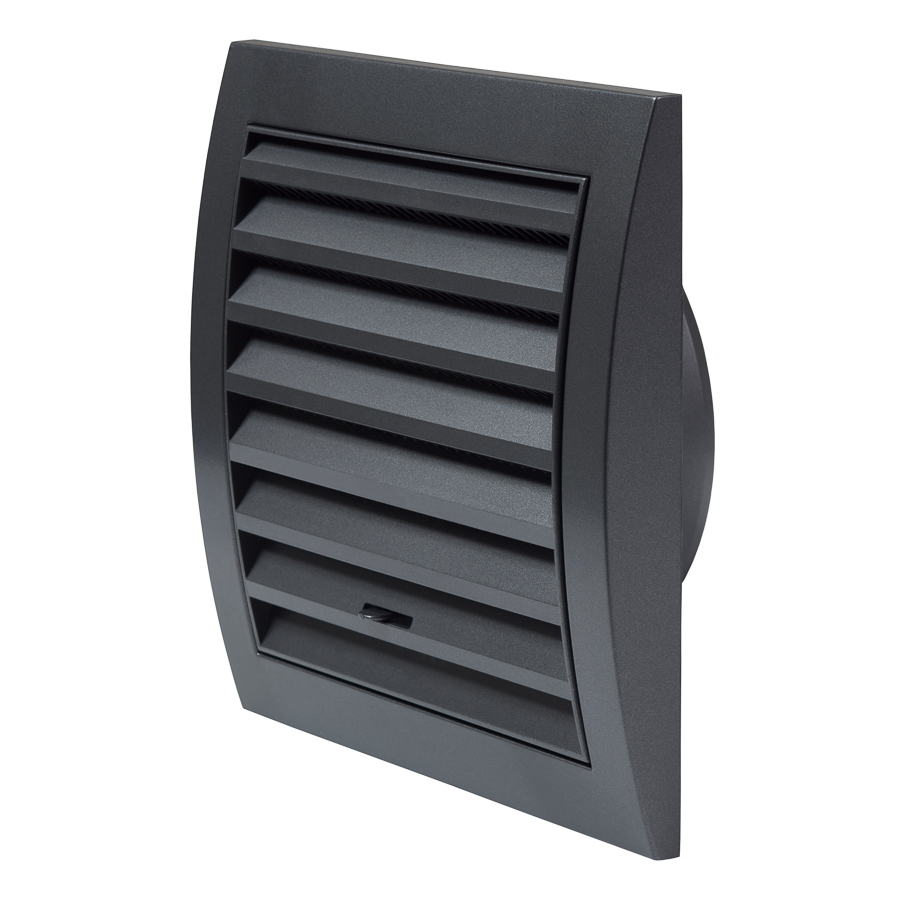

ND10RA
ND10RA

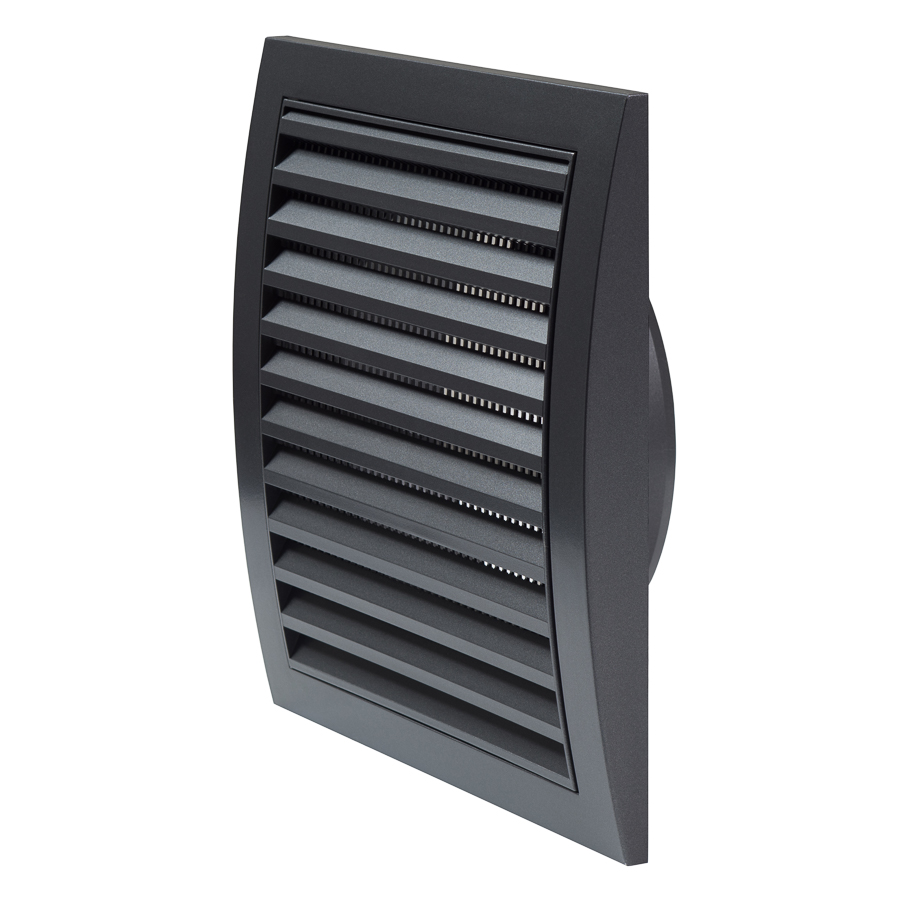

grille plastic, 148x153mm, Ø100mm, adjustable, anthracite
4750492011621
153 mm 148 mm Ø 100 mm
Adjustable
Insect screen
ND10RG
ND10RG

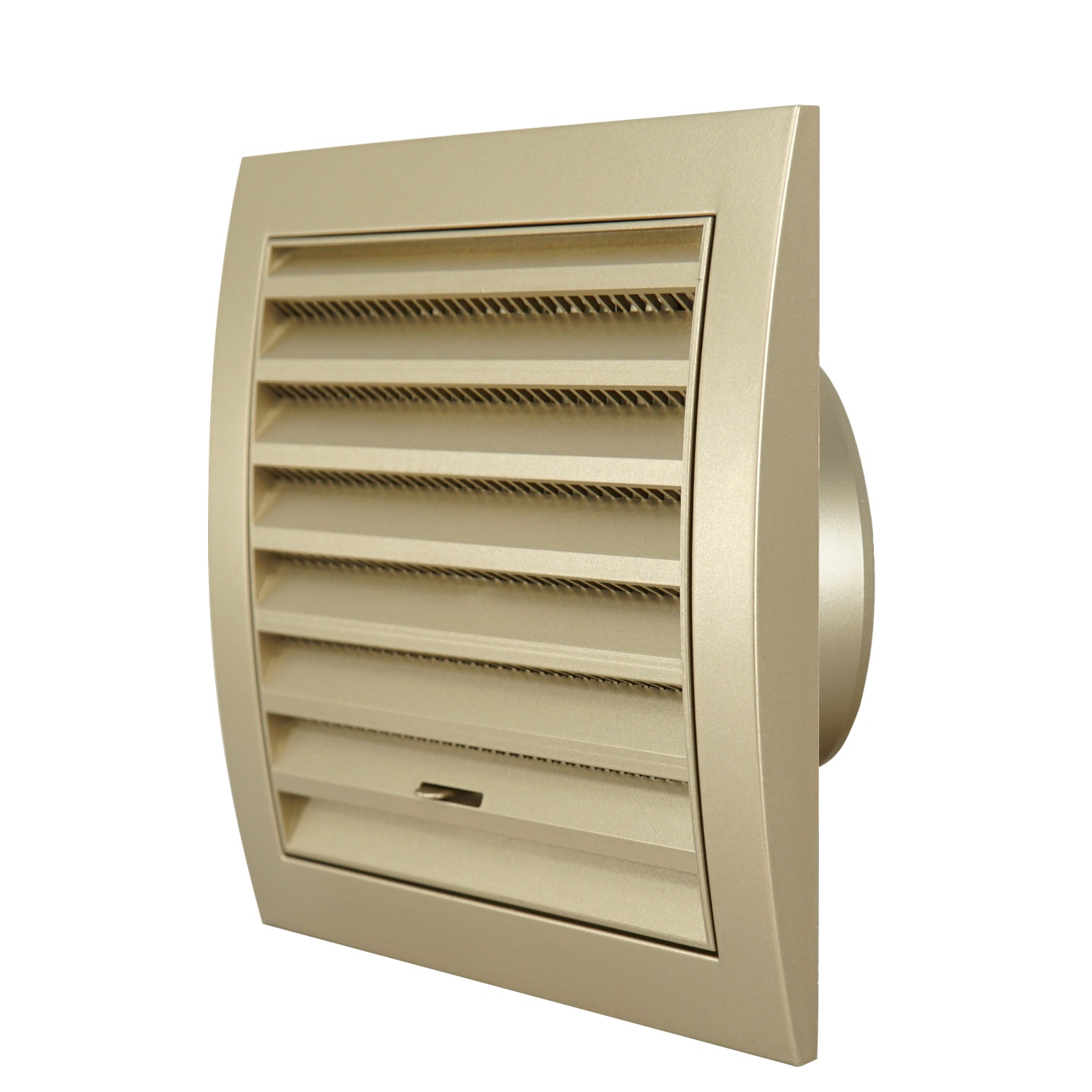

grille plastic, 148x153mm, Ø100mm, adjustable, golden
4750492020210
153 mm 148 mm Ø 100 mm
Adjustable
Insect screen

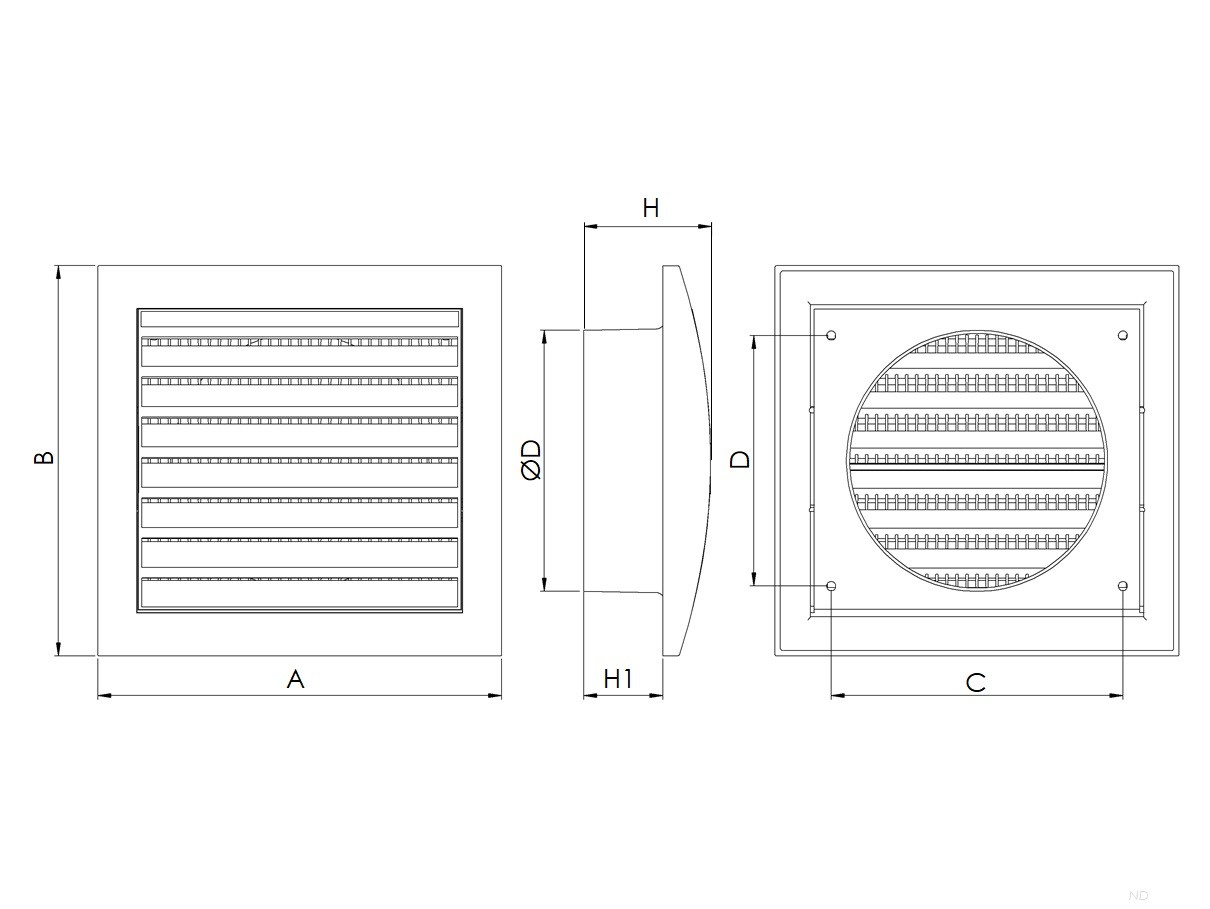

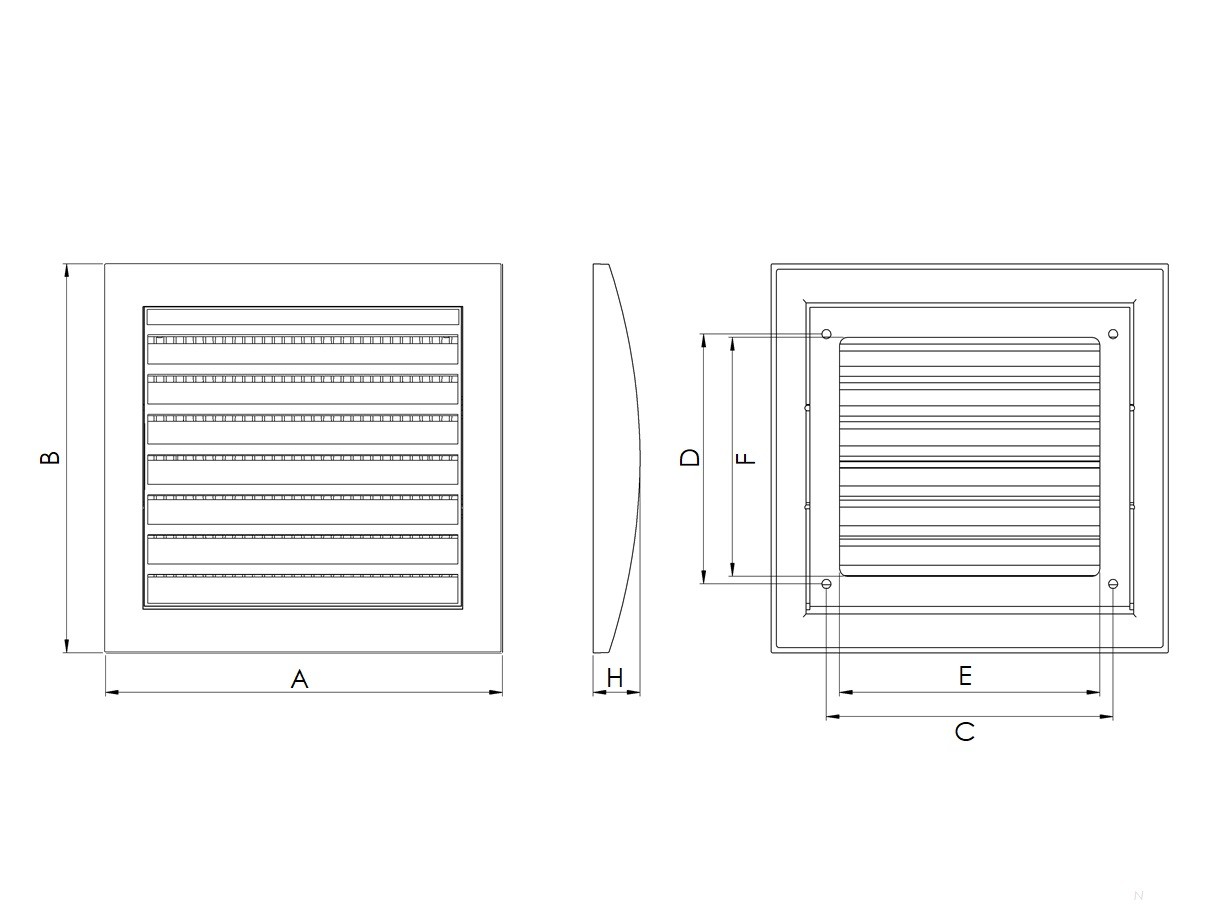

Type A
[mm]
B
[mm]
C
[mm]
D
[mm]
ØD
[mm]
E
[mm]
F
[mm]
H
[mm]
H1
[mm]
m
[kg]
N10 153 148 111 95 - 100 91 18 - 0,07
N12 190 190 140 140 - 137 132 18 - 0,11
ND10 153 148 111 95 99 - - 48 30 0,10
ND12 190 190 140 140 124 - - 48 30 0,14
ND15 190 190 140 140 149 - - 48 30 0,14



Modifications
NxxxR – adjustable
Nxxx – white colour
NxxxA – anthracite colour
NxxxS – silver colour
NxxxG – golden colour
* NxxxP – grey colour
* NxxxB – brown colour
* NxxxM – black colour
* NxxxY – beige colour



* Not included in the main range. Available only on special order with a certain minimum quantity.
