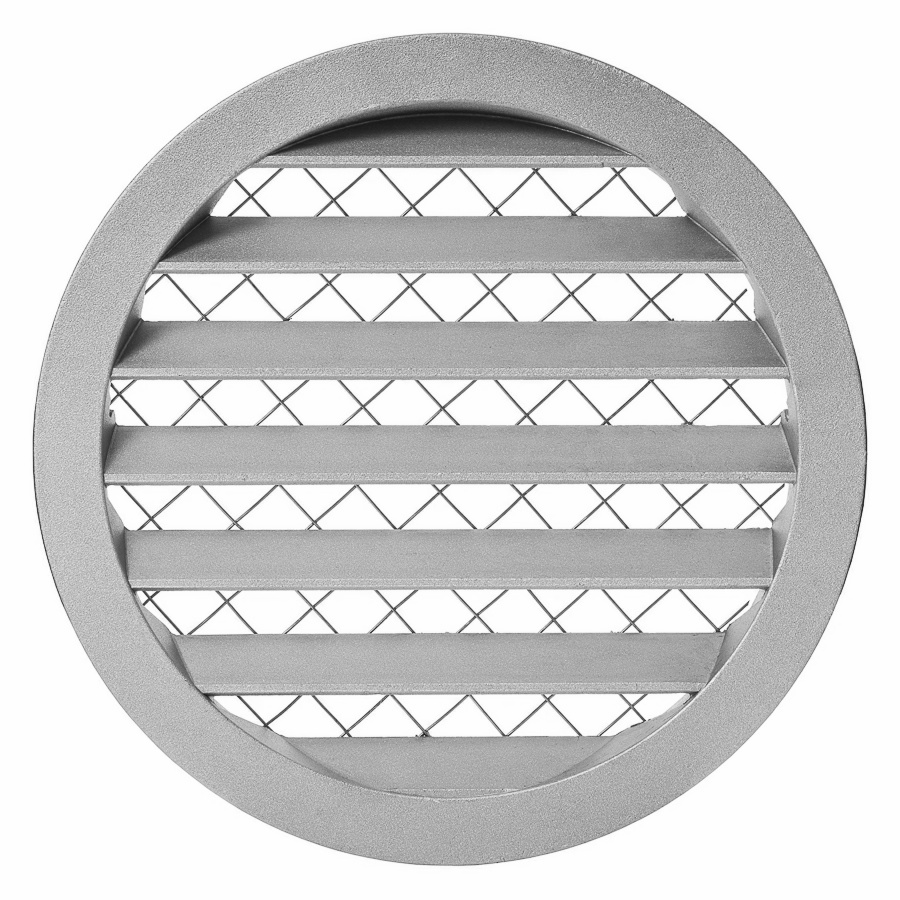

aluminium alloy grilles MRA
Construction:
- Aluminium alloy
- Mesh
Instalation:
- Screw fixing in any position.
Colours: metallic, beige, grey, black, brown
These grilles are made from high quality aluminum alloy and are resistant to weather conditions. Europlast MRA series grilles are available in different colors: from classic white to stylish black and even restrained beige. Ventilation grilles are available in a wide range of sizes, from Ø80mm up to Ø500mm in diameter
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
MRA100
|
grille aluminium alloy, Ø100mm
|
4750492104347
|
100 mm |
|
MRA100Y
|

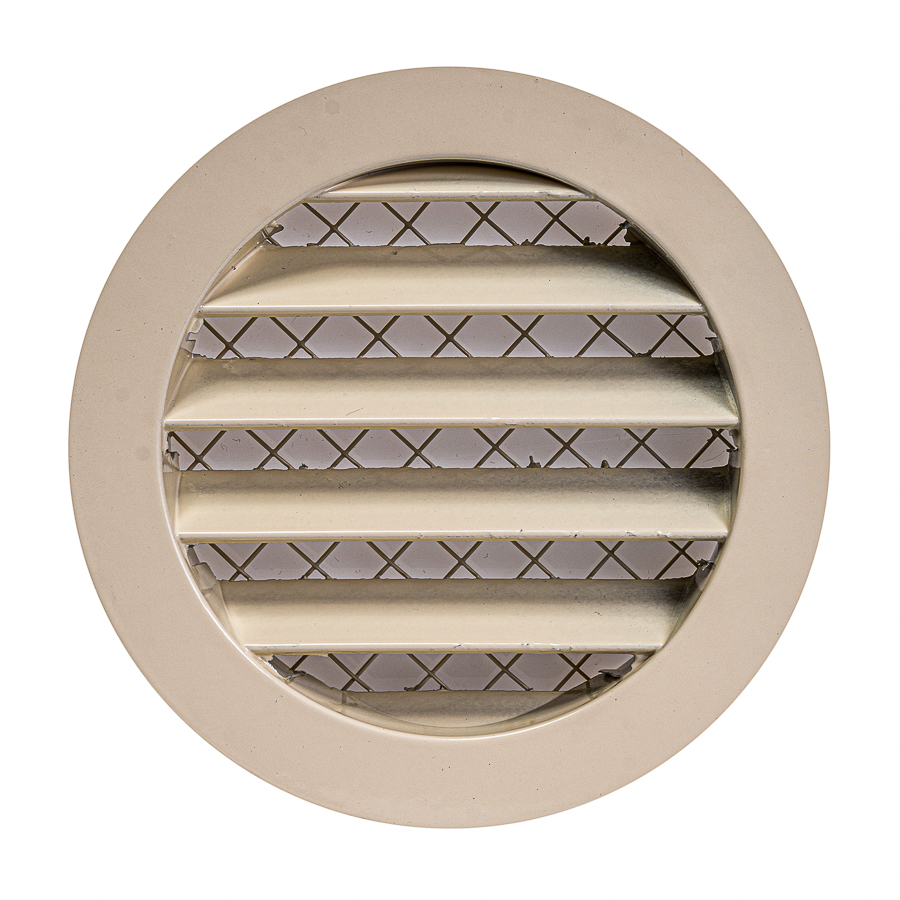

grille aluminium alloy, Ø100mm, beige
|
4750492014011
|
100 mm |
|
MRA100M
|

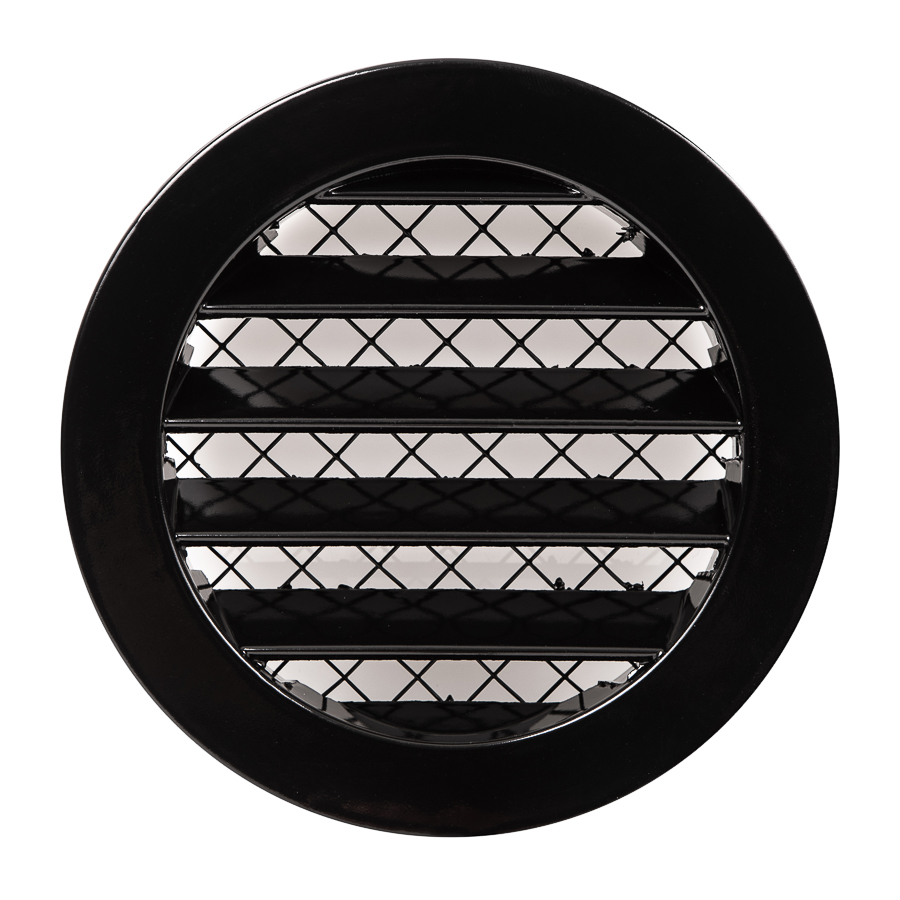

grille aluminium alloy, Ø100mm, black
|
4750492013991
|
100 mm |
|
MRA100B
|

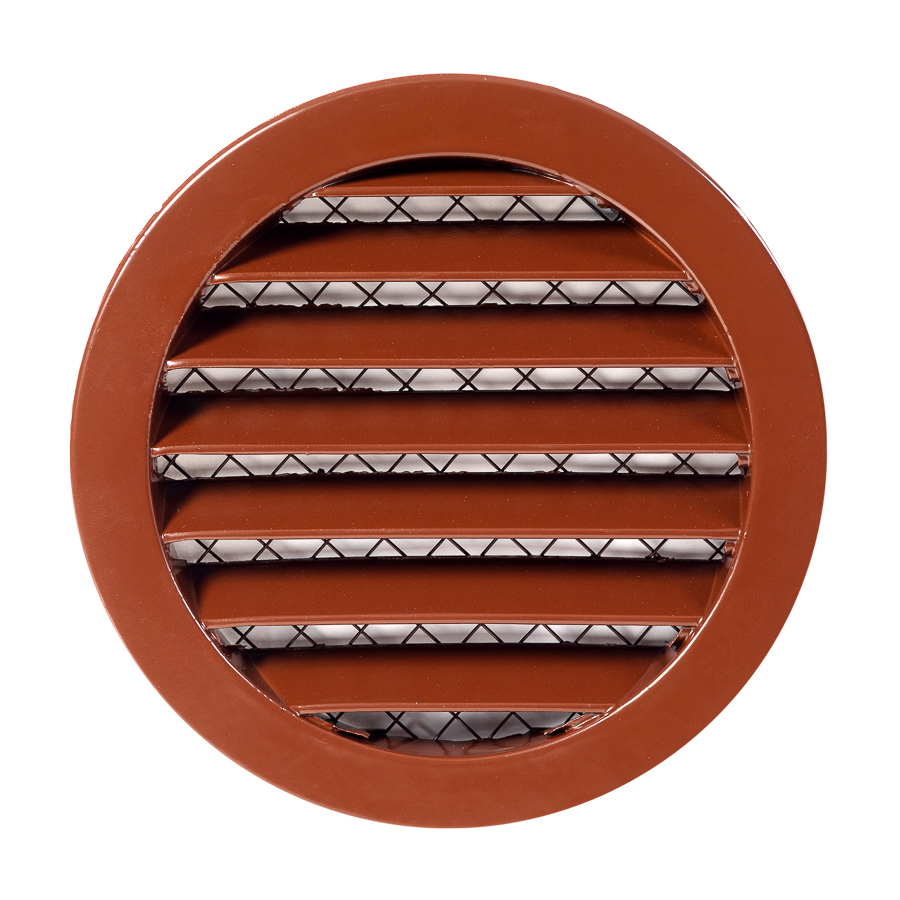

grille aluminium alloy, Ø100mm, brown
|
4750492017210
|
100 mm |
|
MRA100P
|

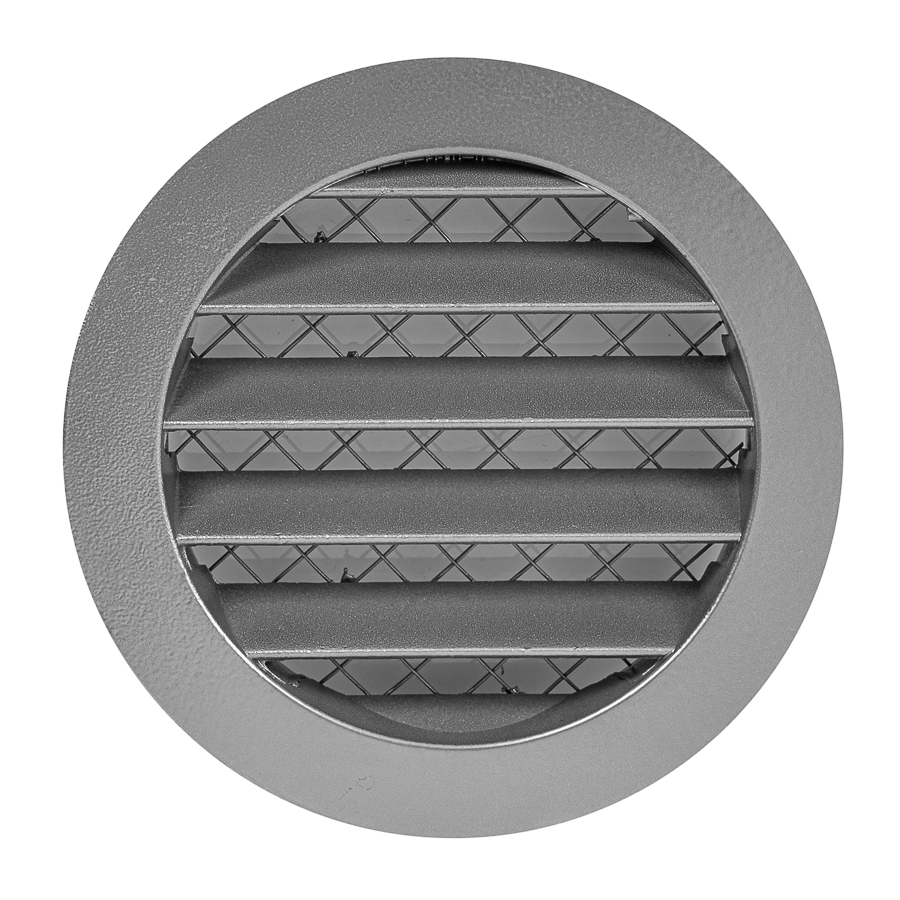

grille aluminium alloy, Ø100mm, grey
|
4750492014004
|
100 mm |
|
MRA100W
|

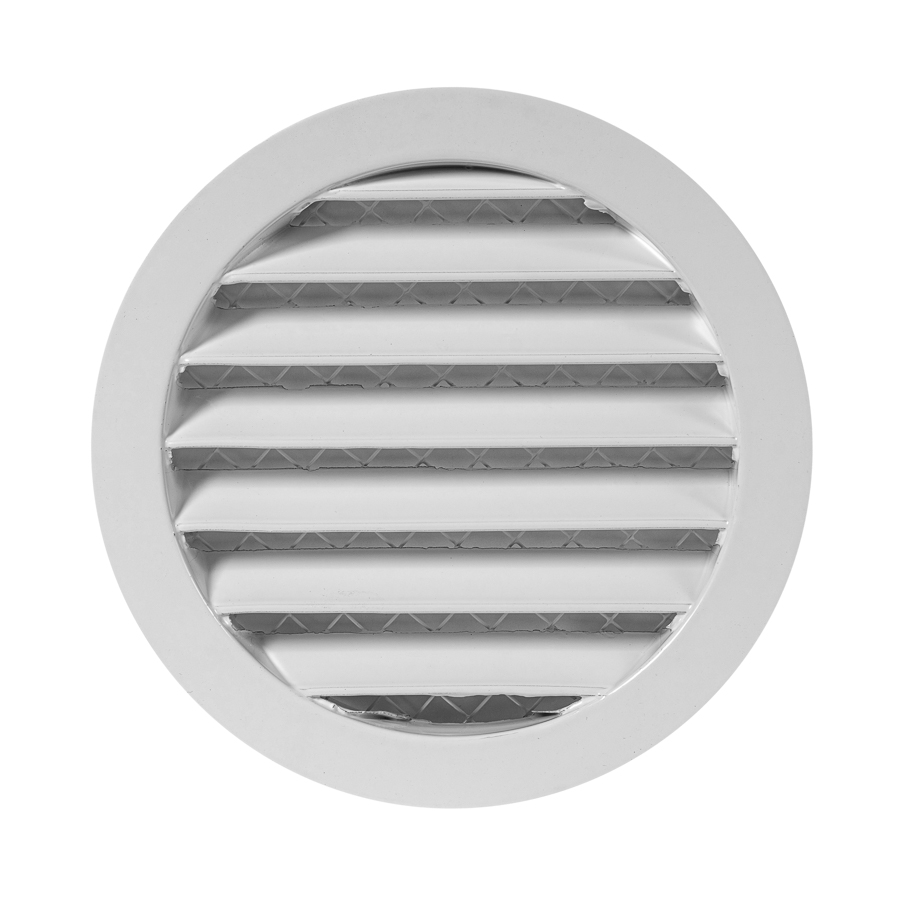

grille aluminium alloy, Ø100mm, white
|
4750492017272
|
100 mm |
|
MRA125
|
grille aluminium alloy, Ø125mm
|
4750492104354
|
125 mm |
|
MRA125Y
|

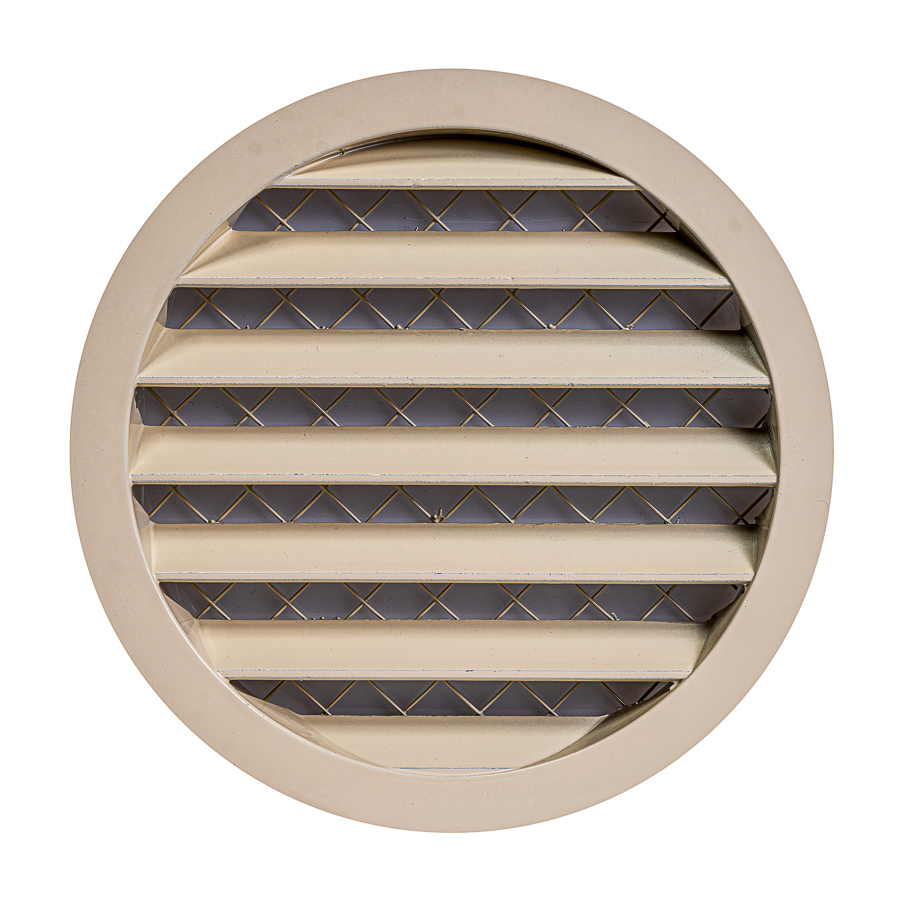

grille aluminium alloy, Ø125mm, beige
|
4750492014042
|
125 mm |
|
MRA125M
|
grille aluminium alloy, Ø125mm, black
|
4750492014028
|
125 mm |
|
MRA125B
|
grille aluminium alloy, Ø125mm, brown
|
4750492017227
|
125 mm |
| Modifications |
| MRAxxxx – 10x10mm mesh |
| MRAxxxx-1 – 2x2mm mesh |
| MRAxxxxY – beige RAL 1015 polymer coating, 10x10mm mesh |
| MRAxxxxP – grey RAL9006 polymer coating , 10x10mm mesh |

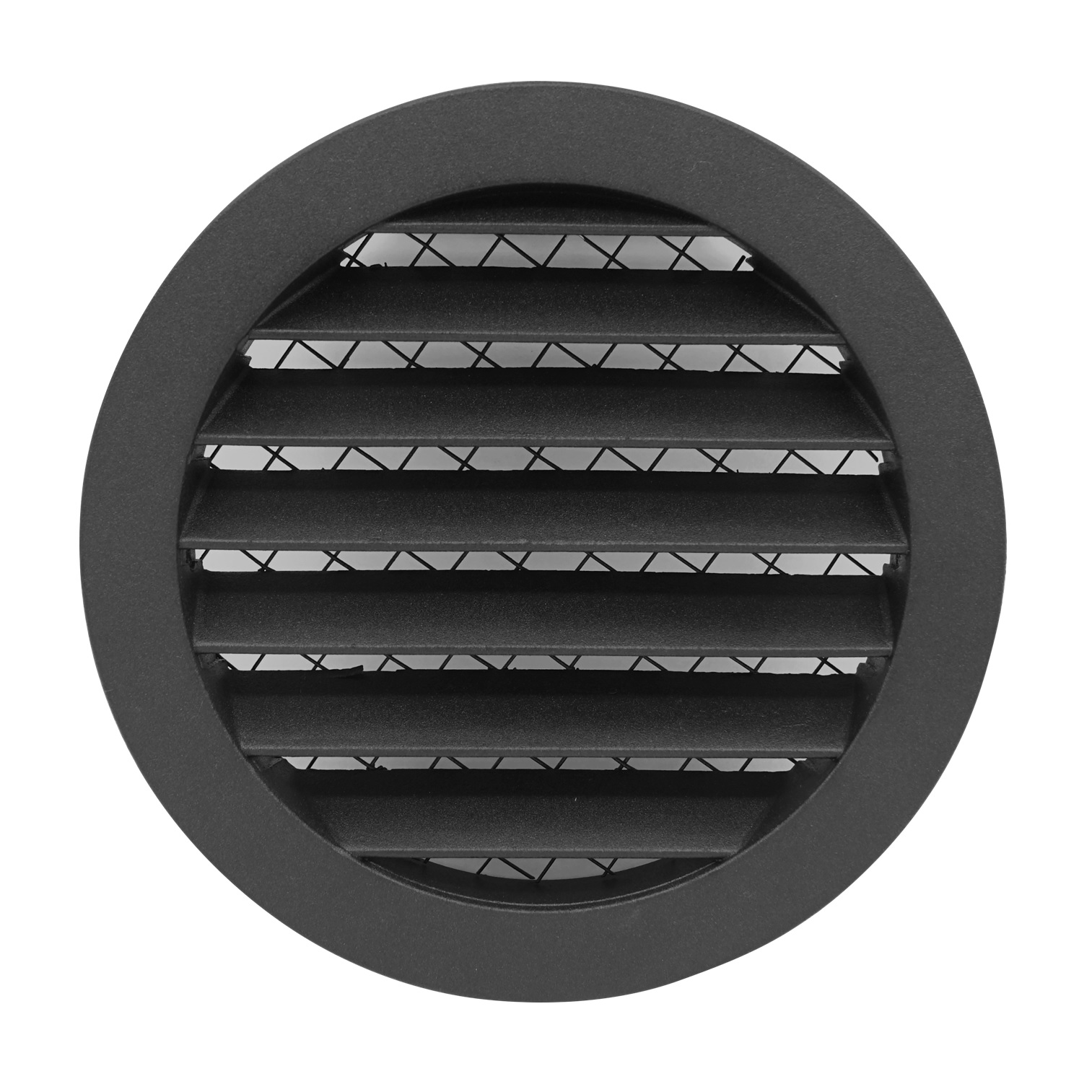

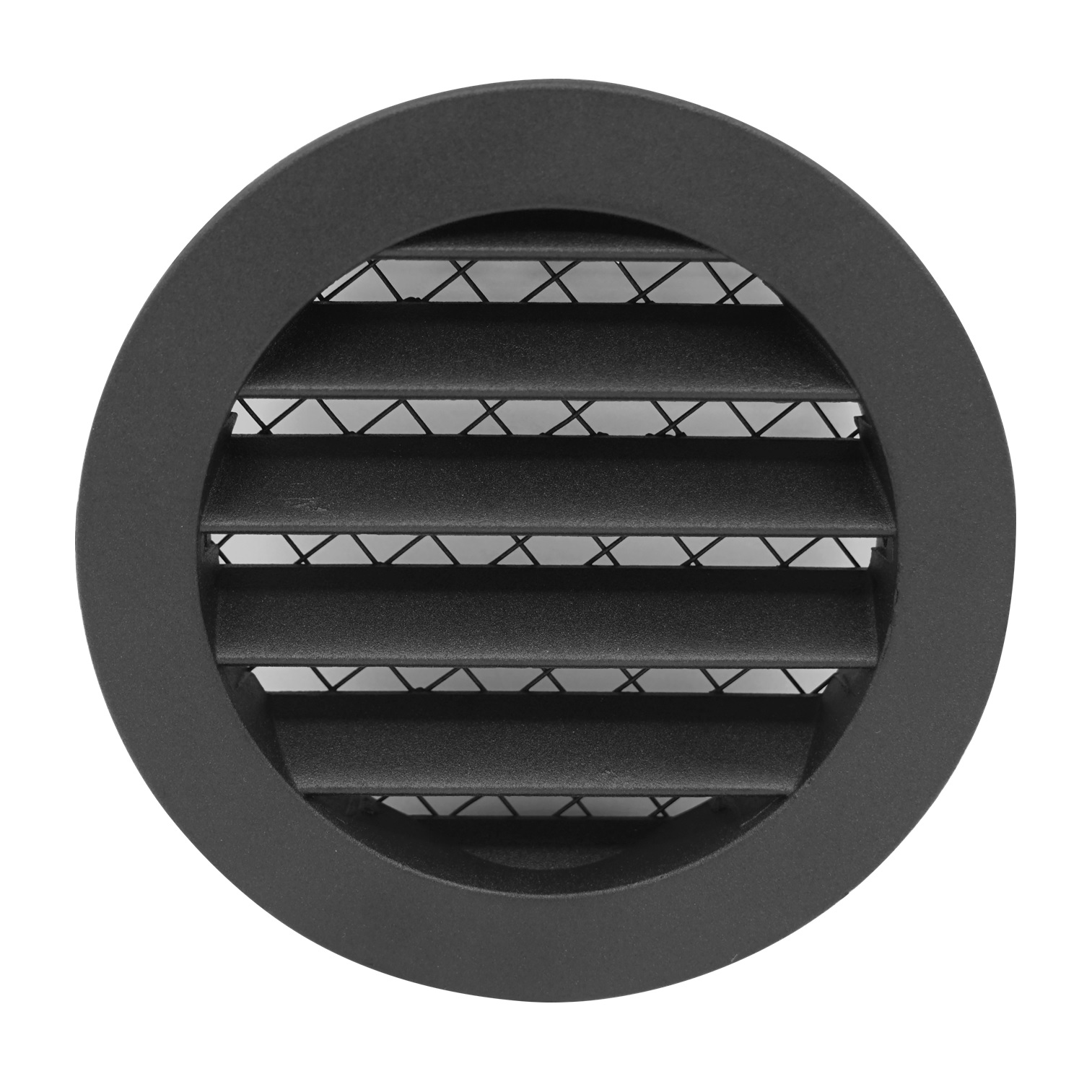

| MRAxxxxM – black RAL9005 polymer coating , 10x10mm mesh |
| MRAxxxxB – brown RAL8016 polymer coating, 10x10mm mesh |
| MRAxxxxW – white RAL9016 polymer coating, 10x10mm mesh |

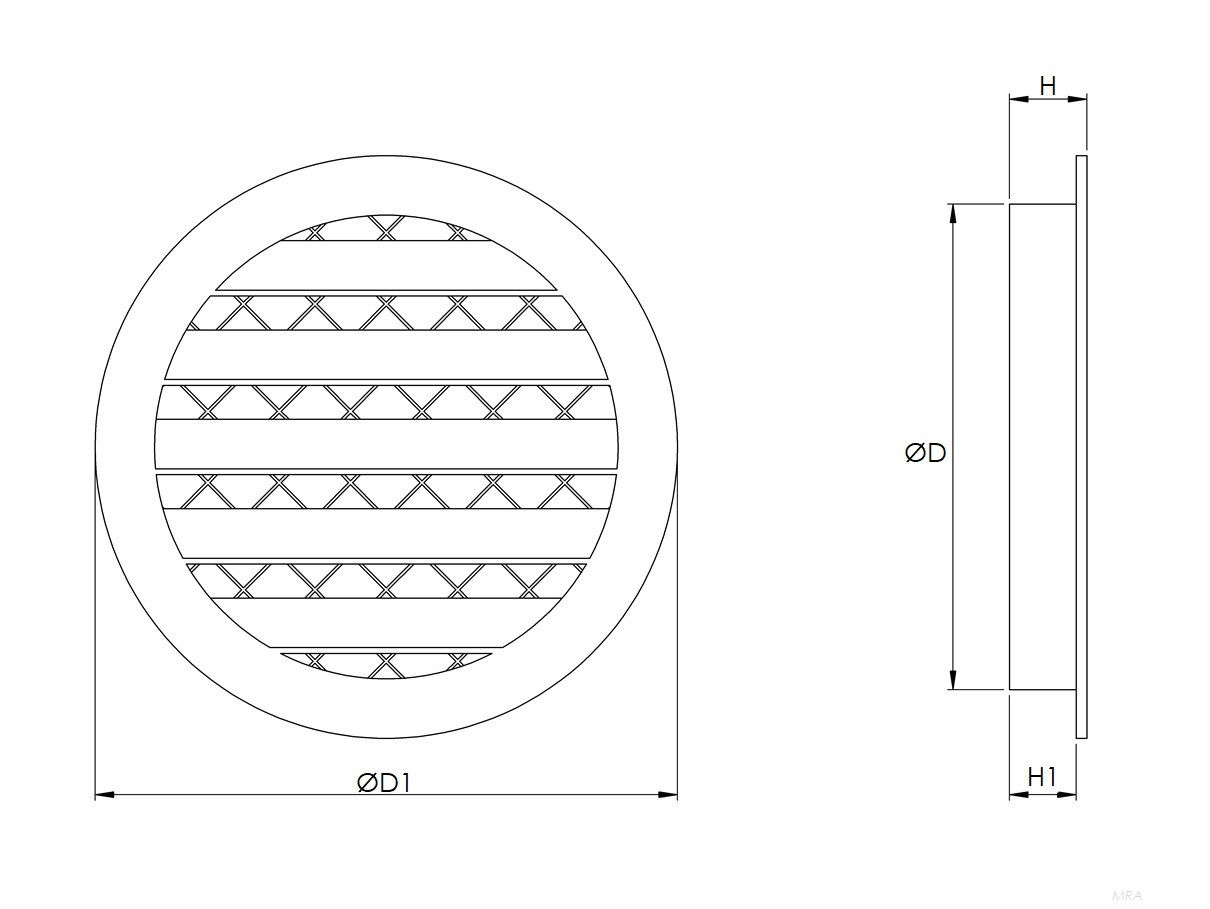

| Type |
D1 (mm) |
D (mm) |
H (mm) |
Air pass (m2) |
m (kg) |
| MRA80 | 80 | 96 | 15 | 0,0028 | 0,10 |
| MRA100 | 100 | 125 | 20 | 0,0044 | 0,15 |
| MRA125 | 125 | 150 | 20 | 0,0068 | 0,18 |
| MRA160 | 160 | 185 | 20 | 0,0120 | 0,30 |
| MRA200 | 200 | 225 | 20 | 0,0200 | 0,40 |
| MRA250 | 250 | 275 | 20 | 0,0310 | 0,90 |
| MRA315 | 315 | 350 | 20 | 0,0470 | 1,6 |
| MRA400 | 400 | 440 | 40 | 0,0750 | 3,0 |
| MRA500 | 500 | 540 | 40 | 0,1200 | 4,4 |
