kits, supply valves with sound insulation SPK2

Construction:

  • Diffuser plastic
  • Thermally insulated disk
  • Washable filter
  • Circular duct plastic
  • Sound insulation polyurethane foam
  • Variable air flow controler
  • External ventilation grille, moulded of aluminium
  • Equipped with insect screen



Instalation:

  • Through wall mounting, glue or screw fixing.

Colors: White

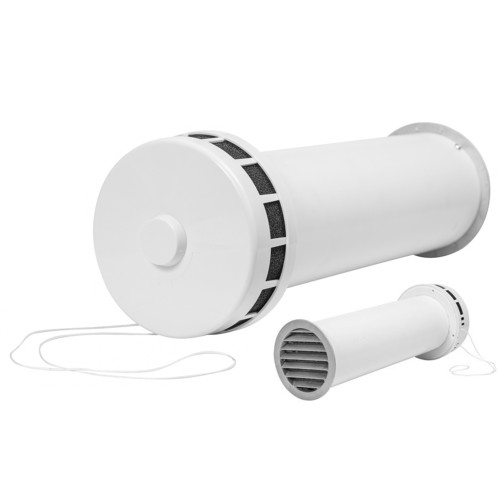

EUROPLAST SPK2 - a kit that provides natural air inflow or outflow from the room.

The system is designed for installation in all types of premises. It is recommended to install next to a heat source or close to the ceiling. The system ensures that warm air is mixed with the air entering the room, guaranteeing maximum comfort.

The SPK2 kit is equipped with a valve that can be adjusted using a drawstring or rotating a button. The SPK2 system is equipped with sound insulation that reduces noise levels in the room, and is equipped with a standard filter that provides protection against dust and insects. Elements are easy to dissamble and clean

Functions

Adjustable

Adjustable

The product is equipped with a manual regulator that allows you to regulate the air flow volume.

Air filter

Air filter

The device is equipped with a filter that provides protection against dust and insects.

Length

Connection

Functions

Colour

Sort by

Article Description EAN Length Connection Functions
SPK2-100dB
SPK2-100dB
wall plastic kit with sound insulation, Ø100mm
4750492010808
400 mm Ø 100 mm
Adjustable
Air filter
SPK2-125dB
SPK2-125dB
wall plastic kit with sound insulation, Ø125mm
4750492010815
400 mm Ø 125 mm
Adjustable
Air filter

Type A
[mm]
B
[mm]
C
[mm]
ØD
[mm]
Ød
[mm]
ØE
[mm]
SPK2-100dB 175 76 400 103 70 124
SPK2-125dB 175 76 400 128 95 151





Pressure drop

Sound attenuation (dB) at frequency (Hz)


Diagrams shows sound reduction with fully opened diffuser and 300mm wall.
Calculating on 10m2
