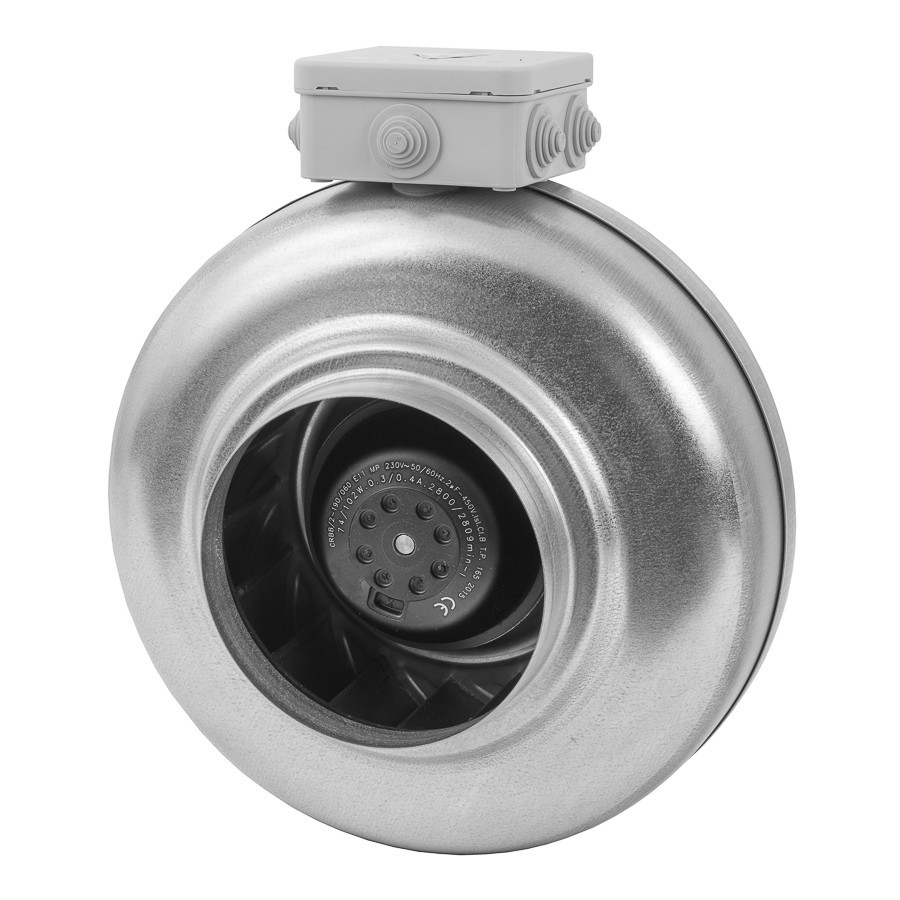

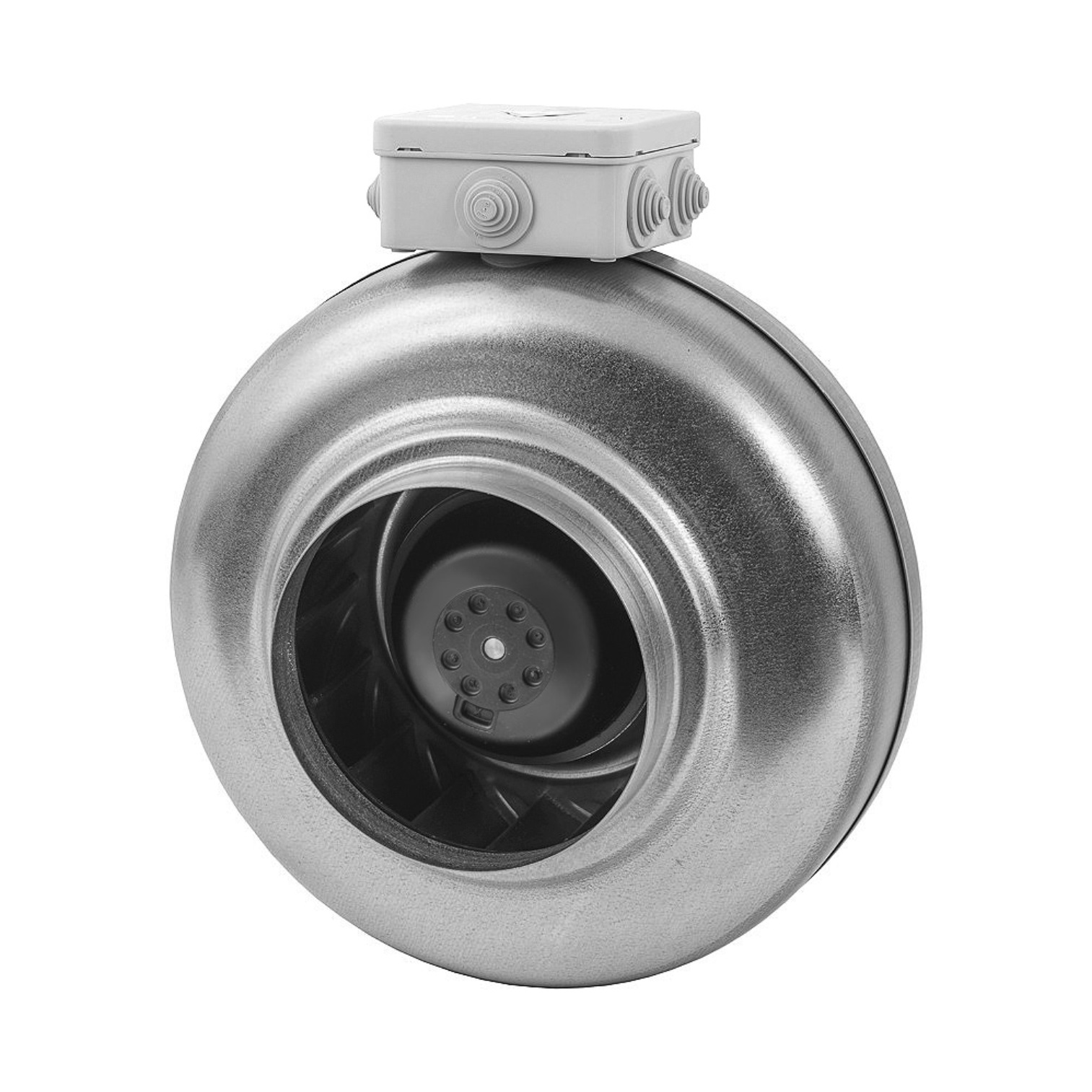

high pressure duct fans AKM
Construction:
- Casing made of galvanized steel
- Fan: centrifugal impeller and external rotor motor
- Motor protection class: IP44
- Insulation class: B
- Motor protection with built-in thermal-contact
- Ball bearing
- Terminal box protection class: IP55
Installation:
- Connectable to all types of round air ducts: sheet metal, flexible aluminum, plastic

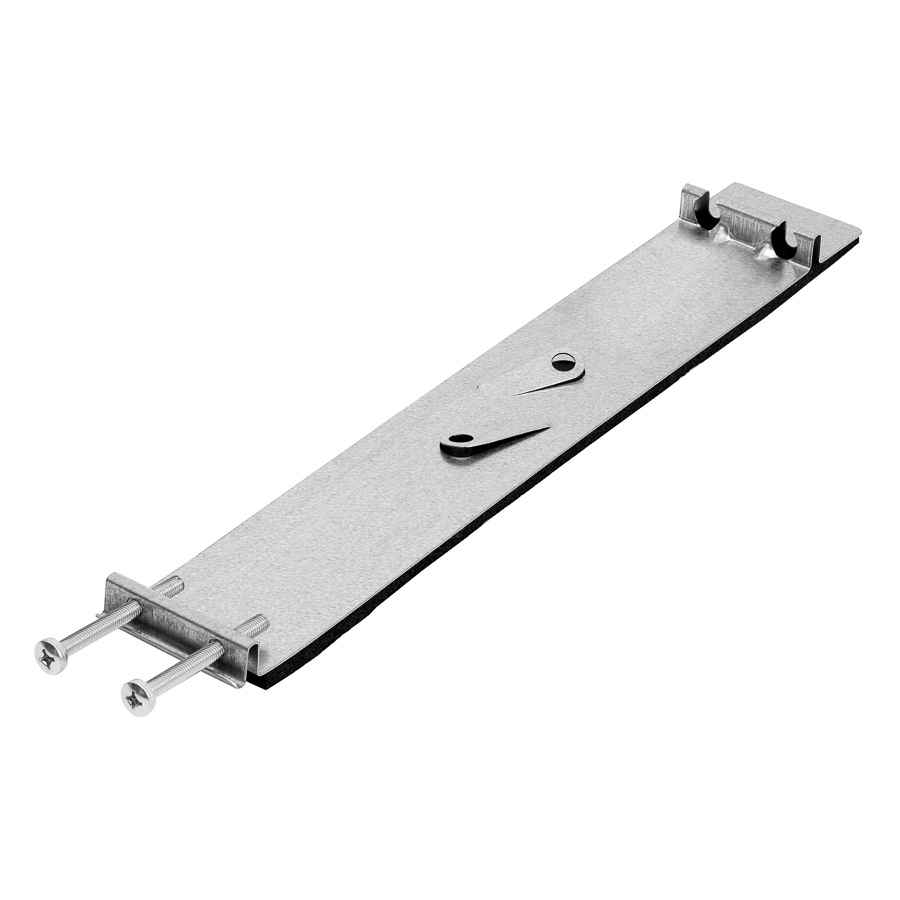

- Screw fixing in multiply positions, mounting bracket is included
- Location: indoors
- Not suitable for polluted air or volatile and explosive gases
Power supply: 220-240V / 50Hz single phase
Temperature range: -40°C ... +40°C
Sizes: Ø100-315 mm
Speed adjustment: Possible
EUROPLAST centrifugal duct fans are used in forced air supply and exhaust systems. They can be used for ventilation in commercial, office, and other premises. They are suitable for installation in various positions. The built-in centrifugal duct fans can operate in ambient temperatures from -40ºC to +40ºC. The fan casing is made of galvanized steel.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|

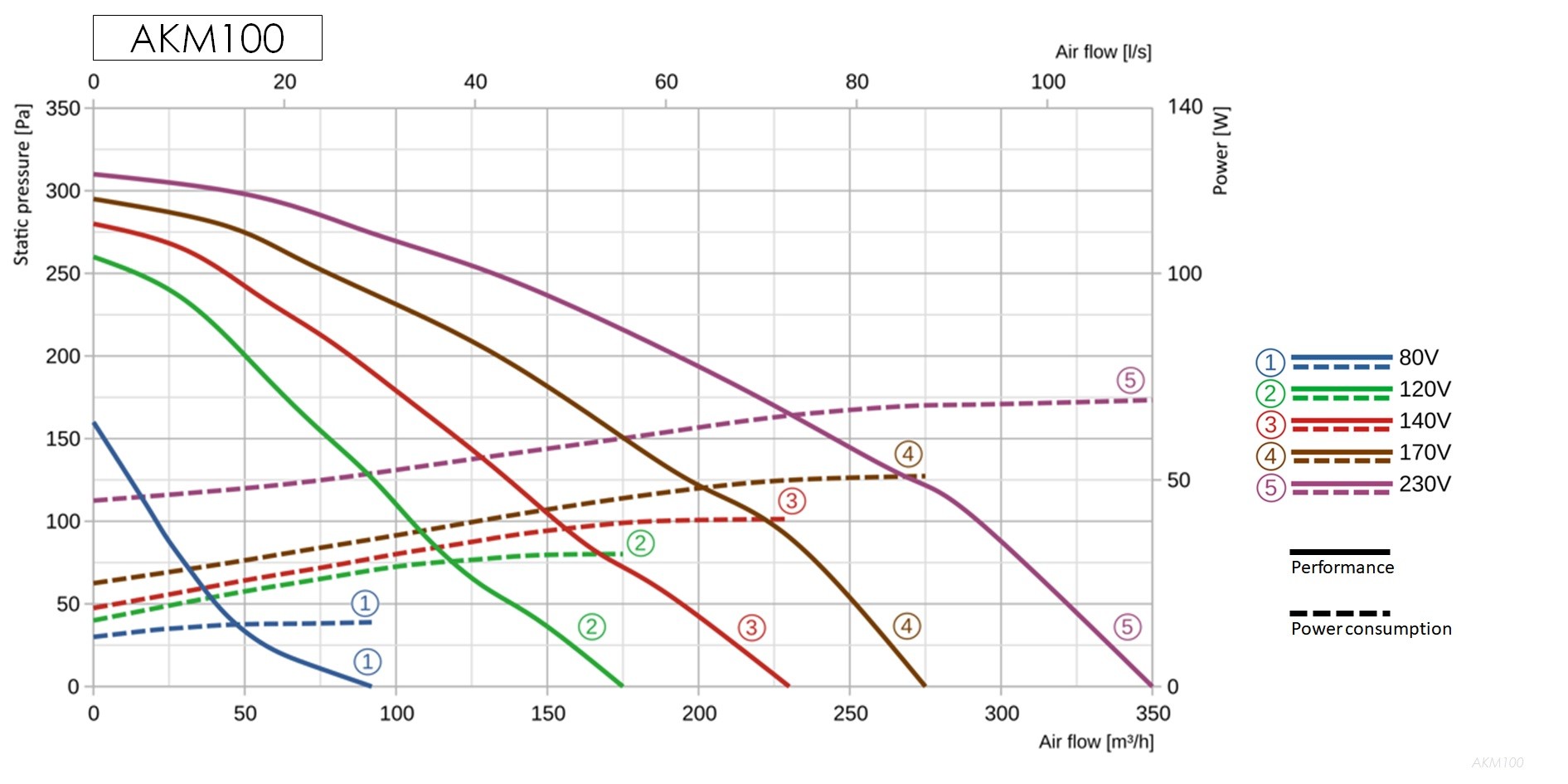

AKM100
|
high pressure duct fan, Ø100mm, metal
|
4750492217467
|
100 mm |
|

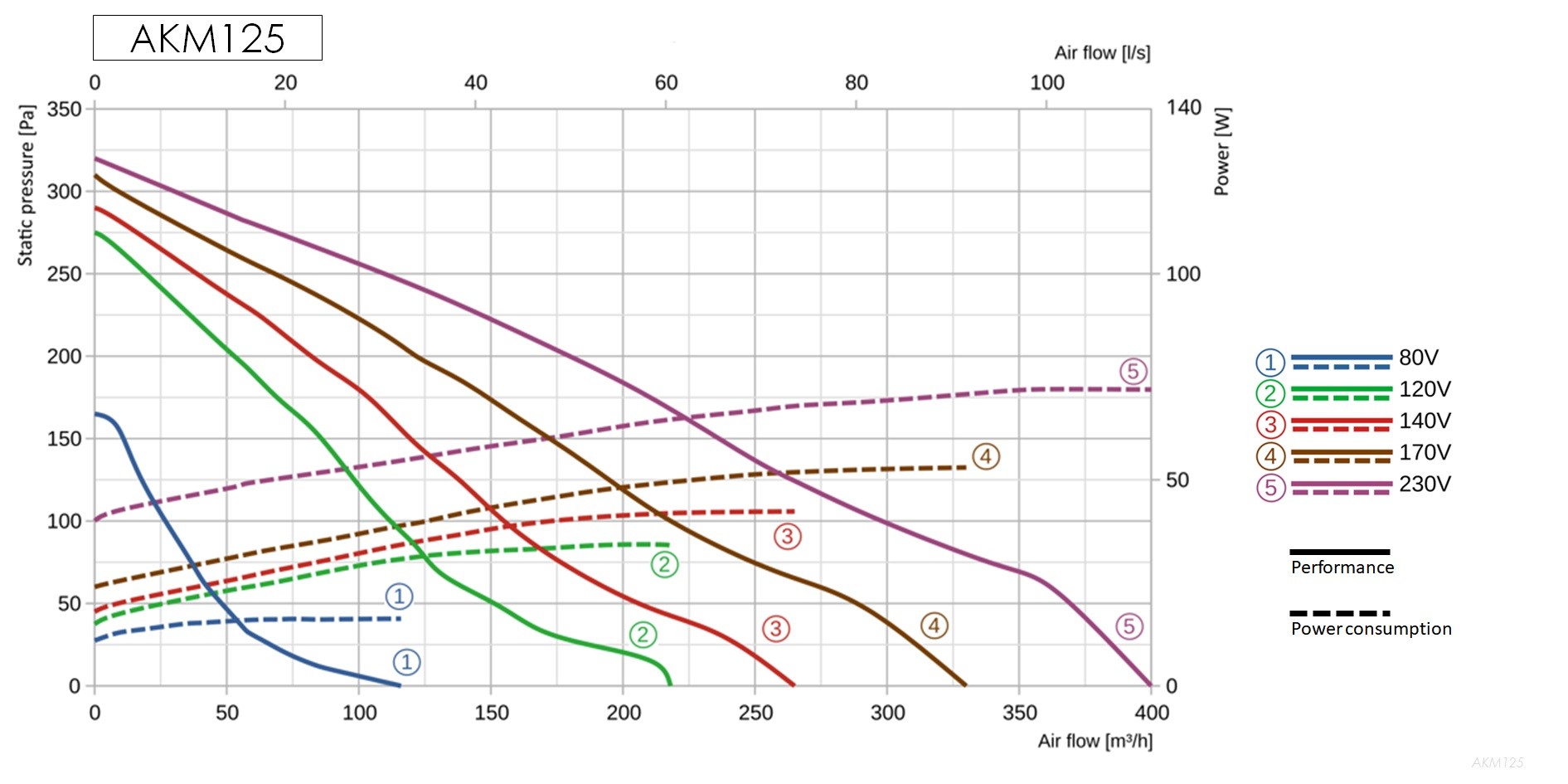

AKM125
|
high pressure duct fan, Ø125mm, metal
|
4750492217474
|
125 mm |
|

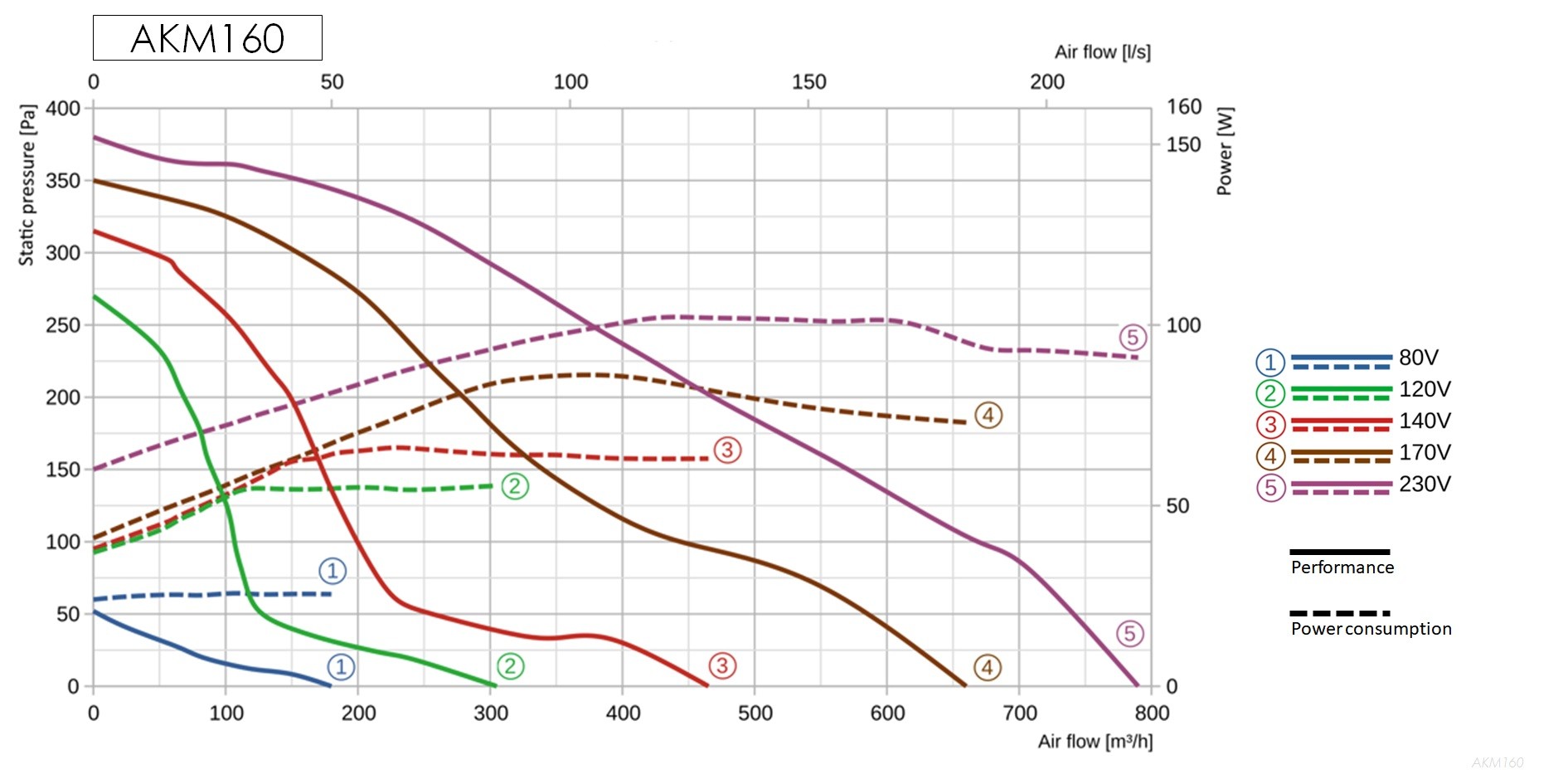

AKM160
|
high pressure duct fan, Ø160mm, metal
|
4750492217481
|
160 mm |
|

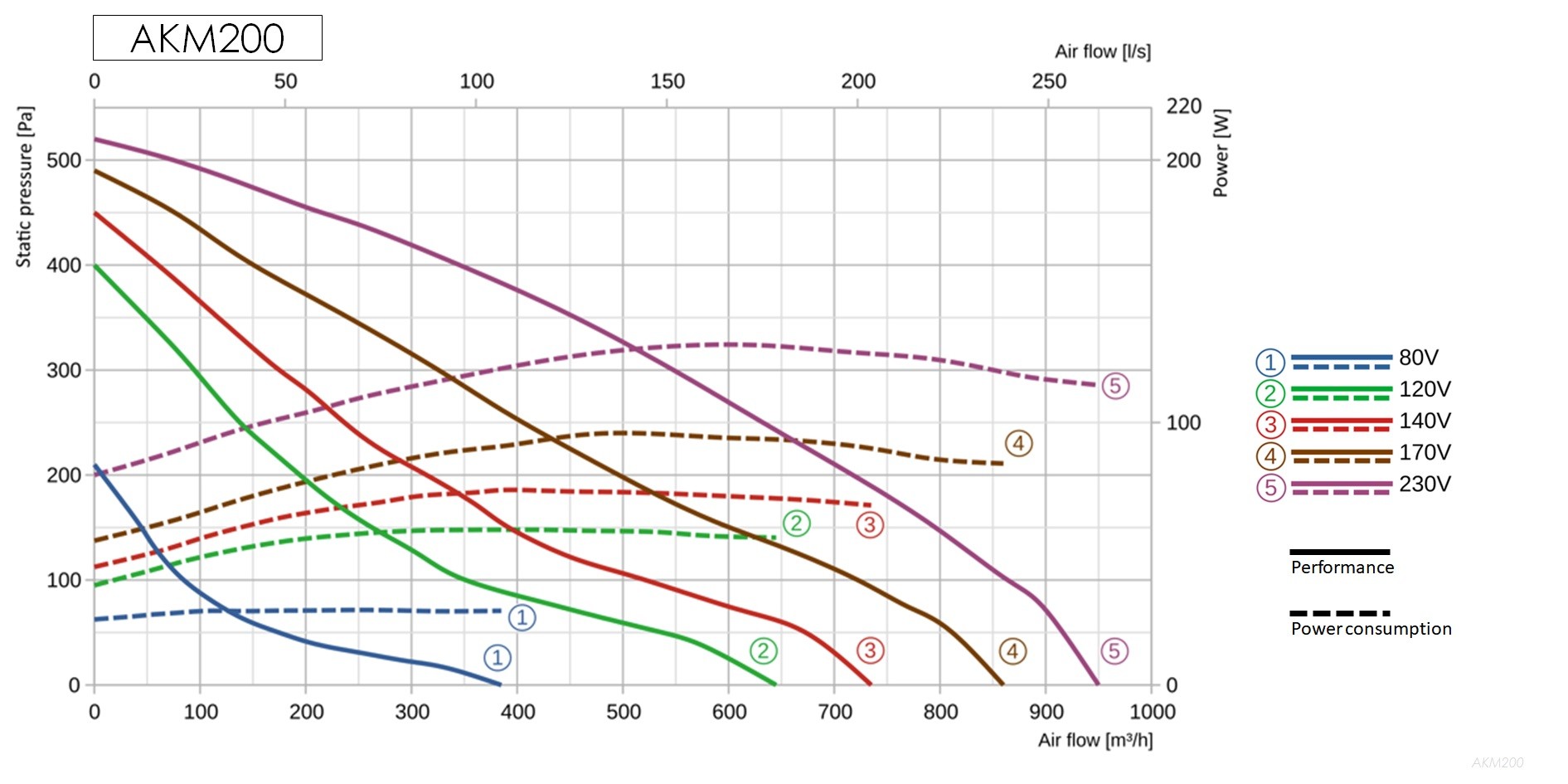

AKM200
|
high pressure duct fan, Ø200mm, metal
|
4750492217498
|
200 mm |
|
AKM250
|
high pressure duct fan, Ø250mm, metal
|
4750492217504
|
250 mm |
|

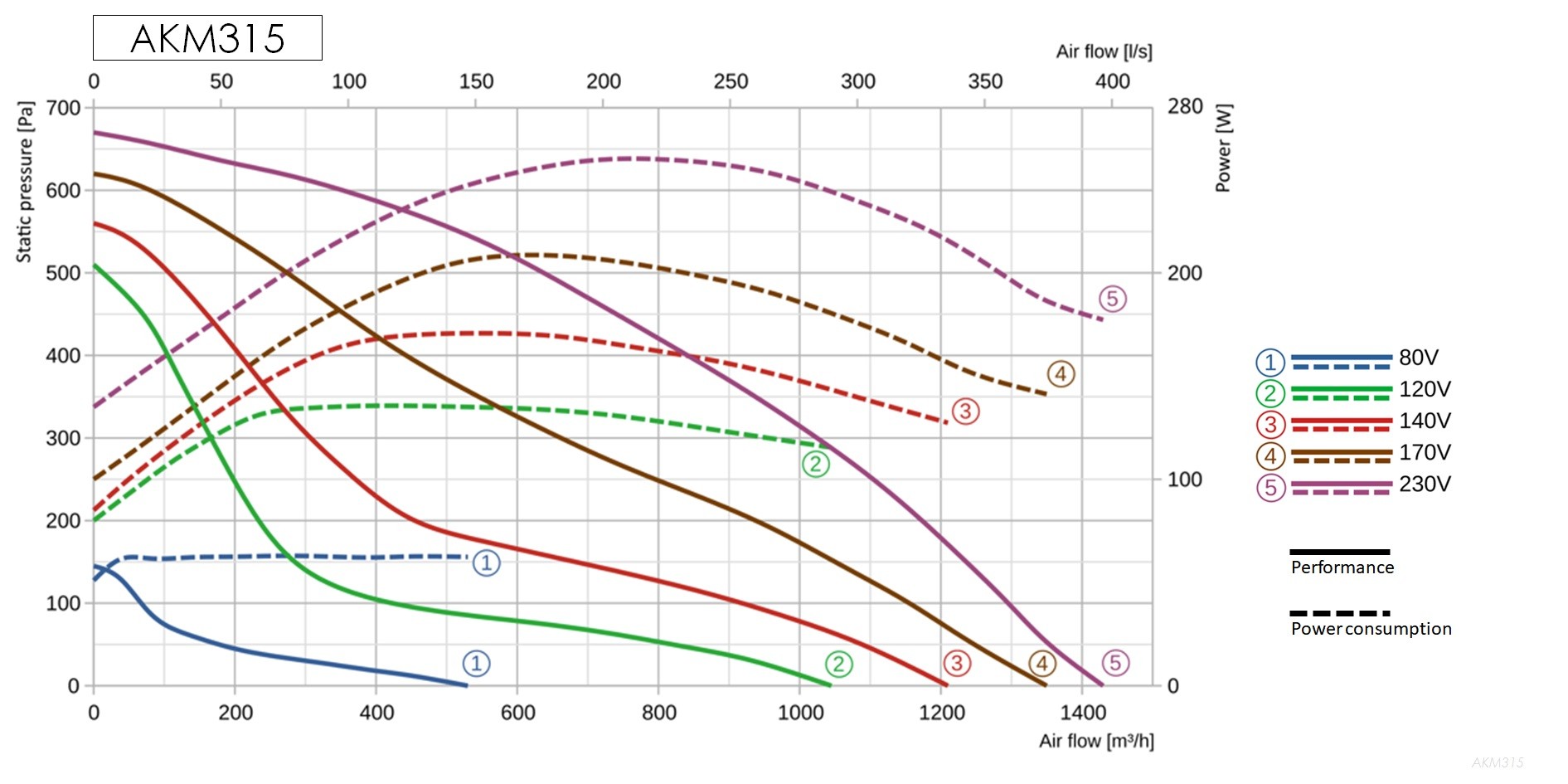

AKM315
|
high pressure duct fan, Ø315mm, metal
|
4750492217511
|
315 mm |

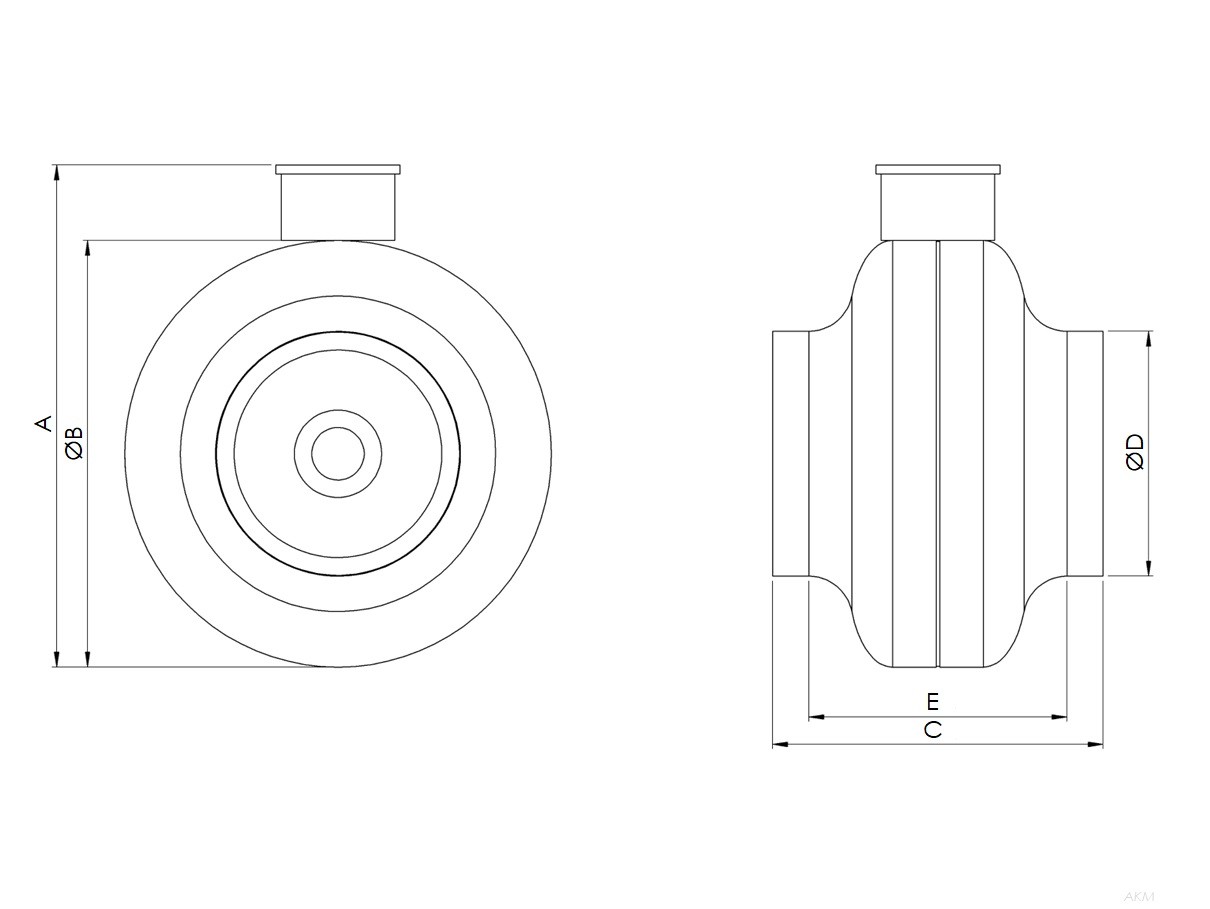

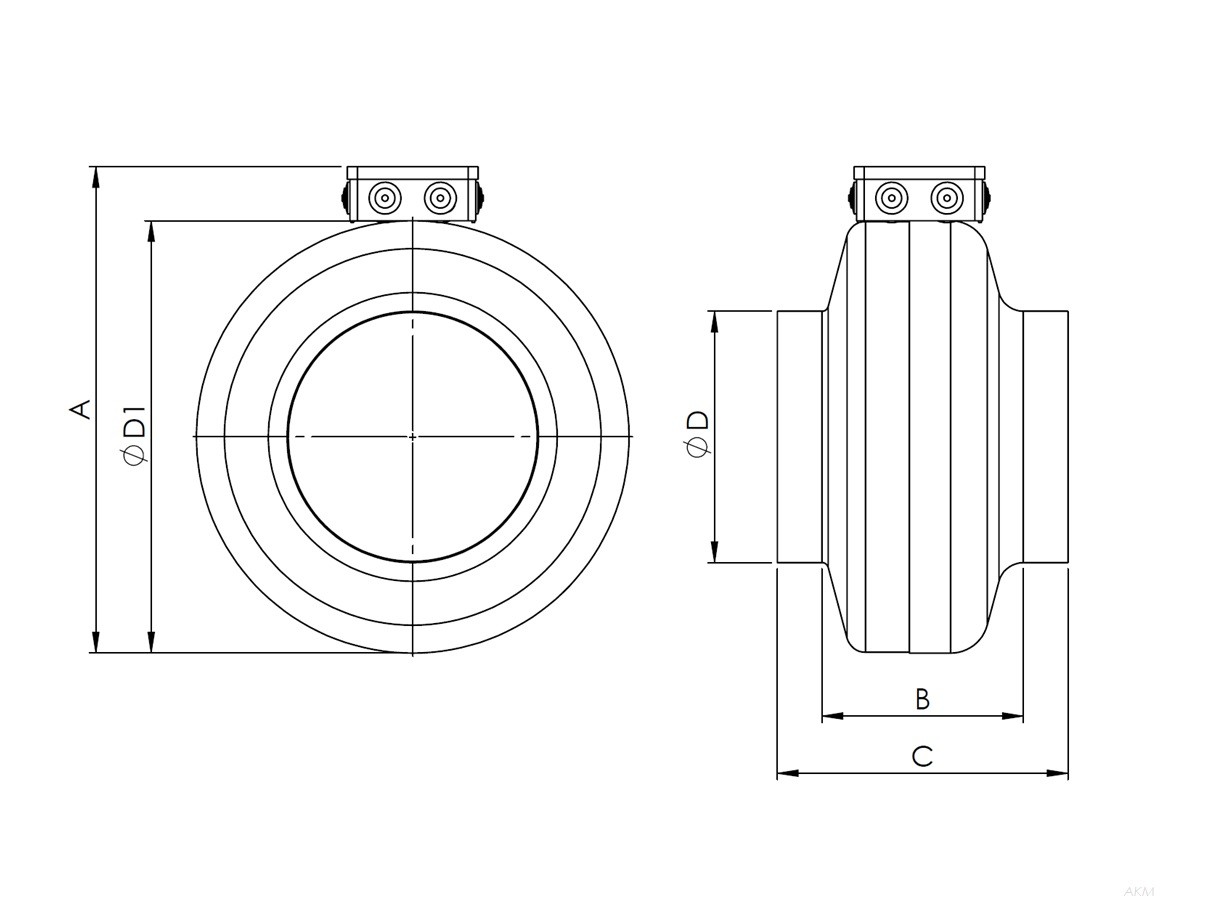

| Type |
A [mm] |
B [mm] |
C [mm] |
ØD [mm] |
ØD1 [mm] |
|
AKM100 |
287 |
157 |
192 |
100 |
244 |
|
AKM125 |
285 |
146 |
184 |
125 |
243 |
|
AKM160 |
386 |
170 |
221 |
160 |
344 |
|
AKM200 |
386 |
179 |
213 |
200 |
344 |
|
AKM250 |
386 |
173 |
233 |
250 |
344 |
|
AKM315 |
443 |
188 |
256 |
315 |
402 |

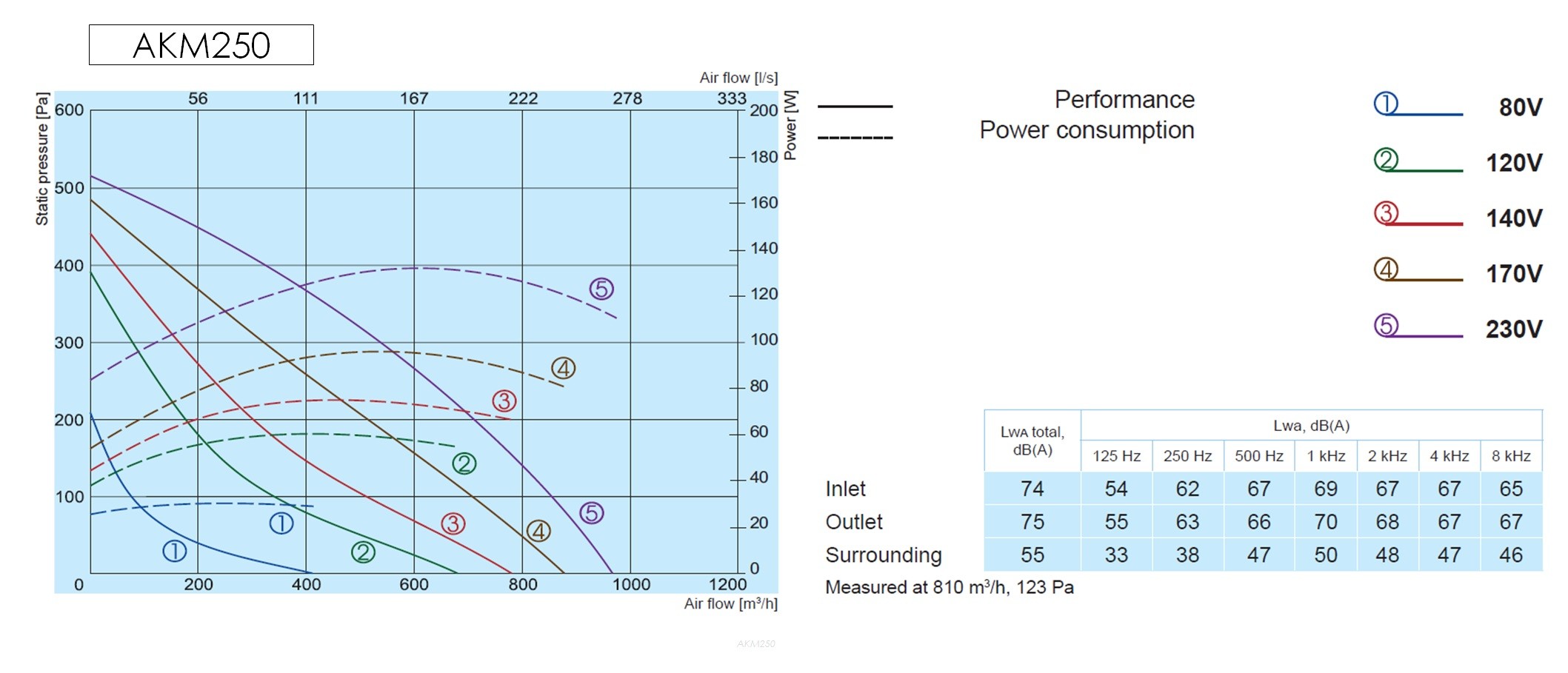

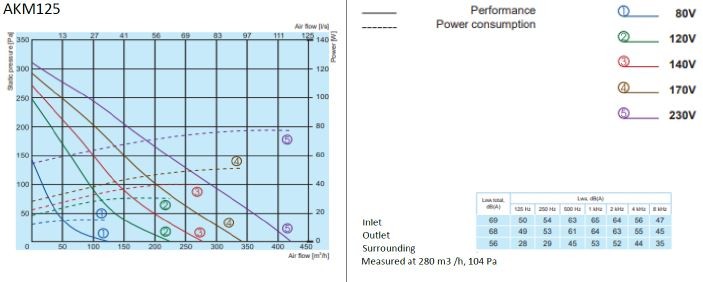

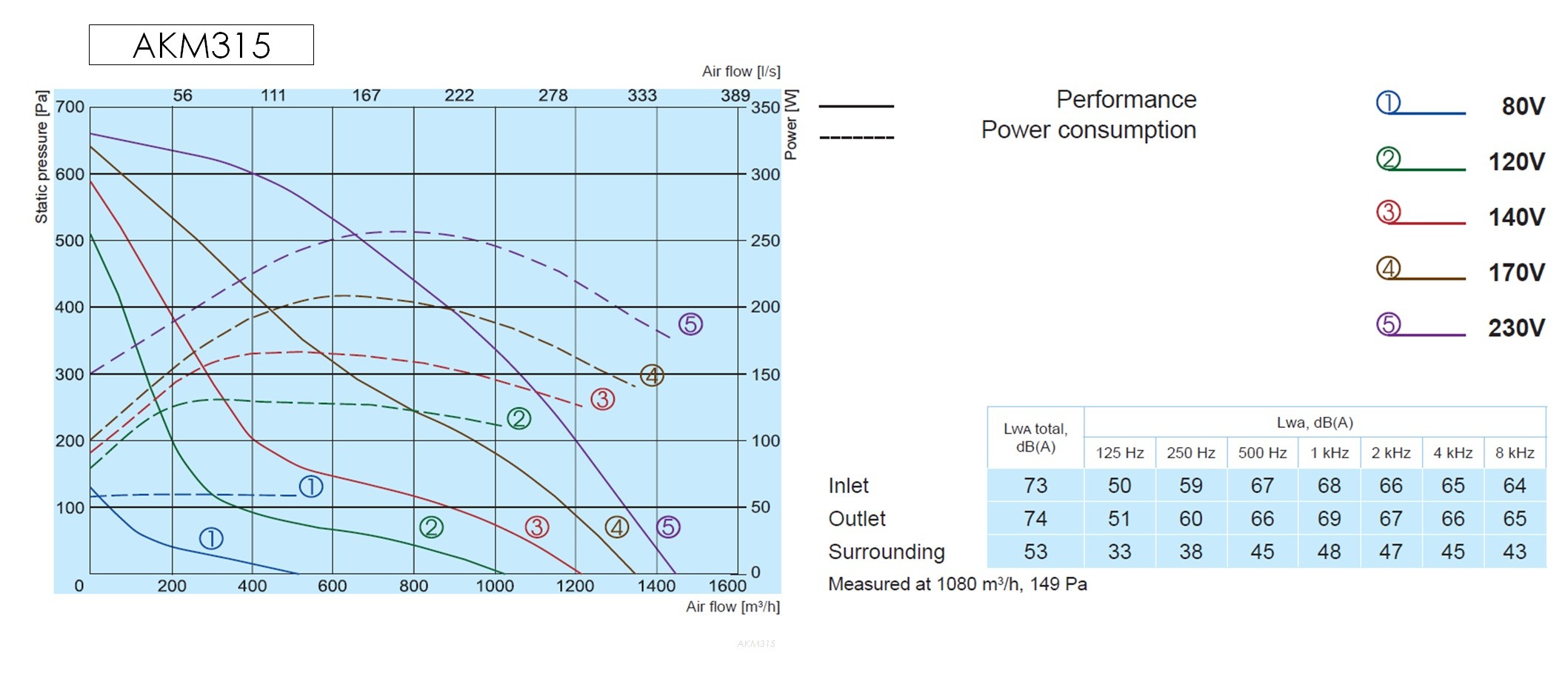

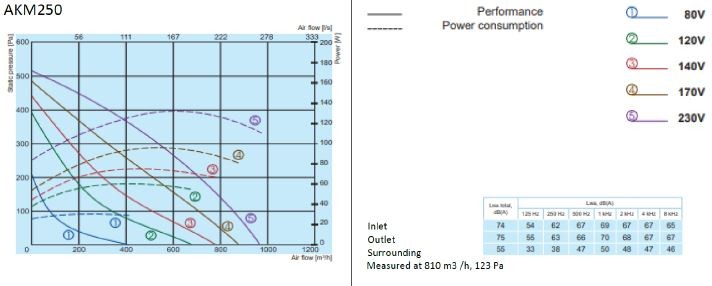

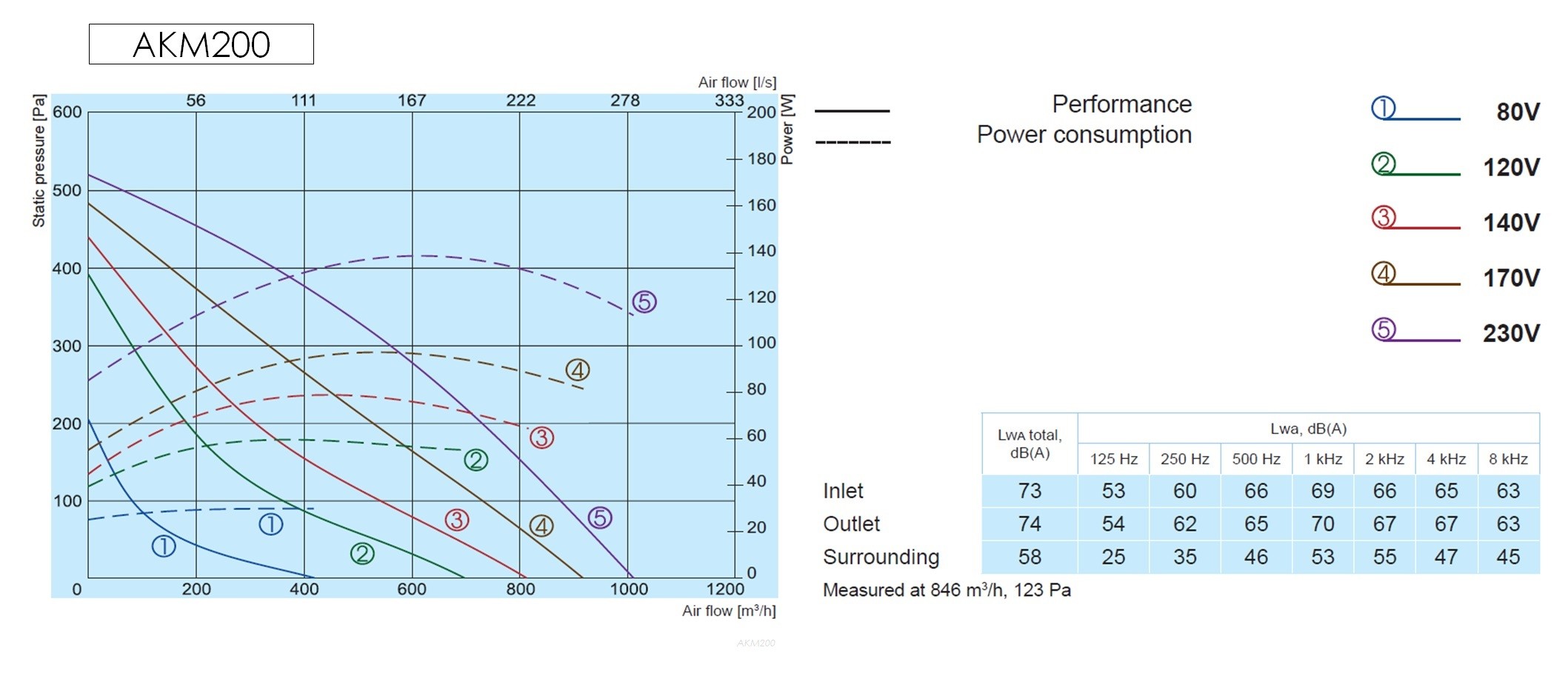

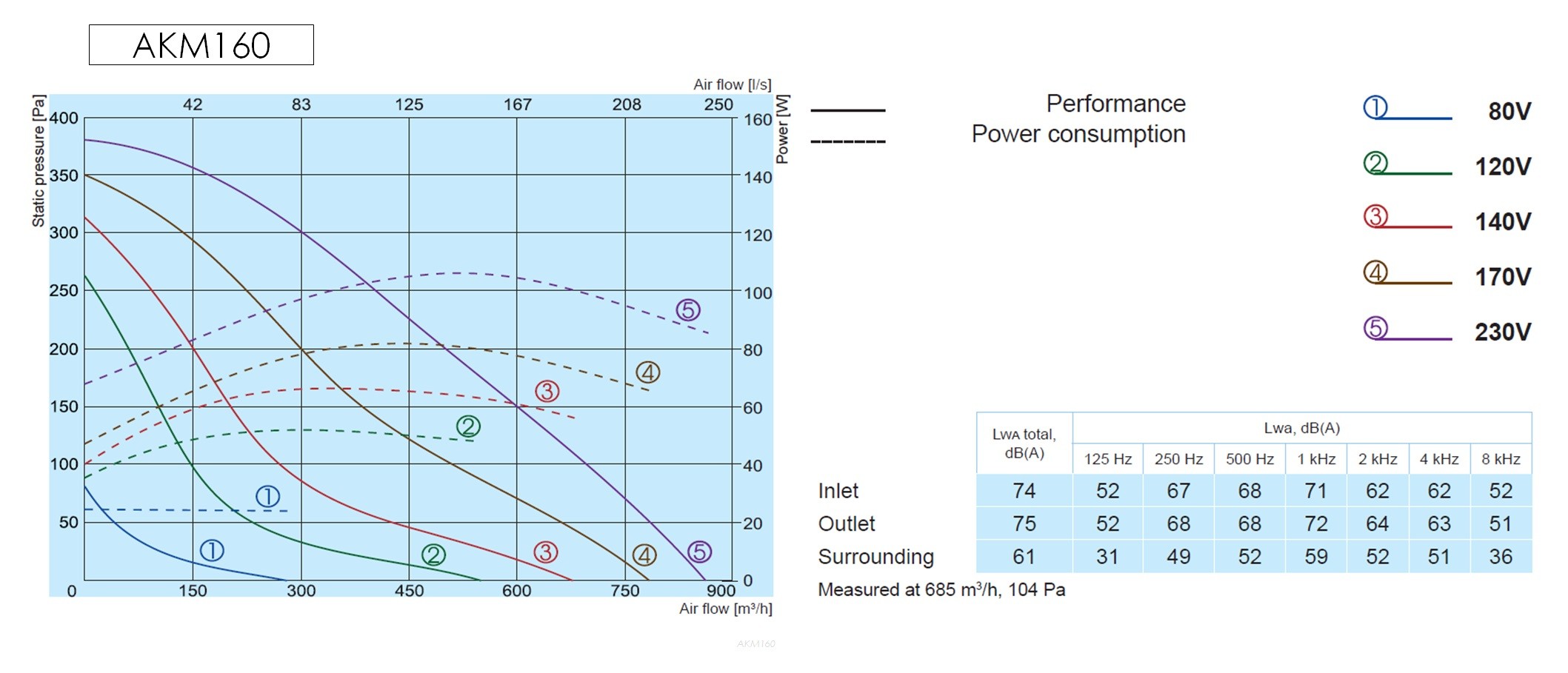

| Type | Voltage [V / Hz] |
Power [W] |
Current [A] |
Capacitor [μF] | Air flow [m3/h] |
Speed [rpm] |
Weight [kg] |
Air temperature min/max [°C] | Motor protection class | Terminal box protection class |
| AKM100 | 220-240~ 50 | 74 | 0,31 | 2 | 291 | 2800 | 2.7 | -40/+40 | IP44 | IP55 |
| AKM125 | 220-240~ 50 | 74 | 0,31 | 2 | 296 | 2800 | 2.6 | -40/+40 | IP44 | IP55 |
| AKM160 | 220-240~ 50 | 103 | 0,50 | 2 | 668 | 2796 | 4.0 | -40/+40 | IP44 | IP55 |
| AKM200 | 220-240~ 50 | 140 | 0,60 | 4 | 1007 | 2659 | 4.5 | -40/+40 | IP44 | IP55 |
| AKM250 | 220-240~ 50 | 140 | 0,60 | 4 | 967 | 2659 | 4.4 | -40/+40 | IP44 | IP55 |
| AKM315 | 220-240~ 50 | 278 | 1,20 | 5 | 1448 | 2762 | 6.3 | -40/+40 | IP44 | IP55 |
| Ecodesign data |
| Type | Clasification** |
Energy efficiency class [local demand control] |
Sound power level [dB(A)] | Reference flow rate at 50 Pa [m3/h] | SPI [W/(m3/h)] | Nominal flow rate [m3/s] | Nominal external pressure [Pa] | Static efficiency of fans used in accordance with Regulation No 327/2011 [%] |
Comply with ERP 2018 |
| AKM100 | RVU | C | 58 | 182 | 0,20 | - | - | - | ✓* |
| AKM125 | RVU | C | 54 | 200 | 0,19 | - | - | - | ✓* |
| AKM160 | RVU | B | 57 | 483 | 0,12 | - | - | - | ✓* |
| AKM200 | NRVU | - | 56 | - | - | 0,15 | 312 | 34,7 | ✓ |
| AKM250 | NRVU | - | 54 | - | - | 0,16 | 288 | 34,4 | ✓ |
| AKM315 | NRVU | - | 53 | - | - | 0,29 | 318 | ✓ |
*unit with local demand control complies with ERP 2018 requirements.
**RVU - residential ventilation unit.
**NRVU - non-residential ventilation unit.
