electric fans A6
Construction:
- Manufactured from plastic
- Fan: axial
- Type of bearing: slide bearing
- Motor protection class: IPX4
- Insulation class: class B
Installation:
- Mounting with all type round ducts: sheet metal, flexible aluminum, plastic or fabric.
- Mounting positions: Vertical
- Location: indoors
Power supply: 220-240V 50Hz single phase
Temperature range: -25°C to +40°C
Sizes: 100, 125, 150 mm
Colors: White

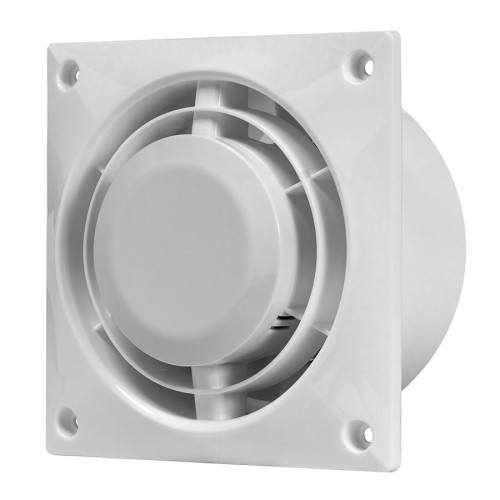

Exhaust fan for wall mounting of premises. Eqiped with single phase motor 220-240V-50Hz, Insulation class B, IPX4. Suitable to operate within temperatures from -25ºC up to +40ºC. Available in sizes: 100, 125, 150 mm
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
L100
|
electric fan A6, Ø100mm
|
4750492002964
|
100 mm |
|
L125
|
electric fan A6, Ø125mm
|
4750492002995
|
125 mm |
|
L150
|
electric fan A6, Ø150mm
|
4750492003039
|
150 mm |

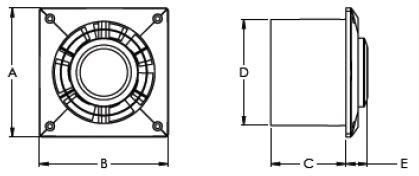

| Type | A | B | C | D | E |
| L100 | 120 | 120 | 70 | 98 | 20 |
| L125 | 145 | 145 | 70 | 123 | 20 |
| L150 | 170 | 170 | 70 | 148 | 20 |
| Type | Voltage [V / Hz] |
Power [W] |
IP | Speed [RPM] |
Air flow [m3/h] |
Noise level: 3m distance, Lp A dB(A) |
Temperature min/max (°C) |
Air duct size (mm) |
Weight [kg] |
| L100 | 220-240V-50Hz | 15 | IPX4 | 2550 | 75 | 32 | -25/+40 | 100 | 0,35 |
| L125 | 220-240V-50Hz | 16 | IPX4 | 2360 | 120 | 36 | -25/+40 | 125 | 0,37 |
| L150 | 220-240V-50Hz | 20 | IPX4 | 2100 | 190 | 40 | -25/+40 | 150 | 0,47 |
