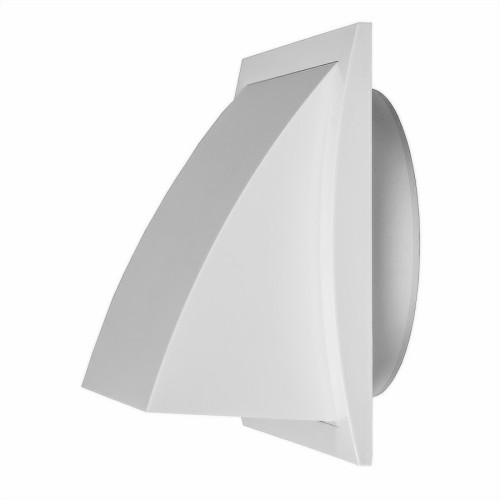

plastic external grilles N-F
Construction:
- Manufactured from high-quality ABS plastic
- With rain and wind protective cap
- FV - with non-return valve
Installation:
- Wall mounting
- Designed for outdoor use
- Screw or glue fixing in any position
Colors: White, anthracite, brown, grey
EUROPLAST manufactured N-F-series plastic ventilation grilles are made of high-quality ABS plastic and are long-lasting and temperature and UV-resistant. Grilles are intended to use as decorative and functional elements of outlets for exhaust ventilation systems. They are available in different colors and sizes.
| Article | Description | EAN | Width | Height | Connection | |
|---|---|---|---|---|---|---|
|
N10F
|
grille plastic, 148x153mm, external
|
4750492011256
|
153 mm | 148 mm | - |
|
N10FV
|
grille plastic, 148x153mm, external, with check valve
|
4750492011263
|
153 mm | 148 mm | - |
|
ND10F
|
grille plastic, 148x153mm, Ø100mm, external
|
4750492011294
|
153 mm | 148 mm | Ø 100 mm |
|
ND10FV
|
grille plastic, 148x153mm, Ø100mm, external, with check valve
|
4750492011300
|
153 mm | 148 mm | Ø 100 mm |
|
ND10FVA
|
grille plastic, 148x153mm, Ø100mm, external, with check valve, anthracite
|
4750492020234
|
153 mm | 148 mm | Ø 100 mm |
|
ND10FVB
|
grille plastic, 148x153mm, Ø100mm, external, with check valve, brown
|
4750492011317
|
153 mm | 148 mm | Ø 100 mm |
|
ND10FVP
|
grille plastic, 148x153mm, Ø100mm, external, with check valve, grey
|
4750492011324
|
153 mm | 148 mm | Ø 100 mm |
|
N12F
|
grille plastic, 190x190mm, external
|
4750492011270
|
190 mm | 190 mm | - |
|
N12FV
|
grille plastic, 190x190mm, external, with check valve
|
4750492011287
|
190 mm | 190 mm | - |
|
ND12F
|
grille plastic, 190x190mm, Ø125mm, external
|
4750492011331
|
190 mm | 190 mm | Ø 125 mm |
| Type | A [mm] |
B [mm] |
C [mm] |
D [mm] |
ØD [mm] |
E [mm] |
F [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| N10FV | 153 | 148 | 111 | 95 | - | 100 | 91 | 81 | - | 0,12 |
| N12FV | 190 | 190 | 140 | 140 | - | 137 | 132 | 95 | - | 0,15 |
| ND10FV | 153 | 148 | 111 | 95 | 99 | - | - | 111 | 30 | 0,20 |
| ND12FV | 190 | 190 | 140 | 140 | 124 | - | - | 125 | 30 | 0,24 |
| ND15FV | 190 | 190 | 140 | 140 | 149 | - | - | 125 | 30 | 0,23 |
| Modifications |
| NxxxF – without valve |
| Nxxx – white colour |
| NxxxA – anthracite colour |
| NxxxP – grey colour |
| NxxxB – brown colour |

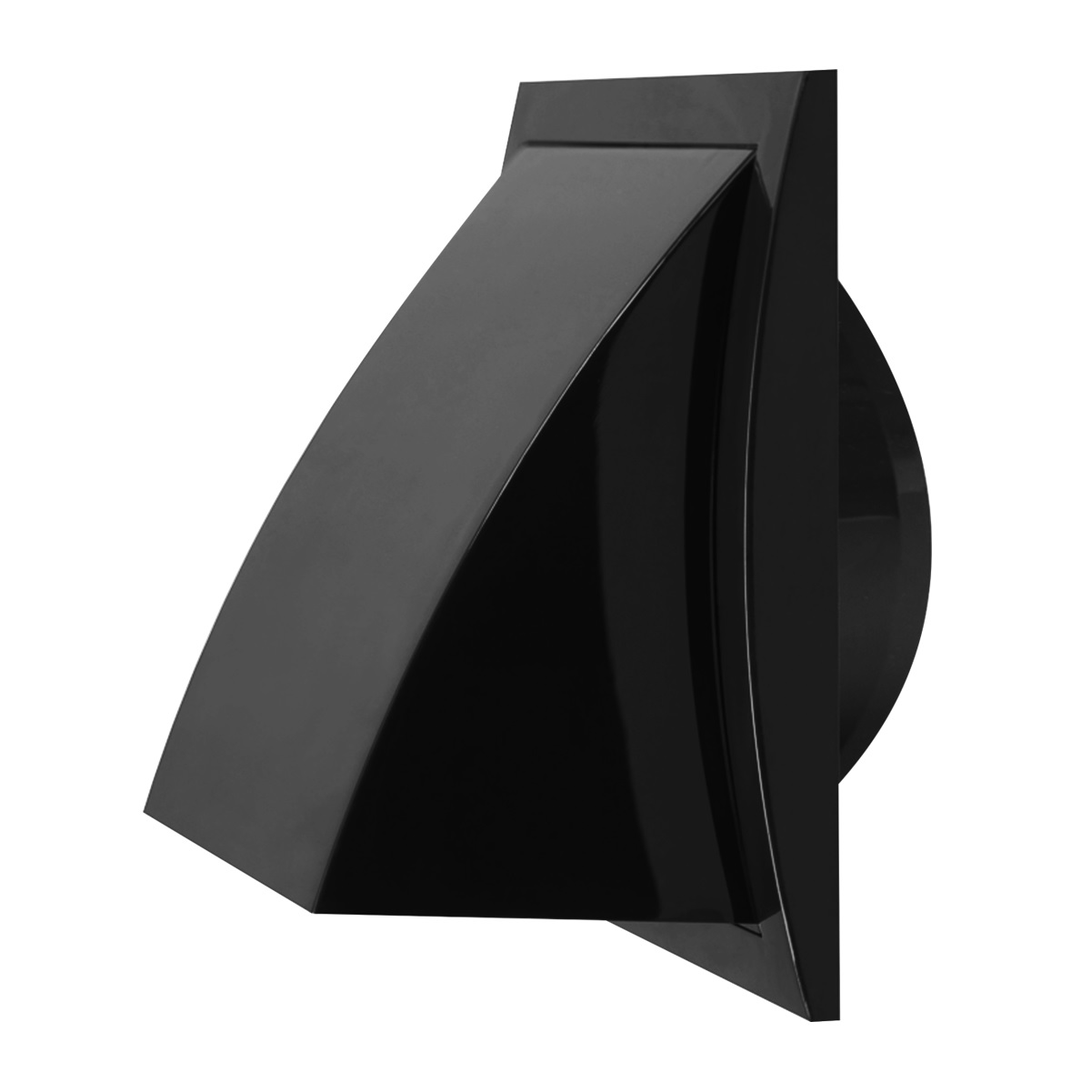

| * NxxxM – black colour |
| * NxxxY – beige colour |
| * NxxxS – silver colour |
| * NxxxG – golden colour |
* Not included in the main range. Available only on special order with a certain minimum quantity.
