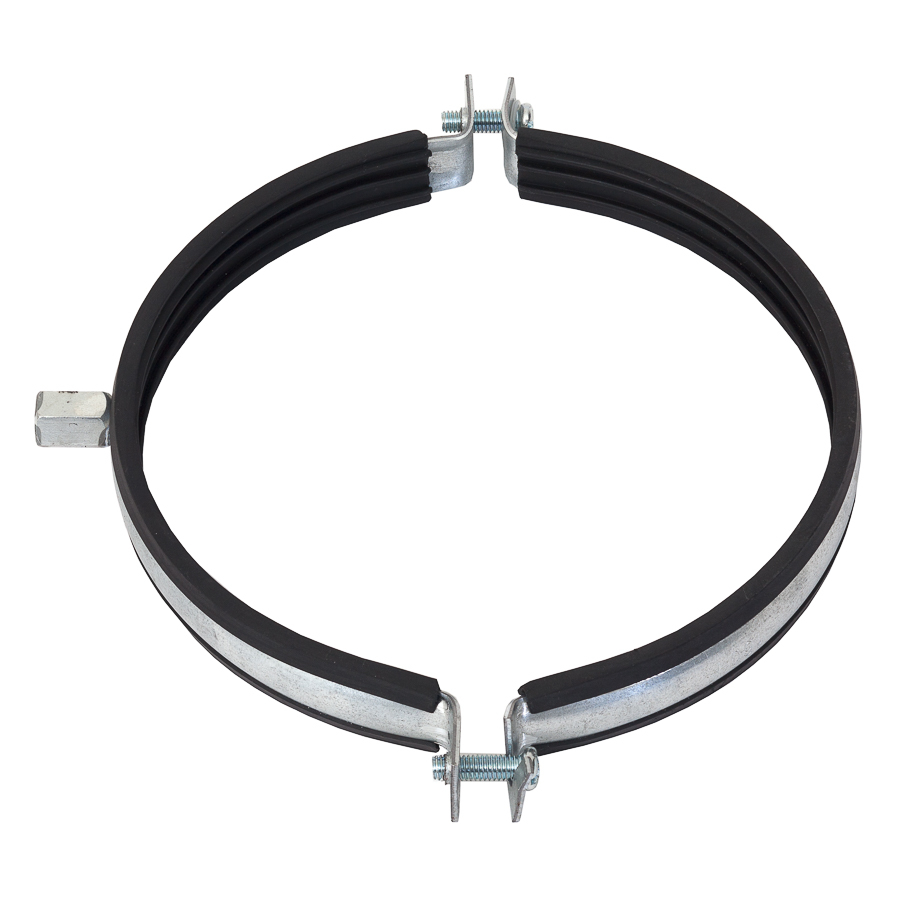

fasteners SBOU
Construction:
- Material galvanized steel or other metal
- EPDM seals
Instalation:
- Easy installation.
Air duct fastening with seals.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
SBOU100
|
duct holder metall, Ø100mm with rubber (M8/M10)
|
4750492104613
|
100 mm |
|
SBOU125
|
duct holder metall, Ø125mm with rubber (M8/M10)
|
4750492104620
|
125 mm |
|
SBOU160
|
duct holder metall, Ø160mm with rubber (M8/M10)
|
4750492104637
|
160 mm |
|
SBOU200
|
duct holder metall, Ø200mm with rubber (M8/M10)
|
4750492104644
|
200 mm |
|
SBOU250
|
duct holder metall, Ø250mm with rubber (M8/M10)
|
4750492104651
|
250 mm |
|
SBOU315
|
duct holder metall, Ø315mm with rubber (M8/M10)
|
4750492104668
|
315 mm |
|
SBOU80
|
duct holder metall, Ø80mm with rubber (M8/M10)
|
4750492219201
|
80 mm |

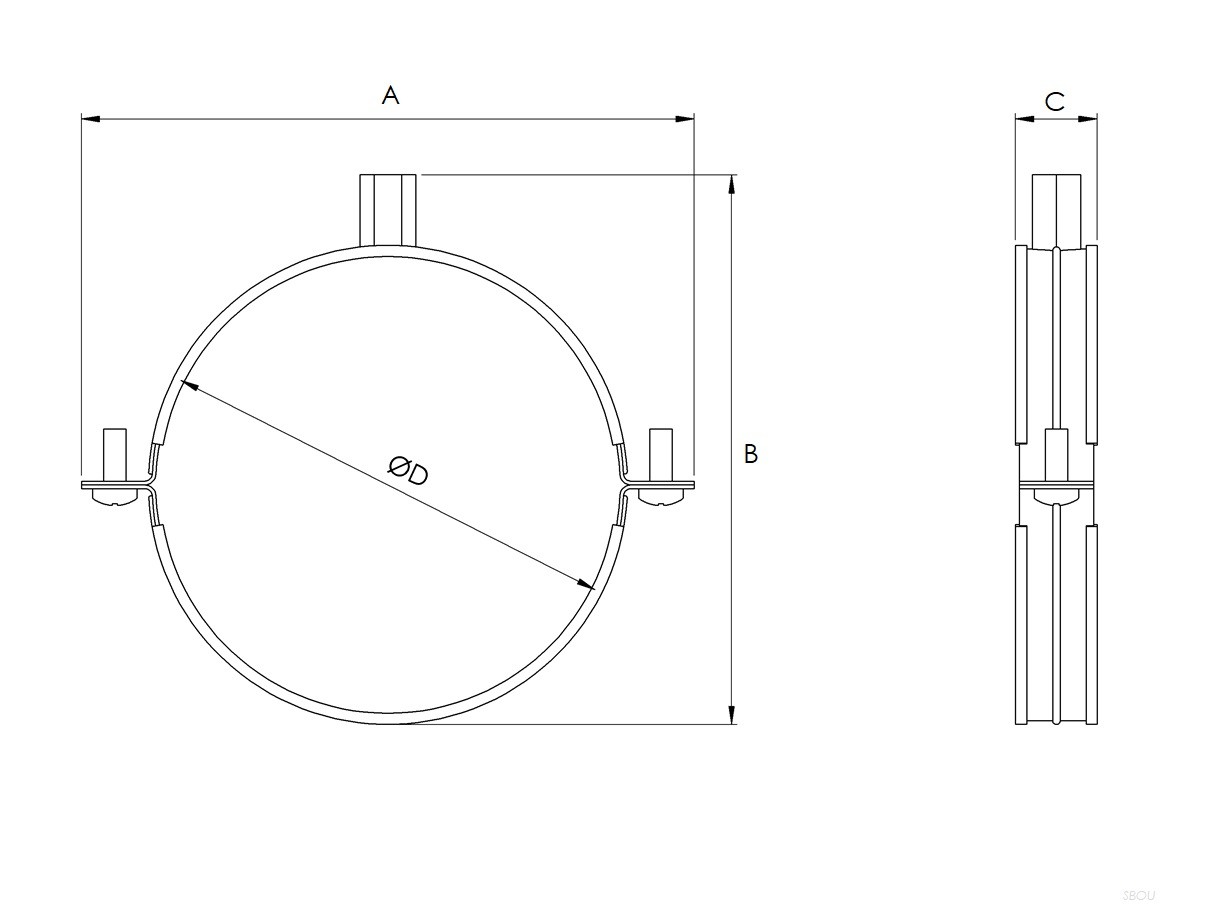

| Type |
A [mm] |
B [mm] |
C [mm] |
ØD [mm] |
m [kg] |
|
SBOU80 |
120 | 103 | 20 | 80 | 0,14 |
| SBOU100 | 140 | 123 | 20 | 100 | 0,15 |
| SBOU125 | 165 | 148 | 20 | 125 | 0,18 |
| SBOU160 | 200 | 183 | 20 | 160 | 0,22 |
| SBOU200 | 240 | 223 | 20 | 200 | 0,28 |
| SBOU250 | 290 | 273 | 20 | 250 | 0,34 |
| SBOU315 | 355 | 338 | 20 | 315 | 0,40 |
