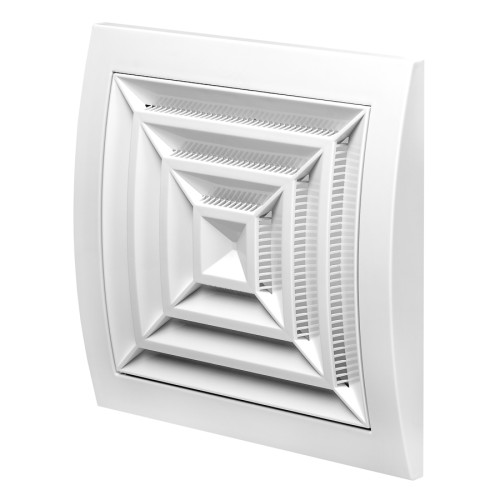

plastic square ceiling grilles N-G
Construction:
- Manufactured from high-quality ABS plastic
- Integrated insect screen
Installation:
- Designed for ceiling mounting
- For indoor or outdoor use
- Mounting with all types of circular ducts
Colors: White
N-G series ventilation grilles can be used in residential or commercial buildings. Can be used for exhaust or supply ventilation. The grille can also be mounted on the wall, in addition to the intended mounting on the ceiling. The grilles are made of high-quality ABS plastic, which is resistant to changing weather conditions.
Functions
Adjustable
The product is equipped with a manual regulator that allows you to regulate the air flow volume.
Insect screen
Product is equipped with an insect mesh, which prevents insects from entering in to the ventilation systems.
| Article | Description | EAN | Width | Height | Connection | Functions | |
|---|---|---|---|---|---|---|---|
|
N10G
|
grille plastic, 148x153mm, ceiling
|
4750492218433
|
153 mm | 148 mm | - |
|
|
ND10G
|
grille plastic, 148x153mm, Ø100mm, ceiling
|
4750492218471
|
153 mm | 148 mm | Ø 100 mm |
|
|
ND10GR
|
grille plastic, 148x153mm, Ø100mm, ceiling, adjustable
|
4750492218488
|
153 mm | 148 mm | Ø 100 mm |
|
|
N12G
|
grille plastic, 190x190mm, ceiling
|
4750492218457
|
190 mm | 190 mm | - |
|
|
ND12G
|
grille plastic, 190x190mm, Ø125mm, ceiling
|
4750492218495
|
190 mm | 190 mm | Ø 125 mm |
|
|
ND12GR
|
grille plastic, 190x190mm, Ø125mm, ceiling, adjustable
|
4750492218501
|
190 mm | 190 mm | Ø 125 mm |
|
|
ND15G
|
grille plastic, 190x190mm, Ø150mm, ceiling
|
4750492218518
|
190 mm | 190 mm | Ø 150 mm |
|
|
ND15GR
|
grille plastic, 190x190mm, Ø150mm, ceiling, adjustable
|
4750492218525
|
190 mm | 190 mm | Ø 150 mm |
|
| Type | A [mm] |
B [mm] |
C [mm] |
D [mm] |
ØD [mm] |
E [mm] |
F [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| N10G | 153 | 148 | 111 | 95 | - | 100 | 91 | 18 | - | 0,08 |
| N12G | 190 | 190 | 140 | 140 | - | 137 | 132 | 18 | - | 0,10 |
| ND10G | 153 | 148 | 111 | 95 | 99 | - | - | 48 | 30 | 0,10 |
| ND12G | 190 | 190 | 140 | 140 | 124 | - | - | 48 | 30 | 0,14 |
| ND15G | 190 | 190 | 140 | 140 | 149 | - | - | 48 | 30 | 0,14 |
| Modifications |
| NxxxR – adjustable |
| Nxxx – white colour |
| * NxxxP – grey colour |
| * NxxxB – brown colour |
| * NxxxM – black colour |
| * NxxxY – beige colour |
| * NxxxA – anthracite colour |
| * NxxxS – silver colour |
| * NxxxG – golden colour |
* Not included in the main range. Available only on special order with a certain minimum quantity.
