metal grilles INDUSTRIAL MRF
Construction:
- Made from galvanized steel
- With polymer paint coating
Instalation:
- Screw fixing in any position.
Colours: White, brown, beige, grey, black, galvanized steel
MRF series grilles are made from galvanized steel with polymer paint coating. These grilles are durable and resistant to different weather conditions. Industrial series grilles are available in different colors and sizes.
Functions
Insect screen
Product is equipped with an insect mesh, which prevents insects from entering in to the ventilation systems.
| Article | Description | EAN | Width | Height | Functions | |
|---|---|---|---|---|---|---|
|

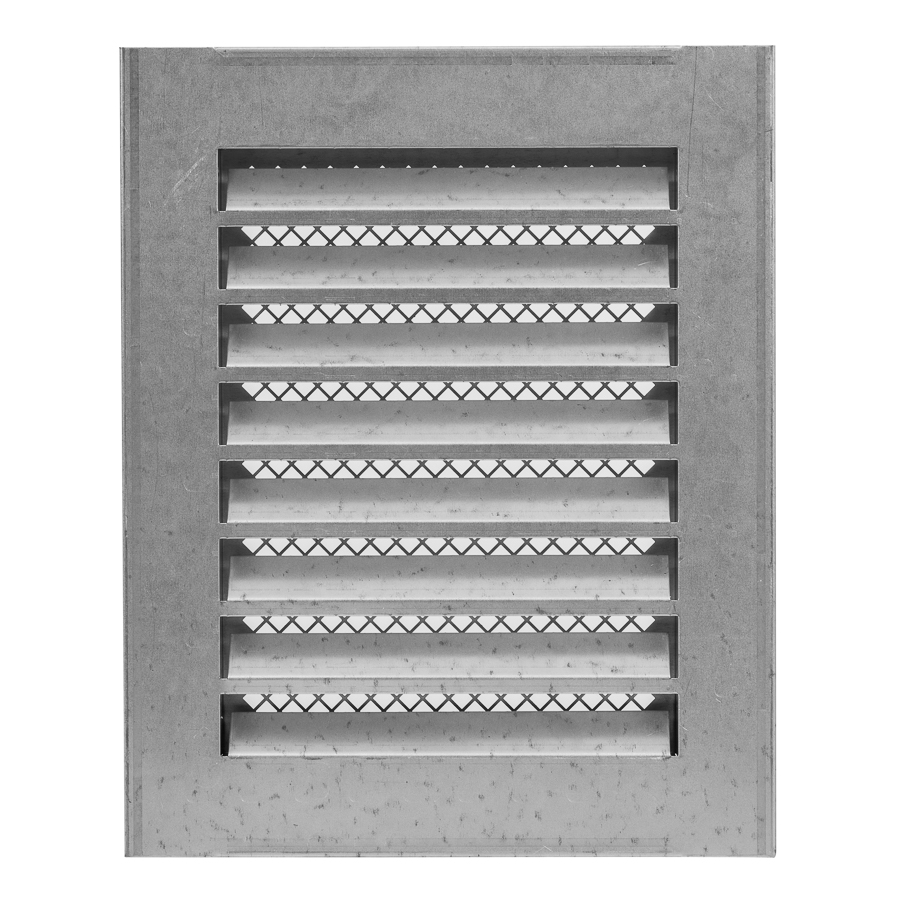

MRF1520Zn
|
grille metal INDUSTRIAL, 150x200mm, galvanized
|
4750492007914
|
150 mm | 200 mm |
|
|

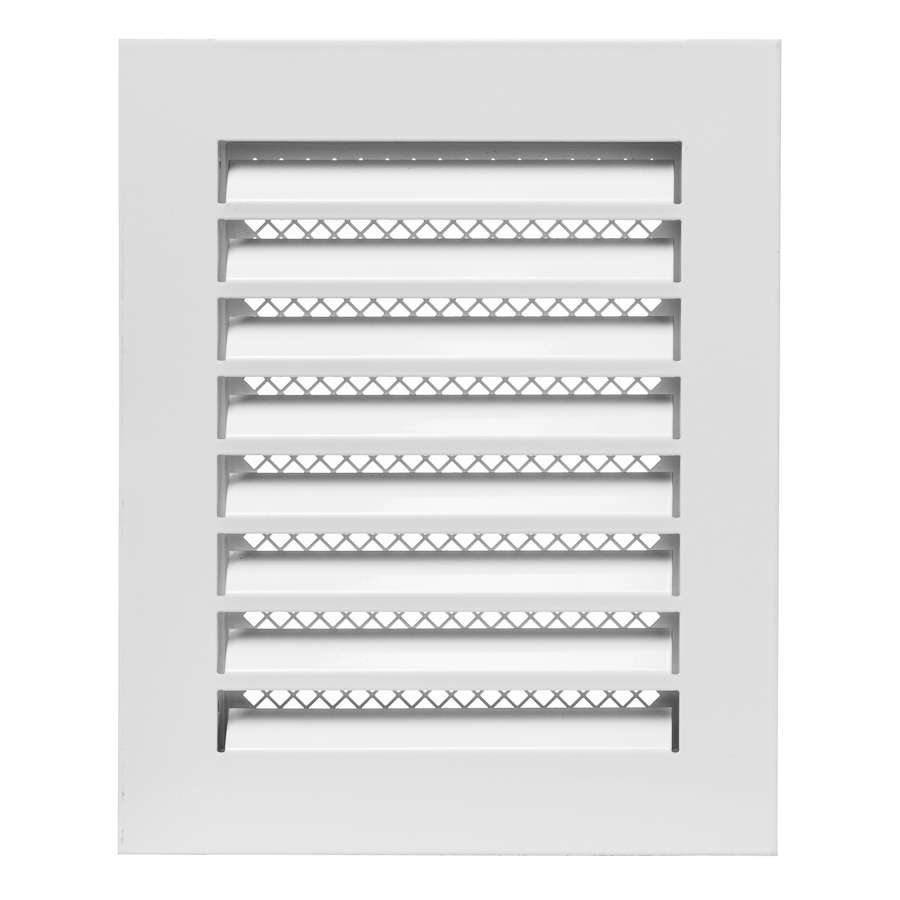

MRF1520
|
grille metal INDUSTRIAL, 150x200mm, white
|
4750492007907
|
150 mm | 200 mm |
|
|

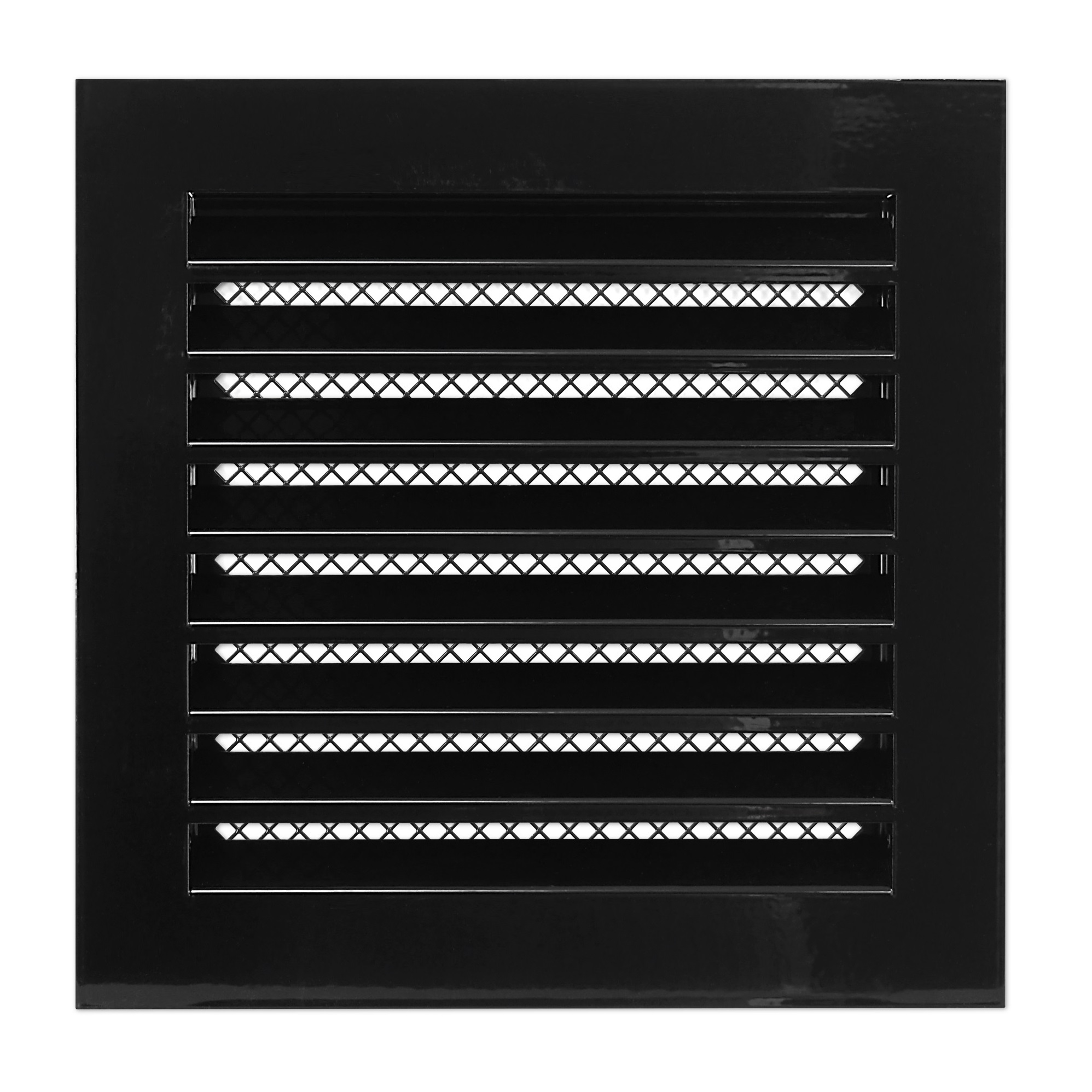

MRF2020M
|
grille metal INDUSTRIAL, 200x200mm, black
|
4750492025062
|
200 mm | 200 mm |
|
|

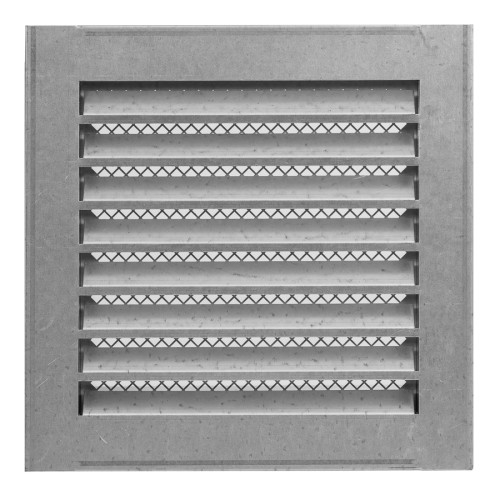

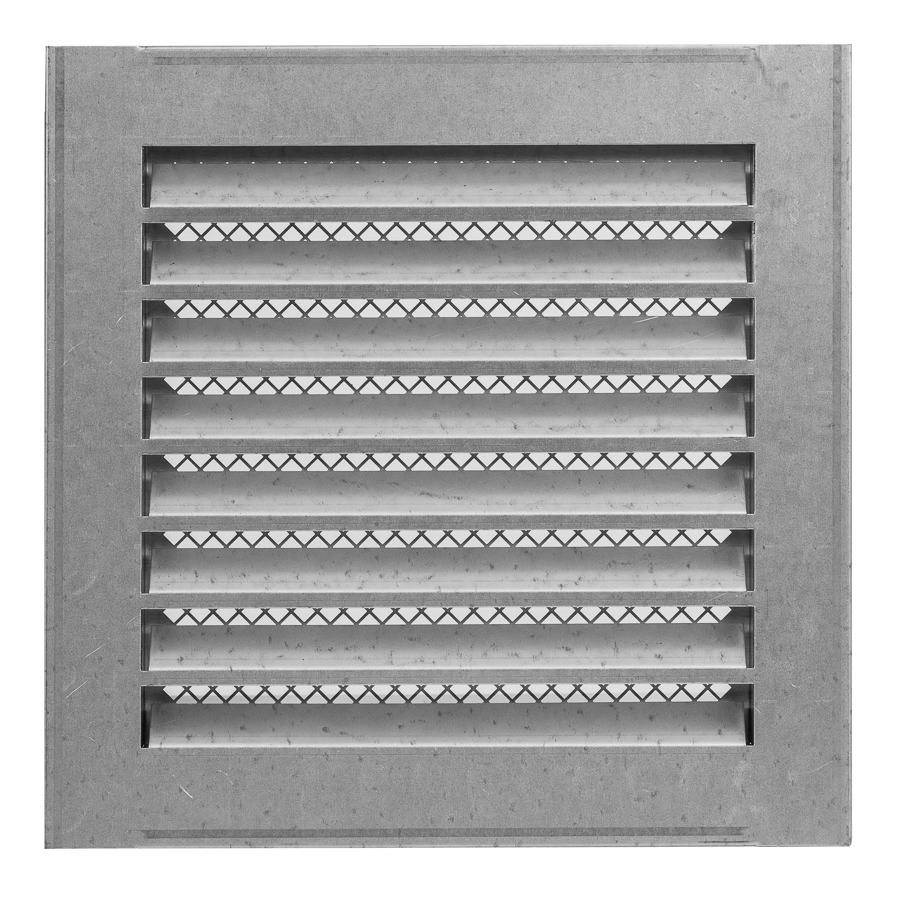

MRF2020Zn
|
grille metal INDUSTRIAL, 200x200mm, galvanized
|
4750492007877
|
200 mm | 200 mm |
|
|

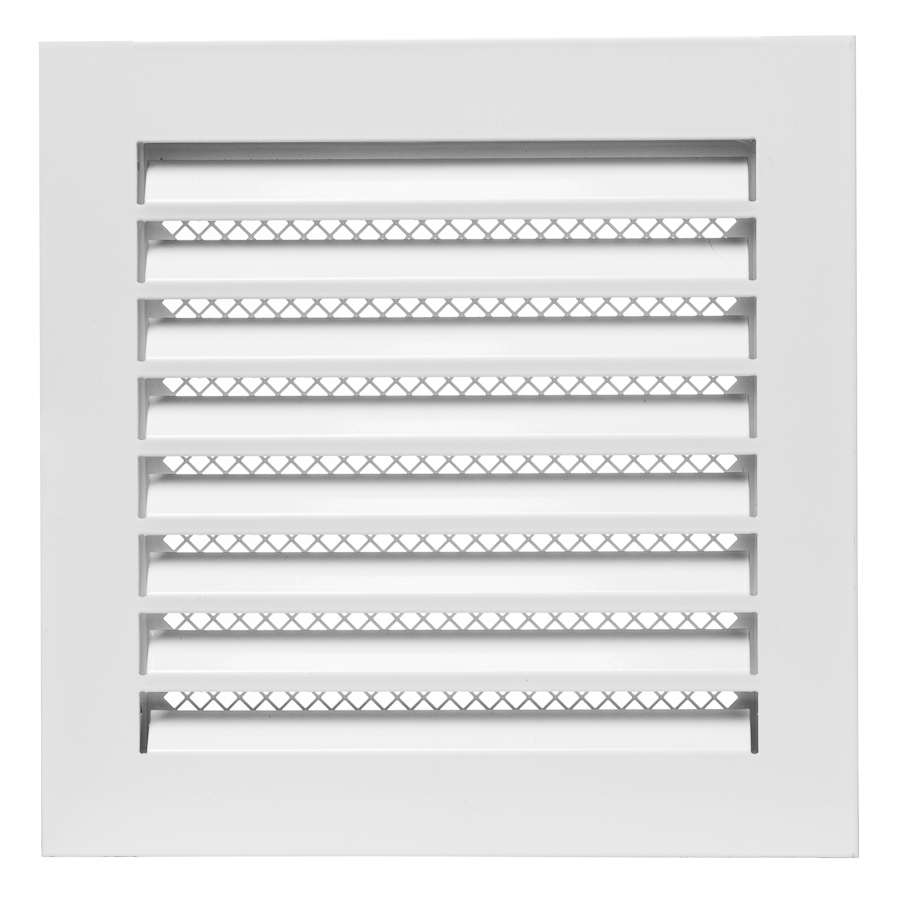

MRF2020
|
grille metal INDUSTRIAL, 200x200mm, white
|
4750492007860
|
200 mm | 200 mm |
|
|

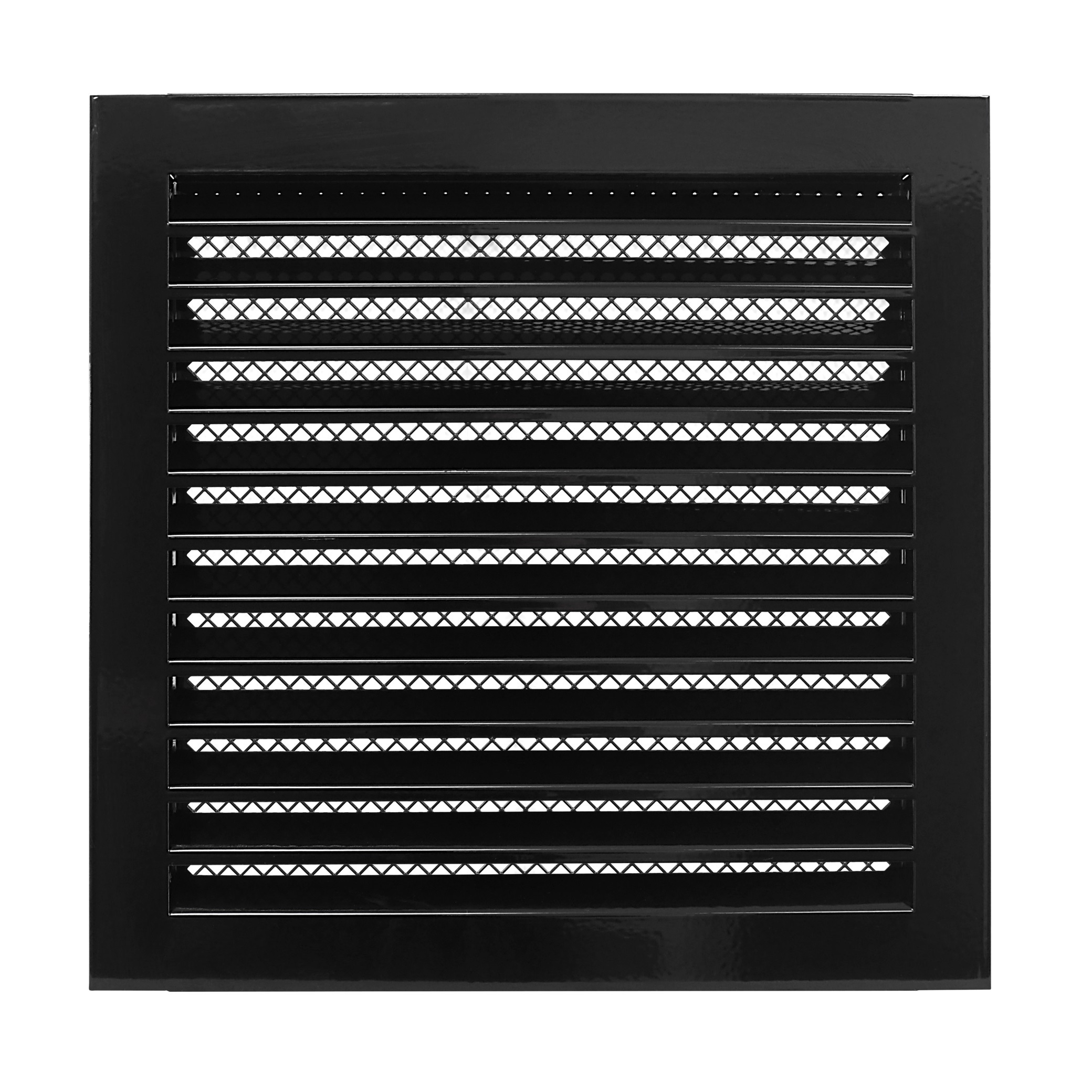

MRF3030M
|
grille metal INDUSTRIAL, 300x300mm, black
|
4750492025079
|
300 mm | 300 mm |
|
|

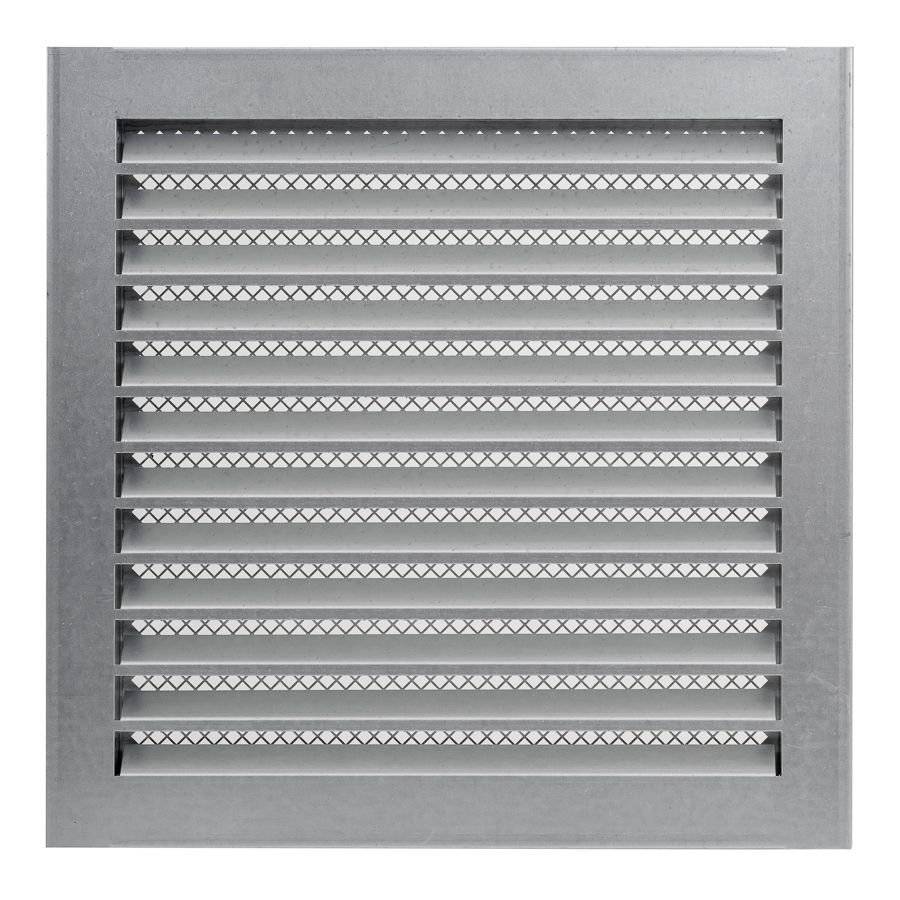

MRF3030Zn
|
grille metal INDUSTRIAL, 300x300mm, galvanized
|
4750492007853
|
300 mm | 300 mm |
|
|

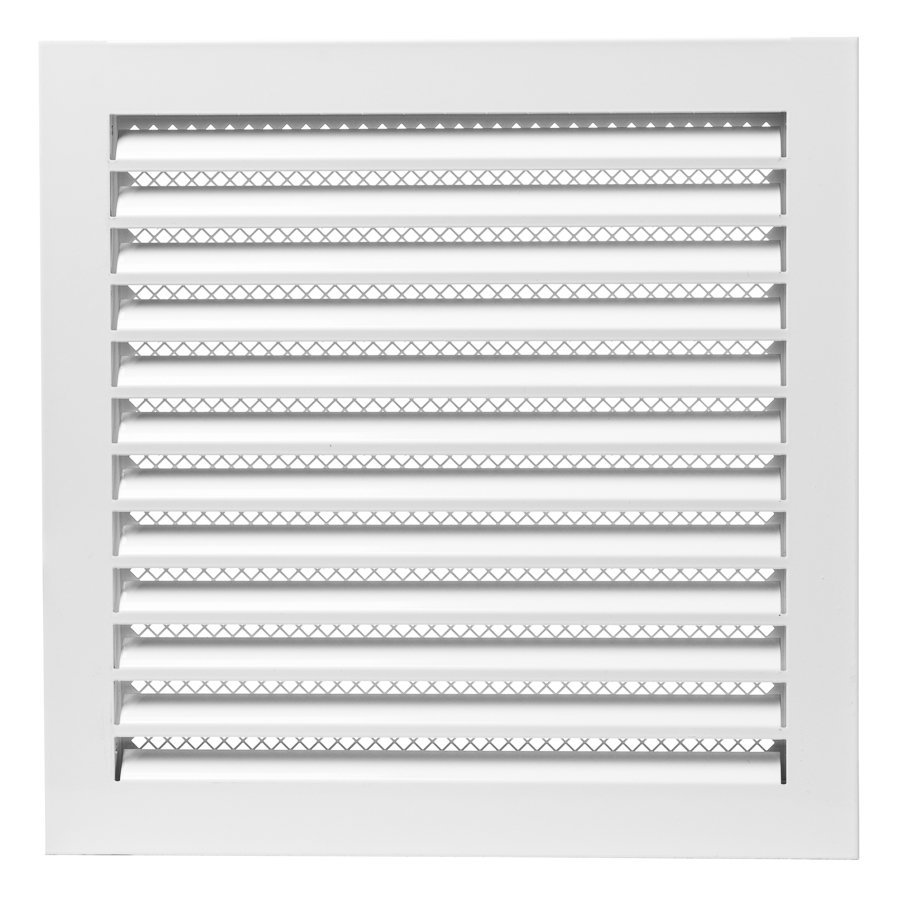

MRF3030
|
grille metal INDUSTRIAL, 300x300mm, white
|
4750492007846
|
300 mm | 300 mm |
|
|

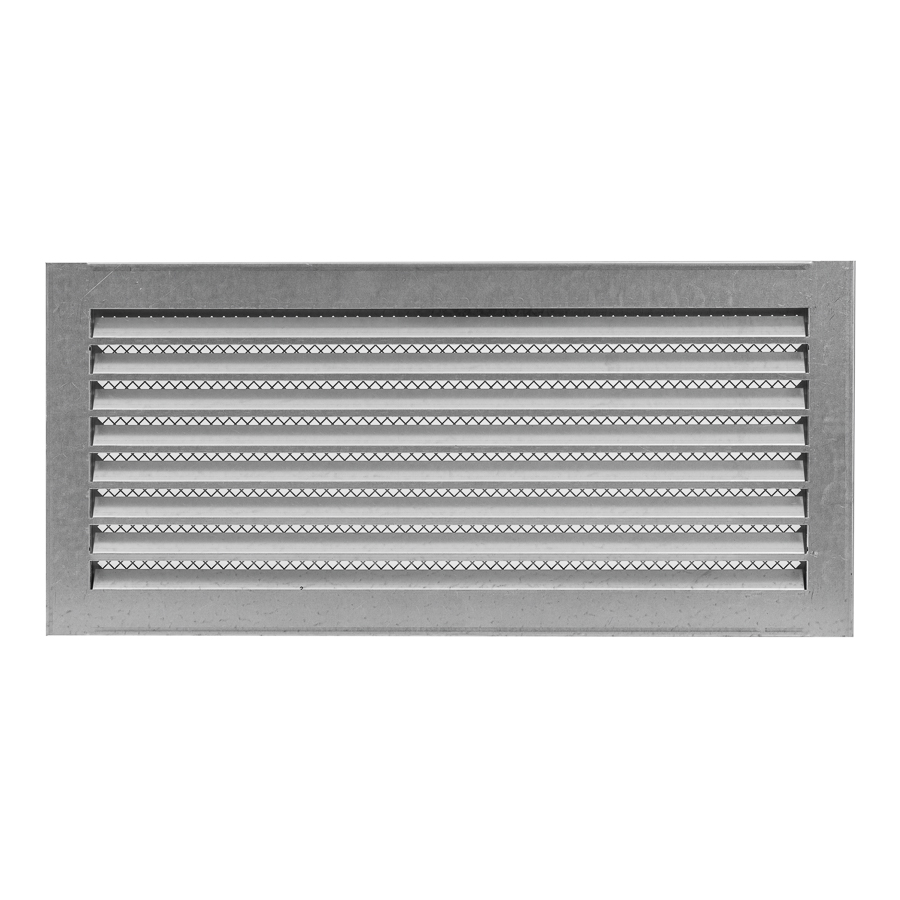

MRF5020Zn
|
grille metal INDUSTRIAL, 500x200mm, galvanized
|
4750492007891
|
500 mm | 200 mm |
|
|

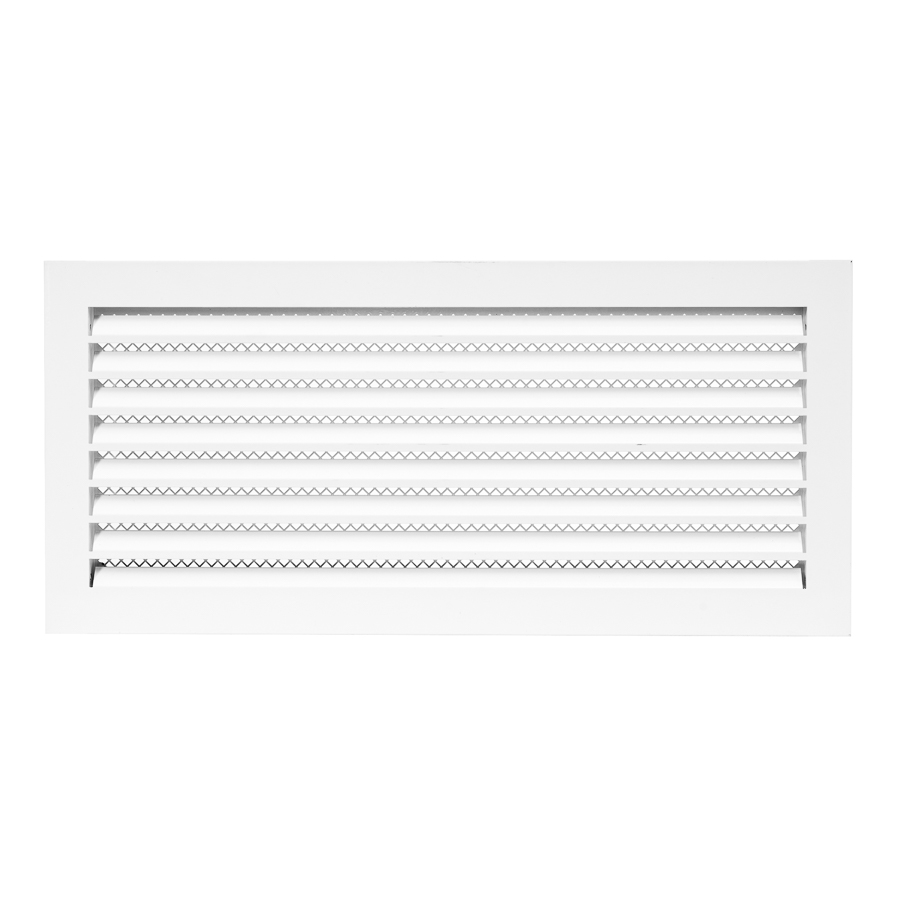

MRF5020
|
grille metal INDUSTRIAL, 500x200mm, white
|
4750492007884
|
500 mm | 200 mm |
|
| Modifications |
| MRFxxxx – white RAL9016 polymer coating |
| MRFxxxxM– black RAL9005 polymer coating |
| MRxxxZn – galvanized steel |
| * MRFxxxxP– grey RAL9006 polymer coating |
| * MRFxxxxB – brown RAL8016 polymer coating |
| * MRFxxxxY – beige RAL 1015 polymer coating |
* Not included in the main range. Available only on special order with a certain minimum quantity.

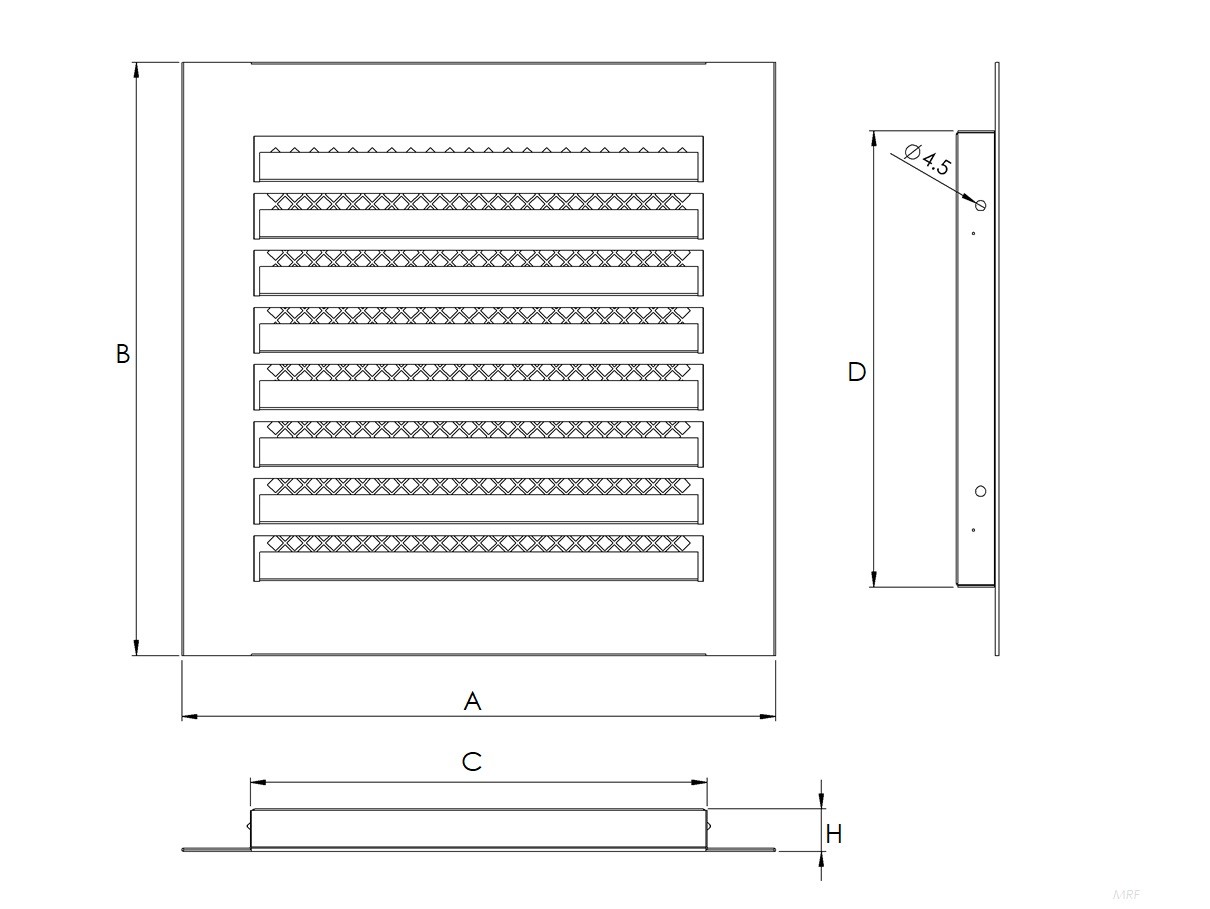

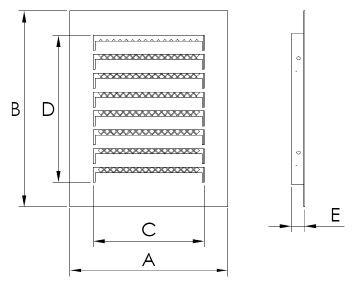

| Type |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Air pass (m2) |
m (kg) |
| MRF1520 | 210 | 260 | 150 | 200 | 19 | 0,0154 | 0,58 |
| MRF2020 | 260 | 260 | 200 | 200 | 19 | 0,0206 | 0,69 |
| MRF3030 | 360 | 360 | 300 | 300 | 19 | 0,0446 | 1,2 |
| MRF5020 | 560 | 260 | 500 | 200 | 19 | 0,0488 | 1,4 |
