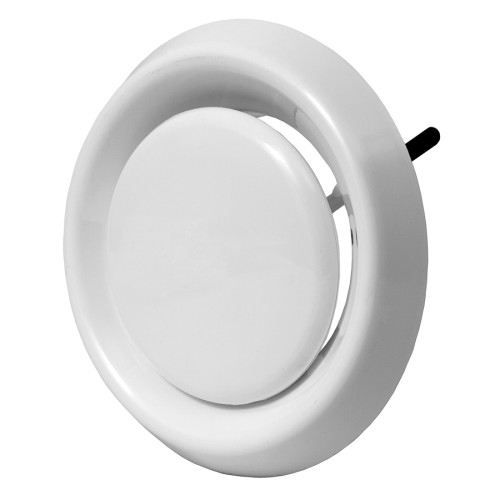

plastic diffusers with mounting springs VDA
Construction:
- Made from plastic
- Adjustable air flow
- With spring mounting
Installation:
- Mounting with all types of circular ducts, in any position
Colors: White
Plastic diffuser for exhaust or supply ventilation.
Functions
Adjustable
The product is equipped with a manual regulator that allows you to regulate the air flow volume.
| Article | Description | EAN | Connection | Functions | |
|---|---|---|---|---|---|
|
VDA100
|
diffuser plastic, Ø100mm, with mounting springs
|
4750492000168
|
Ø 100 mm |
|
|
VDA125
|
diffuser plastic, Ø125mm, with mounting springs
|
4750492000182
|
Ø 125 mm |
|
|
VDA150-160
|
diffuser plastic, Ø150/160mm, with mounting springs
|
4750492000144
|
Ø 150 - Ø 160 mm |
|
| Modifications |
| VDAxxx – white colour |
| * VDAxxxP – grey colour |
| * VDAxxxB – brown colour |
| * VDAxxxM – black colour |
| * VDAxxxY – beige colour |
| * VDAxxxA – anthracite colour |
| * VDAxxxS – silver colour |
| * VDAxxxG – golden colour |
* Not included in the main range. Available only on special order with a certain minimum quantity.
| Type | ØD [mm] |
ØD1 [mm] |
ØD2 [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| VDA100 | 99 | 85 | 149 | 42 | 18 | 0,09 |
| VDA125 | 124 | 104 | 168 | 42 | 18 | 0,13 |
| VDA150-160 | 149-159 | 118 | 183 | 42 | 18 | 0,15 |
- Used as exhaust valve:
_____________________________________________
- Used as supply valve:
