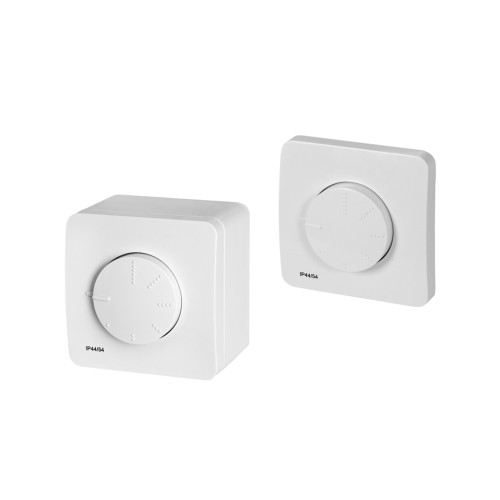

speed controllers AR; ARZ
Construction:
- The housing is made of plastic
- IP54 / IP44
Installation:
- AR 1.5 - on wall mounted
- ARZ1.5 - in to wall mounted
- Location: indoors
Power supply: 220-240V 50Hz single phase
Temperature range: + 0°C up to + 40°C
AR1.5/ ARZ1.5 electronic speed controllers are designed to change the speed of rotation of the electric motor when the voltage changes. Speed controllers can be connected to all exhaust fans manufactured by Europlast. It is allowed to control several electric motors provided that the total consumed current does not exceed the maximum permissible current strengths of the controller. The controller can only be used for single-phase electric motors, in which the supply voltage is changeable.
| Article | Description | EAN | |
|---|---|---|---|
|
AR1.5
|
speed controller, 230V/1.5A
|
4750492219294
|
|
ARZ1.5
|
speed controller, 230V/1.5A, recessed mounted
|
4750492018675
|
AR1.5 ARZ1.5
| Type | Voltage (V / Hz) |
Maximum allowed current (A) |
IP | Fues |
Temperature (°C) |
Weight (kg) |
| AR1.5 | 220-240V~ 50Hz | 1,5 | IP54 | F 2,0 A - H | 0 up to +35 | 0,19 |
| ARZ1.5 | 220-240V~ 50Hz | 1,5 | IP44 | F 2,0 A - H | 0 up to +35 | 0,13 |
