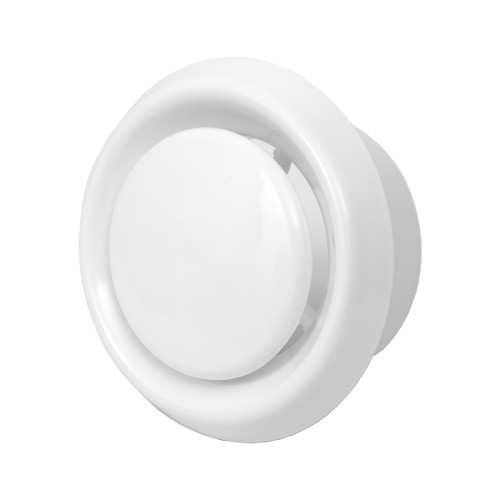

plastic universal diffusers VD
Construction:
- Made from plastic
- Adjustable air flow
- With mounting collar
Installation:
- Mounting with all types of circular ducts, in any position
Colors: White, anthracite
Universal plastic diffuser for exhaust or supply ventilation.
Functions
Adjustable
The product is equipped with a manual regulator that allows you to regulate the air flow volume.
| Description | Connection | Functions | |
|---|---|---|---|
VD100
|
diffuser plastic, Ø100mm, all-purpose
|
Ø 100 mm |
|
VD100A
|
diffuser plastic, Ø100mm, all-purpose, anthracite
|
Ø 100 mm |
|
VD125
|
diffuser plastic, Ø125mm, all-purpose
|
Ø 125 mm |
|
VD125A
|
diffuser plastic, Ø125mm, all-purpose, anthracite
|
Ø 125 mm |
|
VD150
|
diffuser plastic, Ø150mm, all-purpose
|
Ø 150 mm |
|
VD150A
|
diffuser plastic, Ø150mm, all-purpose, anthracite
|
Ø 150 mm |
|
| Modifications |
| VDxxx – white colour |
| VDxxxA – anthracite colour |
| * VDxxxP – grey colour |
| * VDxxxB – brown colour |
| * VDxxxM – black colour |
| * VDxxxY – beige colour |
| * VDxxxS – silver colour |
| * VDxxxG – golden colour |
* Not included in the main range. Available only on special order with a certain minimum quantity.
| Type | ØD [mm] |
ØD1 [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| VD100 | 99 | 149 | 82 | 18 | 0,15 |
| VD125 | 124 | 168 | 82 | 18 | 0,21 |
| VD150 | 149 | 183 | 82 | 18 | 0,27 |
- Used as exhaust valve:
_____________________________________________
- Used as supply valve:
