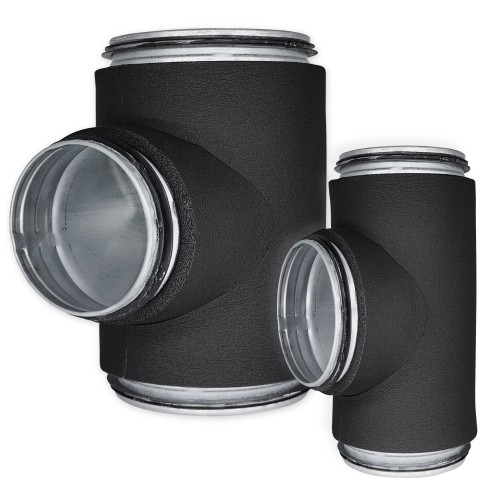

pre-insulated T-joints with gaskets IF-TCPS

Construction:

Made of galvanized steel
With EPDM sealing gaskets
Covered with flexible elastomer foam (FEF) insulation
Insulation material meets class B fire safety standards
System elements meet D-class airtightness standard

Installation:

Easy installation
Saves installation time and space
Ensures material savings

Operating temperature: -40°C ... +85°C
Insulation thickness [mm]: 9; 19
Dimensions [mm]: Ø100; Ø125; Ø160; Ø200
Colors: Black

View products Request Price

Isolated metal T-joints from EUROPLAST are designed for ventilation, air conditioning, and heat recovery systems with additional requirements for energy efficiency. The applied insulation provides excellent sound insulation, thermal insulation, and protection against condensation formation. The material used complies with Class B fire safety standards. Factory-applied insulation significantly reduces installation time and resources at the site, as well as ensures the quality of insulation.

	Description	Connection	Class
IF19-TCPS100-100	pre-insulated T-joint metal, Ø100-Ø100mm with gaskets, extruded, isolation 19mm	Ø 100-100 mm	B; D
IF09-TCPS100-100	pre-insulated T-joint metal, Ø100-Ø100mm with gaskets, extruded, isolation 9mm	Ø 100-100 mm	B; D
IF19-TCPS125-100	pre-insulated T-joint metal, Ø125-Ø100mm with gaskets, extruded, isolation 19mm	Ø 125-100 mm	B; D
IF09-TCPS125-100	pre-insulated T-joint metal, Ø125-Ø100mm with gaskets, extruded, isolation 9mm	Ø 125-100 mm	B; D
IF19-TCPS125-125	pre-insulated T-joint metal, Ø125-Ø125mm with gaskets, extruded, isolation 19mm	Ø 125-125 mm	B; D
IF09-TCPS125-125	pre-insulated T-joint metal, Ø125-Ø125mm with gaskets, extruded, isolation 9mm	Ø 125-125 mm	B; D
IF09-TCPS160-100	pre-insulated T-joint metal, Ø160-Ø100mm with gaskets, extruded, isolation 9mm	Ø 160-100 mm	B; D
IF19-TCPS160-125	pre-insulated T-joint metal, Ø160-Ø125mm with gaskets, extruded, isolation 19mm	Ø 160-125 mm	B; D
IF09-TCPS160-125	pre-insulated T-joint metal, Ø160-Ø125mm with gaskets, extruded, isolation 9mm	Ø 160-125 mm	B; D
IF19-TCPS160-160	pre-insulated T-joint metal, Ø160-Ø160mm with gaskets, extruded, isolation 19mm	Ø 160-160 mm	B; D

Type	ØD1_nom [mm]	ØD3_nom [mm]	L [mm]	L3 [mm]	T [mm]	m [kg]
IF09-TCPS100-100*	100	100	195	71	9	0,55
IF09-TCPS125-100*	125	100	195	79	9	0,63
IF09-TCPS125-125*	125	125	220	82	9	0,72
IF09-TCPS160-100*	160	100	195	97	9	0,76
IF09-TCPS160-125*	160	125	220	99	9	0,86
IF09-TCPS160-160*	160	160	255	99	9	1,08
IF09-TCPS200-125*	200	125	230	118	9	1,04
IF09-TCPS200-160*	200	160	265	129	9	1,31
IF09-TCPS200-200	200	200	270	110	9	1,13
IF19-TCPS100-100*	100	100	195	71	19	0,61
IF19-TCPS125-100*	125	100	195	79	19	0,71
IF19-TCPS125-125*	125	125	220	82	19	0,80
IF19-TCPS160-100*	160	100	195	97	19	0,85
IF19-TCPS160-125*	160	125	220	99	19	0,96
IF19-TCPS160-160*	160	160	255	99	19	1,20
IF19-TCPS200-125*	200	125	230	118	19	1,17
IF19-TCPS200-160*	200	160	265	129	19	1,47
IF19-TCPS200-200	200	200	270	110	19	1,29
IF25-TCPS100-100*	100	100	195	71	25	0,66
IF25-TCPS125-100*	125	100	195	79	25	0,76
IF25-TCPS125-125*	125	125	220	82	25	0,86
IF25-TCPS160-100*	160	100	195	97	25	0,91
IF25-TCPS160-125*	160	125	220	99	25	1,03
IF25-TCPS160-160*	160	160	255	99	25	1,28
IF25-TCPS200-125*	200	125	230	118	25	1,26
IF25-TCPS200-160*	200	160	265	129	25	1,57
IF25-TCPS200-200	200	200	270	110	25	1,38

*Extruded

Essential characteristics	Performance properties	Testing standards
Thermal conductivity coefficient (for all thicknesses)	-10°C - 0,034 W/(mK) 0°C - 0,036 W/(mK) 25°C - 0,037 W/(mK) 40°C - 0,041 W/(mK)	EN 12667
Reaction to fire	B-s3, d0	EN 13501-1
Operating temperature	-40°C ... +85°C
