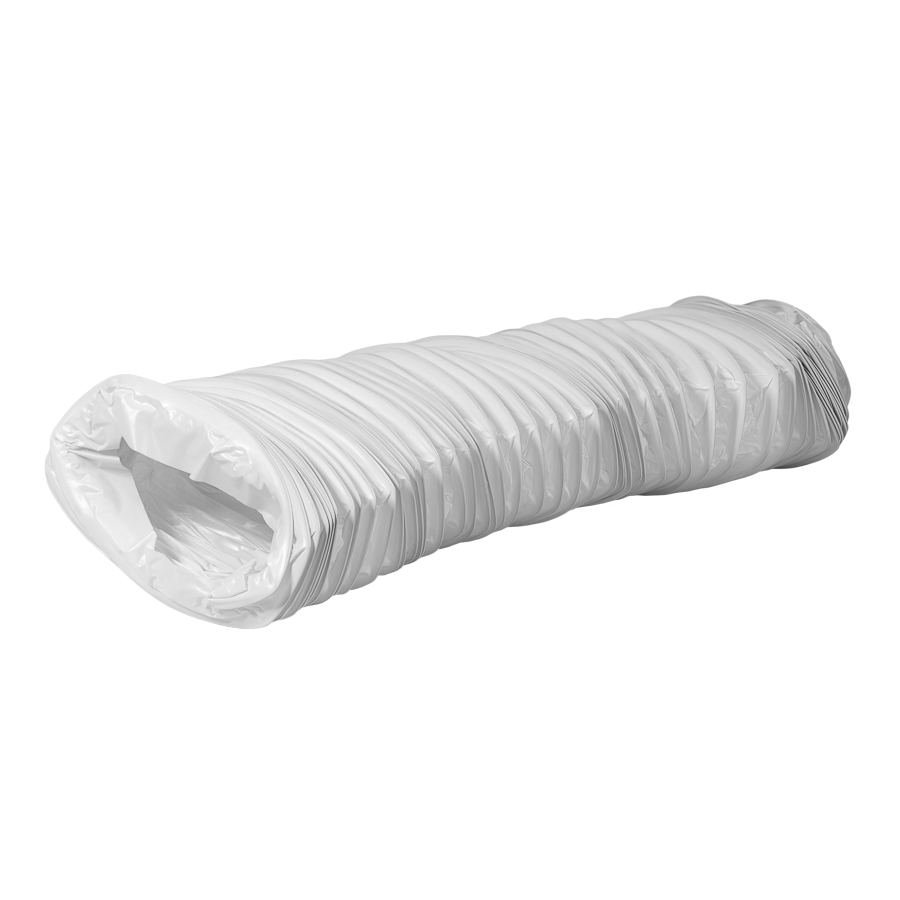

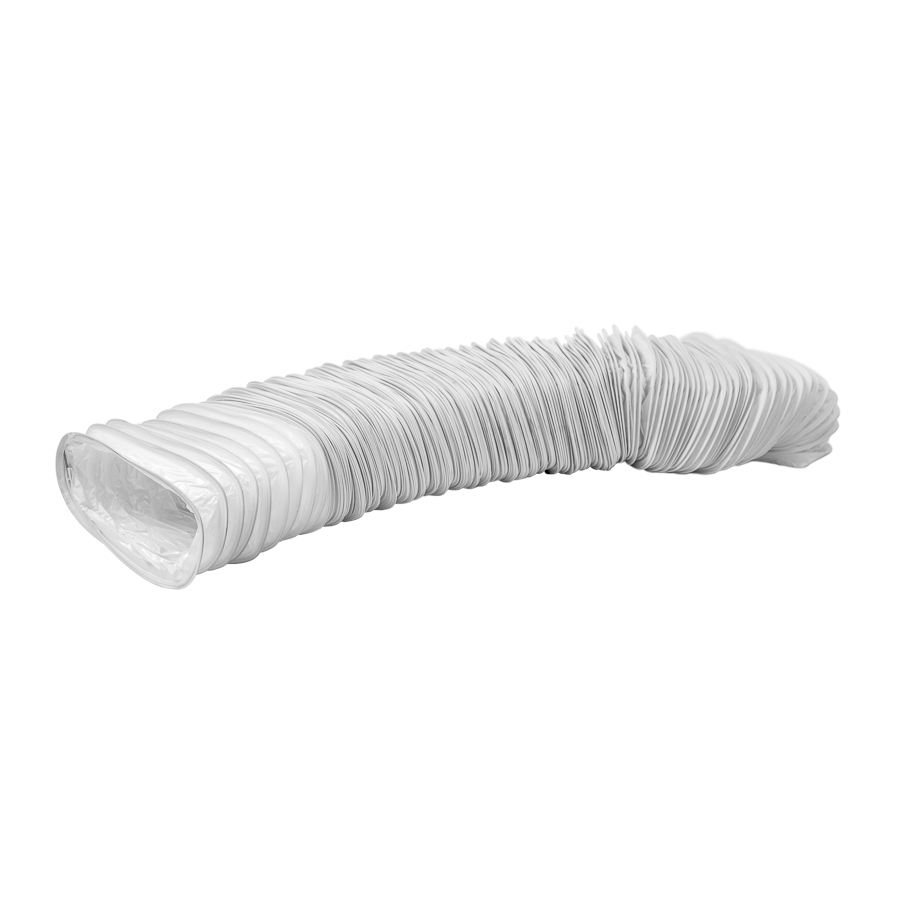

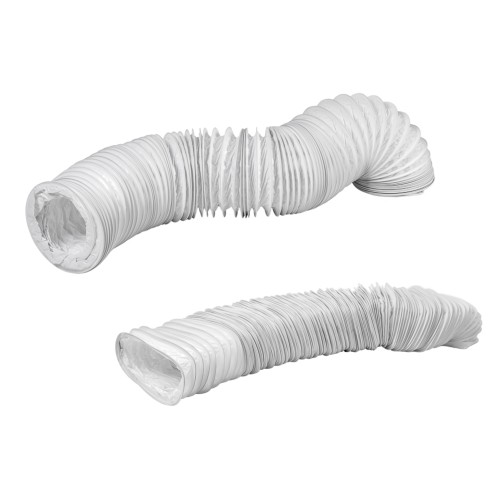

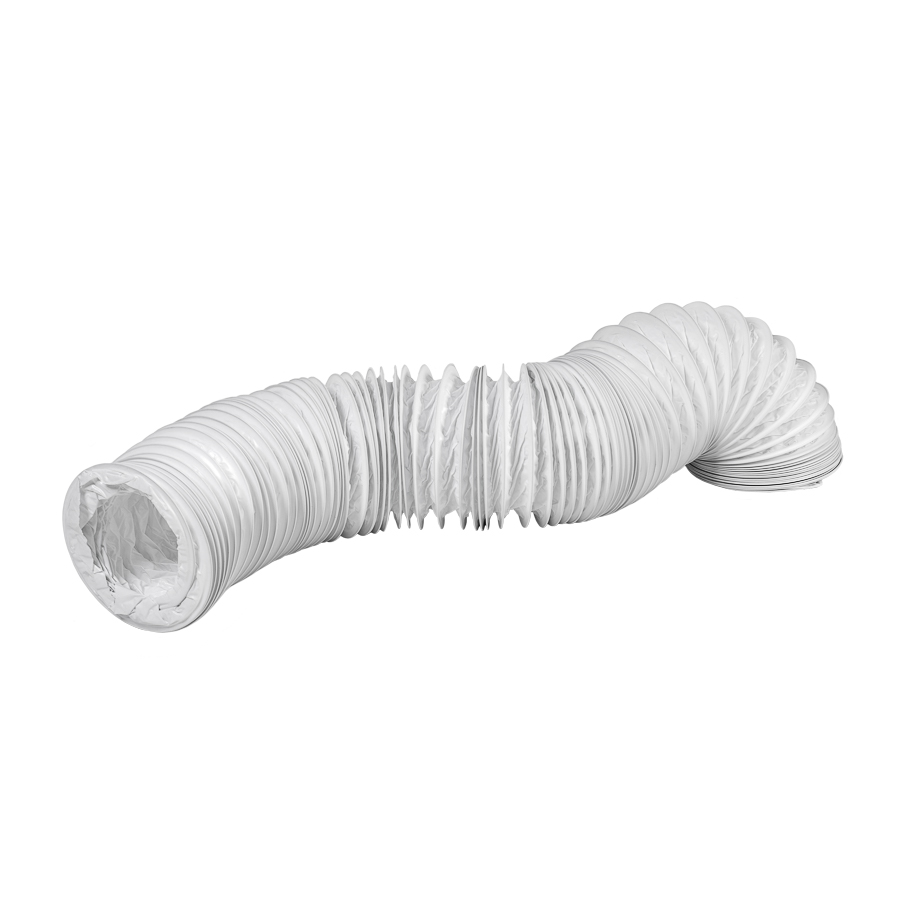

PVC flex air ducts FV
Construction:
- Made from PVC sheets
- With steel wire frame
Instalation:
- For duct fixing can be used special tapes or clamps
Temperature range (°C): -20 ... +70
Max air speed (m/sec): 20
Maximum pressure (Pa): 2000
Min. bend radius: 0,6 Ø
Sizes [mm]: Ø80; Ø100; Ø125; Ø150; Ø160; 110x55; 220x55; 220x90
Length [m]: 1, 3, 6
Colors: White
Flexible air duct PVC flex for heating, cooling, ventilation and air conditioning systems under low and medium pressure.
| Article | Description | EAN | Length | Rectangular ventilation system | Round ventilation system | |
|---|---|---|---|---|---|---|
|
FV15-1
|
air duct wire-reinforced PVC flex, 110x55mm-1m
|
4750492013052
|
1 m | 110 x 55 mm | |
|
FV15-3
|
air duct wire-reinforced PVC flex, 110x55mm-3m
|
4750492013069
|
3 m | 110 x 55 mm | |
|
FV15-6
|
air duct wire-reinforced PVC flex, 110x55mm-6m
|
4750492013076
|
6 m | 110 x 55 mm | |
|
FV25-1
|
air duct wire-reinforced PVC flex, 220x55mm-1m
|
4750492013083
|
1 m | 220 x 55 mm | |
|
FV25-3
|
air duct wire-reinforced PVC flex, 220x55mm-3m
|
4750492013090
|
3 m | 220 x 55 mm | |
|
FV25-6
|
air duct wire-reinforced PVC flex, 220x55mm-6m
|
4750492013106
|
6 m | 220 x 55 mm | |
|
FV29-1
|
air duct wire-reinforced PVC flex, 220x90mm-1m
|
4750492027370
|
1 m | 220 x 90 mm | |
|
FV29-3
|
air duct wire-reinforced PVC flex, 220x90mm-3m
|
4750492027387
|
3 m | 220 x 90 mm | |
|
FV29-6
|
air duct wire-reinforced PVC flex, 220x90mm-6m
|
4750492027394
|
6 m | 220 x 90 mm | |
|
FV100-1
|
air duct wire-reinforced PVC flex, Ø100mm-1m
|
4750492013113
|
1 m | Ø 100 mm |

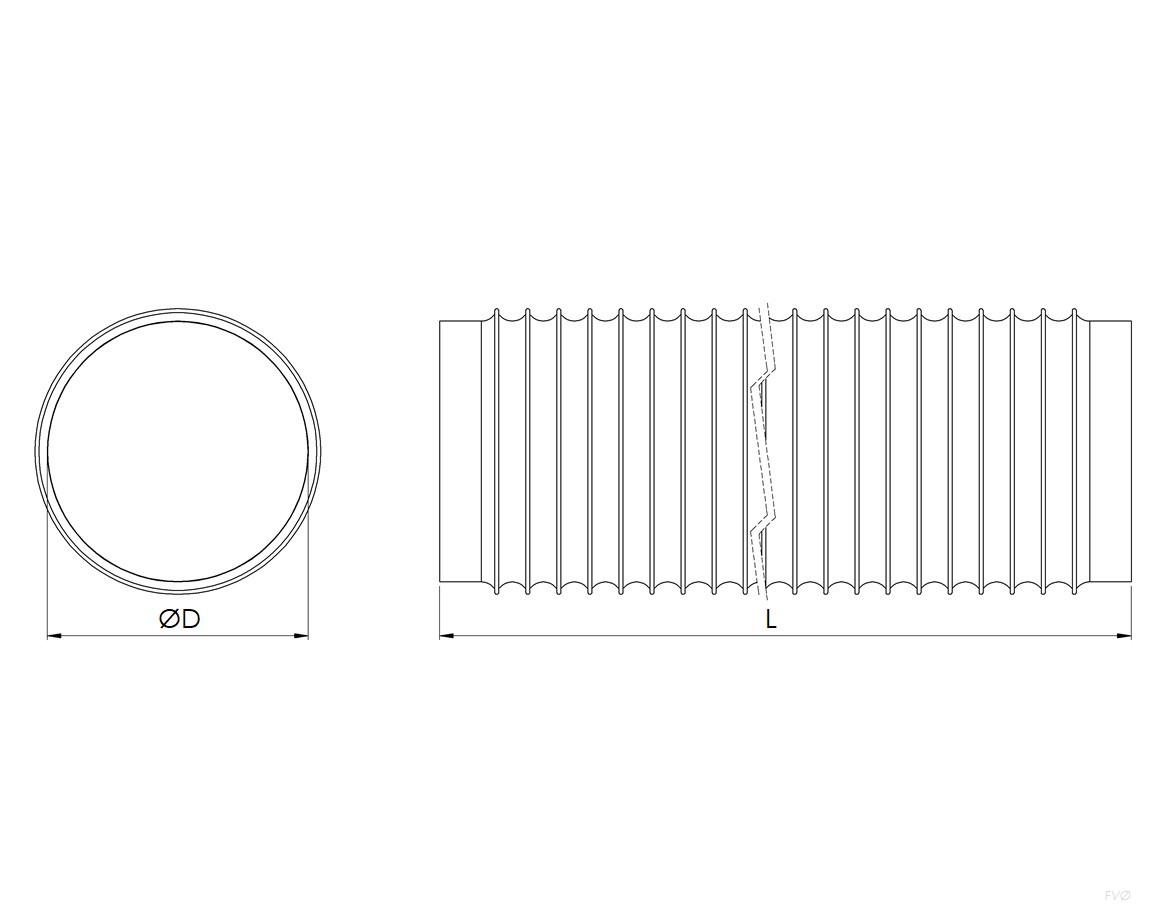

| Type | ØD [mm] |
A [mm] |
B [mm] |
L [mm] |
m [kg] |
| FV80-1 | 80 | - | - | 1 000 | 0,07 |
| FV80-3 | 80 | - | - | 3 000 | 0,18 |
| FV80-6 | 80 | - | - | 6 000 | 0,37 |
| FV100-1 | 100 | - | - | 1 000 | 0,08 |
| FV100-3 | 100 | - | - | 3 000 | 0,22 |
| FV100-6 | 100 | - | - | 6 000 | 0,45 |
| FV125-1 | 125 | - | - | 1 000 | 0,09 |
| FV125-3 | 125 | - | - | 3 000 | 0,27 |
| FV125-6 | 125 | - | - | 6 000 | 0,50 |
| FV150-1 | 150 | - | - | 1 000 | 0,13 |
| FV150-3 | 150 | - | - | 3 000 | 0,33 |
| FV150-6 | 150 | - | - | 6 000 | 0,66 |
| FV160-1 | 160 | - | - | 1 000 | 0,13 |
| FV160-3 | 160 | - | - | 3 000 | 0,38 |
| FV160-6 | 160 | - | - | 6 000 | 0,72 |
| FV15-1 | - | 110 | 55 | 1 000 | 0,13 |
| FV15-3 | - | 110 | 55 | 3 000 | 0,37 |
| FV15-6 | - | 110 | 55 | 6 000 | 0,74 |
| FV25-1 | - | 220 | 55 | 1 000 | 0,24 |
| FV25-3 | - | 220 | 55 | 3 000 | 0,67 |
| FV25-6 | - | 220 | 55 | 6 000 | 1,31 |
| FV29-1 | - | 220 | 90 | 1 000 | 0,19 |
| FV29-3 | - | 220 | 90 | 3 000 | 0,60 |
| FV29-6 | - | 220 | 90 | 6 000 | 1,07 |
