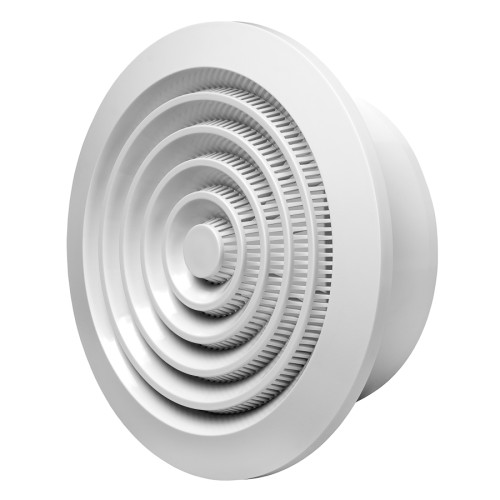

plastic round ceiling grilles NGA
Construction:
- Manufactured from high-quality ABS plastic
- Integrated insect screen
Installation:
- Designed for ceiling mounting
- For indoor or outdoor use
- Mounting with all types of circular ducts
Colors: White, anthracite
NGA series ventilation grilles can be used in residential or commercial buildings. Can be used for exhaust or supply ventilation. The grille can also be mounted on the wall, in addition to the intended mounting on the ceiling. The grilles are made of high-quality ABS plastic, which is resistant to changing weather conditions.
Functions
Insect screen
Product is equipped with an insect mesh, which prevents insects from entering in to the ventilation systems.
| Article | Description | EAN | Connection | Functions | |
|---|---|---|---|---|---|
|
NGA100
|
grille plastic, Ø100mm, ceiling
|
4750492106099
|
Ø 100 mm |
|
|
NGA100A
|
grille plastic, Ø100mm, ceiling, anthracite
|
4750492011652
|
Ø 100 mm |
|
|
NGA125
|
grille plastic, Ø125mm, ceiling
|
4750492106105
|
Ø 125 mm |
|
|
NGA125A
|
grille plastic, Ø125mm, ceiling, anthracite
|
4750492011669
|
Ø 125 mm |
|
|
NGA150
|
grille plastic, Ø150mm, ceiling
|
4750492106112
|
Ø 150 mm |
|
|
NGA80
|
grille plastic, Ø80mm, ceiling
|
4750492004883
|
Ø 80 mm |
|
| Modifications |
| NGAxxx – white colour |
| NGAxxxA – anthracite colour |
| * NGAxxxP – grey colour |
| * NGAxxxB – brown colour |
| * NGAxxxM – black colour |
| * NGAxxxY – beige colour |
| * NGAxxxS – silver colour |
| * NGAxxxG – golden colour |
* Not included in the main range. Available only on special order with a certain minimum quantity.
| Type | D [mm] |
ØD1 [mm] |
H [mm] |
H1 [mm] |
Air pass [m2] |
m [kg] |
| NGA80 | 79 | 125 | 62 | 50 | 0,0022 | 0,05 |
| NGA100 | 99 | 145 | 62 | 50 | 0,0038 | 0,07 |
| NGA125 | 124 | 170 | 62 | 50 | 0,0056 | 0,09 |
| NGA150 | 149 | 195 | 62 | 50 | 0,0077 | 0,12 |
