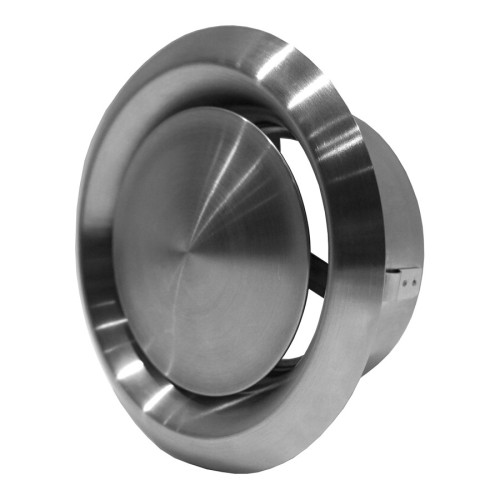

metal universal diffusers DM inox
Construction:
- Made from stainless steel alloy AISI304
- Adjustable air flow
- With mounting collar
Installation:
- Wall or ceiling mounting with all types of circular ducts
Colors: Stainless steel
Stainless steel diffusers for exhaust or supply ventilation.
Functions
Adjustable
The product is equipped with a manual regulator that allows you to regulate the air flow volume.
| Article | Description | EAN | Connection | Functions | |
|---|---|---|---|---|---|
|
DM100i
|
diffuser metal, universal, Ø100mm, inox
|
4750492006382
|
Ø 100 mm |
|
|
DM125i
|
diffuser metal, universal, Ø125mm, inox
|
4750492006399
|
Ø 125 mm |
|
|
DM150i
|
diffuser metal, universal, Ø150mm, inox
|
4750492017098
|
Ø 150 mm |
|
|
DM160i
|
diffuser metal, universal, Ø160mm, inox
|
4750492017104
|
Ø 160 mm |
|
|
DM200i
|
diffuser metal, universal, Ø200mm, inox
|
4750492017111
|
Ø 200 mm |
|
| Type | ØD [mm] |
ØD1 [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| DM100i | 96 | 140 | 55 | 8 | 0,20 |
| DM125i | 121 | 167 | 55 | 8 | 0,26 |
| DM150i | 146 | 200 | 55 | 8 | 0,40 |
| DM160i | 156 | 210 | 55 | 9 | 0,42 |
| DM200i | 196 | 247 | 55 | 10 | 0,79 |
- Used as exhaust valve:
_________________________________________
- Used as supply valve:
