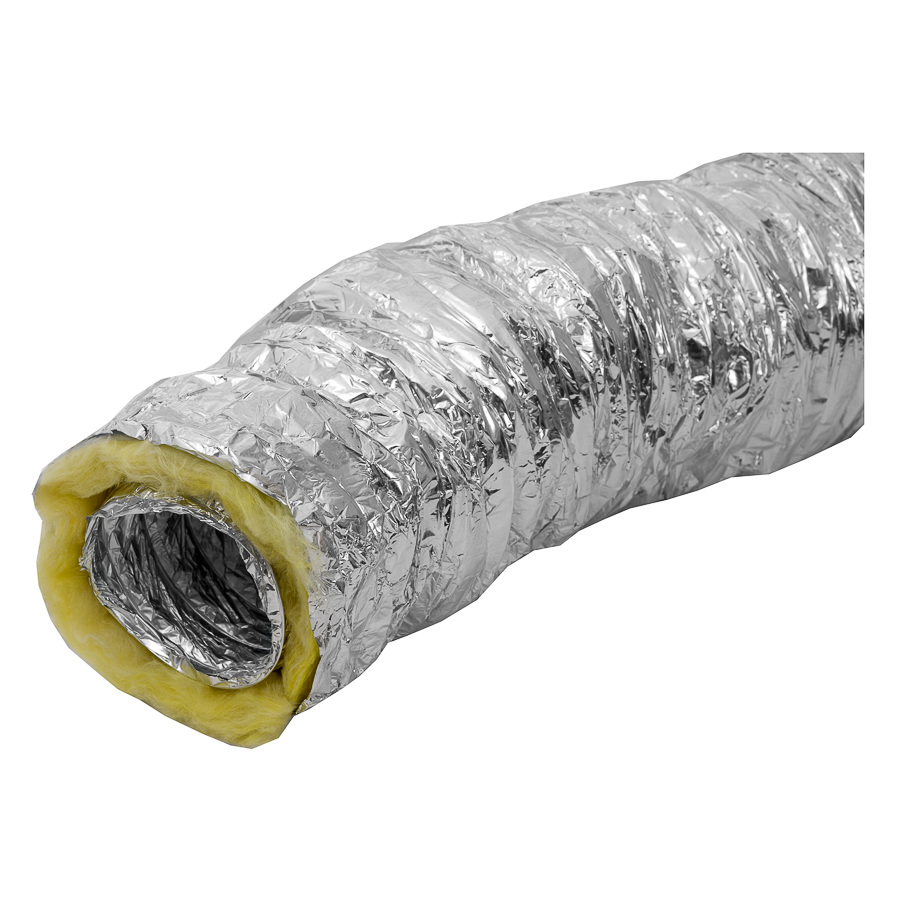

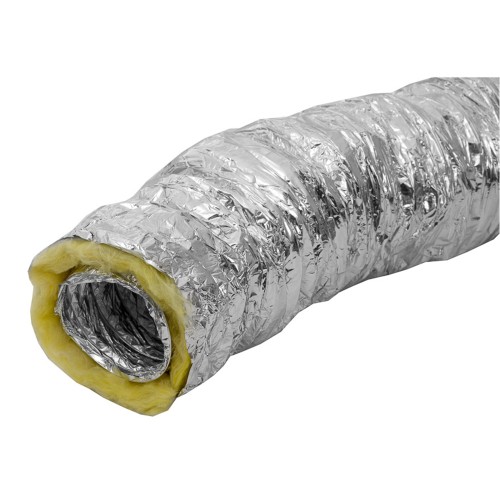

aluflex THERMO insulated air ducts FAT
Construction:
- Made from flexible air duct
- With 16kg/m³ glass wool insulation 25mm thick
- Metalized polyester outer jacket.
Instalation:
- For duct fixing can be used special tapes or clamps
Temperature range (°C): -30 ... +140
Max air speed (m/sec): 30
Maximum pressure (Pa): 2500
Min. bend radius: 0,6 Ø + 25mm
Sizes [mm]: Ø100; Ø125; Ø150; Ø160; Ø200; Ø250; Ø315
Length [m]: 10
Colors: Metallic
Flexible air duct Aluflex THERMO for heating, cooling, ventilation and air conditioning systems under low and medium pressure. Effectively prevents condensation and heat or cold loss.
| Article | Description | EAN | Length | Connection | |
|---|---|---|---|---|---|
|
FAT100
|
air duct wire-reinforced, thermally insulated, Aluflex THERMO, Ø100mm-10m
|
4750492220351
|
10 m | Ø 100 mm |
|
FAT125
|
air duct wire-reinforced, thermally insulated, Aluflex THERMO, Ø125mm-10m
|
4750492220368
|
10 m | Ø 125 mm |
|
FAT160
|
air duct wire-reinforced, thermally insulated, Aluflex THERMO, Ø160mm-10m
|
4750492220382
|
10 m | Ø 160 mm |
|
FAT200
|
air duct wire-reinforced, thermally insulated, Aluflex THERMO, Ø200mm-10m
|
4750492220399
|
10 m | Ø 200 mm |

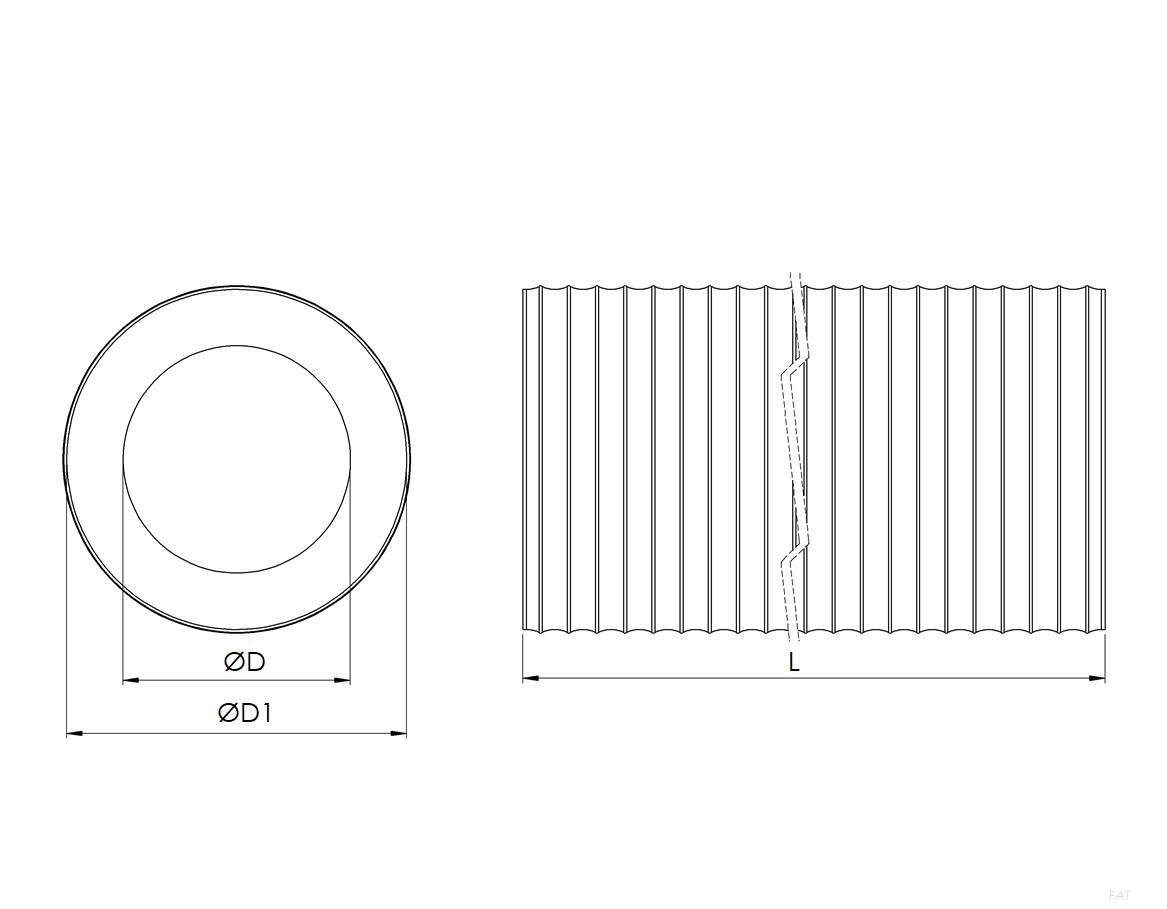

| Type | ØD [mm] |
ØD1 [mm] |
L [mm] |
m [kg] |
| FAT100 | 102 | 150 | 10 000 | 3,10 |
| FAT125 | 127 | 175 | 10 000 | 3,50 |
| FAT160 | 162 | 210 | 10 000 | 4,20 |
| FAT200 | 202 | 250 | 10 000 | 5,50 |
