aluminium air ducts G
Construction:

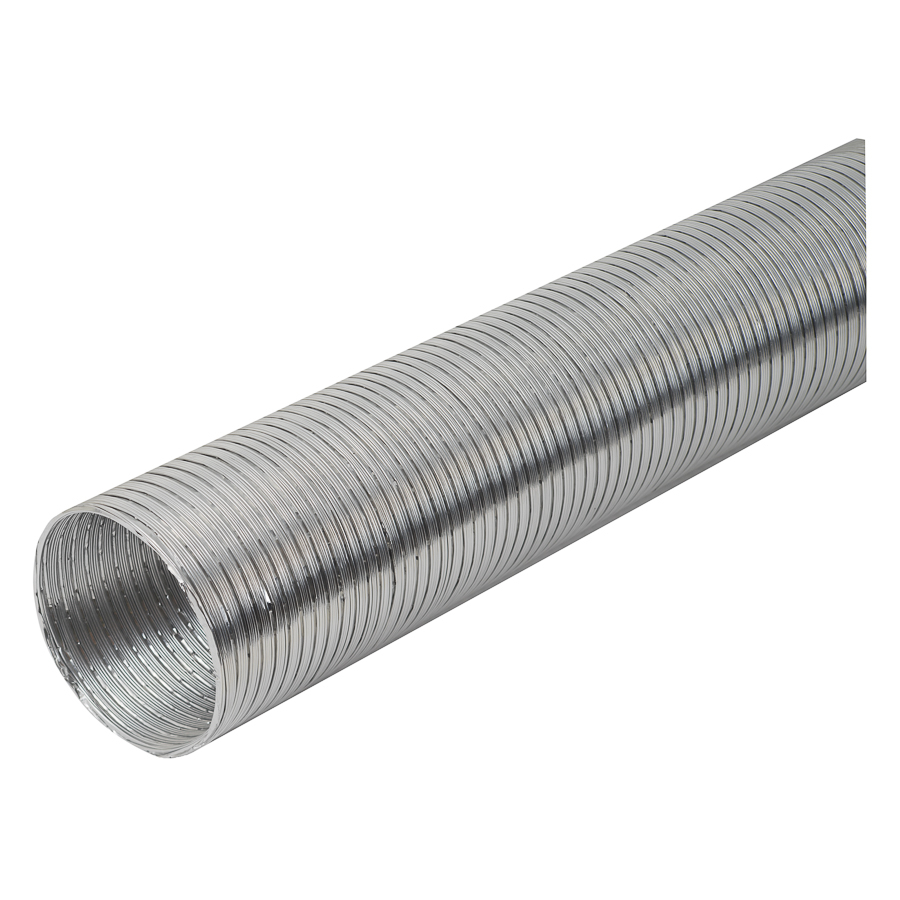

- Made from corrugated aluminium
Instalation:

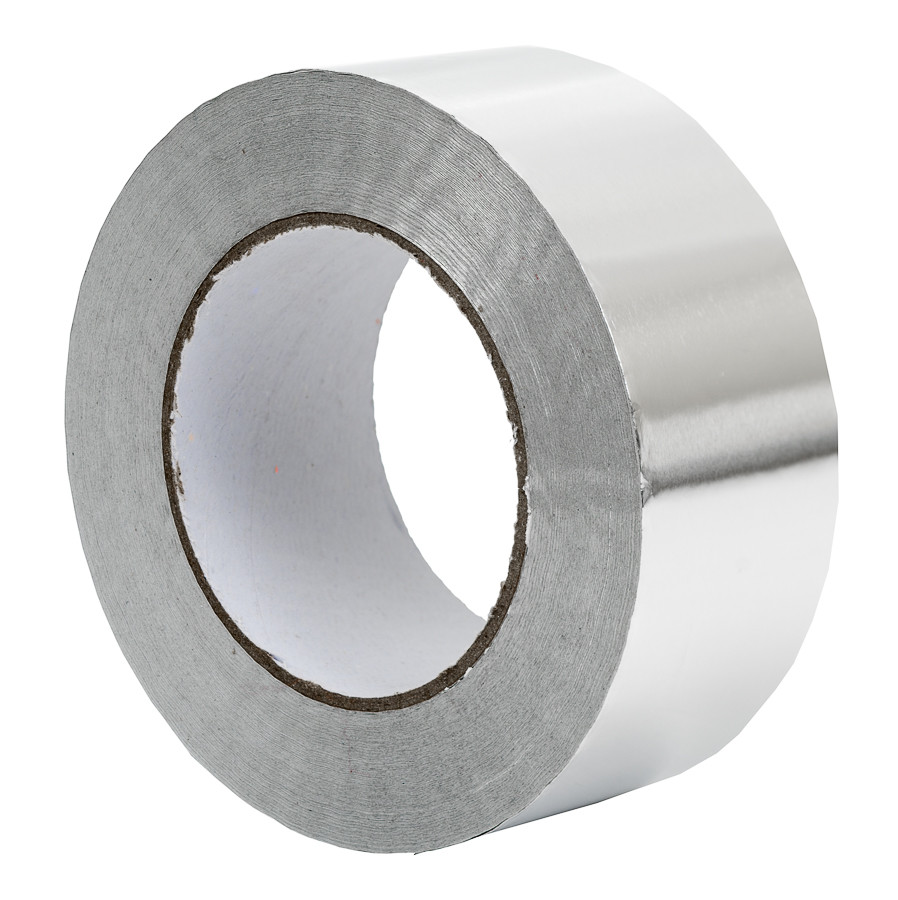

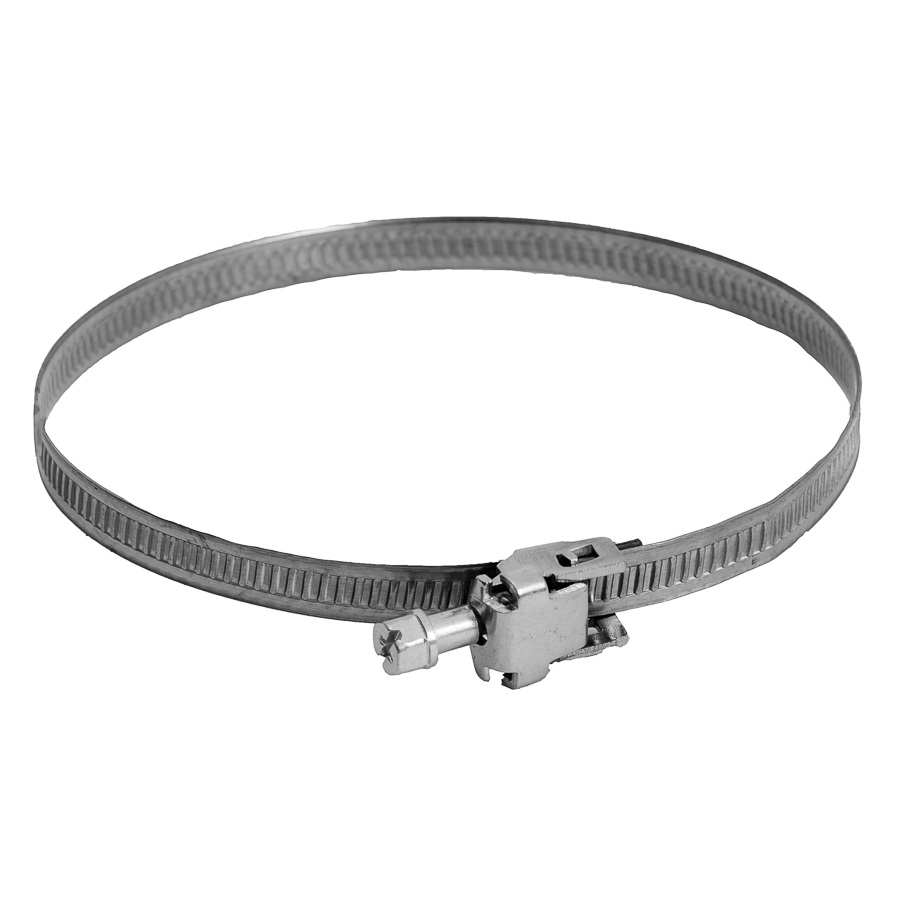

- For duct fixing can be used special tapes or clamps
Temperature range (°C): Up to +250
Max air speed (m/sec): 25
Maximum pressure (Pa): 2000
Min. bend radius: 1 Ø
Sizes [mm]: Ø80; Ø90; Ø100; Ø110; Ø120; Ø125; Ø130; Ø150; Ø160; Ø200; Ø250; Ø315
Length [m]: 1; 1,5; 2; 2,5; 3; 5

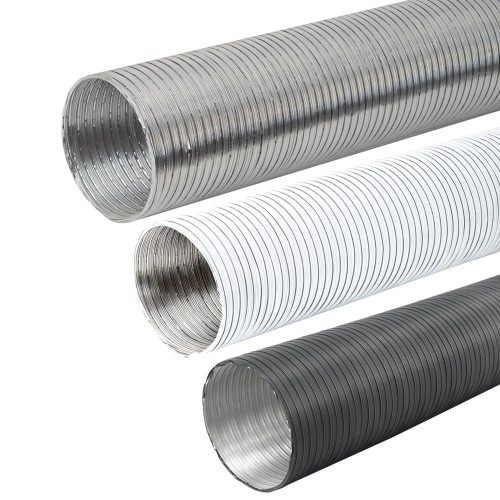

Colors: Metallic, white, anthracite
Semi-flexible aluminium air duct used for conditioning systems, steam exhaust and other ventilation purposes. Flexible, easy-to-install air ducts.
EUROPLAST manufactured aluminium flexible air ducts are available in different colors, sizes and length.
| Article | Description | EAN | Length | Connection | |
|---|---|---|---|---|---|
|
G100-1.5
|
air duct aluminium, Ø100mm-1.5m
|
4750492000861
|
1,5 m | Ø 100 mm |
|
G100B-1.5
|

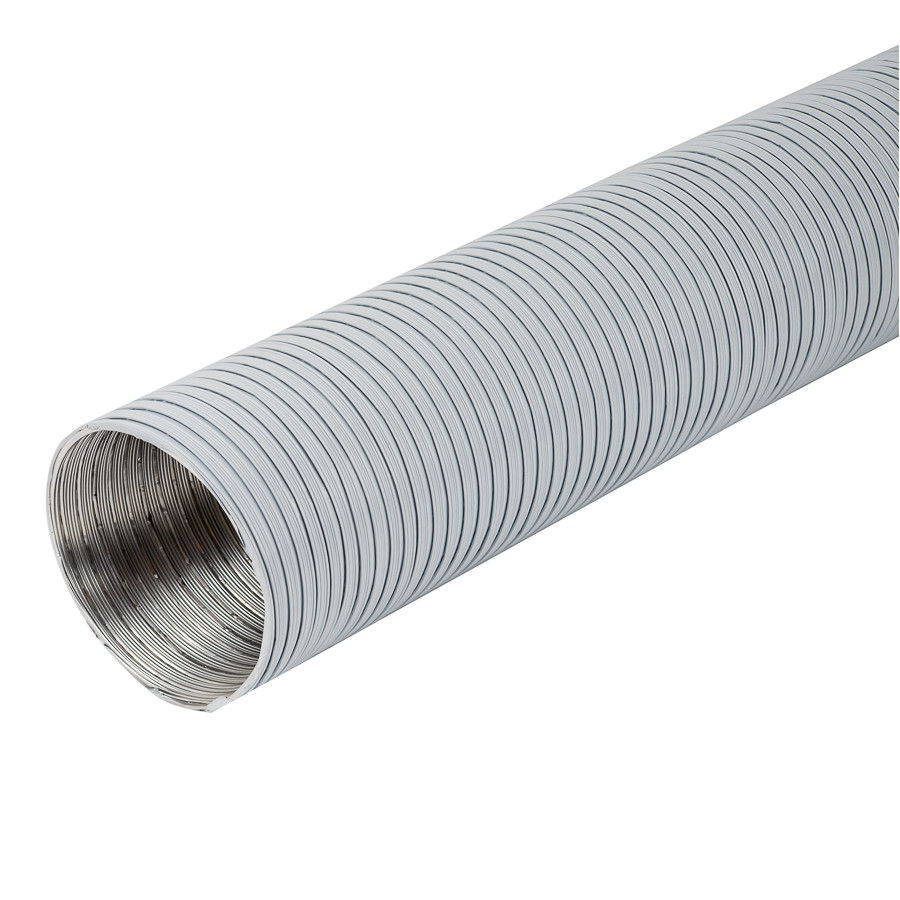

air duct aluminium, Ø100mm-1.5m, white
|
4750492001691
|
1,5 m | Ø 100 mm |
|
G100
|
air duct aluminium, Ø100mm-3m
|
4750492000854
|
3 m | Ø 100 mm |
|
G100A
|

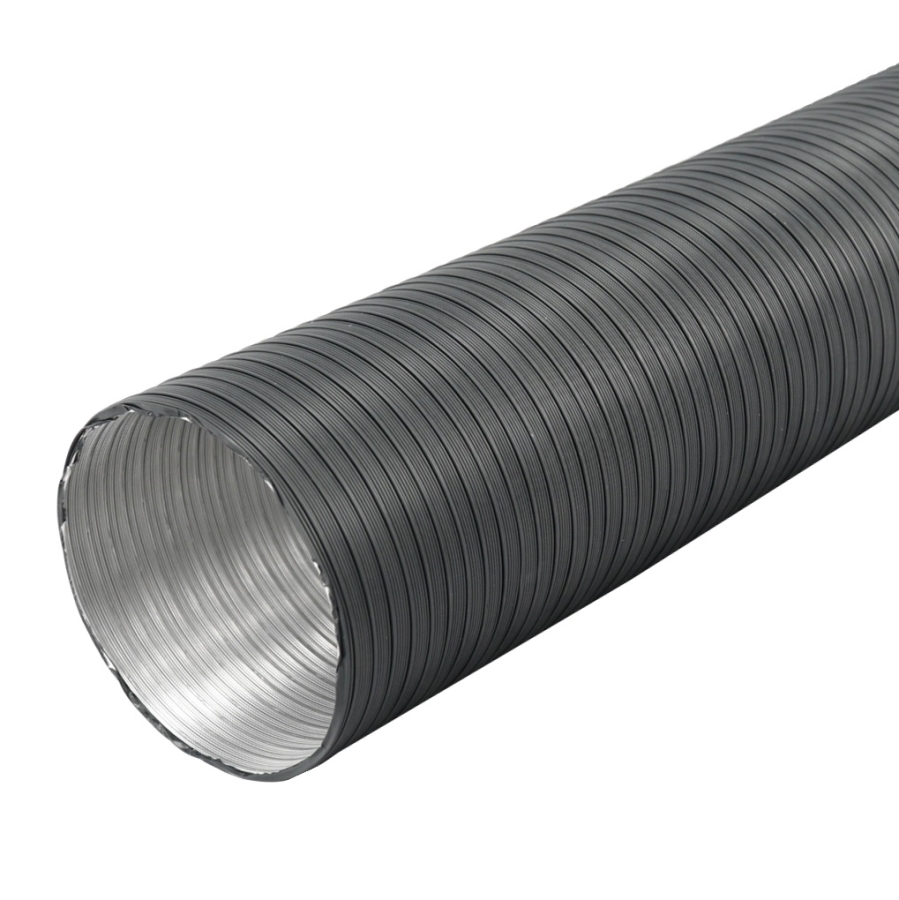

air duct aluminium, Ø100mm-3m anthracite
|
4750492020142
|
3 m | Ø 100 mm |
|
G100B
|
air duct aluminium, Ø100mm-3m white
|
4750492001684
|
3 m | Ø 100 mm |
|
G120-1.5
|
air duct aluminium, Ø120mm-1.5m
|
4750492001622
|
1,5 m | Ø 120 mm |
|
G120B-1.5
|
air duct aluminium, Ø120mm-1.5m, white
|
4750492001714
|
1,5 m | Ø 120 mm |
|
G120
|
air duct aluminium, Ø120mm-3m
|
4750492001639
|
3 m | Ø 120 mm |
|
G120B
|
air duct aluminium, Ø120mm-3m, white
|
4750492001707
|
3 m | Ø 120 mm |
|
G125-1.5
|
air duct aluminium, Ø125mm-1.5m
|
4750492000885
|
1,5 m | Ø 125 mm |
| Modifications |
| Gxxx - unpainted |
| GxxxB - white colour |
| GxxxA - anthracite colour |

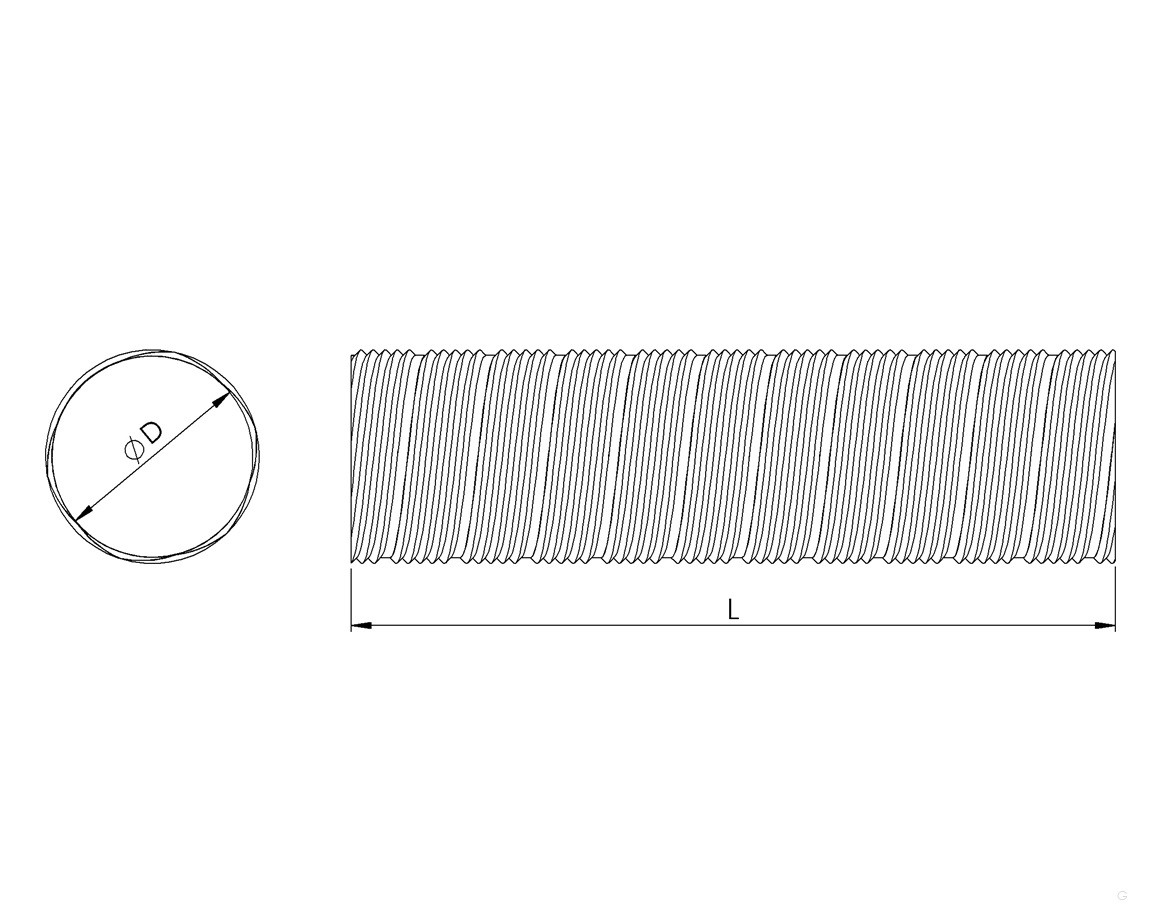

| Type | ØD [mm] |
L [mm] |
m [kg] |
| G80-1.5 | 80 | 1 500 | 0,12 |
| G80 | 80 | 3 000 | 0,23 |
| G100-1.5 | 100 | 1 500 | 0,16 |
| G100 | 100 | 3 000 | 0,29 |
| G120-1.5 | 120 | 1 500 | 0,18 |
| G120 | 120 | 3 000 | 0,32 |
| G125-1.5 | 125 | 1 500 | 0,19 |
| G125 | 125 | 3 000 | 0,33 |
| G130-1.5 | 130 | 1 500 | 0,18 |
| G130 | 130 | 3 000 | 0,36 |
| G150-1.5 | 150 | 1 500 | 0,22 |
| G150 | 150 | 3 000 | 0,39 |
| G160-1.5 | 160 | 1 500 | 0,23 |
| G160 | 160 | 3 000 | 0,41 |
| G200 | 200 | 3 000 | 0,51 |
| G250 | 250 | 3 000 | 0,65 |
| G315 | 315 | 3 000 | 0,82 |
