Products METAL GRILLES metal grilles adjustable MR1010R-5050R

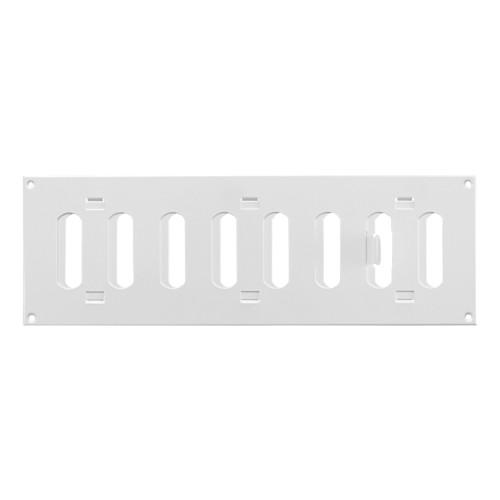

metal grilles adjustable MR1010R-5050R

Construction:

Made from galvanized steel or other materials
Adjustable air flow

Instalation:

Screw fixing in any position.

Colors: White, brown, beige, grey, black, metallic, copper, aluminium, stainless steel

View products

EUROPLAST adjustable MR-R metal ventilation grilles are made from high quality galvanized steel or other metals and are coated with high-quality paint. This ensures the longevity of the grilles and their resistance to the changing weather. Grilles are available in different sizes and in a wide range of colors: white, brown, beige, gray, black, metallic, copper, aluminum, stainless steel.

Functions

Adjustable

Adjustable

The product is equipped with a manual regulator that allows you to regulate the air flow volume.

	Article	Description	EAN	Width	Height	Functions
	MR1515RM	grille metal, 150x150mm, adjustable, black	4750492020418	150 mm	150 mm
	MR1515RZn	grille metal, 150x150mm, adjustable, galvanized	4750492020425	150 mm	150 mm
	MR1515R	grille metal, 150x150mm, adjustable, white	4750492020401	150 mm	150 mm
	MR2010RM	grille metal, 200x100mm, adjustable, black	4750492020456	200 mm	100 mm
	MR2010RZn	grille metal, 200x100mm, adjustable, galvanized	4750492020463	200 mm	100 mm
	MR2010R	grille metal, 200x100mm, adjustable, white	4750492020449	200 mm	100 mm
	MR2015RM	grille metal, 200x150mm, adjustable, black	4750492020531	200 mm	150 mm
	MR2015RZn	grille metal, 200x150mm, adjustable, galvanized	4750492020548	200 mm	150 mm
	MR2015R	grille metal, 200x150mm, adjustable, white	4750492020524	300 mm	150 mm
	MR2020RM	grille metal, 200x200mm, adjustable, black	4750492020616	200 mm	200 mm

Modifications

MRxxxxR - white RAL9016 polymer coating

MRxxxxRB - brown RAL8016 polymer coating

MRxxxxRY - beige RAL 1015 polymer coating

MRxxxxRP - grey RAL9006 polymer coating

MRxxxxRM - black RAL9005 polymer coating

MRxxxxRZn - galvanized steel

MRxxxxRCu - copper

MRxxxxRAl - aluminium

MRxxxxRi - stainless steel

Type	A (mm)	B (mm)	C (mm)	D (mm)	G (mm)	Air pass (m²)	m (kg)
MR1515R	150	150	138	138	6	0,0046	0,12
MR2010R	200	100	188	88	6	0,0039	0,1
MR2015R	200	150	188	138	6	0,0077	0,14
MR2020R	200	200	188	188	6	0,0103	0,2
MR305R	300	50	288	38	6	0,003	0,08
MR3010R	300	100	288	88	6	0,0062	0,14
MR3015R	300	150	288	138	6	0,0122	0,21
MR3020R	300	200	288	188	6	0,0165	0,28
MR3030R	300	300	288	288	6	0,0273	0,41
MR405R	400	50	388	38	6	0,004	0,11
MR4010R	400	100	388	88	6	0,0084	0,19
MR4015R	400	150	388	138	6	0,0168	0,28
MR4020R	400	200	388	188	6	0,0226	0,38
MR4030R	400	300	388	288	6	0,0376	0,55
MR5010R	500	100	488	88	6	0,0107	0,23
MR5015R	500	150	488	138	6	0,0214	0,37
MR5020R	500	200	488	188	6	0,0287	0,47

Declaration of conformity, ENG

Declaration of conformity, LV

Technical data sheet, ENG

Technical data sheet, LV
