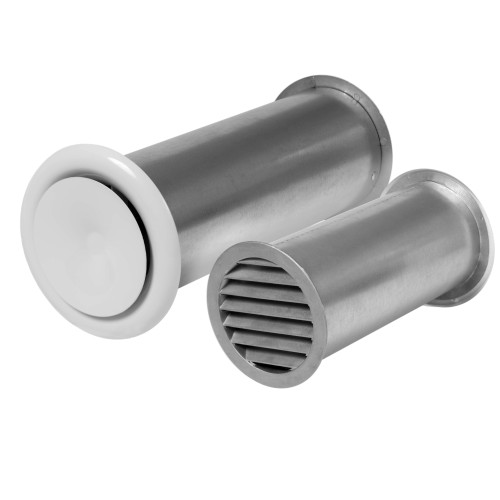

kits, supply valves with sound insulation, metal SMK3

Construction:

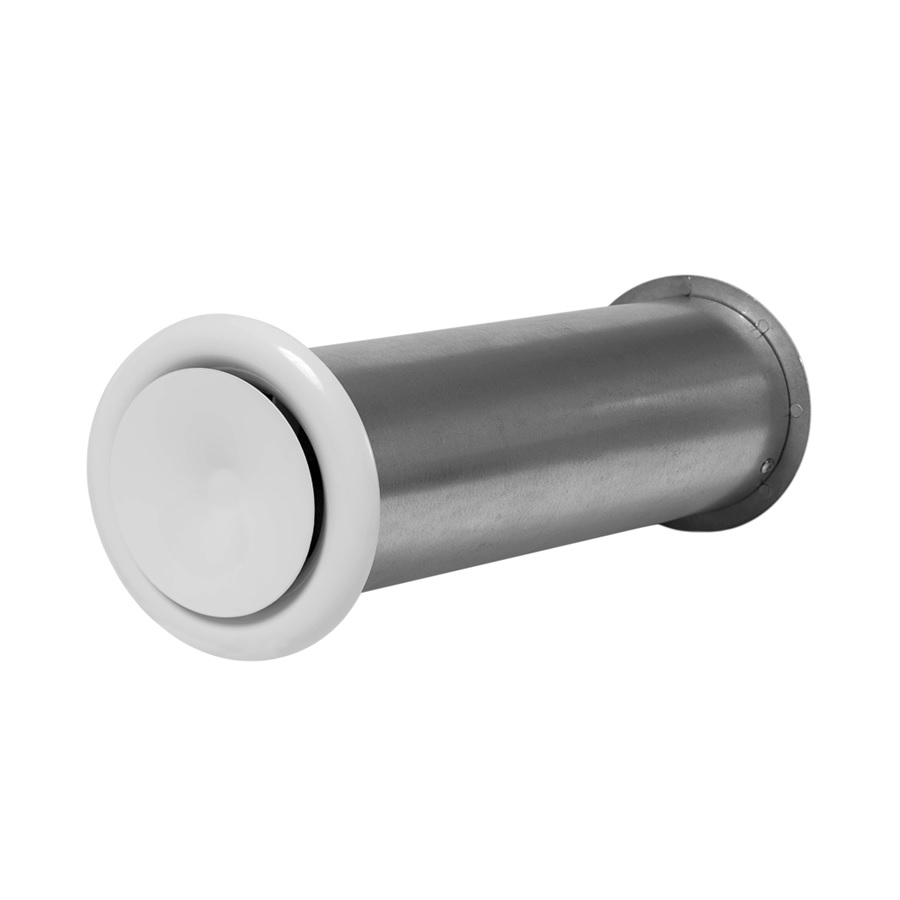

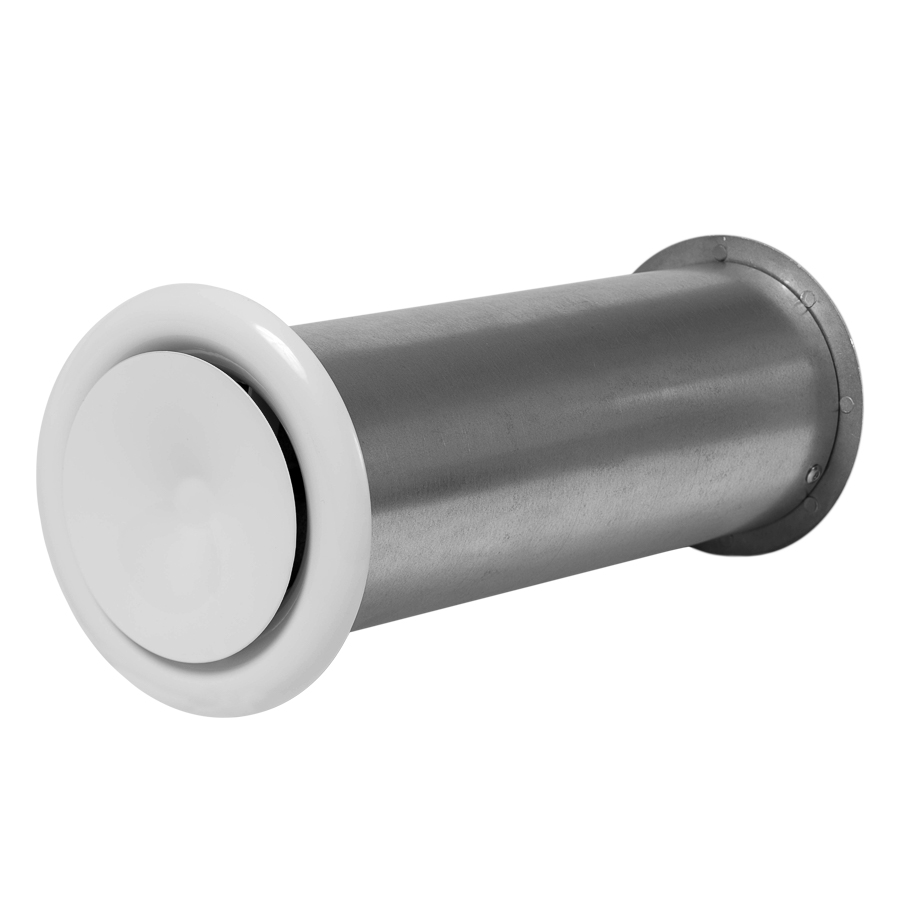

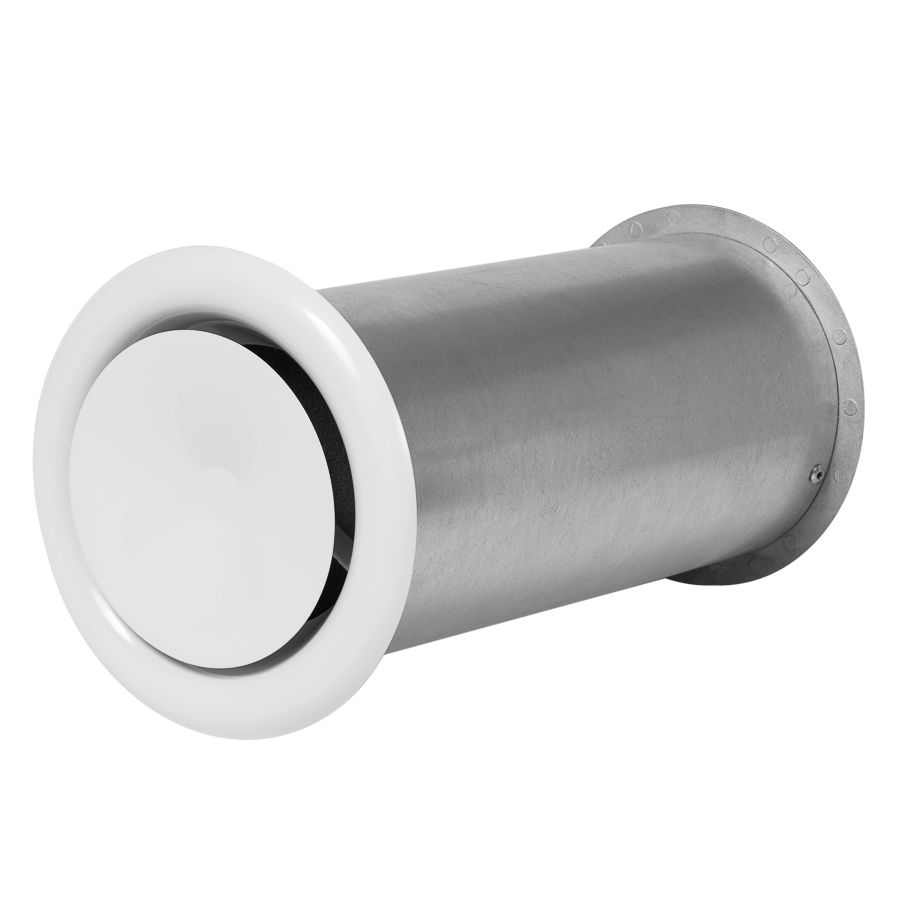

  • Diffuser made from polymer coated steel, color white (RAL9016)
  • Adjustable air flow control
  • Washable filter

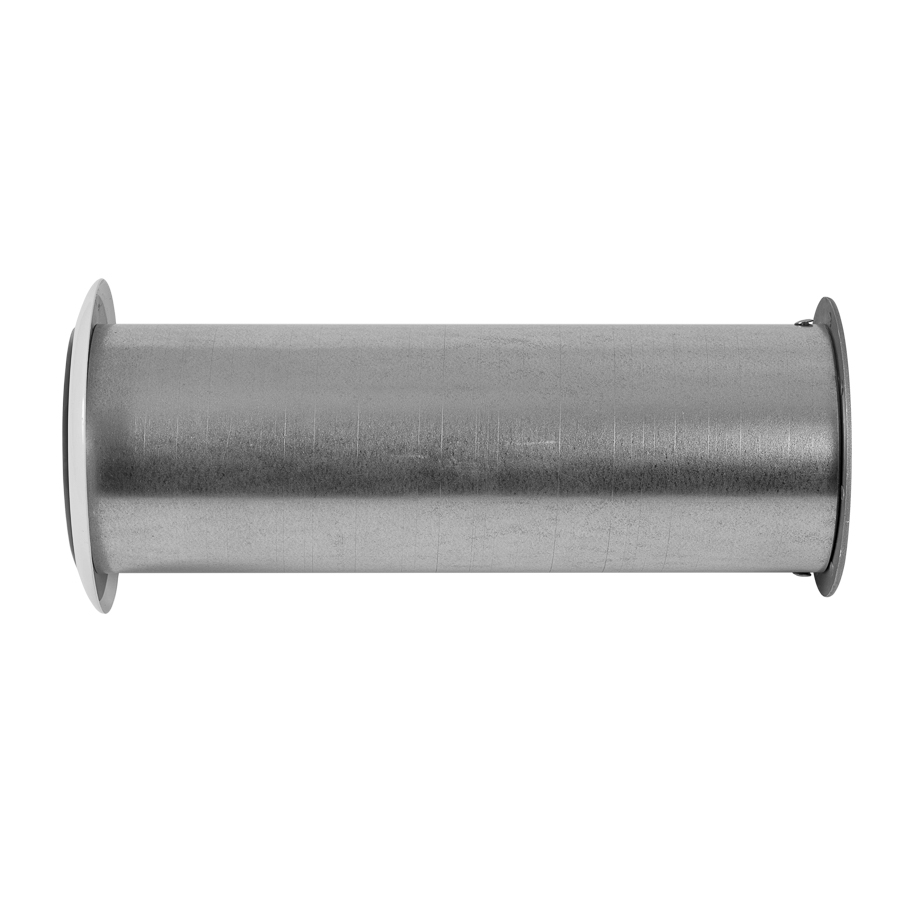

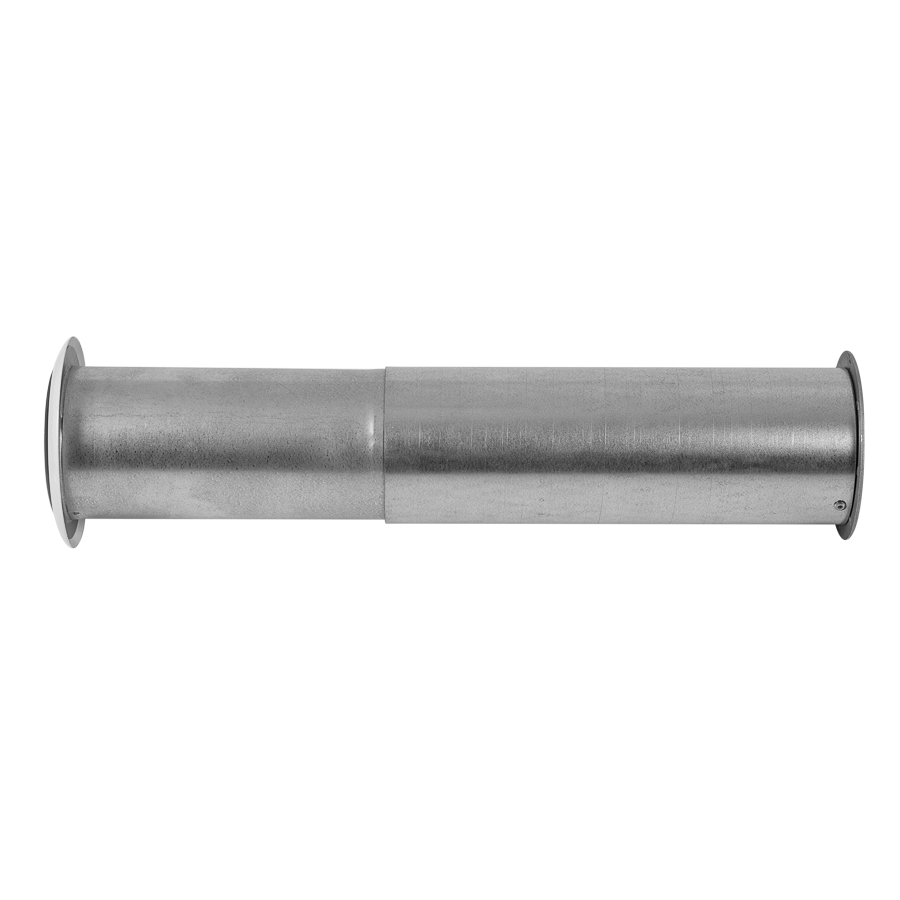

  • Telescopic air duct made from galvanized steel
  • Equipped with EPDM rubber gasket

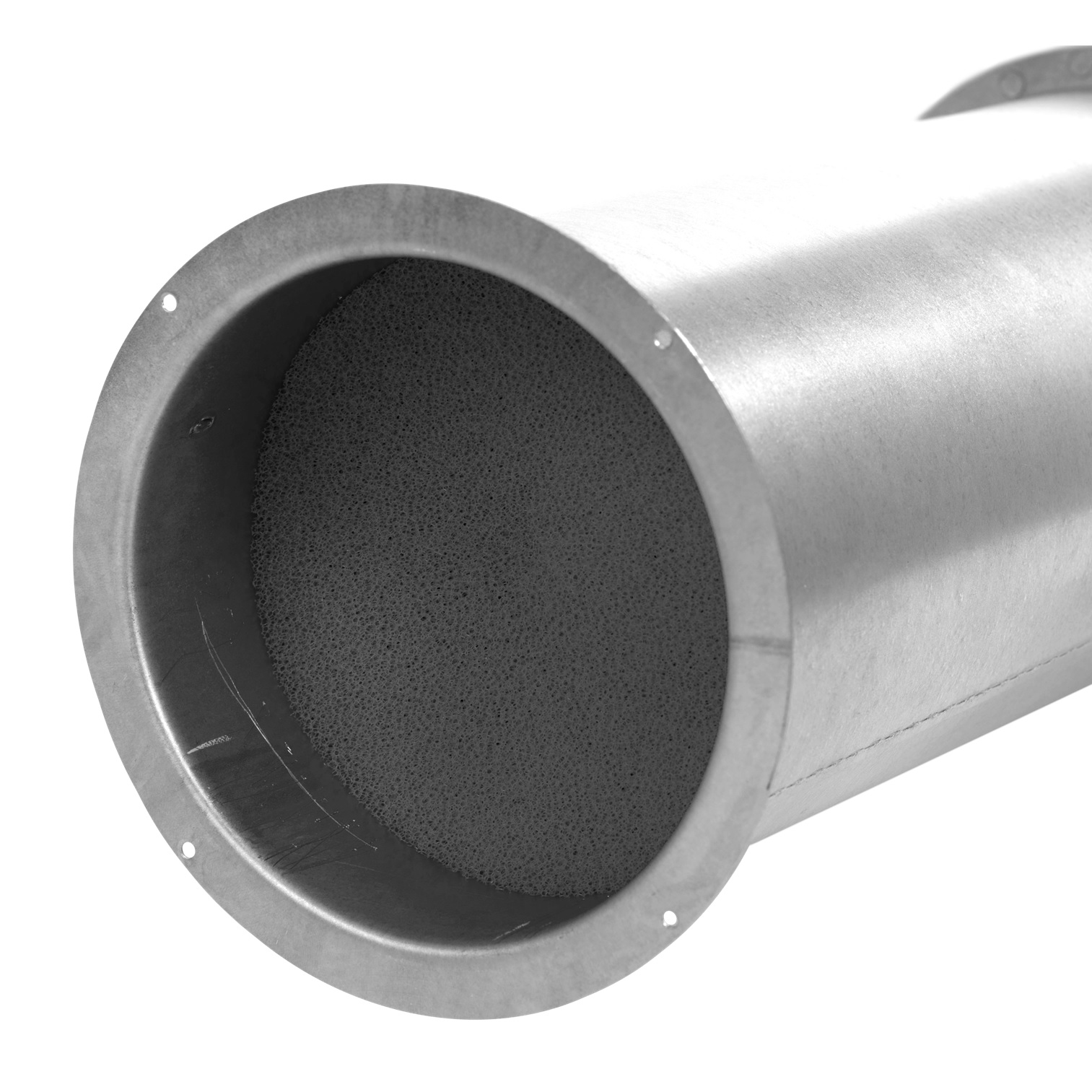

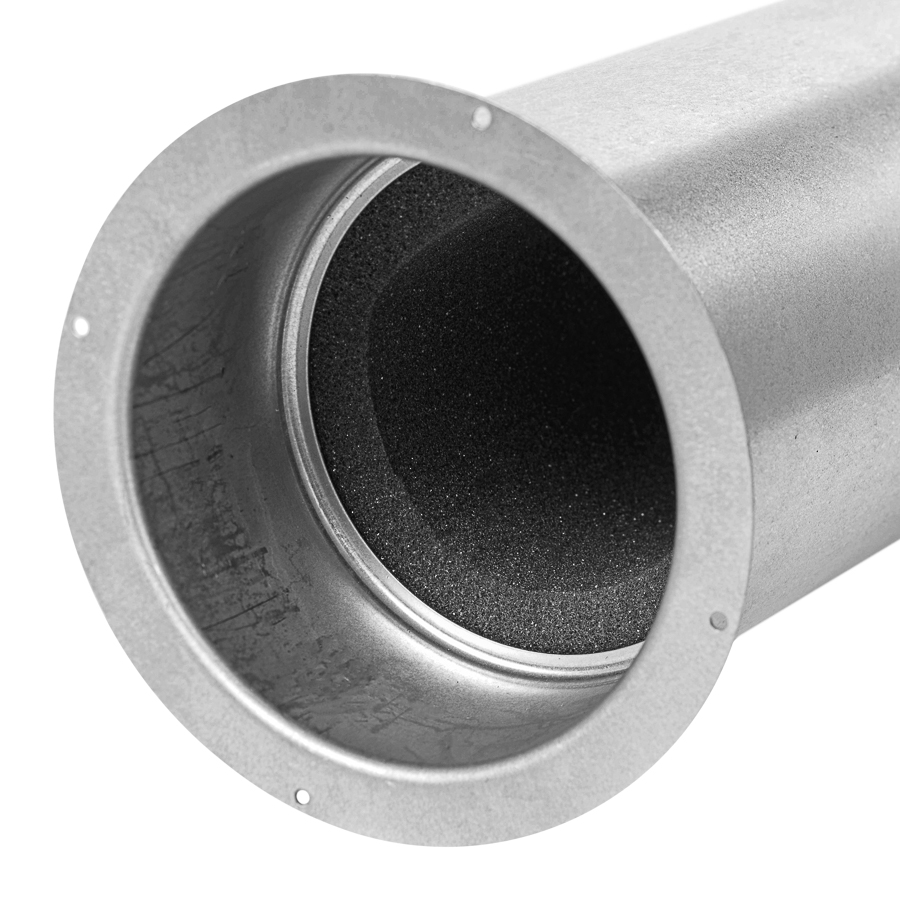

  • Sound insulation layer from polyurethane foam

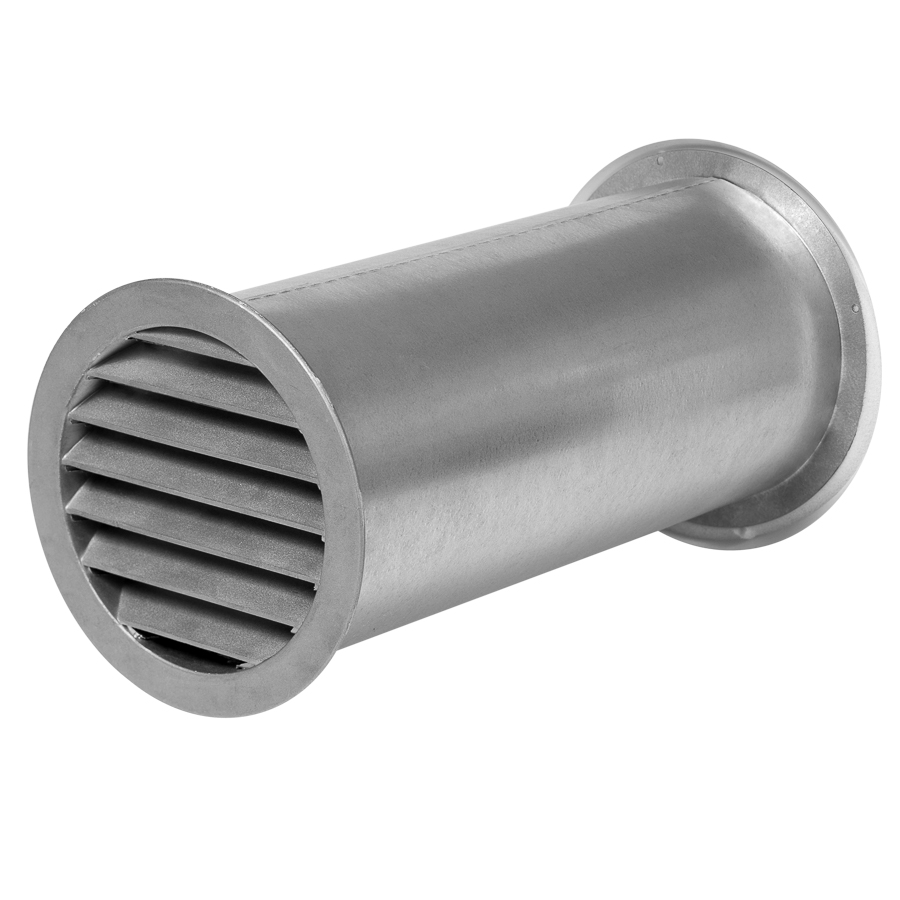

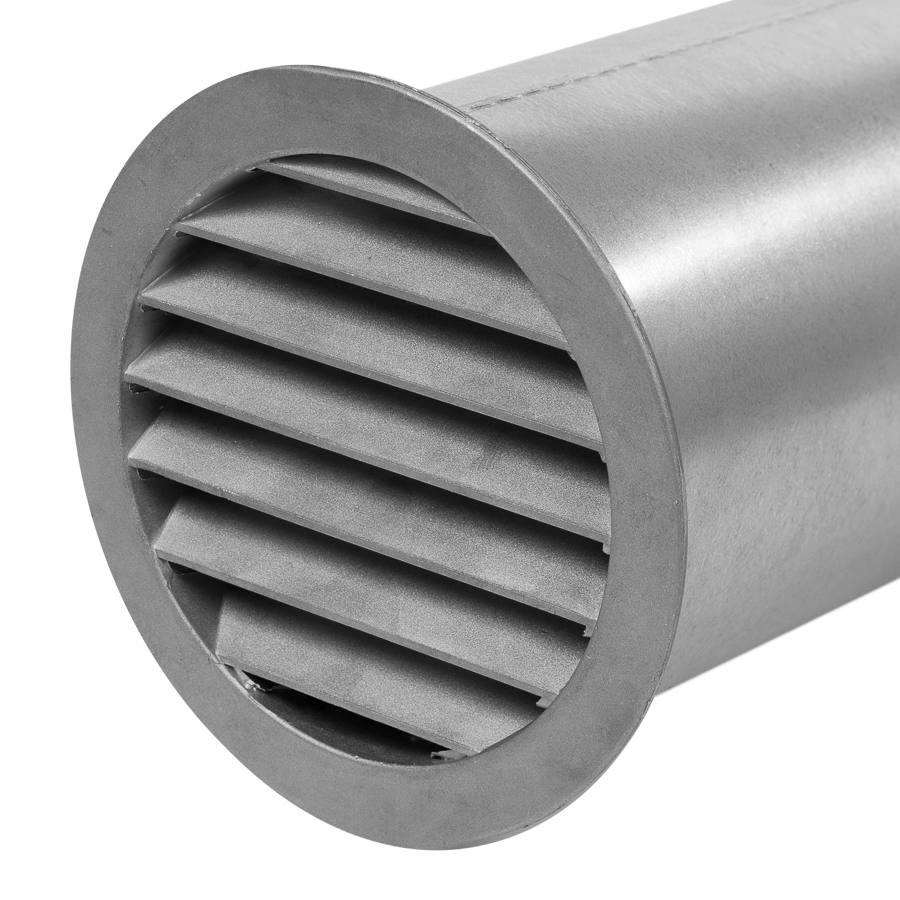

  • External ventilation grille made from aluminium alloy
  • Equipped with metal mesh insect screen 2x2mm



Instalation:

  • Through wall mounting, glue and screw fixing

SMK3 is a kit that provides a natural airflow or exhaust from a room. This system is designed for installation in all room types. It is recommended to install the system near a heat source, high on the ceiling. This ensures mixing of the warm air with the air entering the room, thus ensuring maximum comfort. The SMK3 is equipped with a valve that can be adjusted manually. SMK3 is provided with soundproofing materials that reduce indoor noise. SMK3 is equipped with EU1, which provides protection against dust and insects. All the elements are easy to remove and clean.

Length

Connection

Sort by

Article Description EAN Length Connection
SMK3-100dB
SMK3-100dB
kit, supply valve with sound insulation, metal, Ø100mm, 300-550mm
4750492019764
300-550 mm 100 mm
SMK3-125dB
SMK3-125dB
kit, supply valve with sound insulation, metal, Ø125mm, 300-550mm
4750492019771
300-550 mm 125 mm
SMK3-80dB
SMK3-80dB
kit, supply valve with sound insulation, metal, Ø80mm, 300-550mm
4750492019788
300-550mm 100 mm

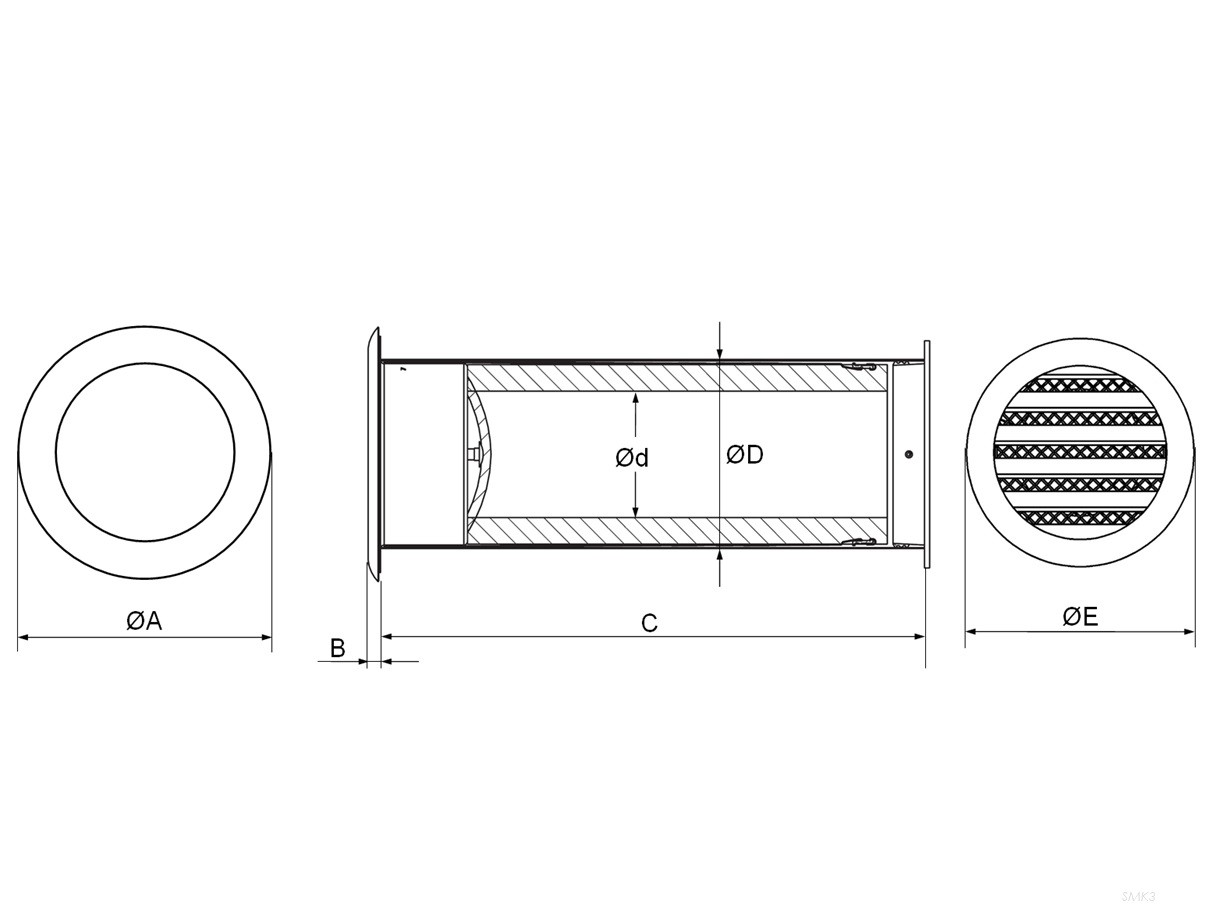

Type

ØA
[mm]

B
[mm]

C
[mm]

ØD
[mm]

Ød
[mm]

ØE
[mm]

SMK3-80dB

116 8 300-550 83 49 96

SMK3-100dB

140 8 300-550 103 69 125

SMK3 - 125dB

167 8 300-550 128 94 150

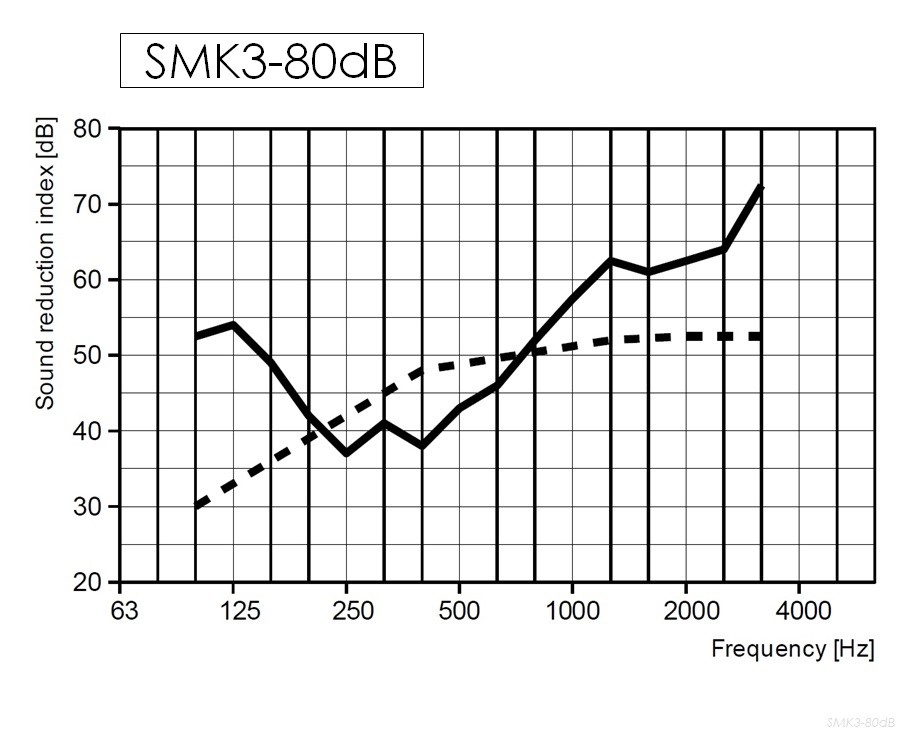

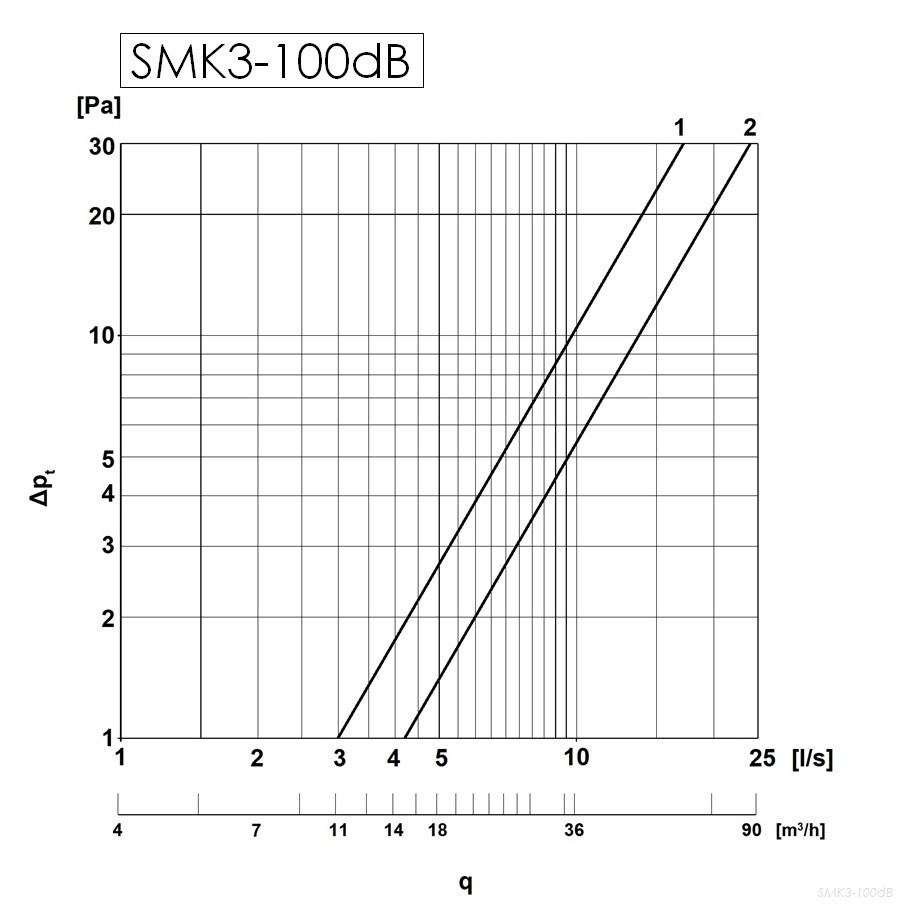

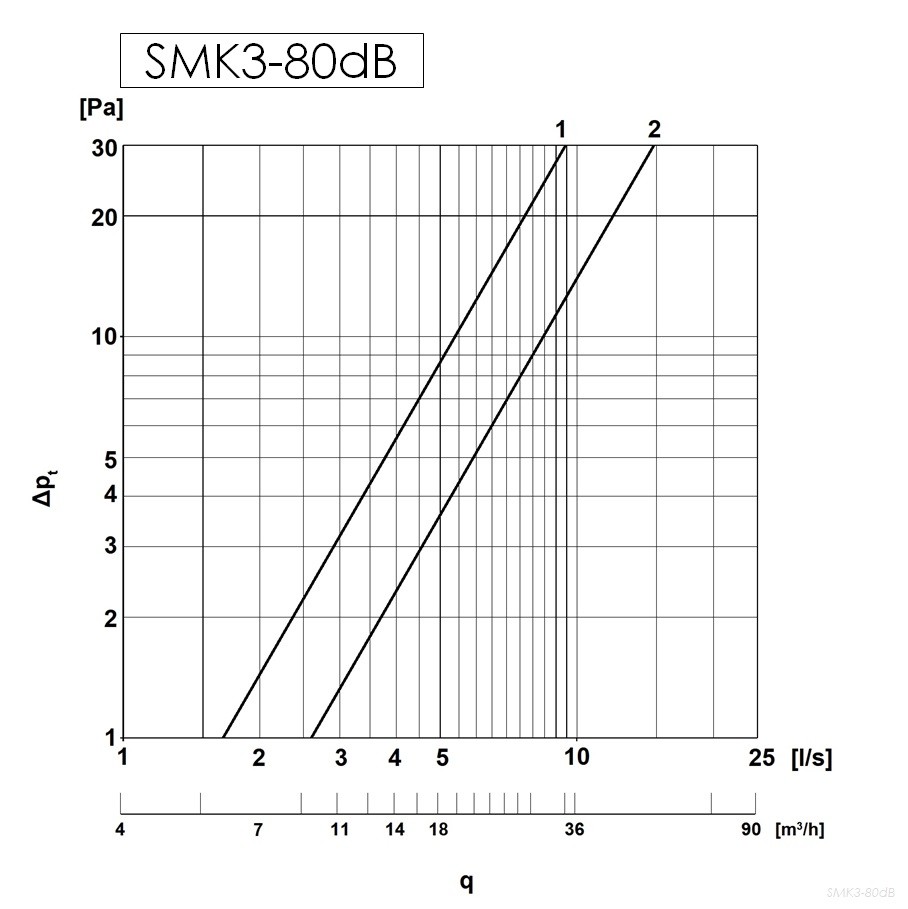

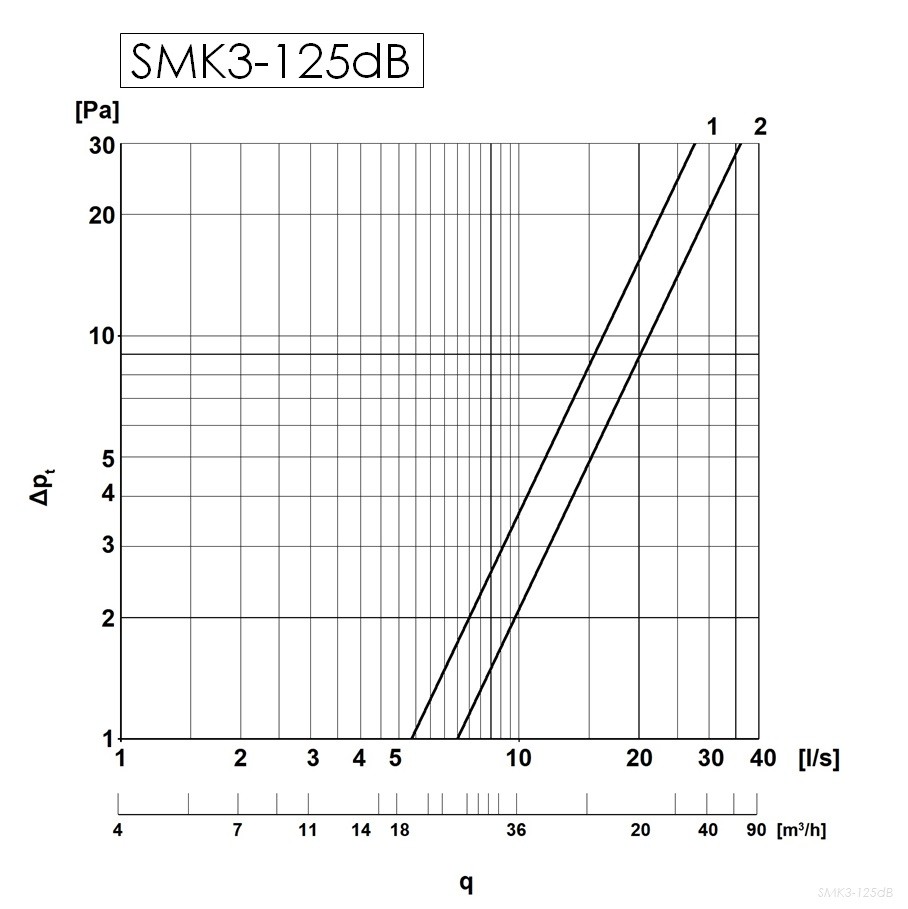

Curves:

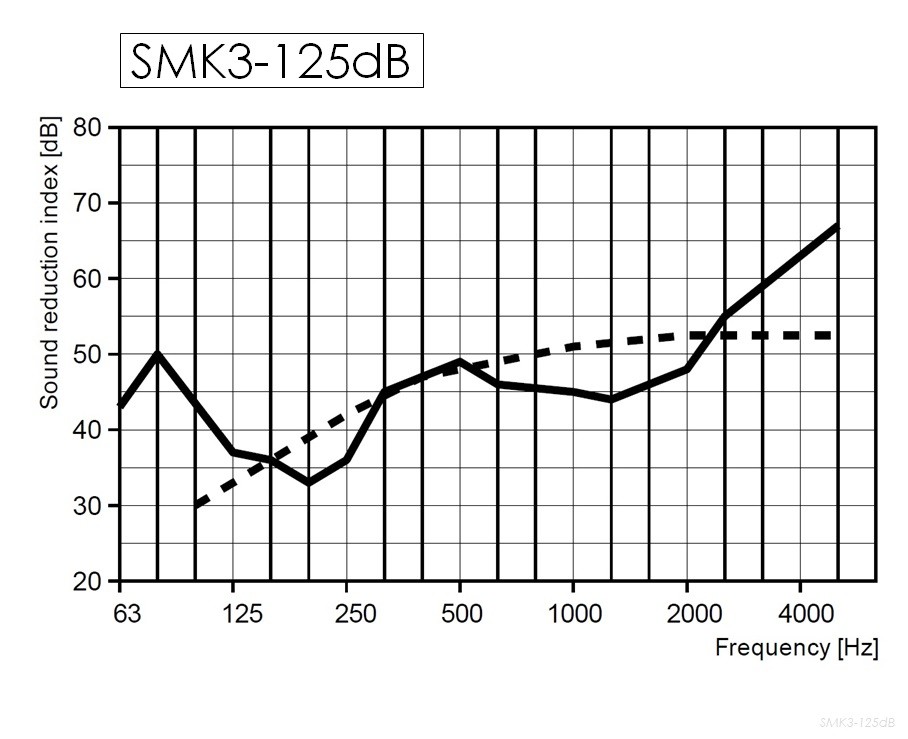

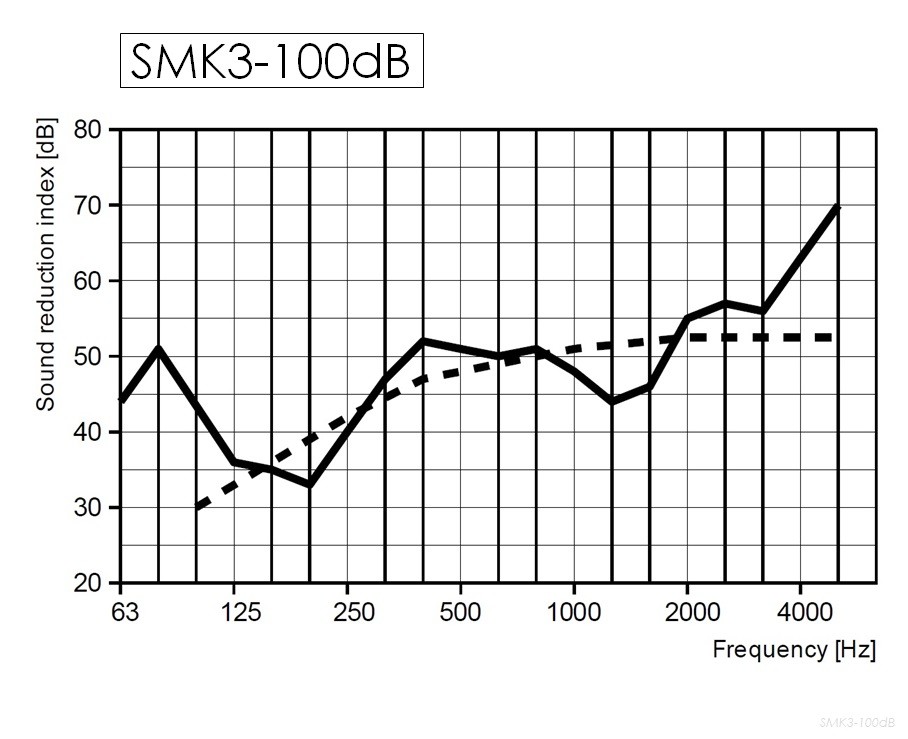

1 - with sound insulation layer Diagrams shows sound reduction with fully opened diffuser and 300mm wall. Calculating on 10m2
2 - without sound insulation layer
