masking hatches for tiles MDU
Construction:
- Made from galvanized steel
- With polymer paint coating
Installation:
- Hidden installation
- Wall or ceiling mounting
- Glue or screw fixing
Colors: White RAL 9016
Hidden revision hatches MDU are designed to be installed in rooms with tile finish. Thanks to the concealed installation, they provide access to technical and sanitary facilities without compromising the interior. They are made of galvanized steel with a polymer paint coating, which ensures the longevity of the product and resistance to moisture.
The hatch must be installed before the wall is tiled. Before tiling the hatch door, the handle must be removed, which will then be screwed back over the tile. It is recommended to use a special glues to attach the tiles to the hatch.
| Article | Description | EAN | Width | Height | Depth | |
|---|---|---|---|---|---|---|
|
MDU2020
|
universal tile hatch metal, 200x200mm
|
4750492006191
|
164 mm | 164 mm | 26 mm |
|
MDU2025
|
universal tile hatch metal, 200x250mm
|
4750492006276
|
164 mm | 214 mm | 26 mm |
|
MDU2030
|
universal tile hatch metal, 200x300mm
|
4750492006207
|
164 mm | 264 mm | 26 mm |
|
MDU2535
|
universal tile hatch metal, 250x350mm
|
4750492006214
|
214 mm | 304 mm | 26 mm |
|
MDU5020
|
universal tile hatch metal, 500x200mm
|
4750492006221
|
464 mm | 164 mm | 26 mm |

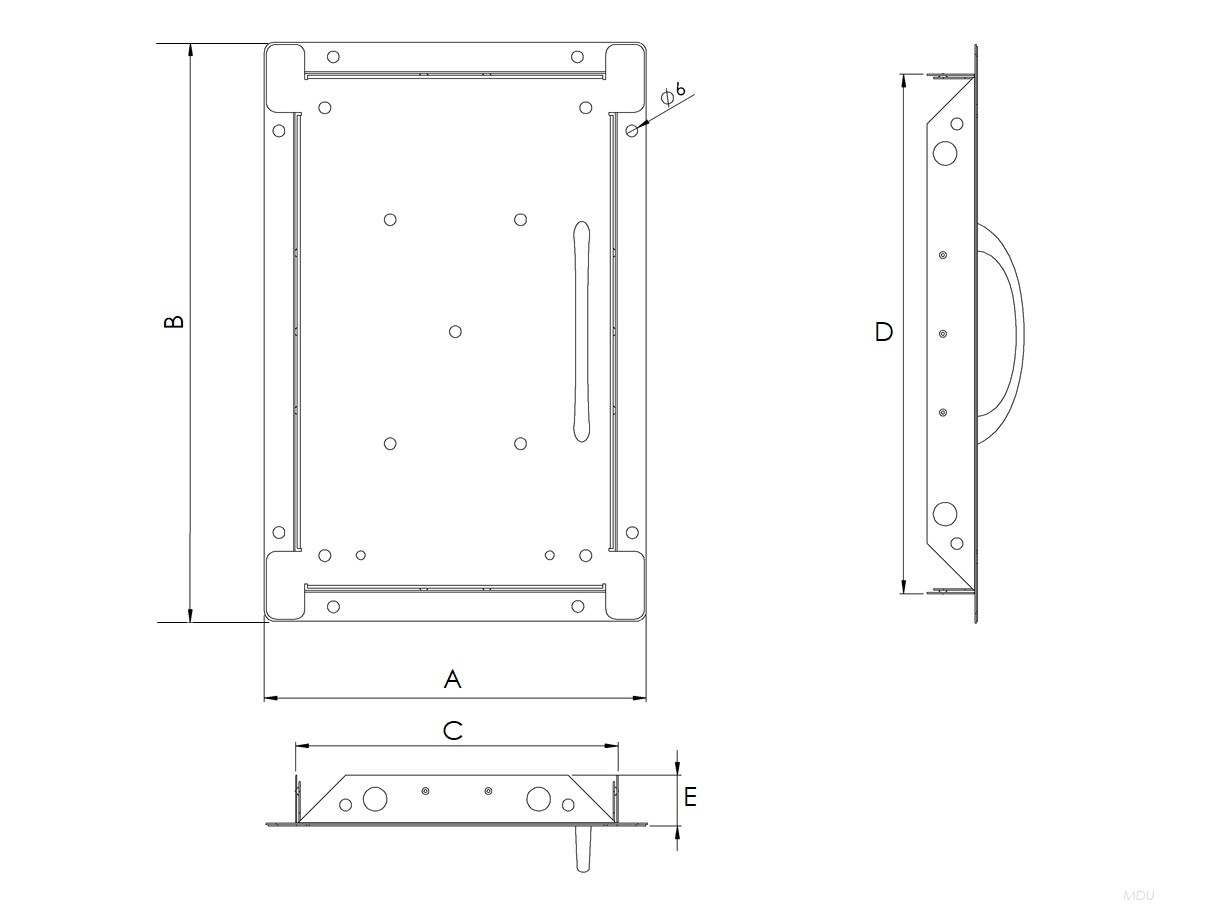

| Type | A [mm] |
B [mm] |
C [mm] |
D [mm] |
E [mm] |
m [kg] |
| MDU2020 | 194 | 194 | 164 | 164 | 26 | 0,36 |
| MDU2025 | 194 | 244 | 164 | 214 | 26 | 0,44 |
| MDU2030 | 194 | 294 | 164 | 264 | 26 | 0,52 |
| MDU2535 | 244 | 334 | 214 | 304 | 26 | 0,70 |
| MDU5020 | 494 | 194 | 464 | 164 | 26 | 0,82 |
