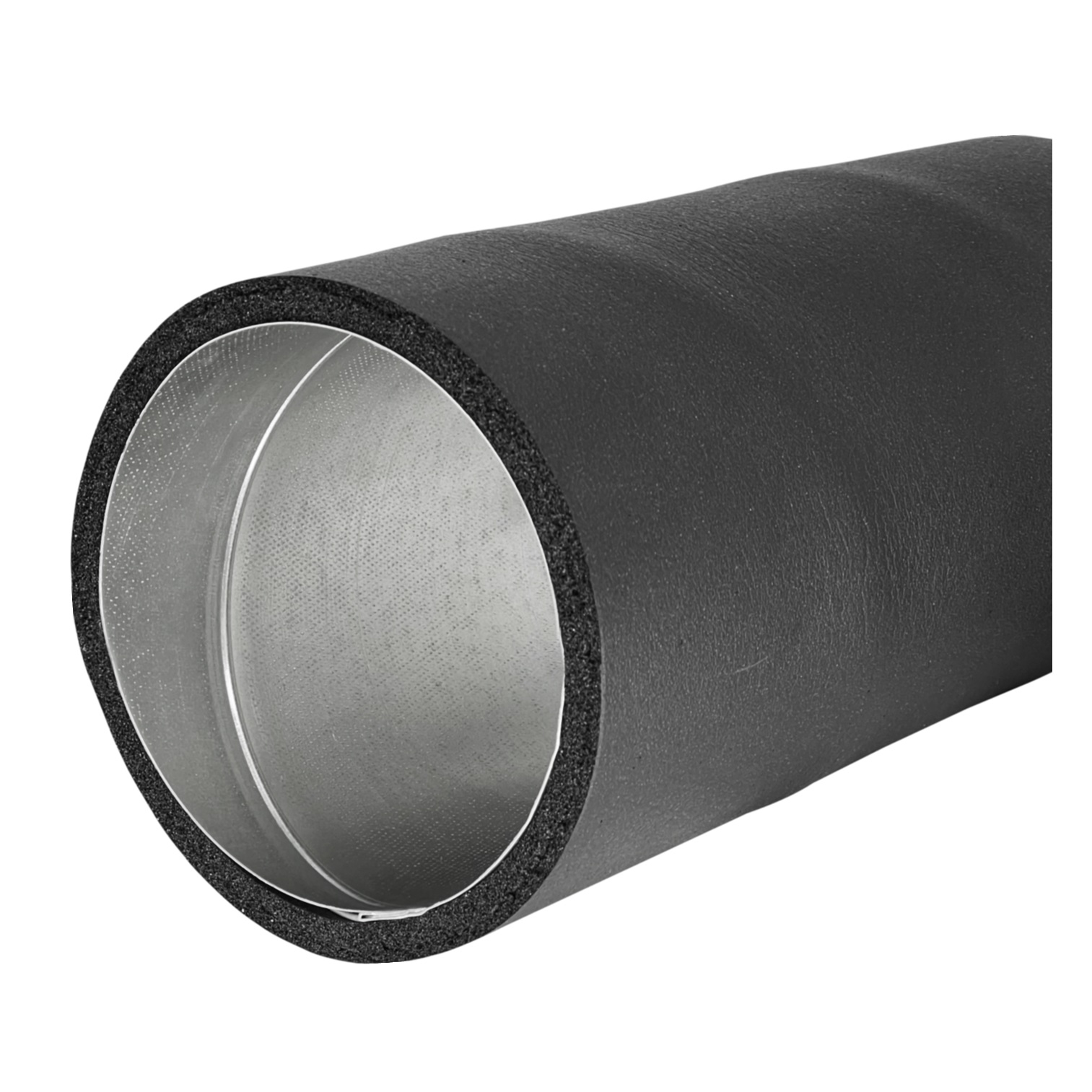

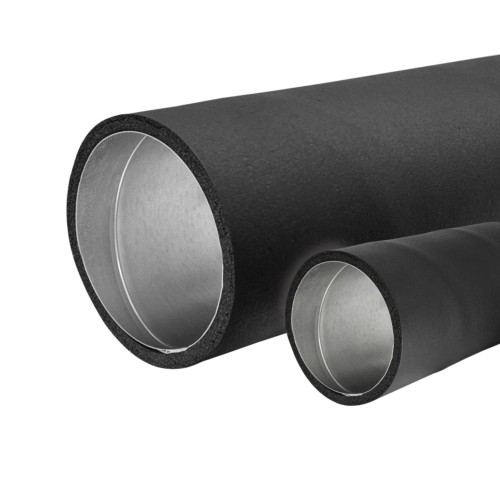

pre-insulated spiral air ducts IF-SD
Construction:
- Made of galvanized steel
- Covered with flexible elastomer foam (FEF) insulation
- Insulation material meets class B fire safety standards
- Air ducts comply with D class airtightness
Installation:
- Easy installation
- Saves installation time and space
- Ensures material savings
Operating temperature: -40°C ... +85°C
Insulation thickness [mm]: 9; 19
Dimensions [mm]: Ø100; Ø125; Ø160; Ø200
Length [m]: 1, 2
Colors: Black
Isolated spiral metal air ducts from EUROPLAST are designed for ventilation, air conditioning, and heat recovery systems with additional requirements for energy efficiency. The applied insulation provides excellent sound insulation, thermal insulation, and protection against condensation formation. The material used complies with Class B fire safety standards. Factory-applied insulation significantly reduces installation time and resources at the site, as well as ensures the quality of insulation.
| Description | Length | Connection | Class | |
|---|---|---|---|---|
IF19-SD100-1
|
pre-insulated spiral air duct metal, Ø100mm-1m, isolation 19mm
|
1 m | Ø 100 mm | B; D |
IF09-SD100-1
|
pre-insulated spiral air duct metal, Ø100mm-1m, isolation 9mm
|
1 m | Ø 100 mm | B; D |
IF19-SD100-2
|
pre-insulated spiral air duct metal, Ø100mm-2m, isolation 19mm
|
2 m | Ø 100 mm | B; D |
IF09-SD100-2
|
pre-insulated spiral air duct metal, Ø100mm-2m, isolation 9mm
|
2 m | Ø 100 mm | B; D |
IF19-SD125-1
|
pre-insulated spiral air duct metal, Ø125mm-1m, isolation 19mm
|
1 m | Ø 125 mm | B; D |
IF09-SD125-1
|
pre-insulated spiral air duct metal, Ø125mm-1m, isolation 9mm
|
1 m | Ø 125 mm | B; D |
IF19-SD125-2
|
pre-insulated spiral air duct metal, Ø125mm-2m, isolation 19mm
|
2 m | Ø 125 mm | B; D |
IF09-SD125-2
|
pre-insulated spiral air duct metal, Ø125mm-2m, isolation 9mm
|
2 m | Ø 125 mm | B; D |
IF19-SD160-1
|
pre-insulated spiral air duct metal, Ø160mm-1m, isolation 19mm
|
1 m | Ø 160 mm | B; D |
IF09-SD160-1
|
pre-insulated spiral air duct metal, Ø160mm-1m, isolation 9mm
|
1 m | Ø 160 mm | B; D |

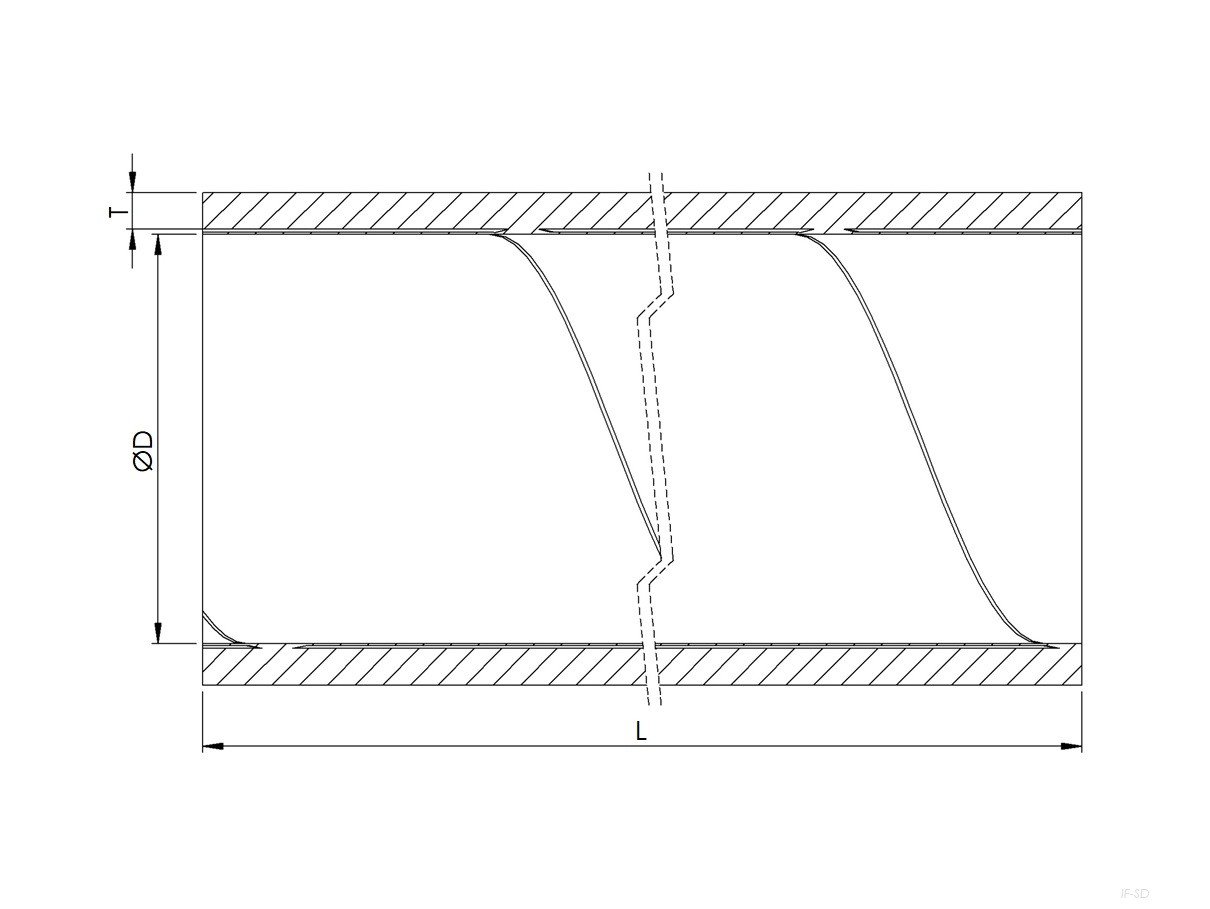

| Type | ØDnom [mm] |
L [mm] |
T [mm] |
m [kg] |
| IF09-SD100-1 | 100 | 1000 | 9 | 1,55 |
| IF09-SD100-2 | 100 | 2000 | 9 | 3,10 |
| IF09-SD125-1 | 125 | 1000 | 9 | 1,96 |
| IF09-SD125-2 | 125 | 2000 | 9 | 3,92 |
| IF09-SD160-1 | 160 | 1000 | 9 | 2,41 |
| IF09-SD160-2 | 160 | 2000 | 9 | 4,92 |
| IF09-SD200-1 | 200 | 1000 | 9 | 3,08 |
| IF09-SD200-2 | 200 | 2000 | 9 | 6,16 |
| IF19-SD100-1 | 100 | 1000 | 19 | |
| IF19-SD100-2 | 100 | 2000 | 19 | |
| IF19-SD125-1 | 125 | 1000 | 19 | |
| IF19-SD125-2 | 125 | 2000 | 19 | |
| IF19-SD160-1 | 160 | 1000 | 19 | |
| IF19-SD160-2 | 160 | 2000 | 19 | |
| IF19-SD200-1 | 200 | 1000 | 19 | |
| IF19-SD200-2 | 200 | 2000 | 19 | |
| IF25-SD100-1 | 100 | 1000 | 25 | |
| IF25-SD100-2 | 100 | 2000 | 25 | |
| IF25-SD125-1 | 125 | 1000 | 25 | |
| IF25-SD125-2 | 125 | 2000 | 25 | |
| IF25-SD160-1 | 160 | 1000 | 25 | |
| IF25-SD160-2 | 160 | 2000 | 25 | |
| IF25-SD200-1 | 200 | 1000 | 25 | |
| IF25-SD200-2 | 200 | 2000 | 25 |
| Essential characteristics | Performance properties | Testing standards |
| Thermal conductivity coefficient (for all thicknesses) |
-10°C - 0,034 W/(m*K) 0°C - 0,036 W/(m*K) 25°C - 0,037 W/(m*K) 40°C - 0,041 W/(m*K) |
EN 12667 |
| Reaction to fire | B-s3, d0 | EN 13501-1 |
| Operating temperature | -40°C ... +85°C |
