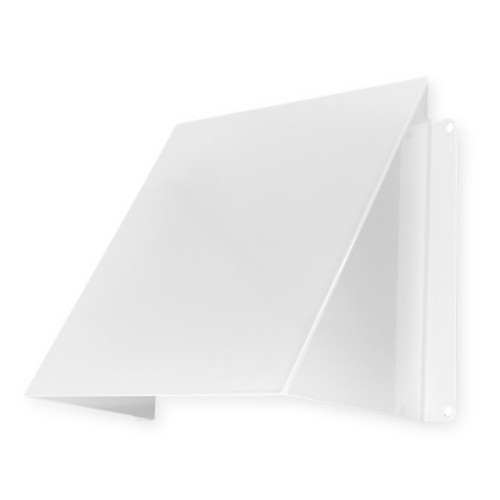

metal outlet covers LNM
Construction:
- Made from galvanized steel or other metals
- With polymer paint coating
Installation:
- Screw fixing in vertical position
- Suitable for outdoor use
Colors: White, black, metallic

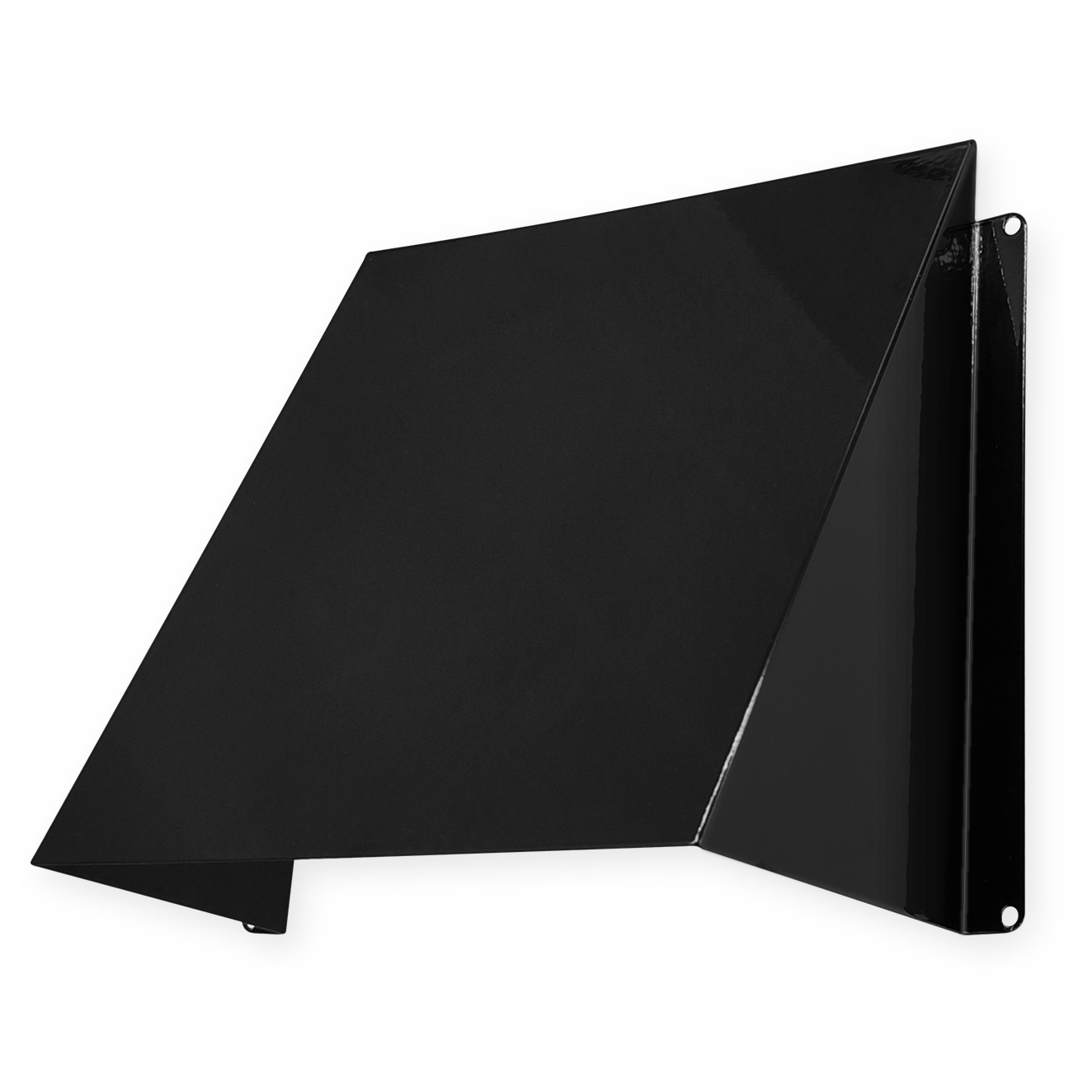

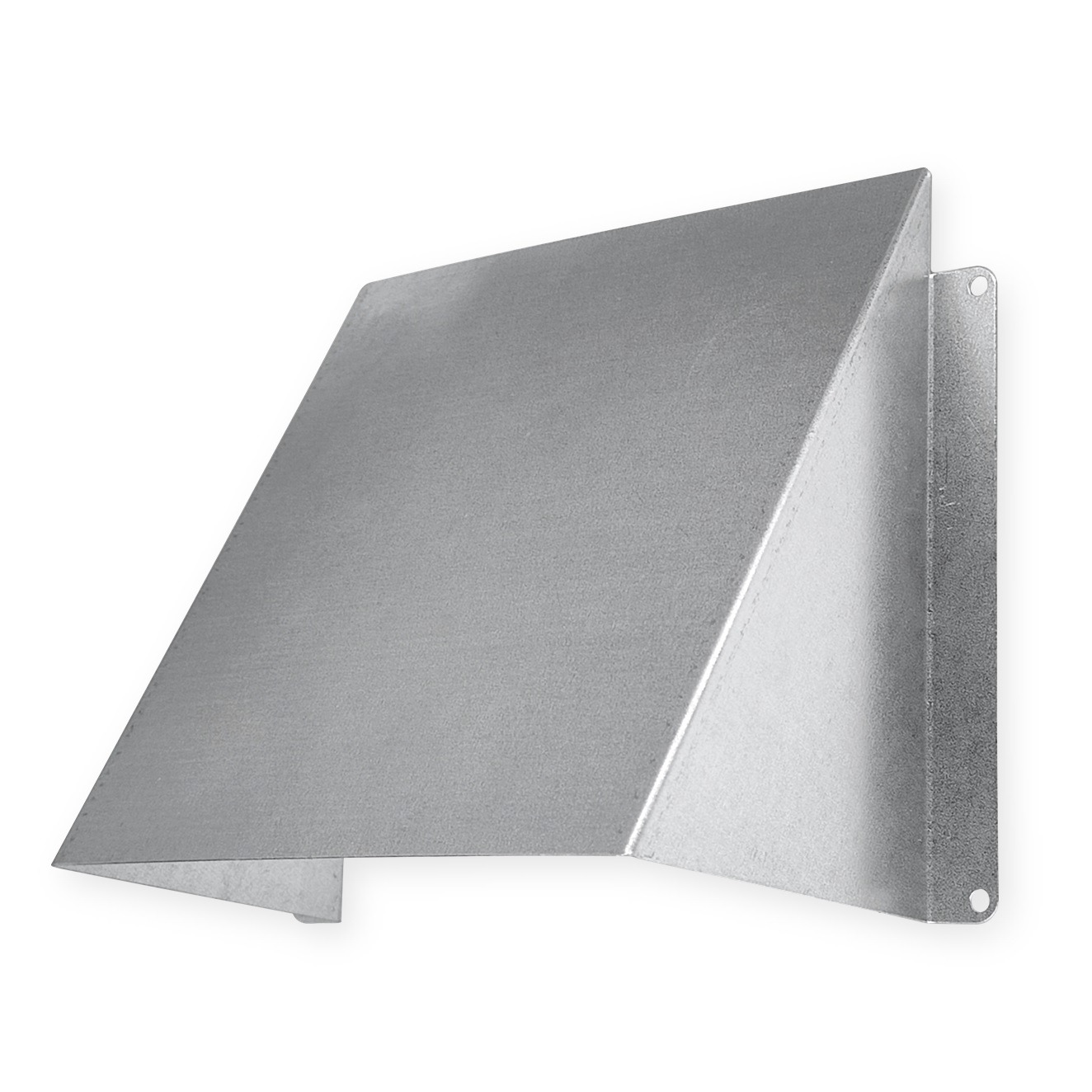

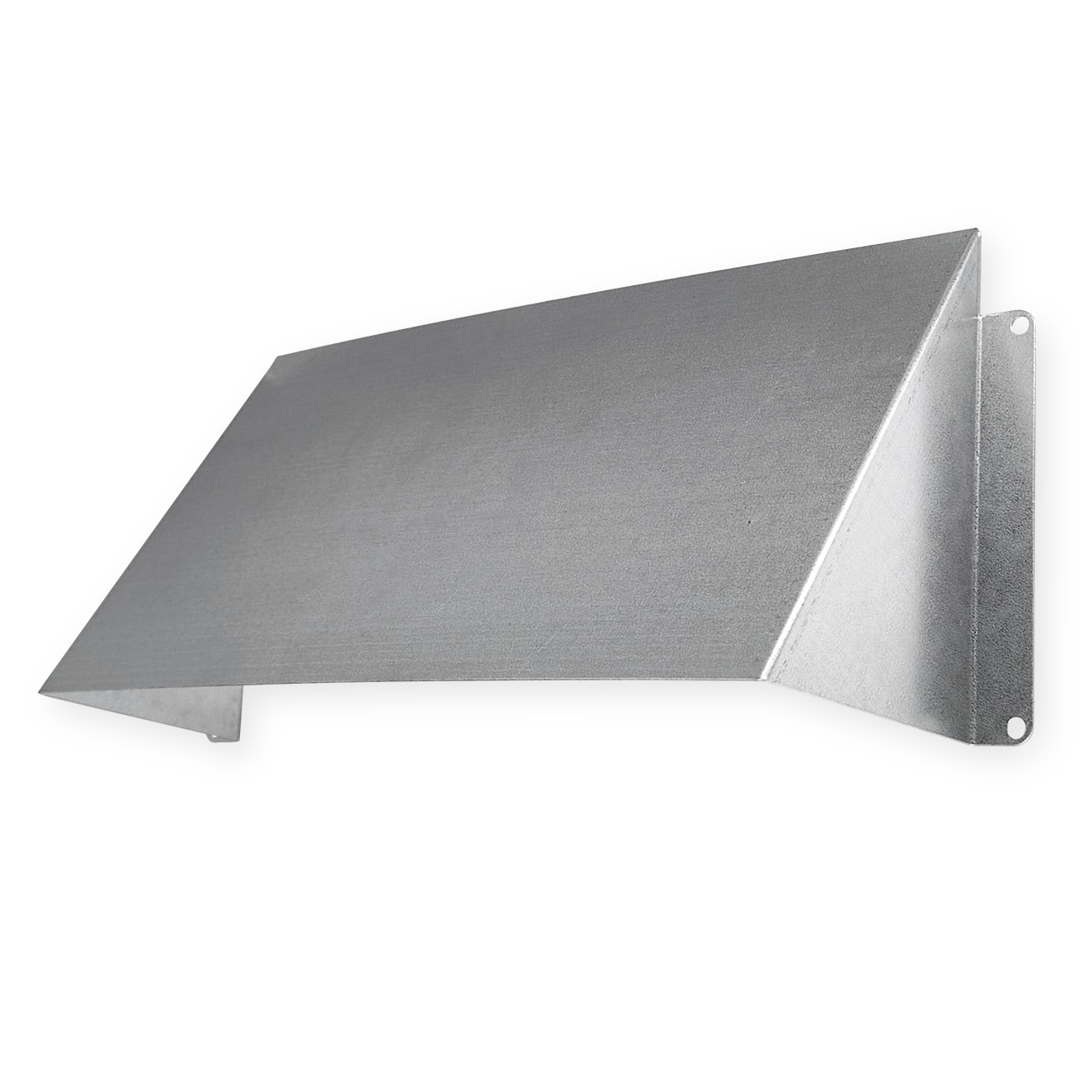

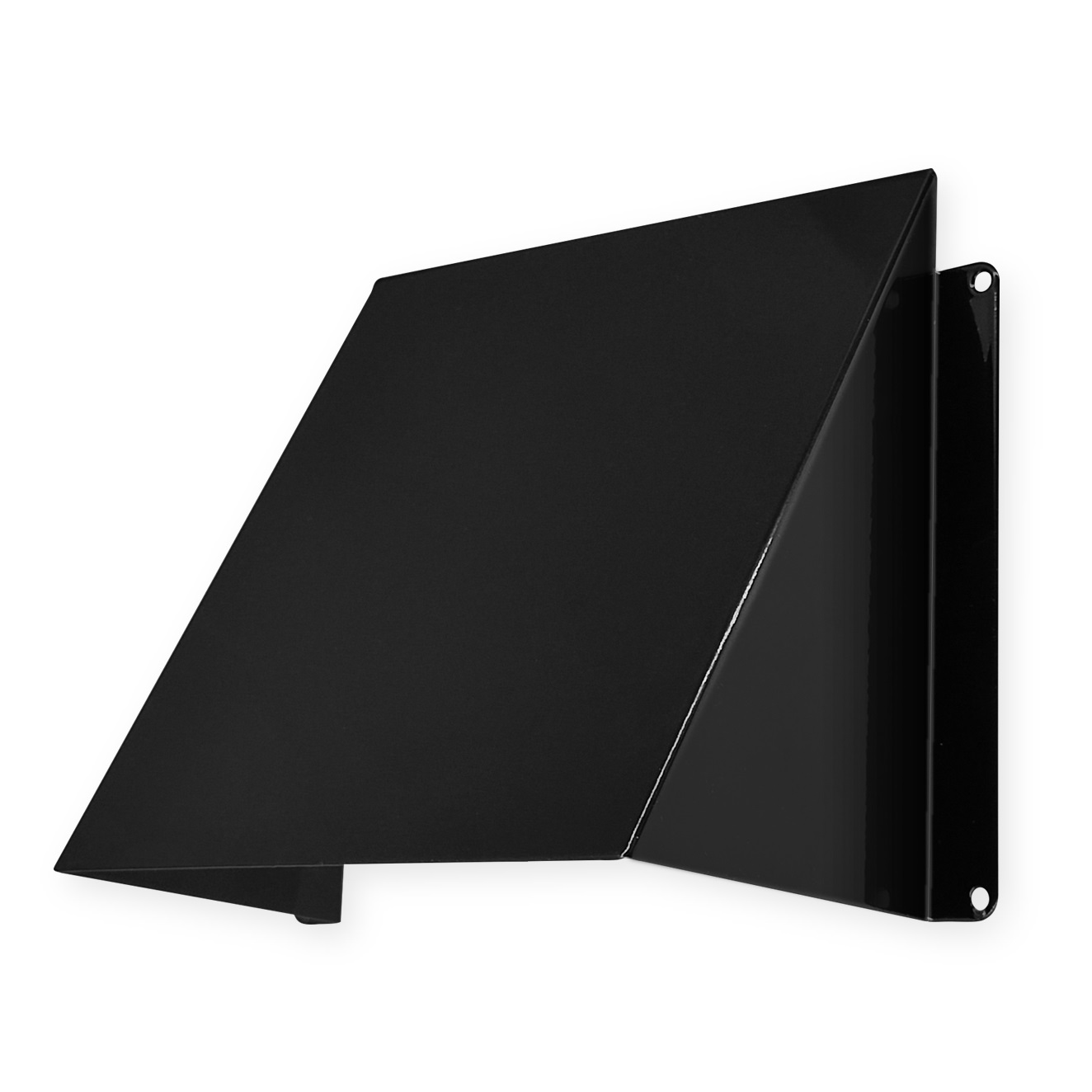

Metal covers EUROPLAST LNM for building facades. Suitable for protecting open ventilation intake/exhaust ducts and ventilation grilles from the influence of the surrounding environment.
| Article | Description | EAN | Width | Height | |
|---|---|---|---|---|---|
|

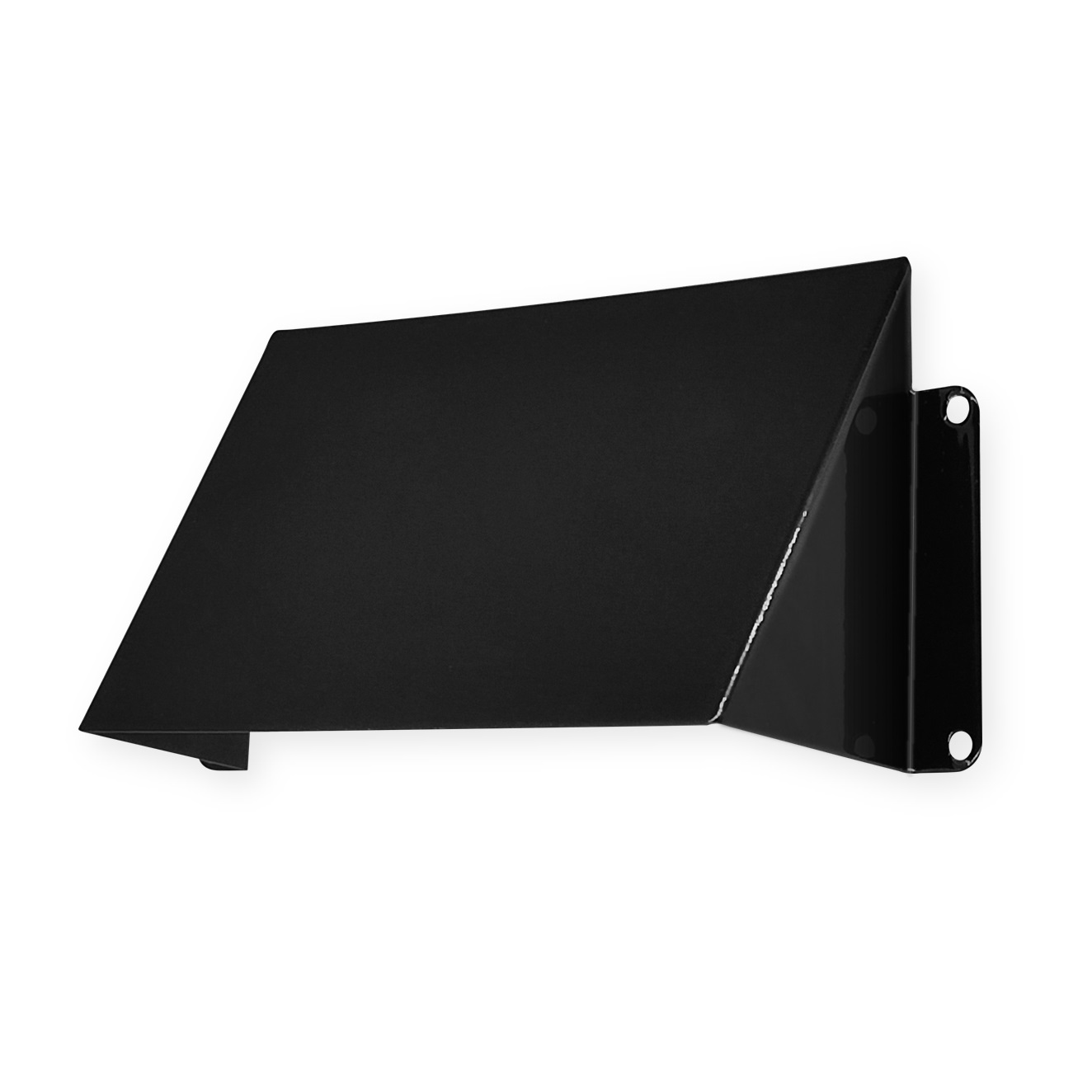

LNM1408M
|
outlet cover metal, 140x80mm, black
|
4750492028346
|
140 mm | 80 mm |
|

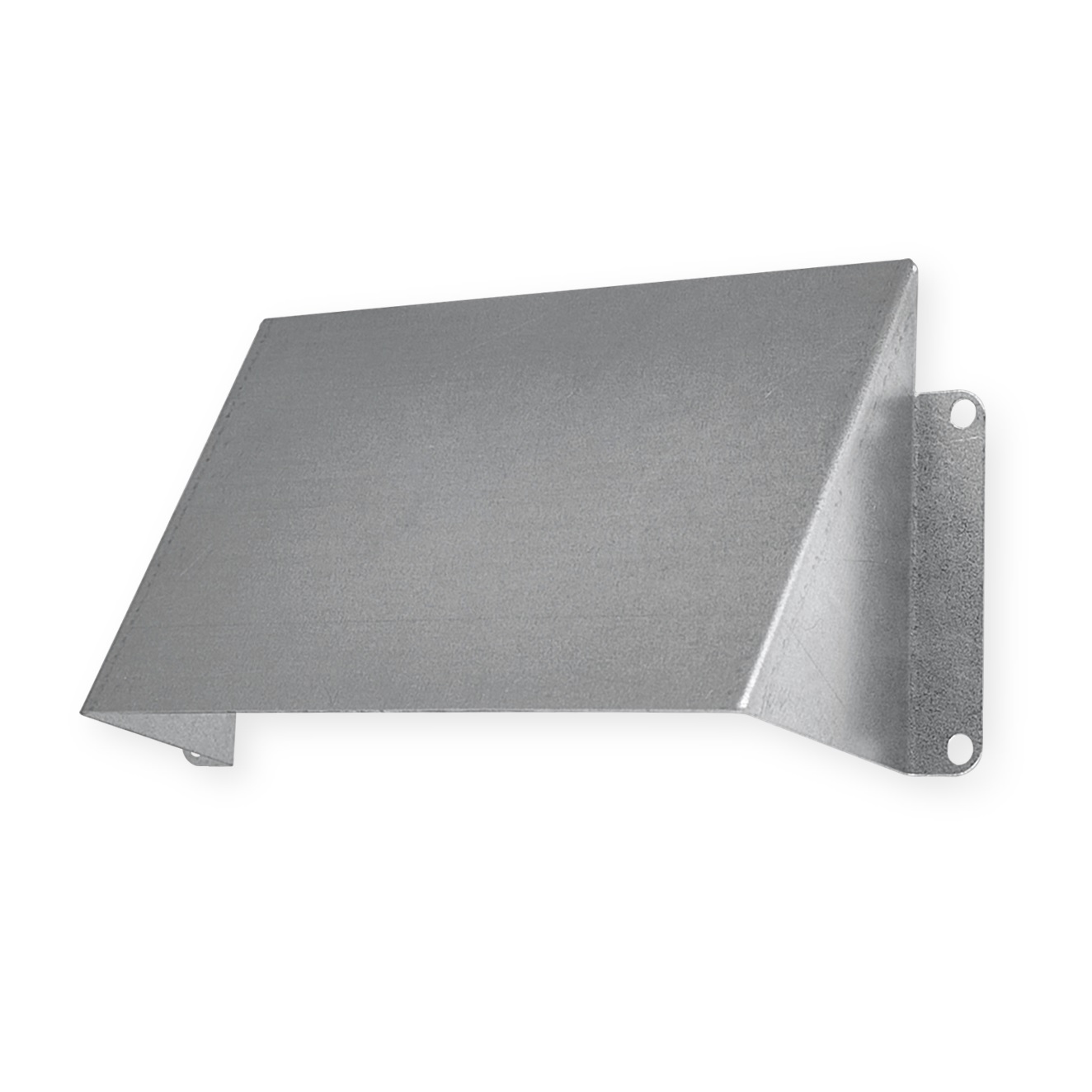

LNM1408Zn
|
outlet cover metal, 140x80mm, galvanized
|
4750492028353
|
140 mm | 80 mm |
|

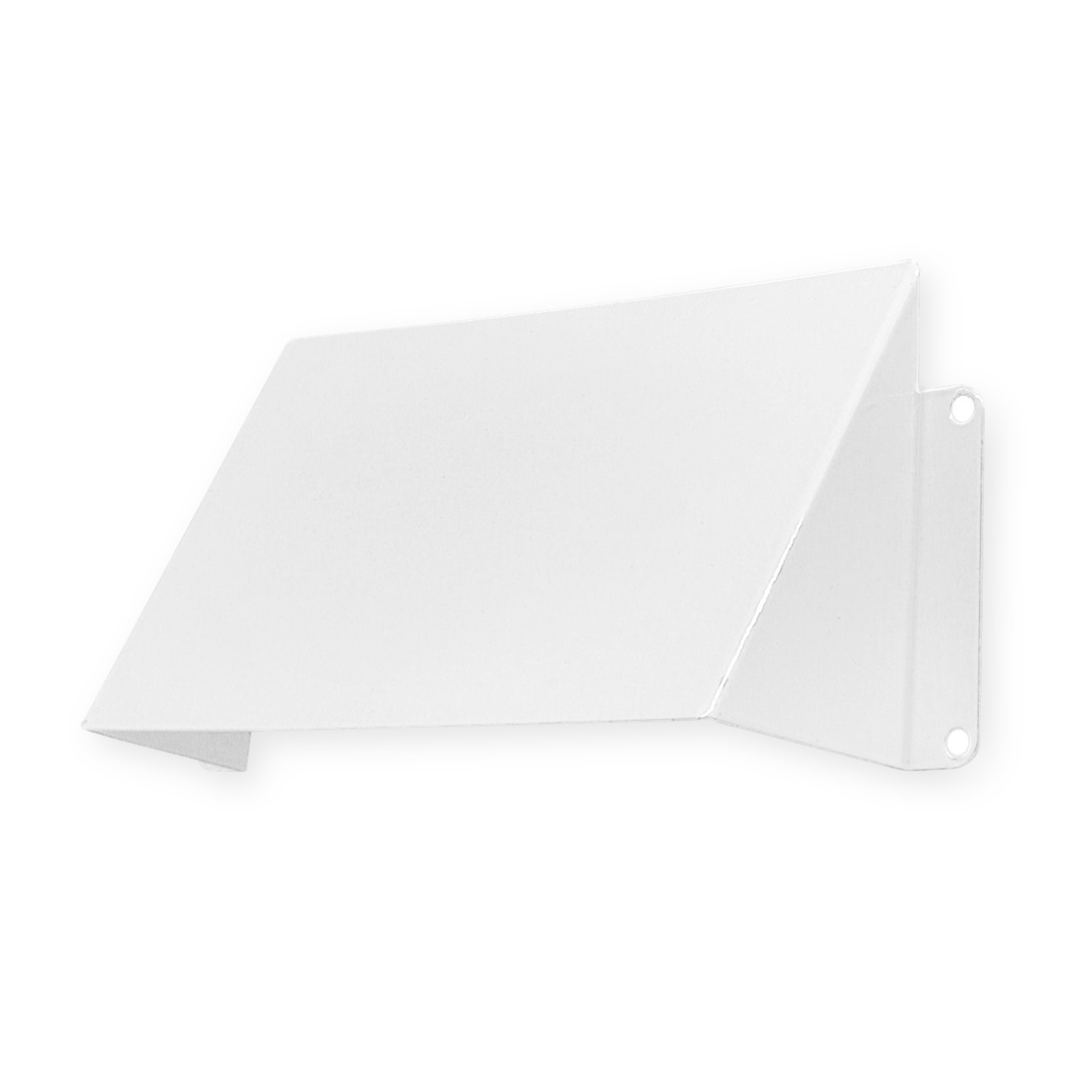

LNM1408
|
outlet cover metal, 140x80mm, white
|
4750492028339
|
140 mm | 80 mm |
|
LNM1515M
|
outlet cover metal, 150x150mm, black
|
4750492027622
|
150 mm | 150 mm |
|

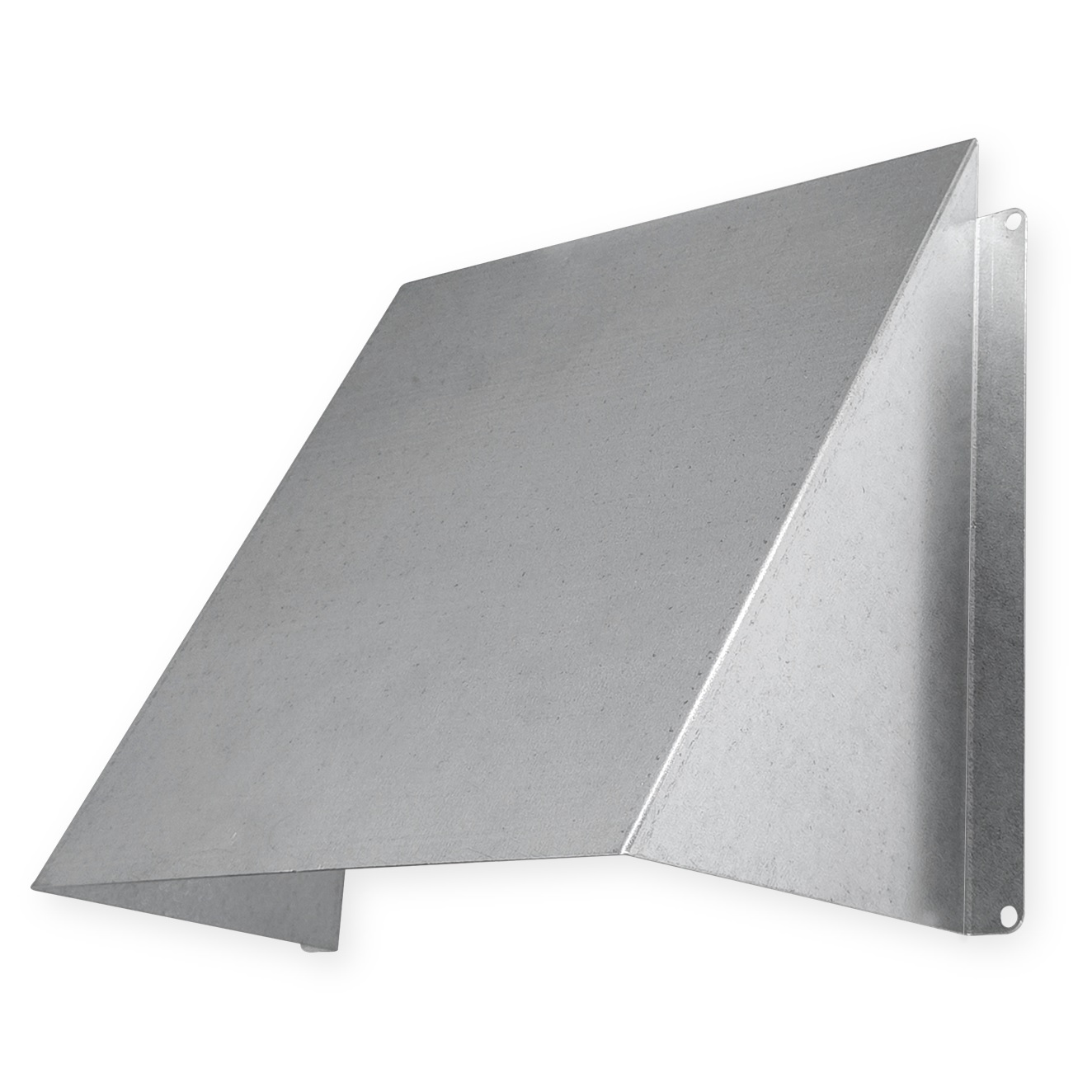

LNM1515Zn
|
outlet cover metal, 150x150mm, galvanized
|
4750492027639
|
150 mm | 150 mm |
|

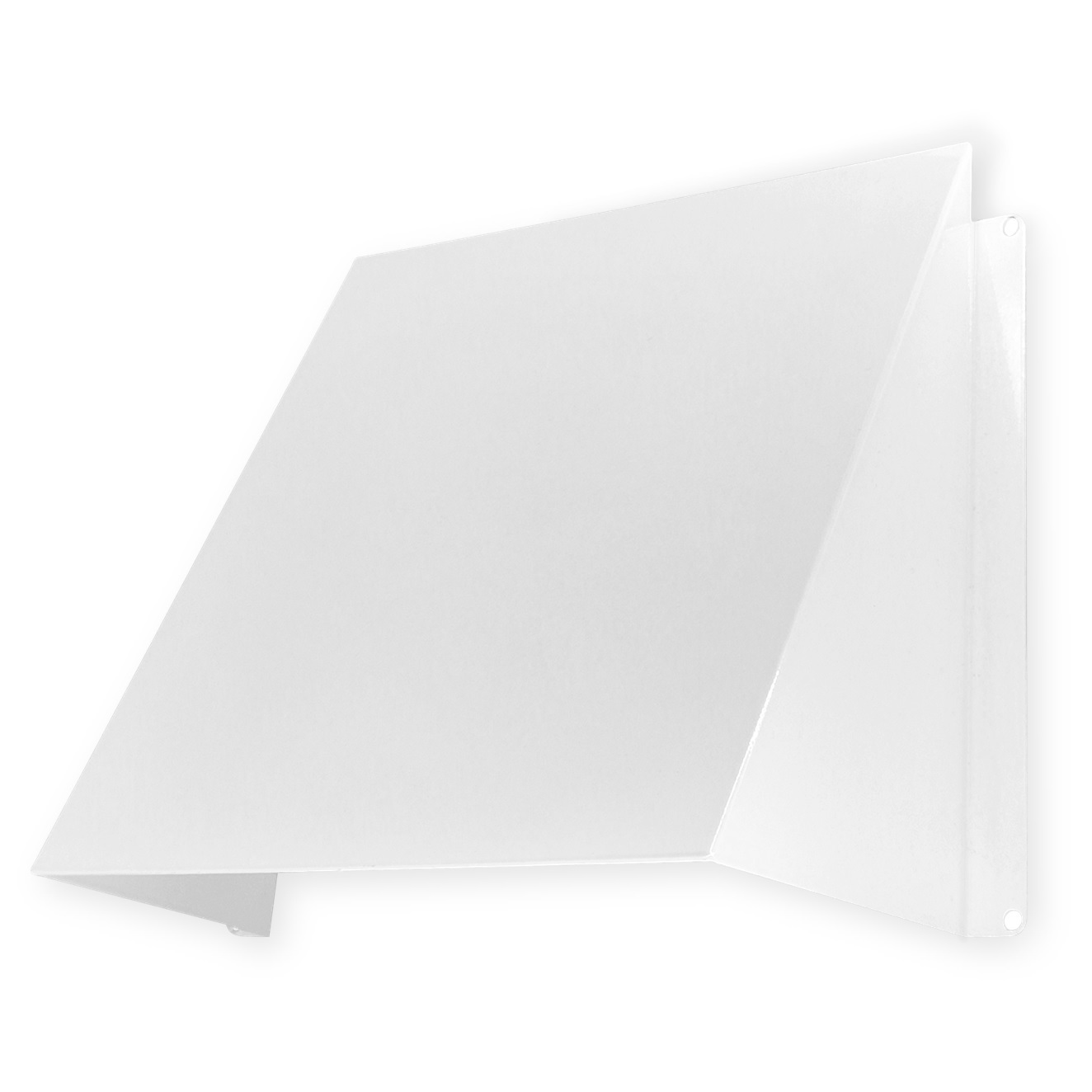

LNM1515
|
outlet cover metal, 150x150mm, white
|
4750492027615
|
150 mm | 150 mm |
|
LNM2020M
|
outlet cover metal, 200x200mm, black
|
4750492027653
|
200 mm | 200 mm |
|
LNM2020Zn
|
outlet cover metal, 200x200mm, galvanized
|
4750492027660
|
200 mm | 200 mm |
|

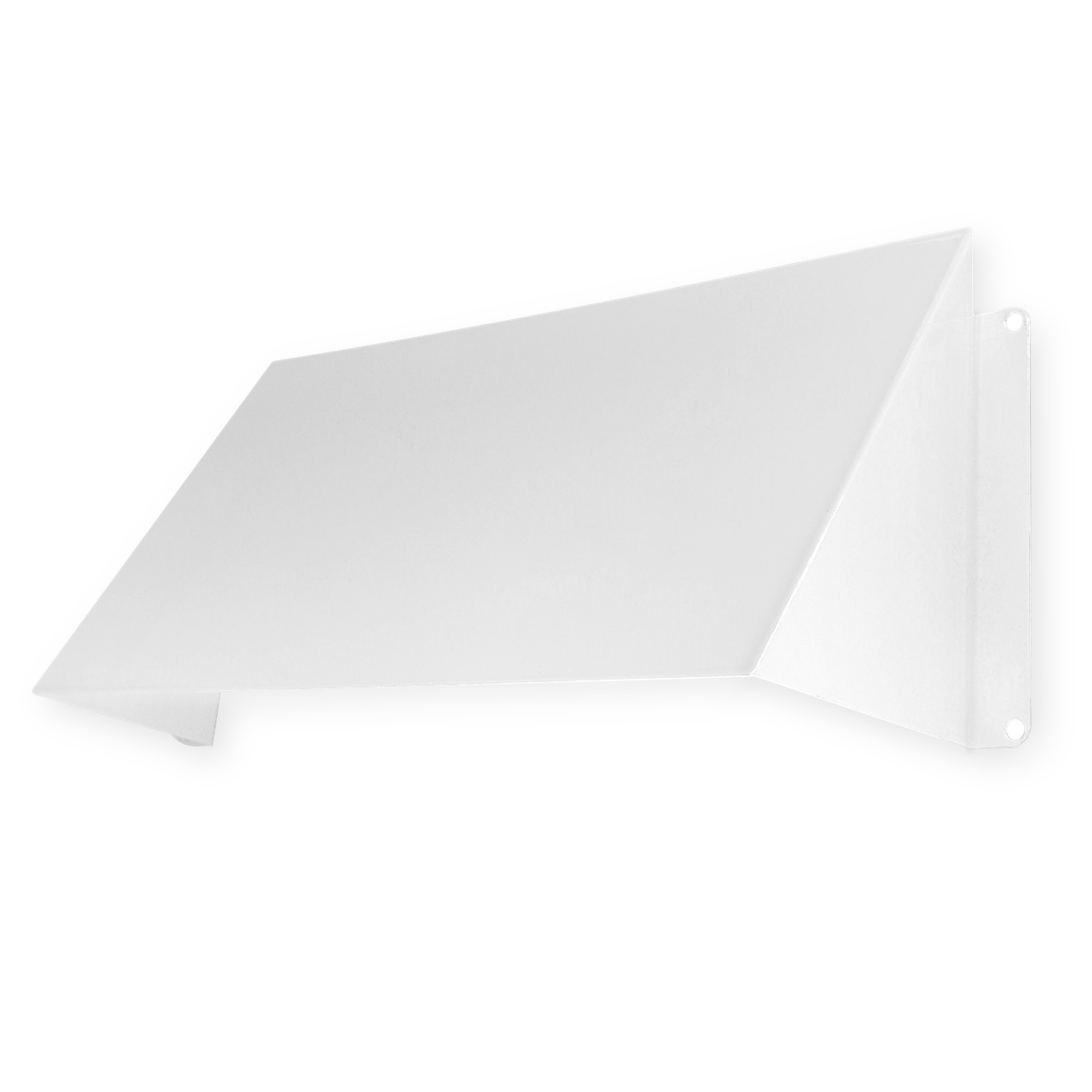

LNM2020
|
outlet cover metal, 200x200mm, white
|
4750492027646
|
200 mm | 200 mm |
|

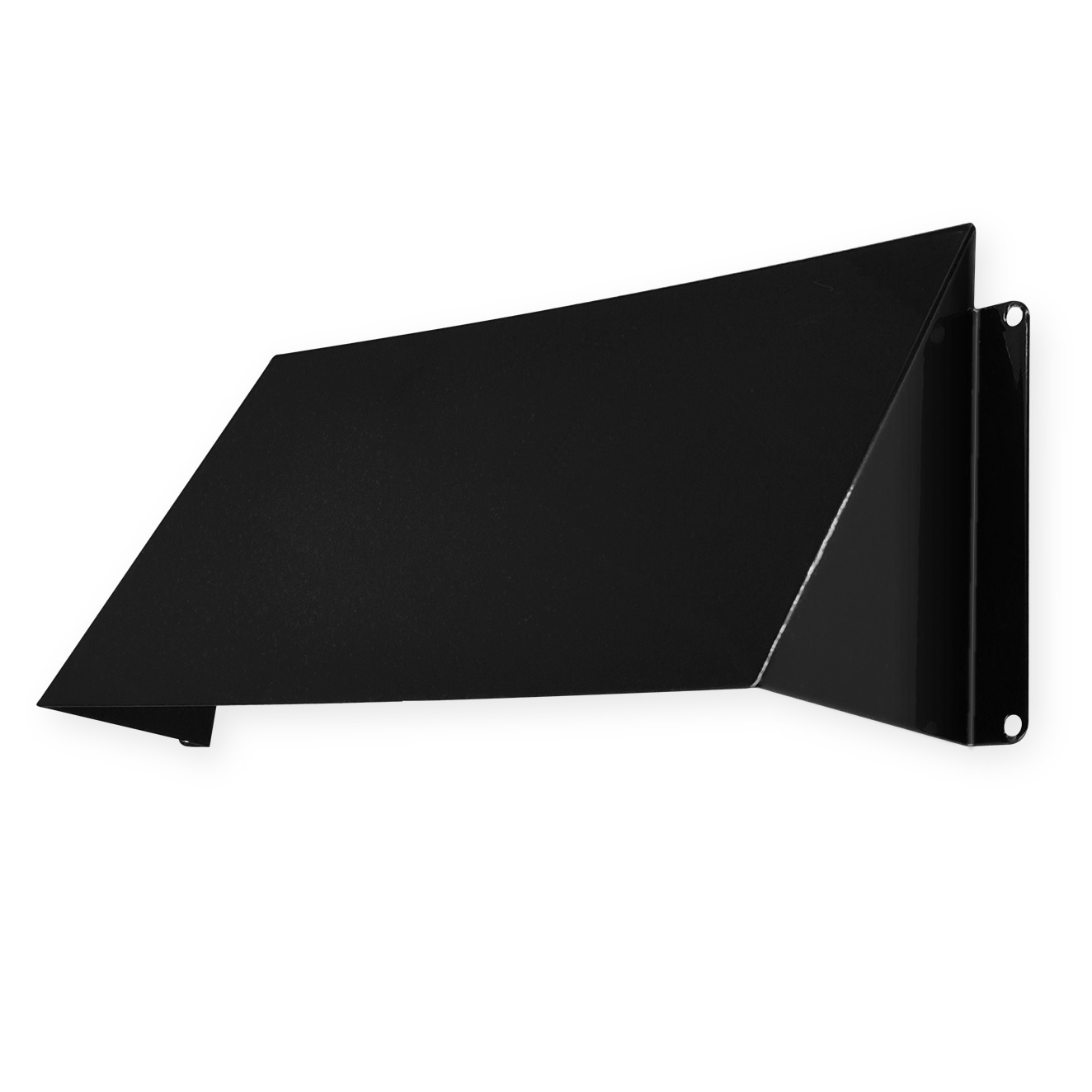

LNM2512M
|
outlet cover metal, 250x120mm, black
|
4750492028377
|
250 mm | 120 mm |

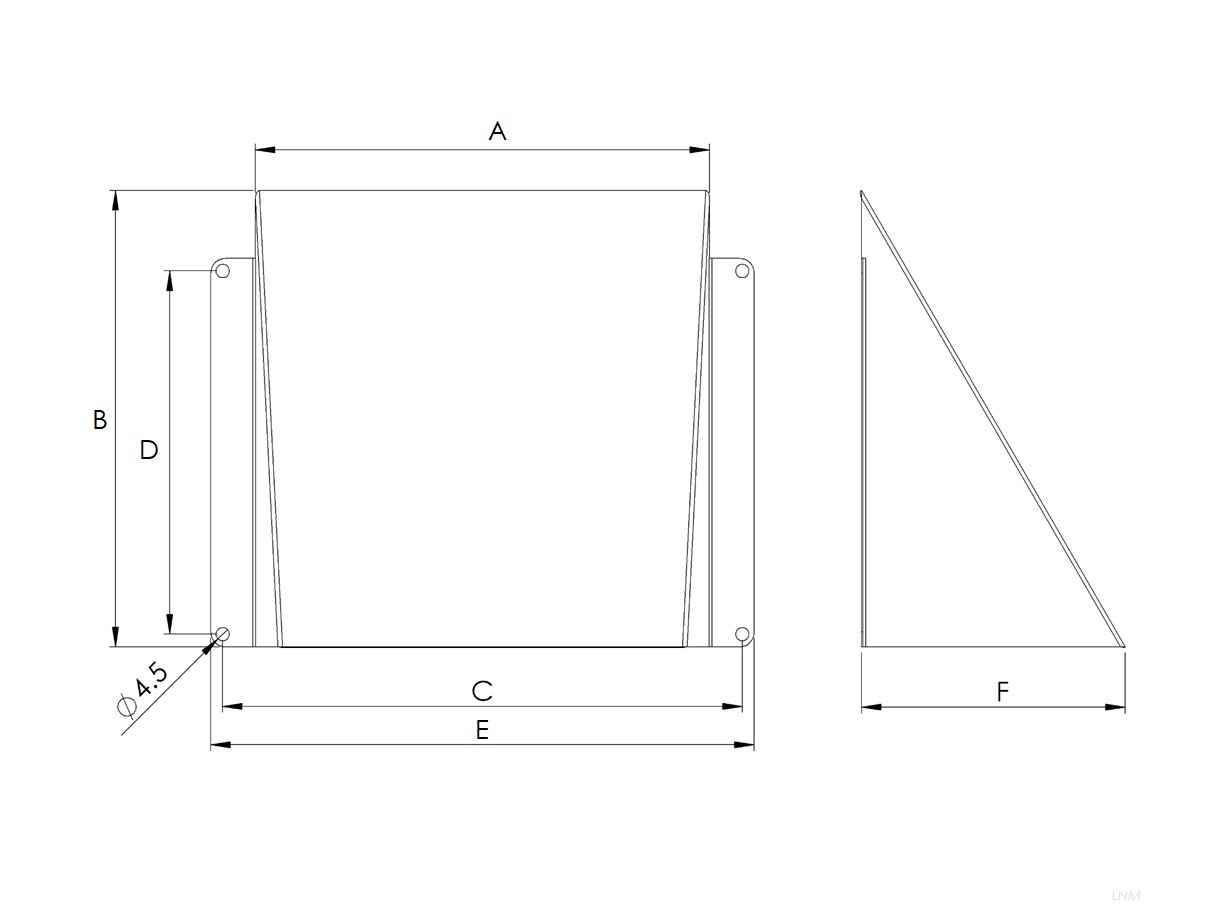

| Type | A [mm] |
B [mm] |
C [mm] |
D [mm] |
E [mm] |
F [mm] |
Air pass [m2] |
m [kg] |
| LNM1408 | 143 | 85 | 160 | 54 | 168 | 49 | 0,0066 | 0,08 |
| LNM1515 | 153 | 153 | 174 | 122 | 182 | 89 | 0,0126 | 0,18 |
| LNM2020 | 203 | 204 | 224 | 174 | 232 | 118 | 0,0223 | 0,29 |
| LNM2508 | 253 | 85 | 274 | 54 | 282 | 49 | 0,0120 | 0,14 |
| LNM2512 | 253 | 125 | 274 | 94 | 282 | 72 | 0,0175 | 0,20 |
| Modifications |
| LNMxxxx - white colour, polymer paint coating RAL9016 |
| LNMxxxxM - black colour, polymer paint coating RAL9005 |
| LNMxxxxZn - galvanized, unpainted |
| * LNMxxxxB - brown colour, polymer paint coating RAL8016 |
| * LNMxxxxP - grey colour, polymer paint coating RAL9006 |
| * LNMxxxxY - beige colour, polymer paint coating RAL1015 |
| * LNMxxxxA – anthracite colour, polymer paint coating |
| * LNMxxxxCu - copper, unpainted |
| * LNMxxxxAl - aluminium, unpainted |
| * LNMxxxxi - stainless steel, unpainted |
* Not included in the main range. Available only on special order with a certain minimum quantity.
