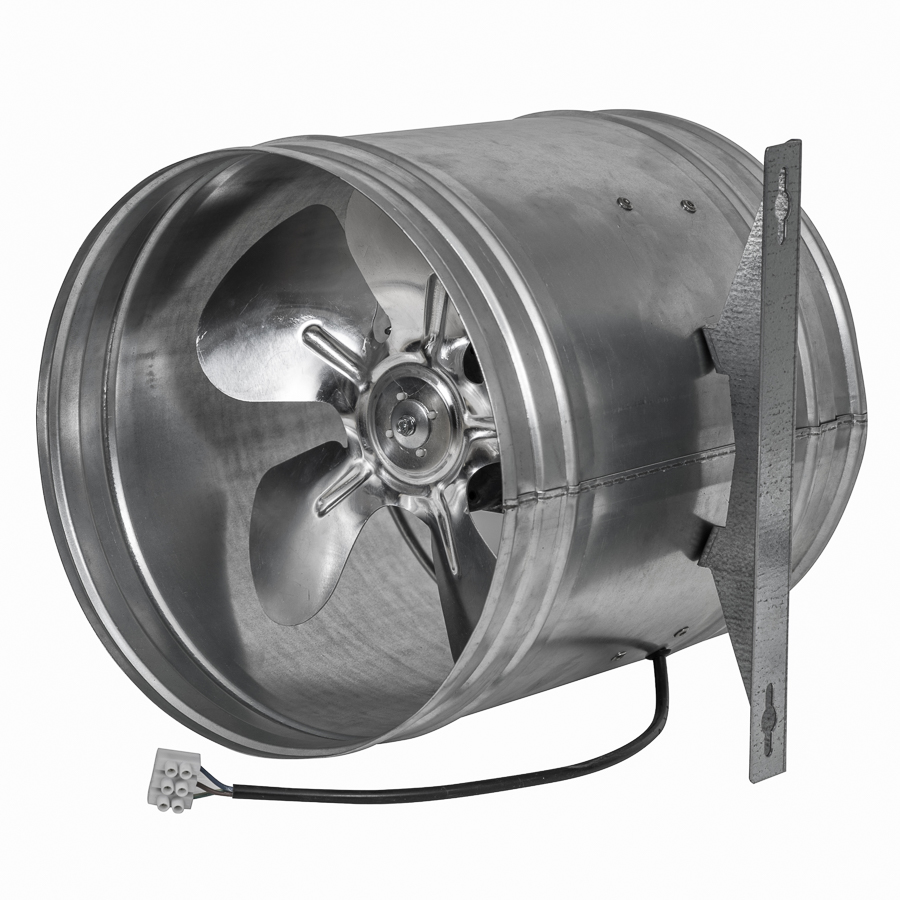

low pressure duct fans ZKM
Construction:
- Manufactured from galvanized steel
- Fan: axial
- Protection against environmental factor: IPX4
- Insulation class: class B
Installation:
- Mounting with all type round ducts
- Mounting positions: Multi
- Mounting bracket is included
- Location: indoors
Power supply: 220-240V 50Hz single phase
Temperature range: + 0°C up to + 40°C
Sizes: 160, 200, 250, 315 mm
EUROPLAST low pressure duct fan ZKM comes in 160mm, 200mm, 250mm and 315mm sizes. Widely used for indoor ventilation. This fan is perfectly for boosting air flow in long runs of ducting ,it could be installed at any angle ,and Engineered for maximum boost with minimum noise. Balanced metal blades are ideal for boosting air supply and venting exhaust air. Easily installed to air ducting.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
ZKM160
|
in-line low pressure fan, Ø160mm, metal
|
4750492009321
|
160 mm |
|
ZKM200
|
in-line low pressure fan, Ø200mm, metal
|
4750492009338
|
200 mm |
|
ZKM250
|
in-line low pressure fan, Ø250mm, metal
|
4750492009345
|
250 mm |
|
ZKM315
|
in-line low pressure fan, Ø315mm, metal
|
4750492009352
|
315 mm |

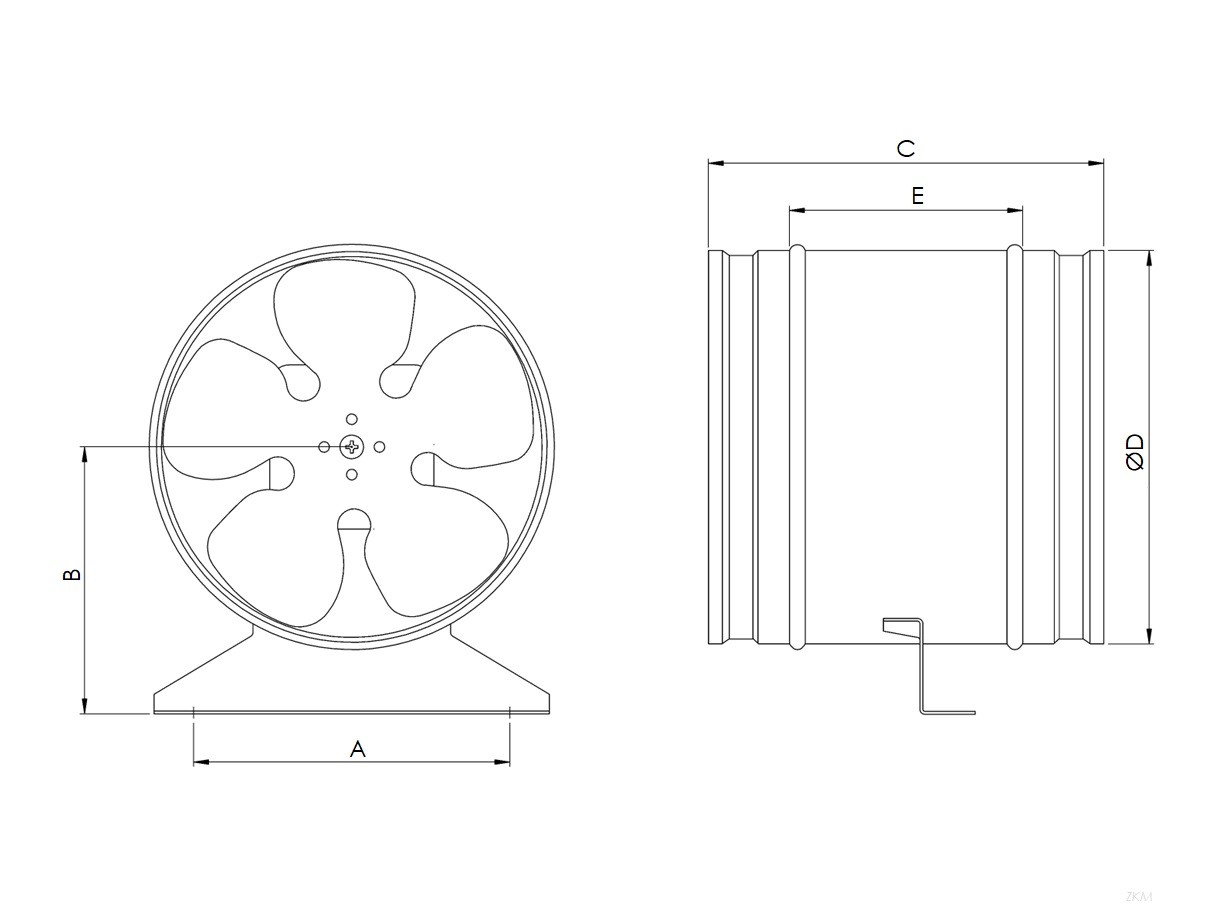

| Type | A | B | C | D |
| ZKM160 | 160 | 200 | 40 | 120 |
| ZKM200 | 200 | 200 | 40 | 160 |
| ZKM250 | 250 | 200 | 40 | 160 |
| ZKM315 | 315 | 200 | 40 | 160 |
| Type | Voltage [V / Hz] |
Power [W] |
IP | Speed [RPM] |
Suction power [m3/h] |
Noise level: 3m distance, Lp A dB(A) |
Temperature (°C) |
Air duct size (mm) |
Weight [kg] |
| ZKM160 | 220-240V~ 50Hz | 21 | IPX4 |
1300 |
183 | 43 | 0 up to +40 | 160 | 1,56 |
| ZKM200 | 220-240V~ 50Hz | 29 | IPX4 | 1300 | 340 | 47 | 0 up to +40 |
200 |
1,99 |
| ZKM250 | 220-240V~ 50Hz | 70 | IPX4 | 1300 | 800 | 48 | 0 up to+40 | 250 | 2,78 |
| ZKM315 | 220-240V~ 50Hz | 110 | IPX4 | 1300 | 1325 | 55 | 0 up to+40 | 315 | 3,70 |
