metal grilles MR14105-2628
Construction:
- Made from galvanized steel or other metals
- Insect screen
Instalation:
- Screw fixing in any position
Colors: White, brown, anthracite, beige, grey, black, metallic, copper, aluminium, stainless steel
EUROPLAST metal grilles are designed for supply and exhaust ventilation and are equipped with an insect screen. Unlike similar products of competitors, EUROPLAST MR series metal ventilation grilles are made from high quality galvanized steel or other metals and are coated with high-quality paint. This ensures the longevity of the grilles and their resistance to the changing weather.
Functions
Insect screen
Product is equipped with an insect mesh, which prevents insects from entering in to the ventilation systems.
| Article | Description | EAN | Width | Height | Functions | |
|---|---|---|---|---|---|---|
|

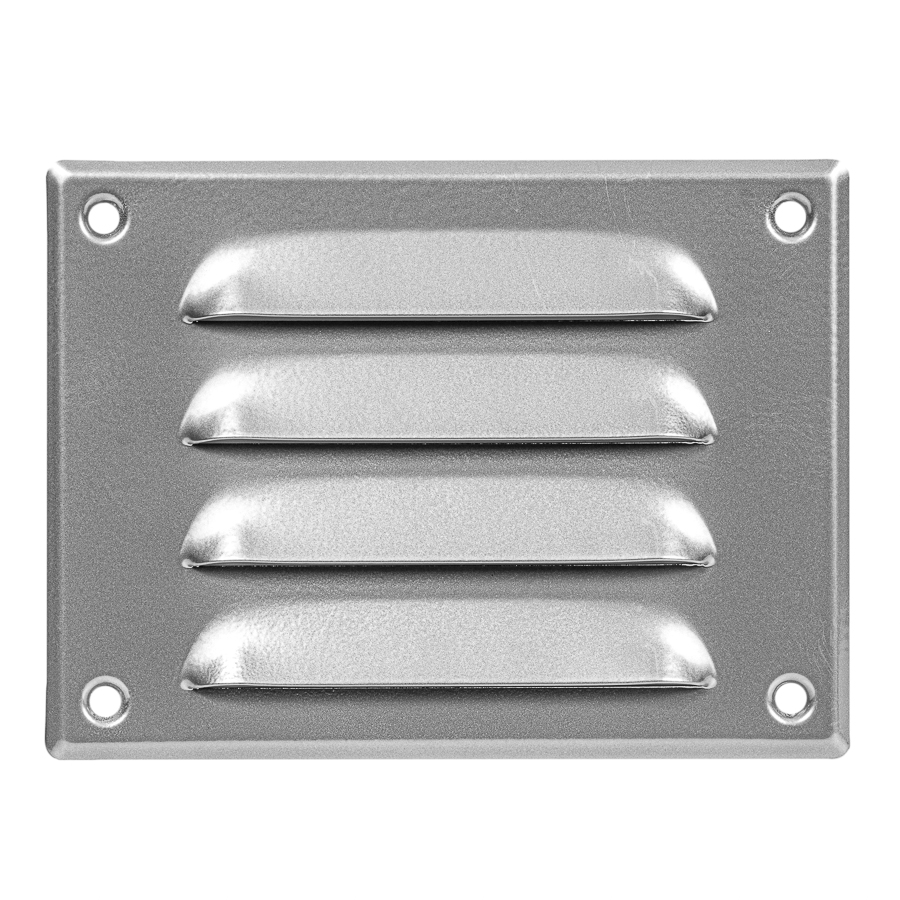

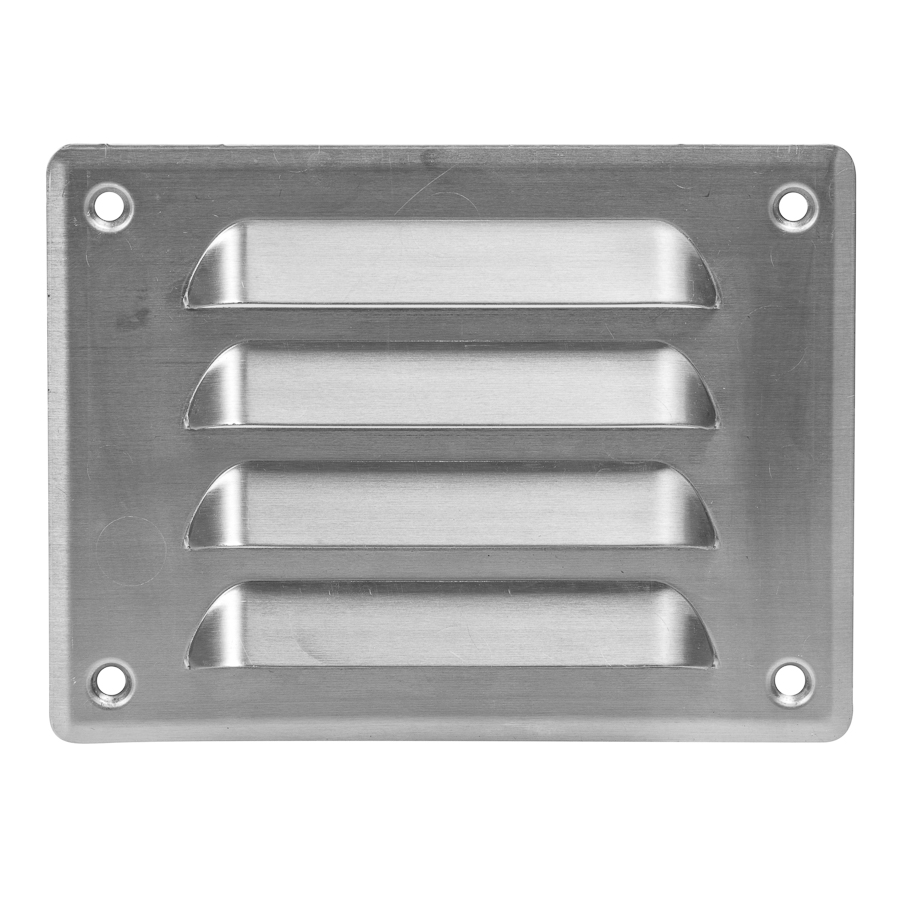

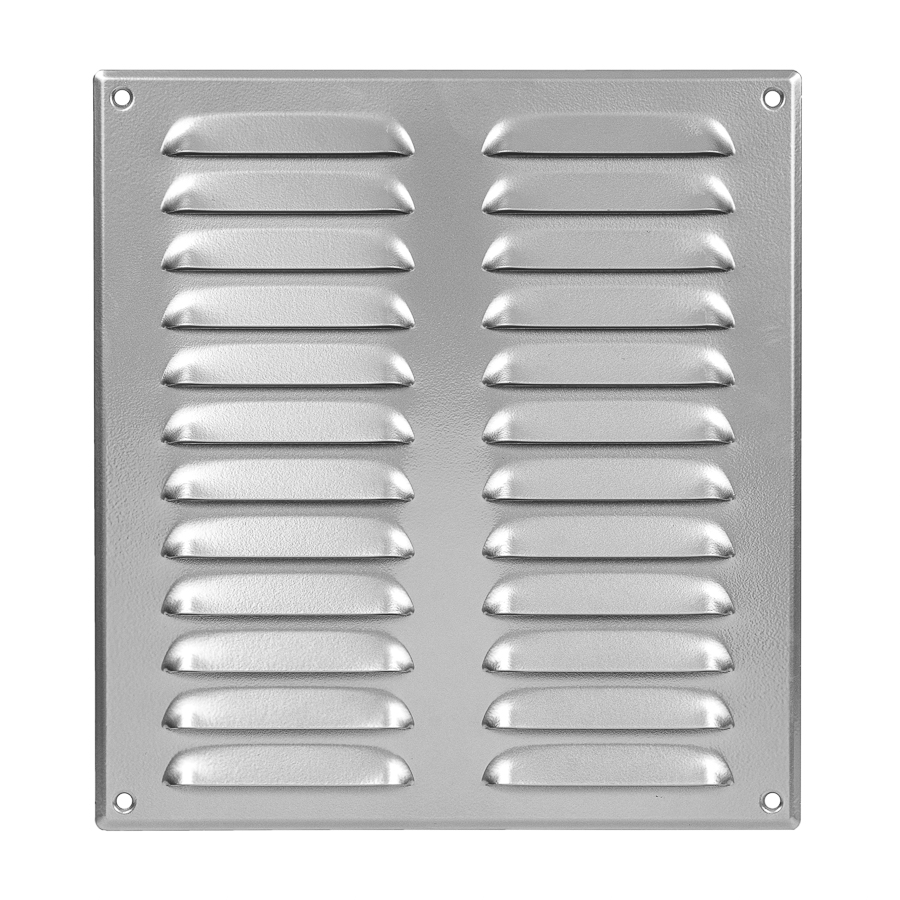

MR14105Al
|

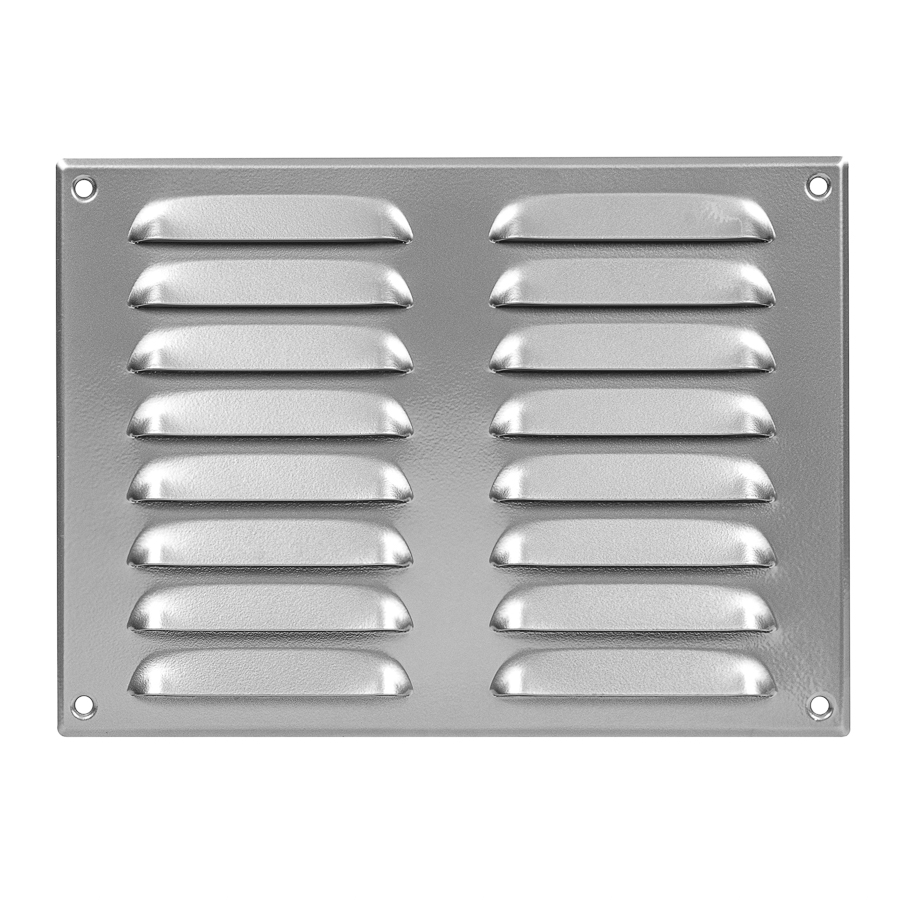

grille metal, 140x105mm, aluminium
|
4750492009673
|
140 mm | 105 mm |
|
|
MR14105A
|

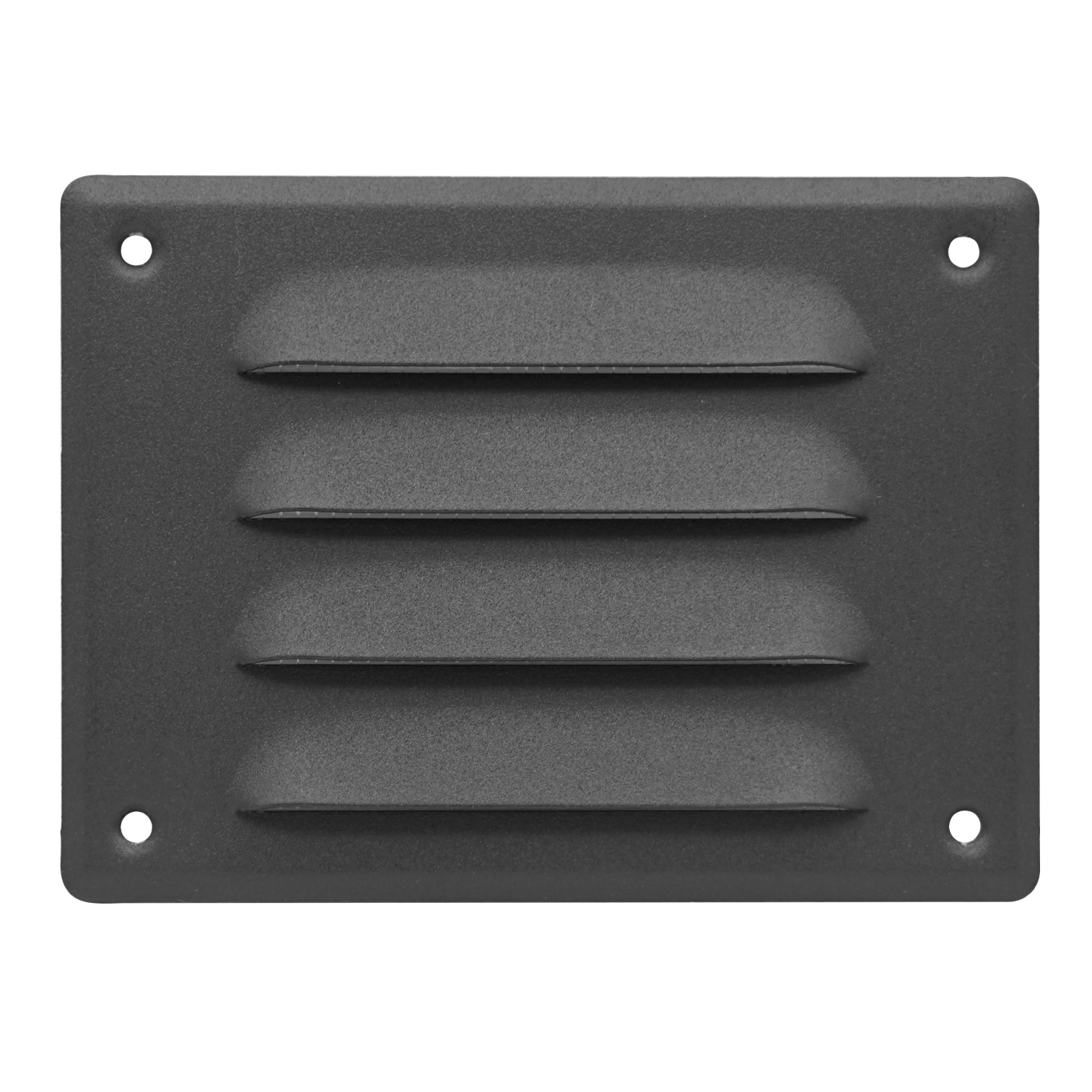

grille metal, 140x105mm, anthracite
|
4750492026144
|
140 mm | 105 mm |
|
|

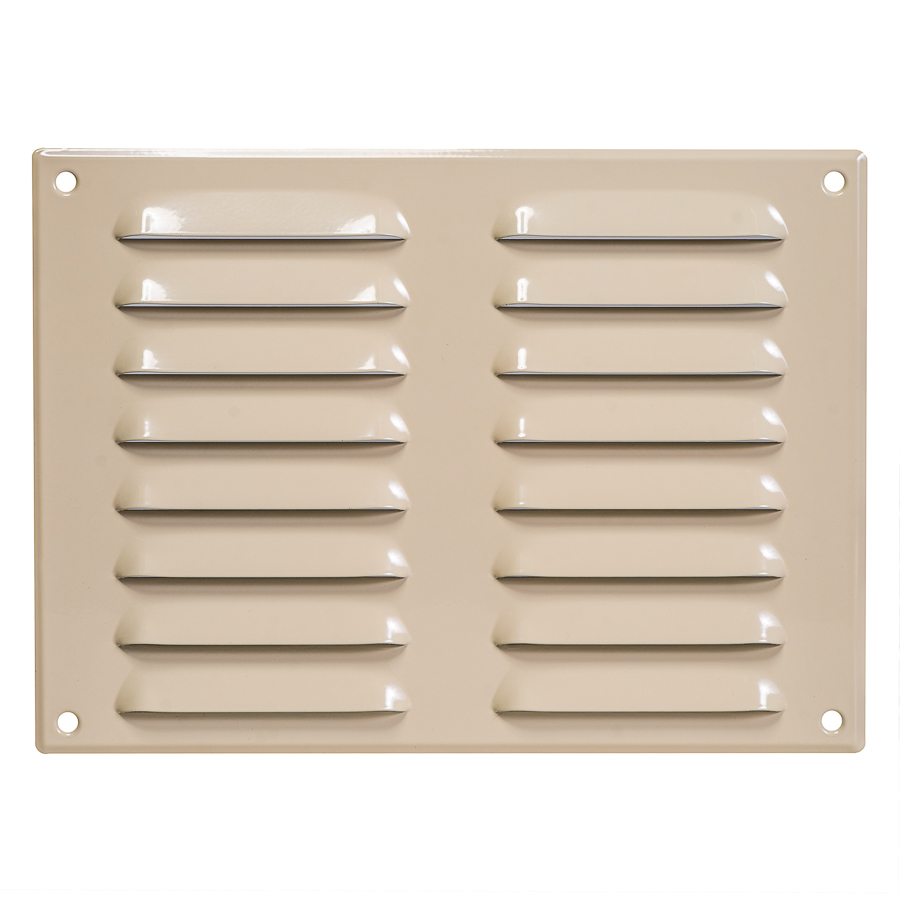

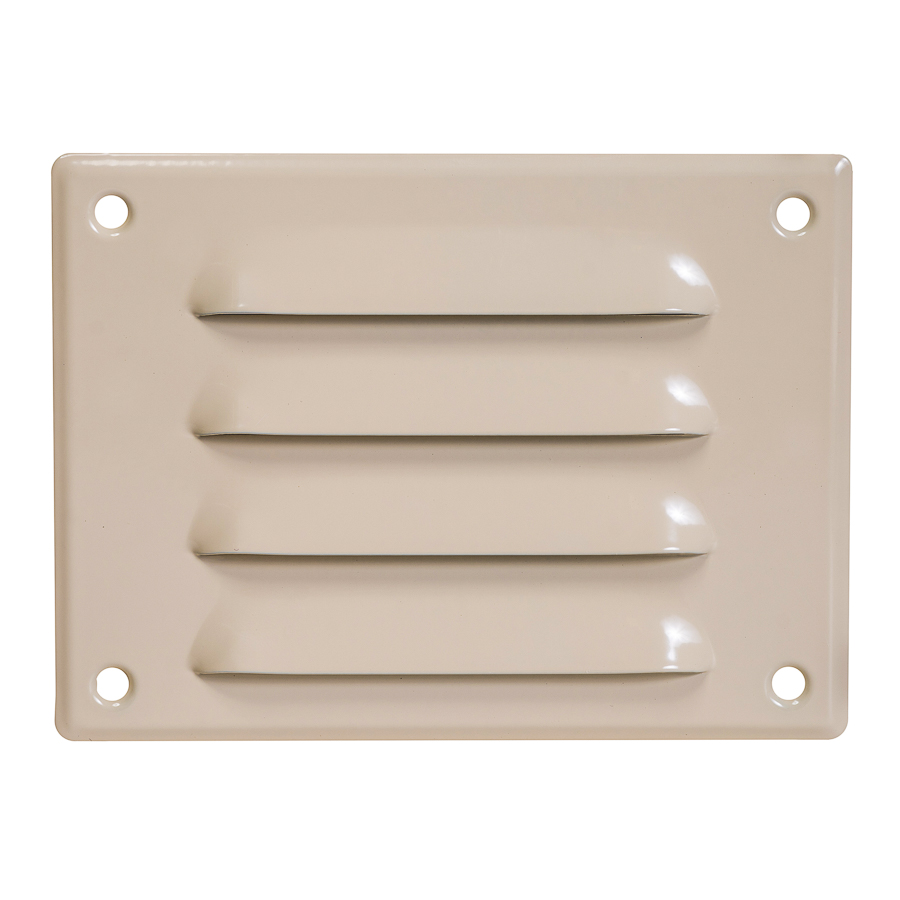

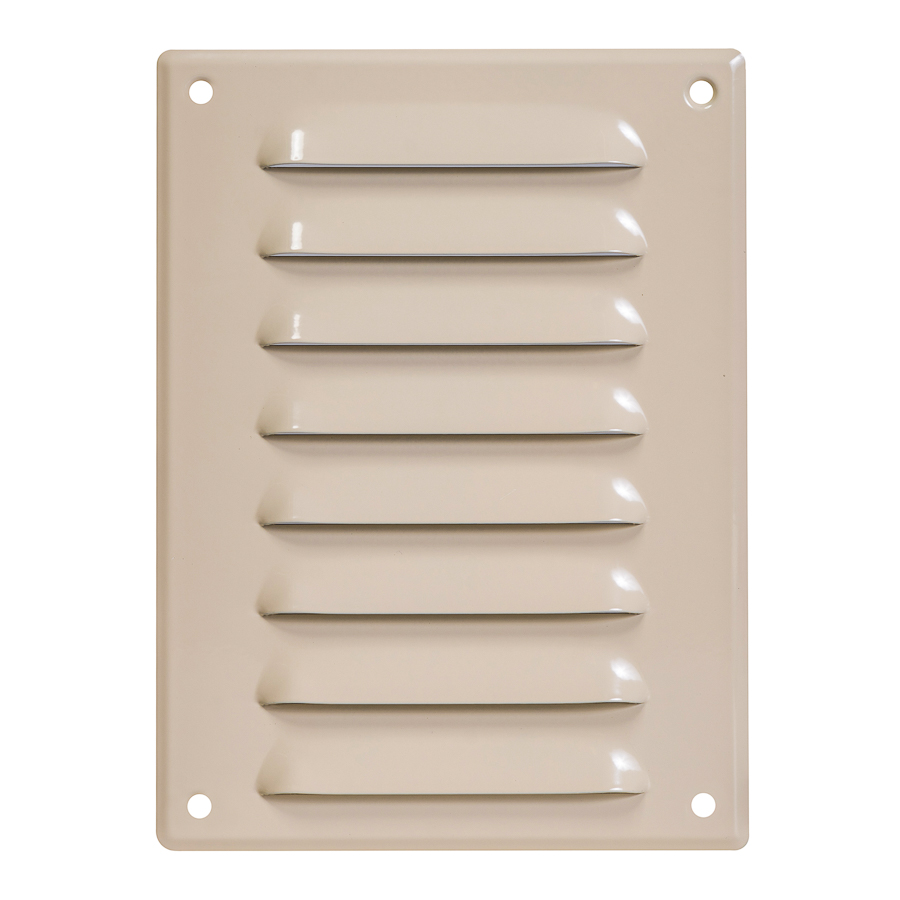

MR14105Y
|
grille metal, 140x105mm, beige
|
4750492015438
|
140 mm | 105 mm |
|
|

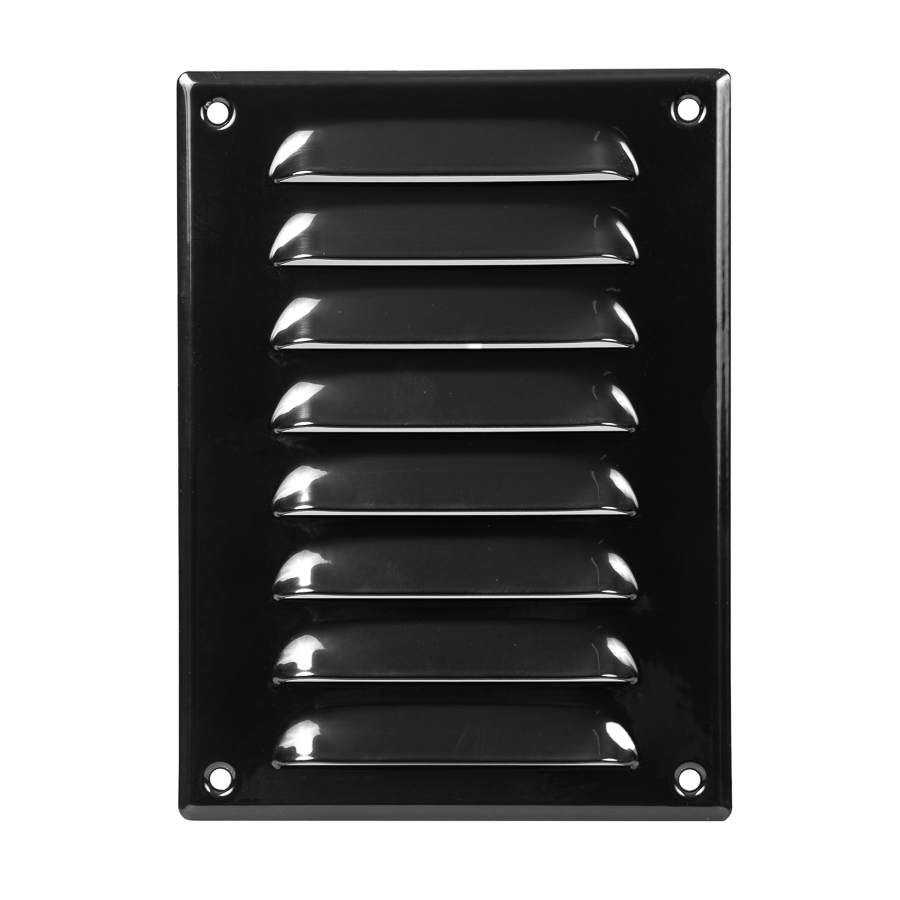

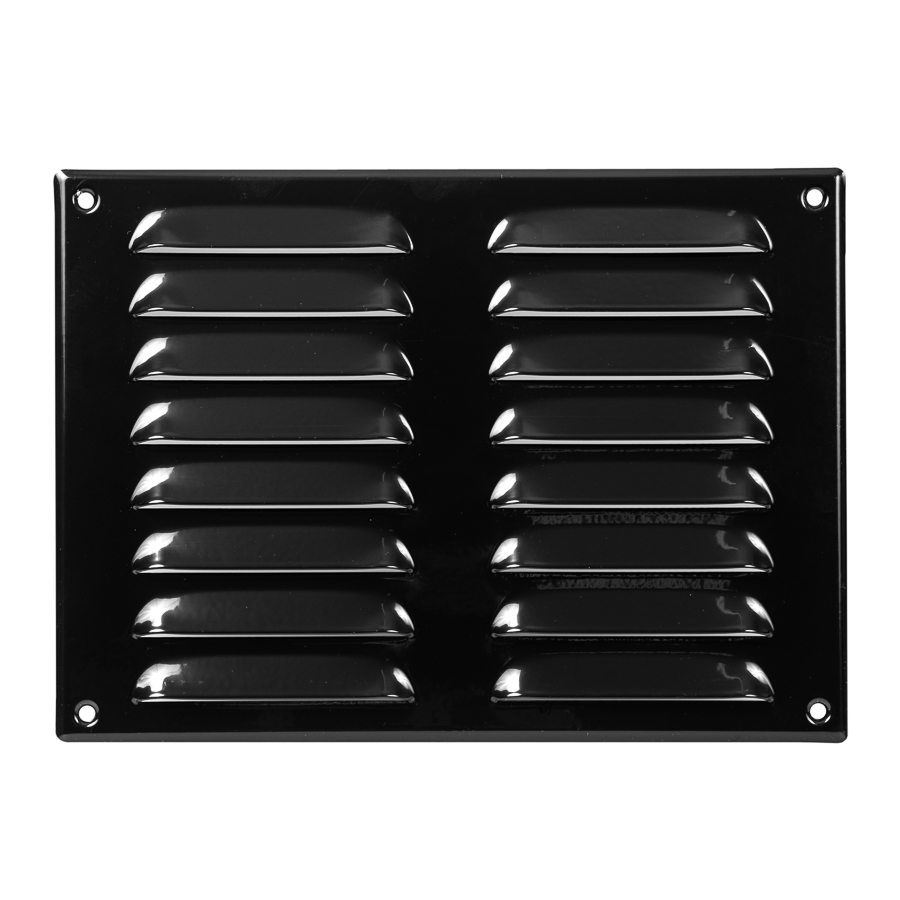

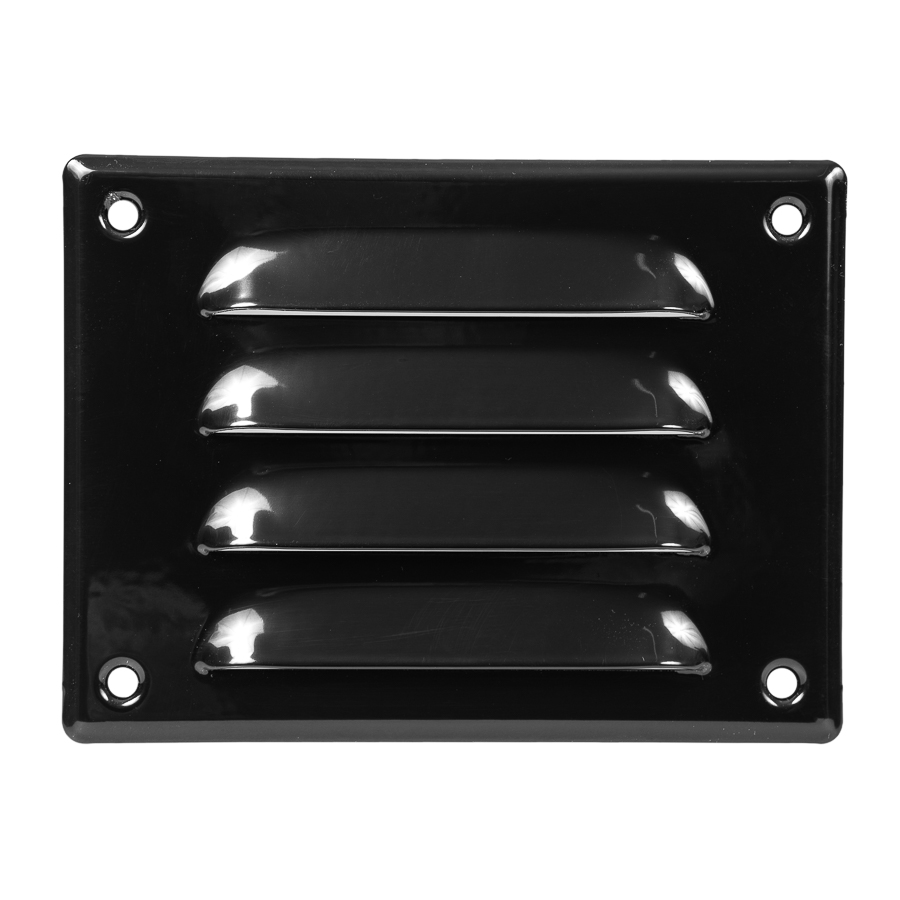

MR14105M
|
grille metal, 140x105mm, black
|
4750492014172
|
140 mm | 105 mm |
|
|

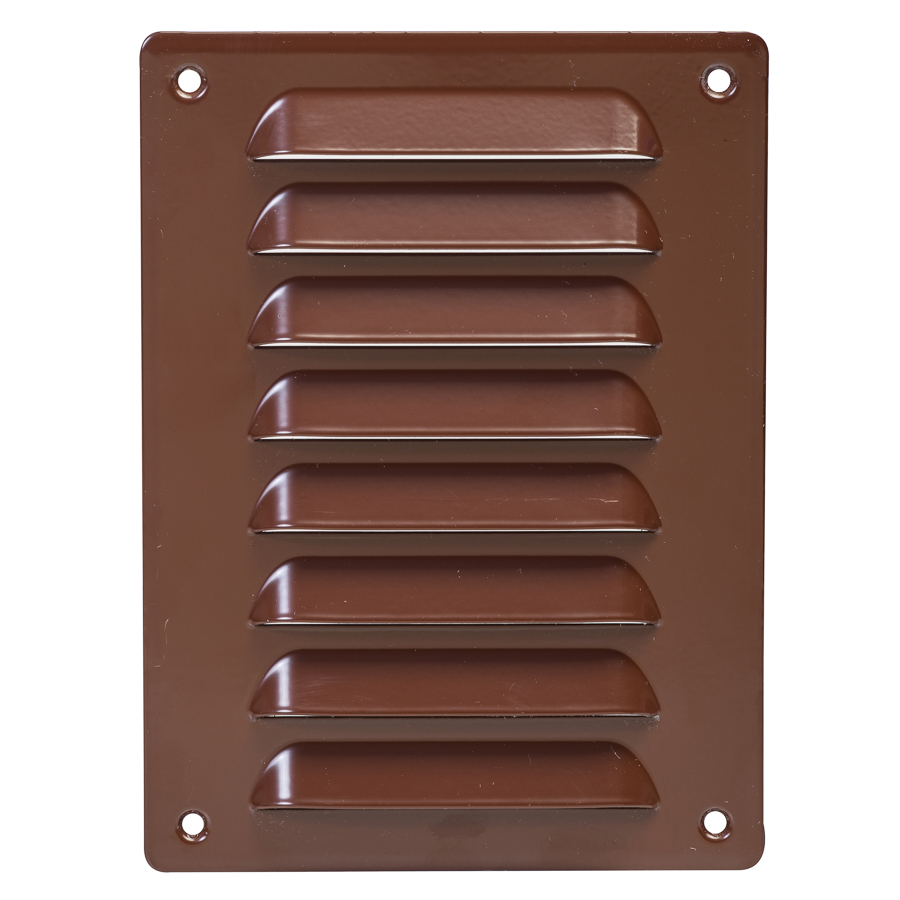

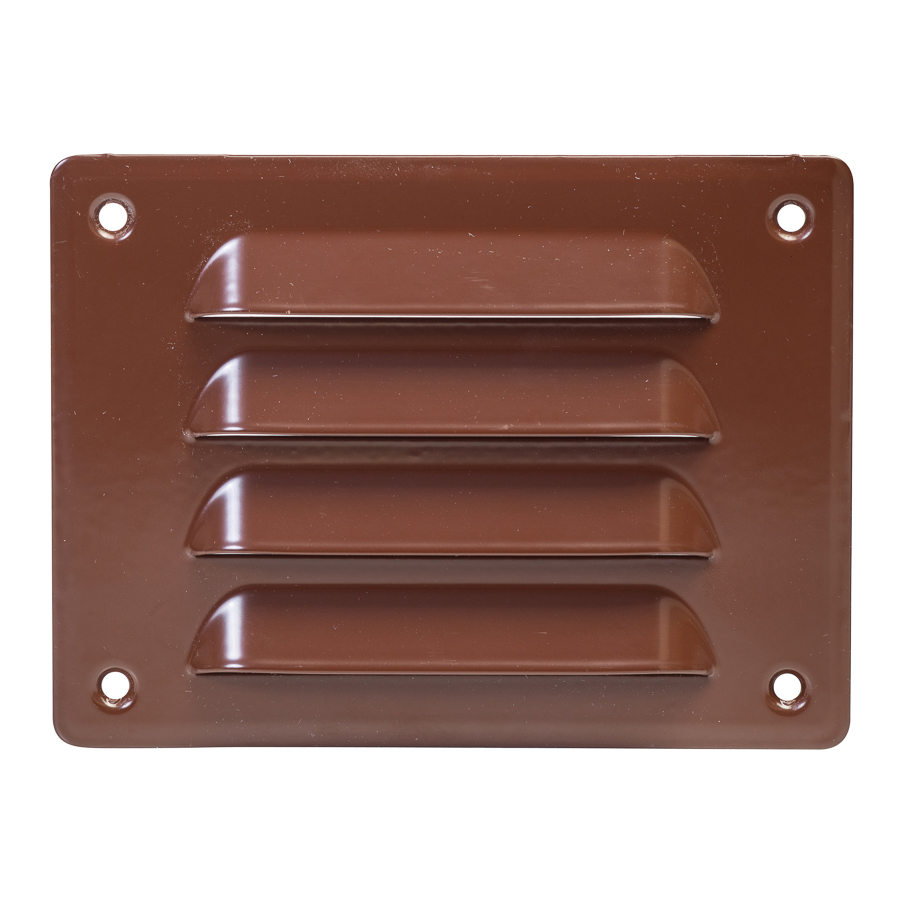

MR14105B
|

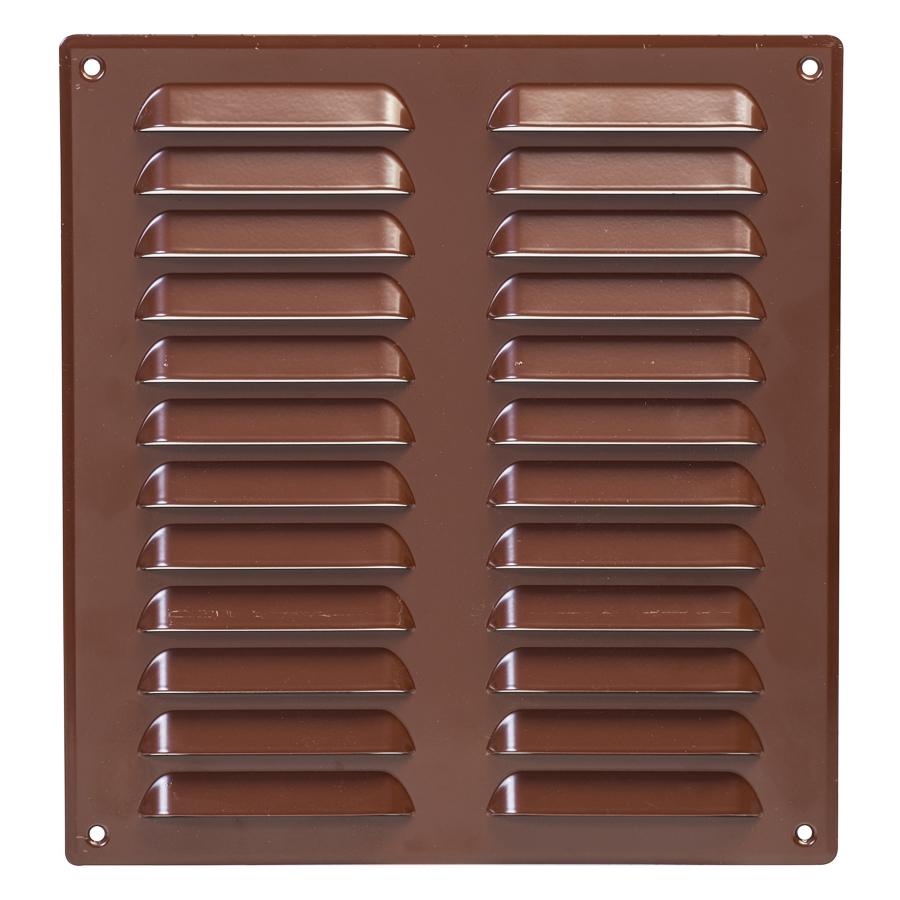

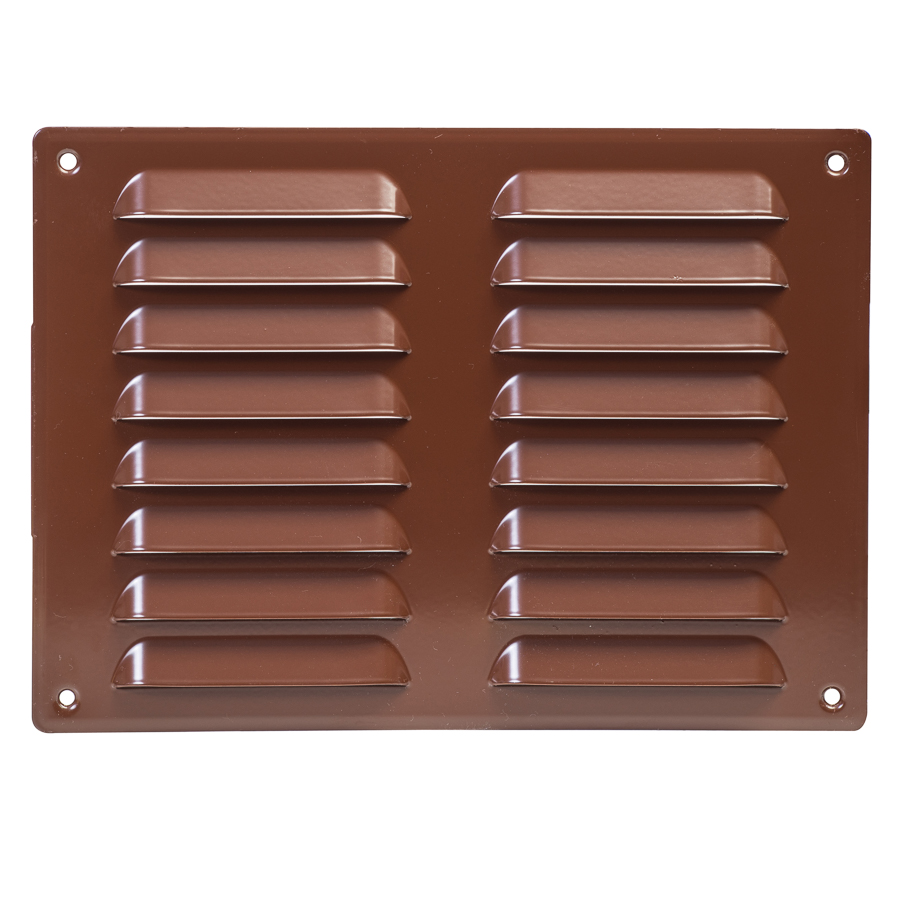

grille metal, 140x105mm, brown
|
4750492009666
|
140 mm | 105 mm |
|
|

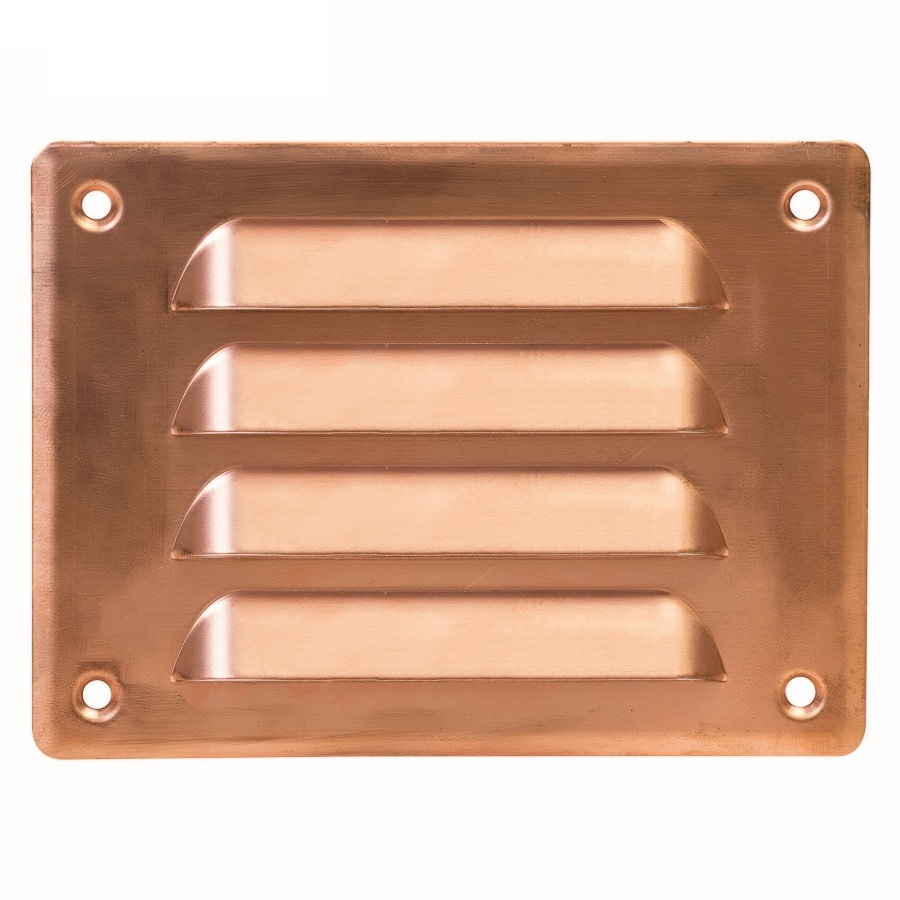

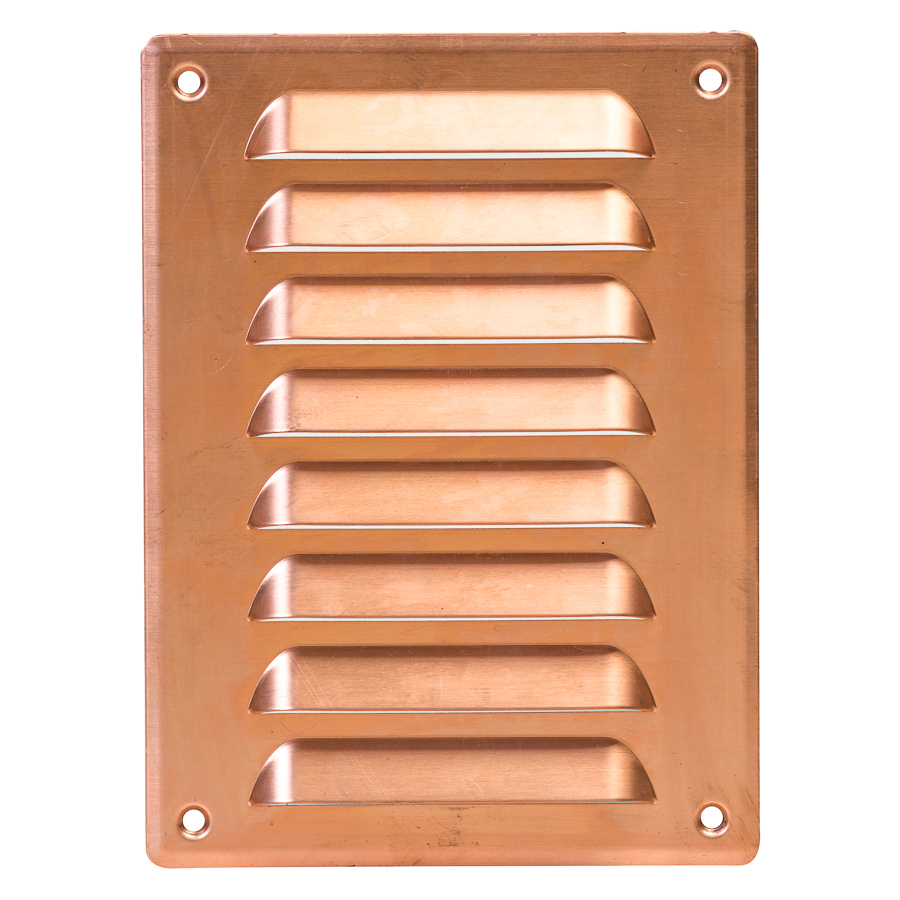

MR14105Cu
|

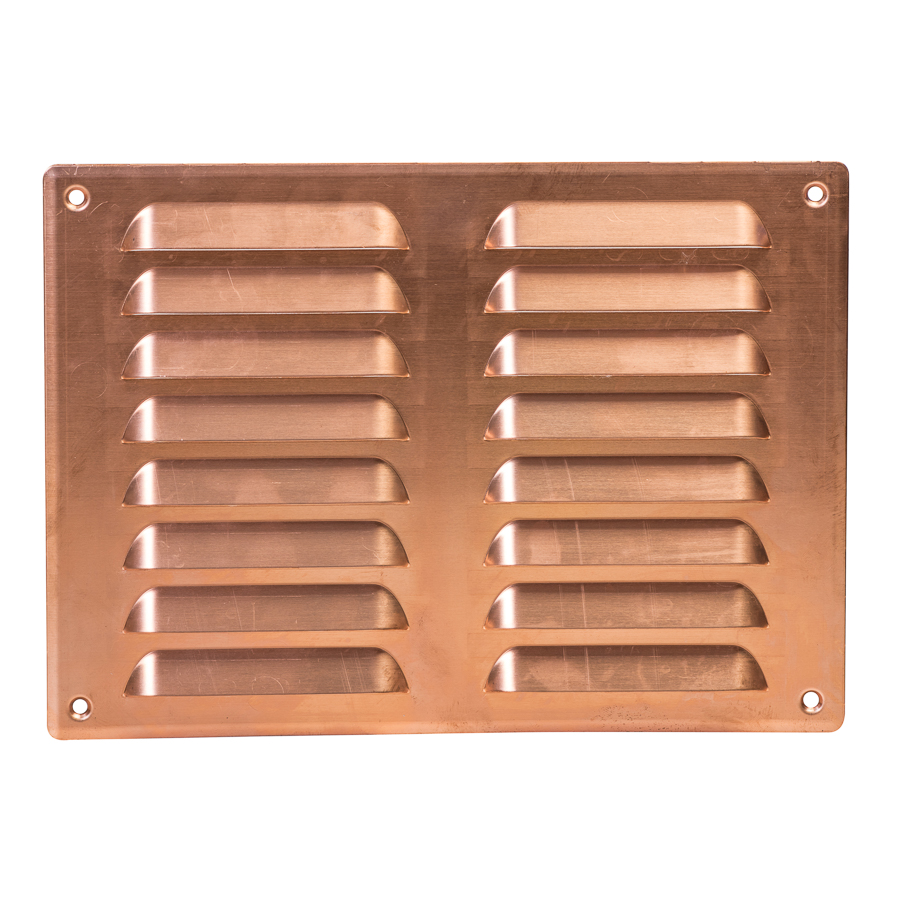

grille metal, 140x105mm, copper
|
4750492009659
|
140 mm | 105 mm |
|
|

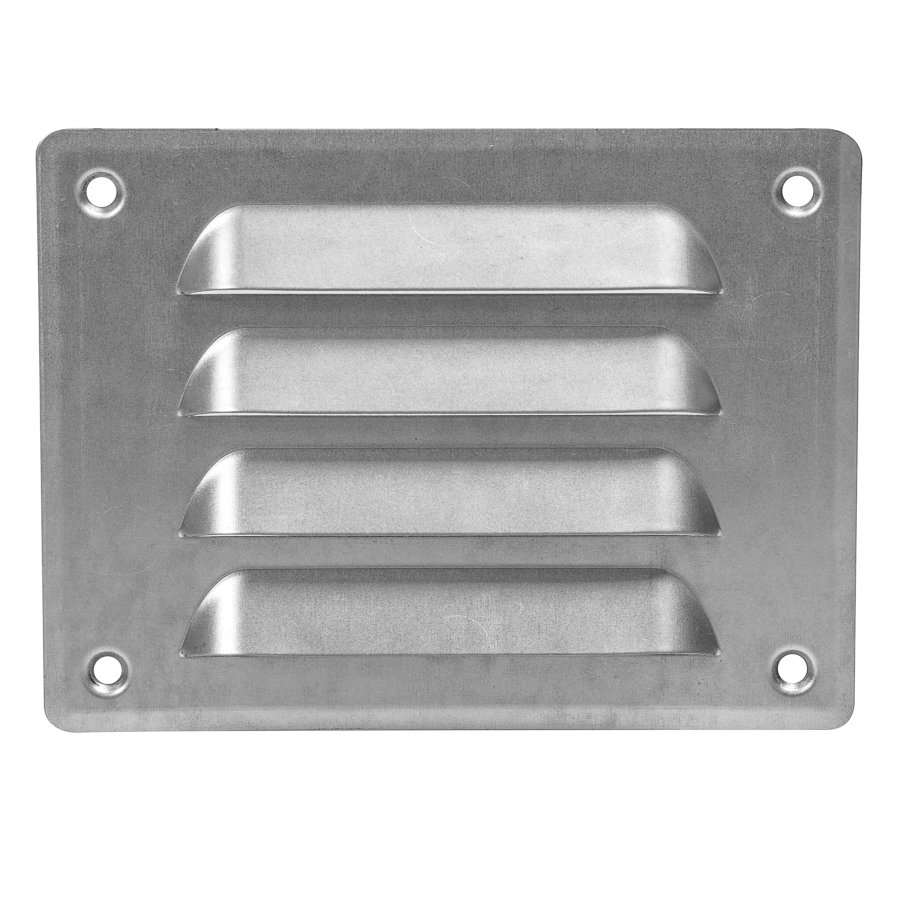

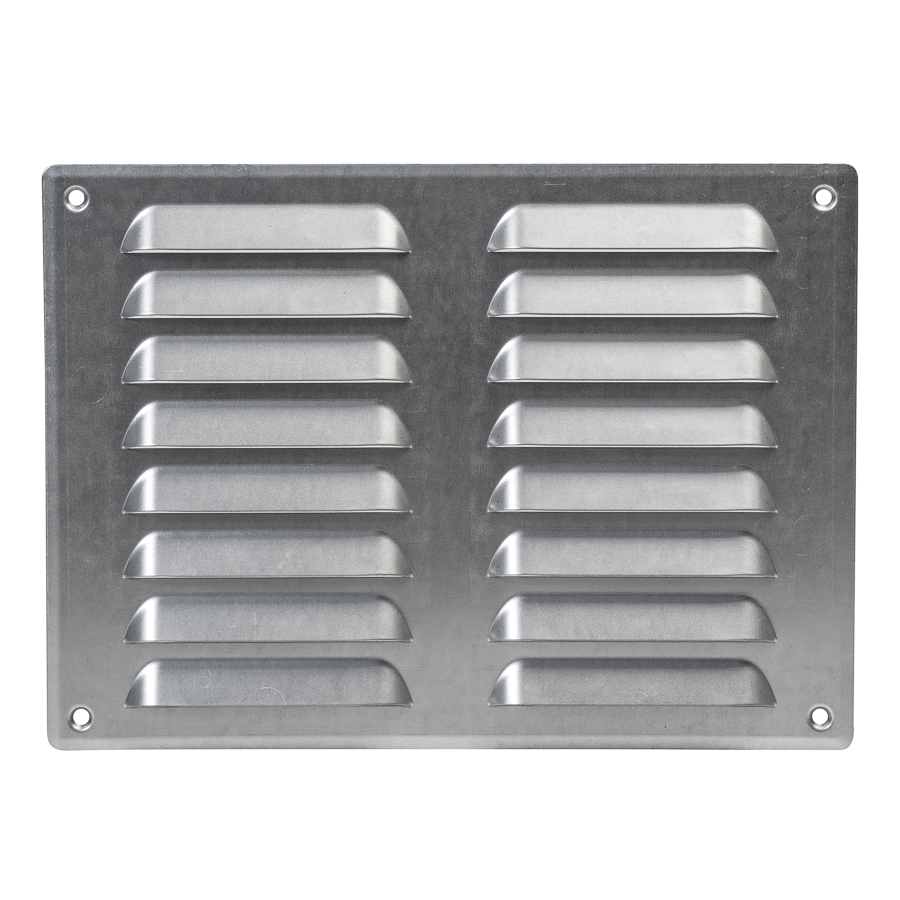

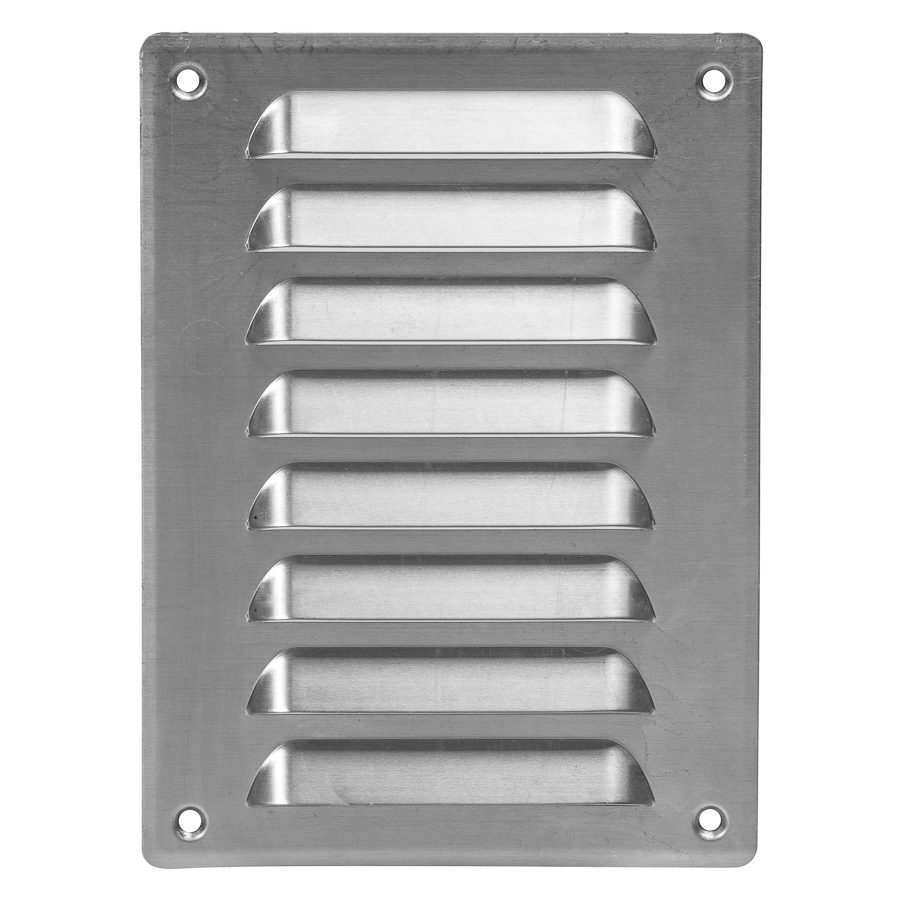

MR14105Zn
|

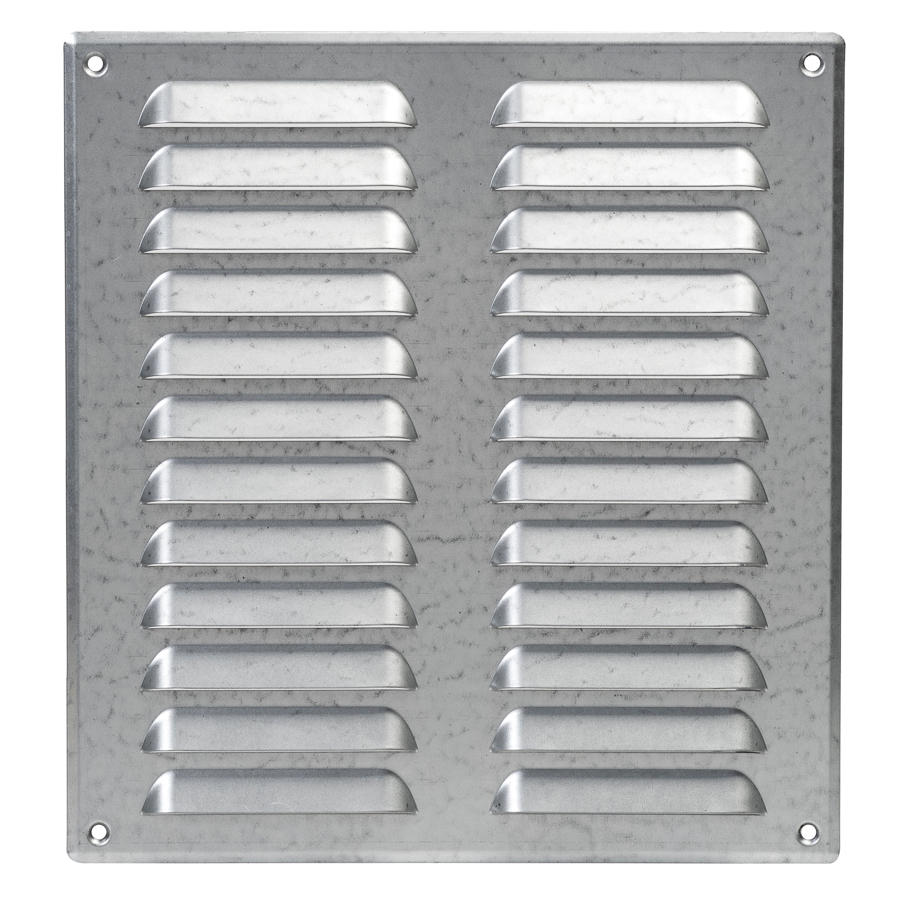

grille metal, 140x105mm, galvanized
|
4750492001400
|
140 mm | 105 mm |
|
|

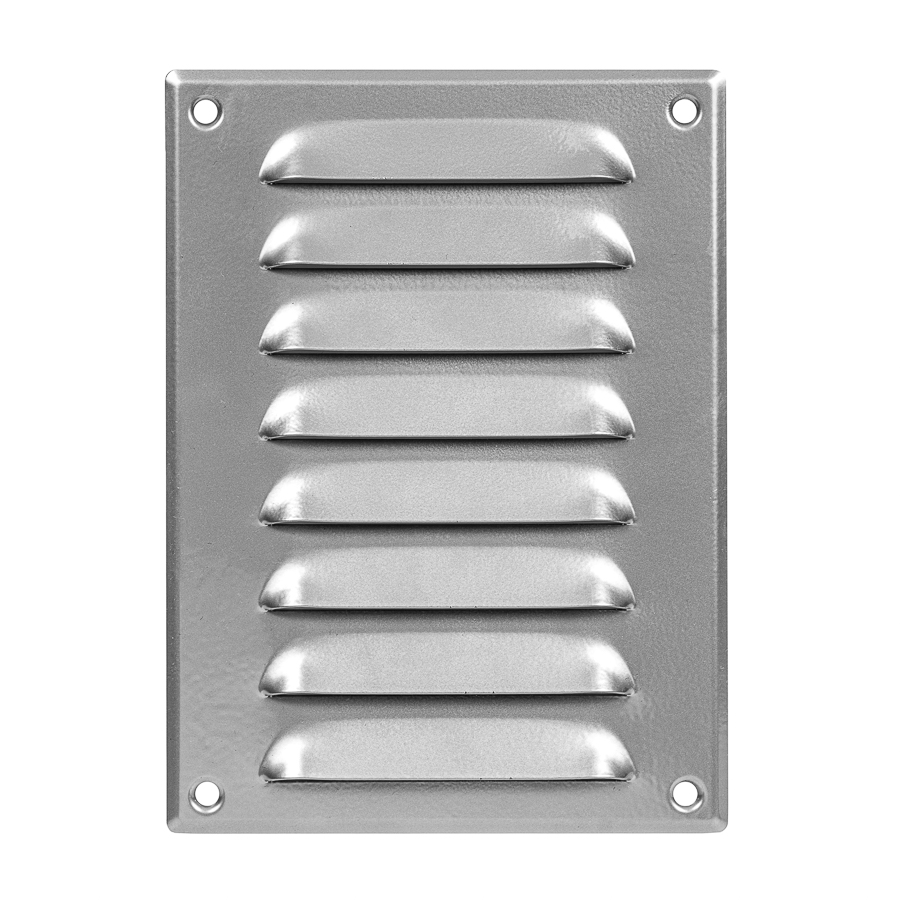

MR14105P
|
grille metal, 140x105mm, grey
|
4750492015421
|
140 mm | 105 mm |
|
|

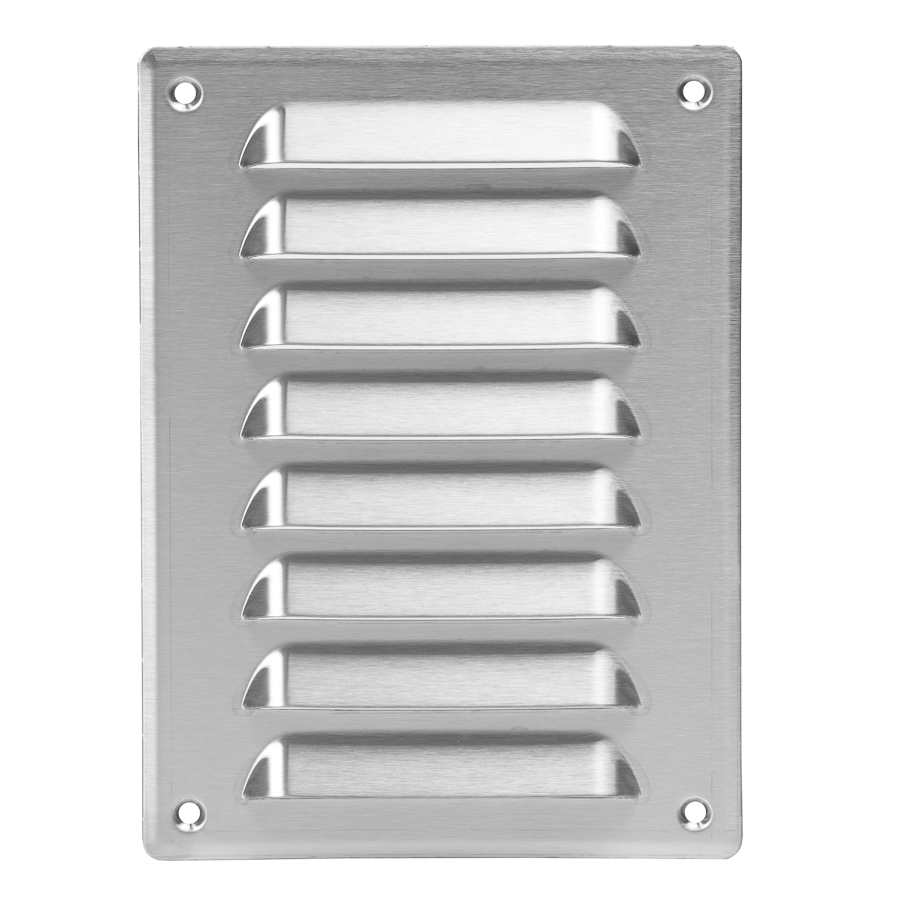

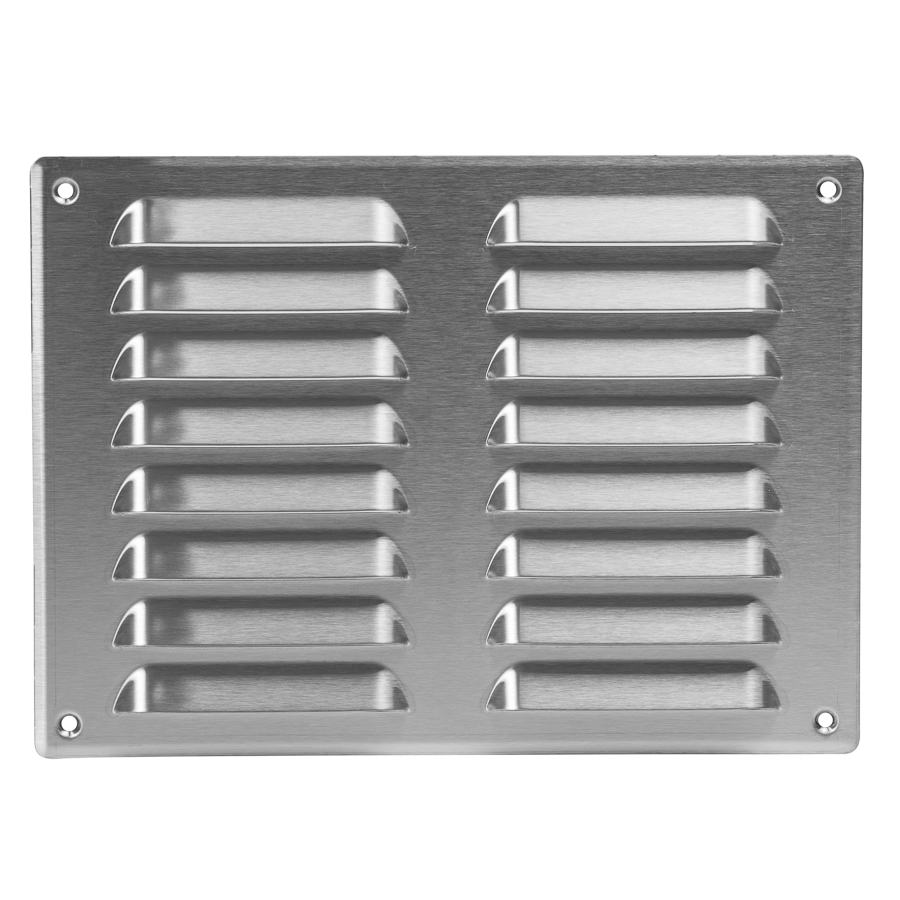

MR14105i
|

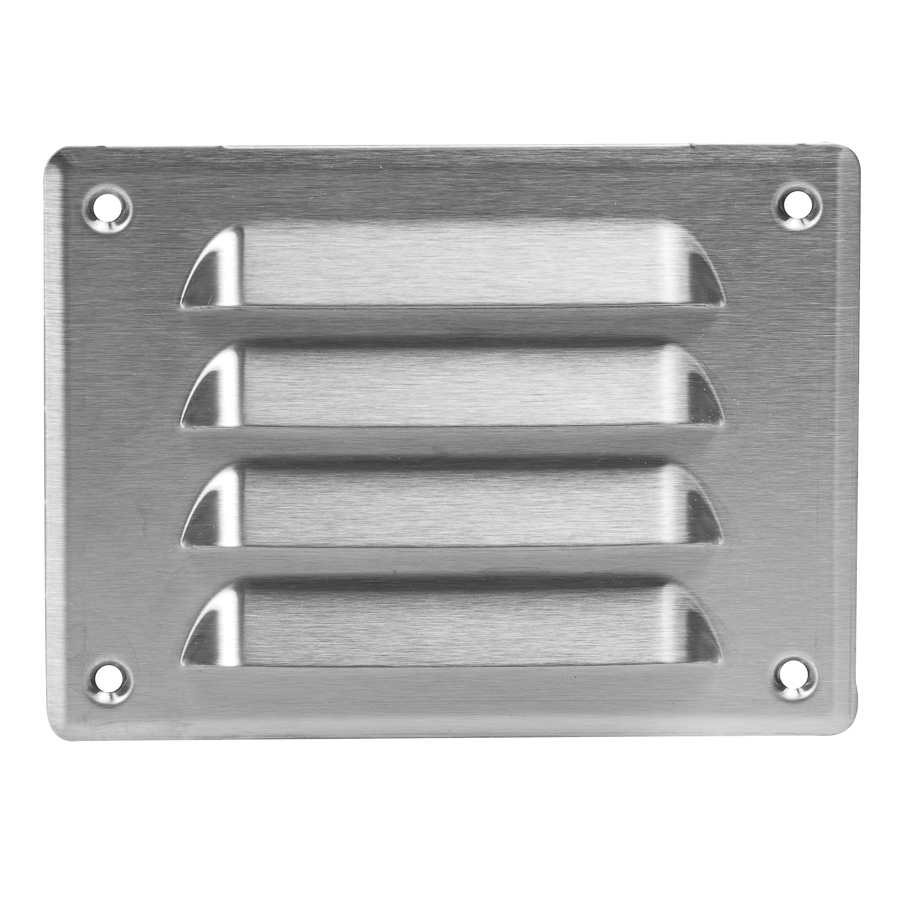

grille metal, 140x105mm, inox
|
4750492009642
|
140 mm | 105 mm |
|
|

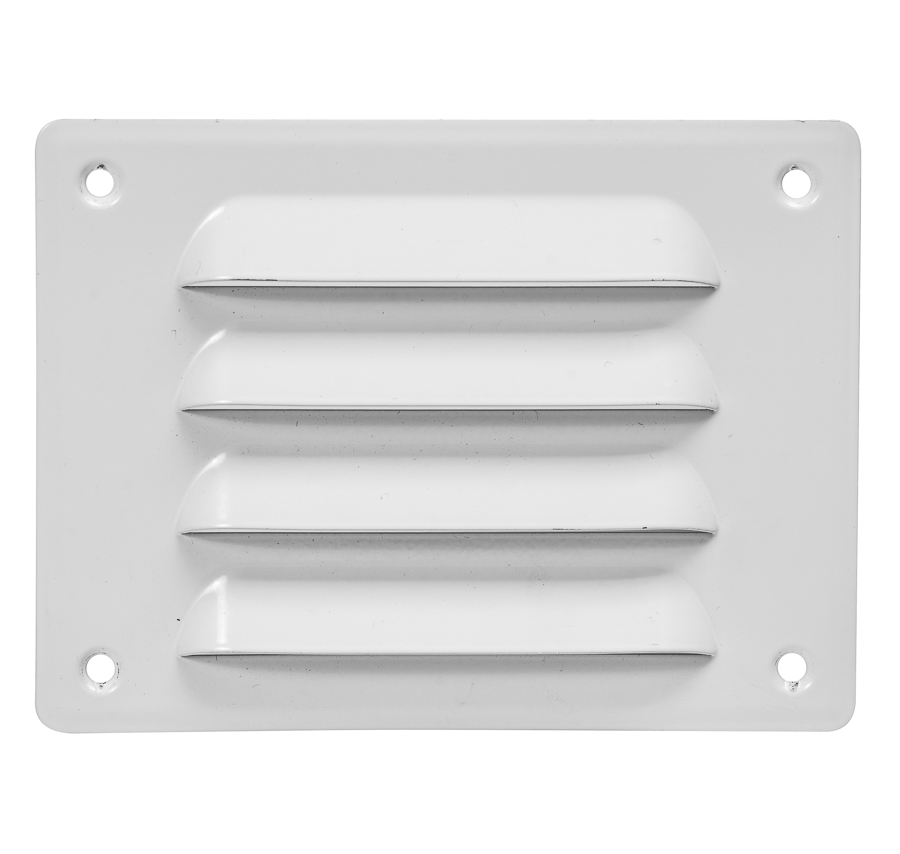

MR14105
|
grille metal, 140x105mm, white
|
4750492000212
|
140 mm | 105 mm |
|
| Modifications |
| MRxxxx – white RAL9016 polymer coating |
| MRxxxxB – brown RAL8016 polymer coating |
| MRxxxxA - anthracite color polymer coating |
| MRxxxxY – beige RAL 1015 polymer coating |
| MRxxxxP – grey RAL9006 polymer coating |
| MRxxxxM – black RAL9005 polymer coating |
| MRxxxxZn – galvanized steel |
| MRxxxxCu – copper |
| MRxxxxAl – aluminium |
| MRxxxxi – stainless steel |

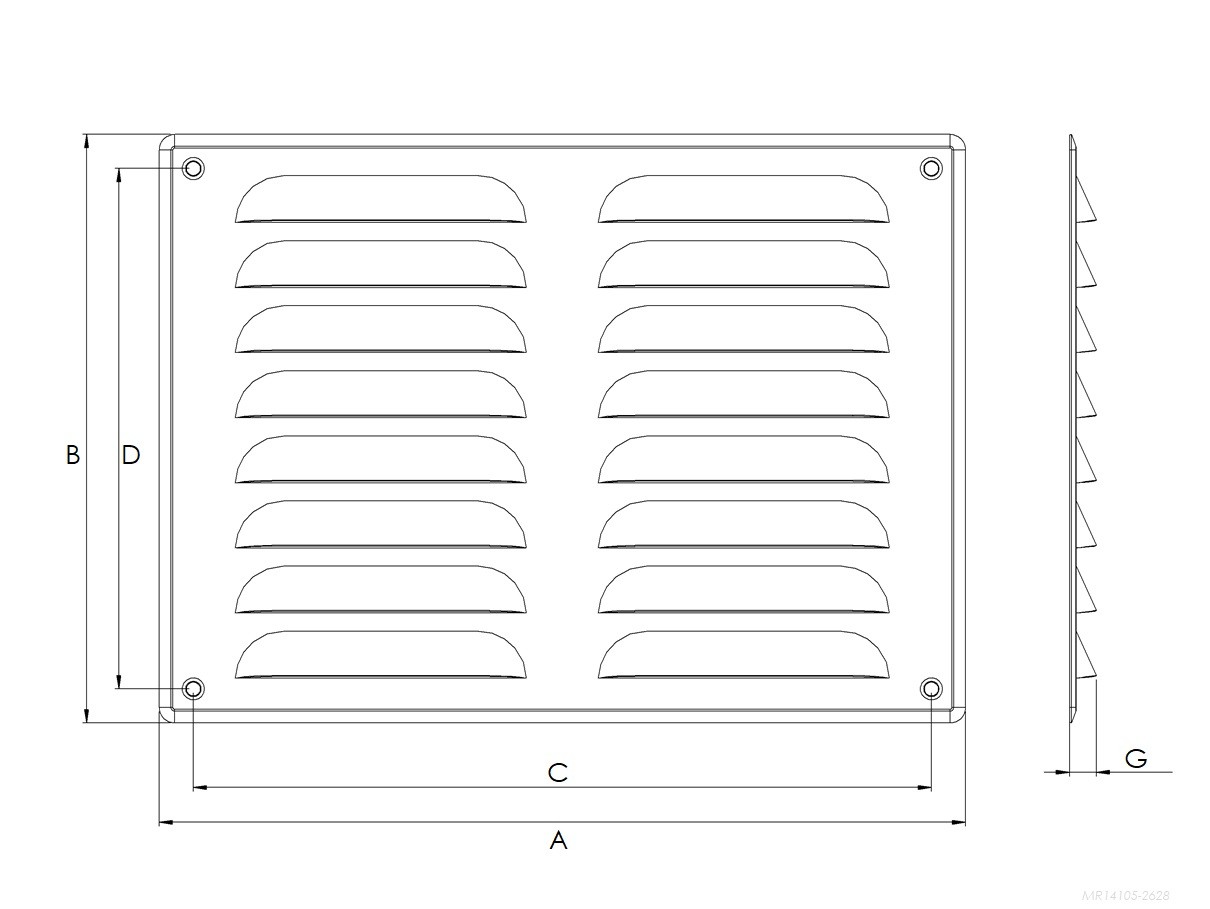

| Type |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
G (mm) |
Air pass (m2) |
m (kg) |
| MR14105 | 140 | 105 | 118 | 83 | 7 | 0,0008 | 0,08 |
| MR1419 | 140 | 190 | 118 | 168 | 7 | 0,0016 | 0,15 |

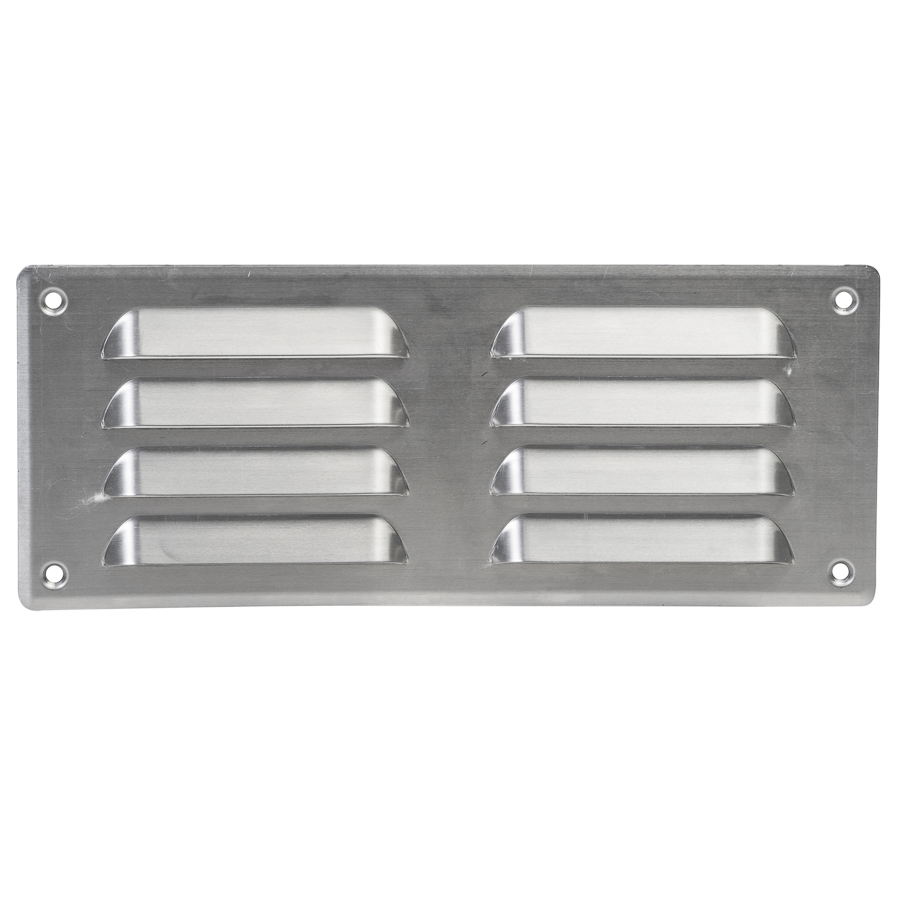

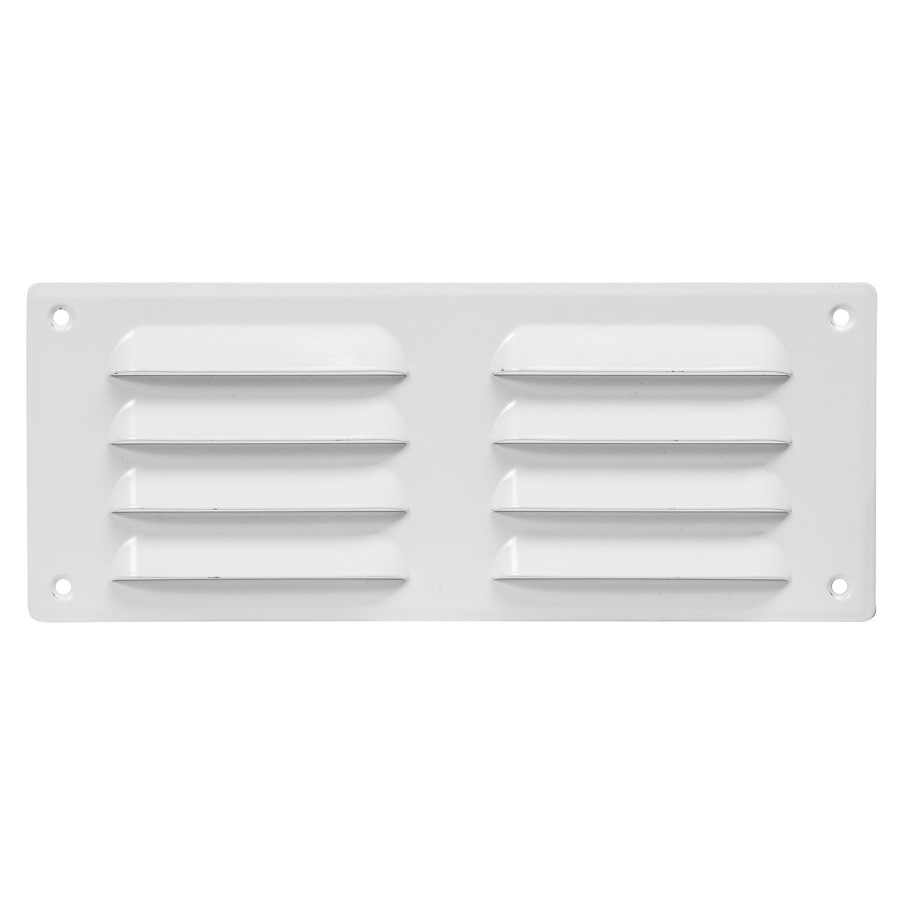

| MR26105 | 260 | 105 | 238 | 83 | 7 | 0,0016 | 0,15 |
| MR2619 | 260 | 190 | 238 | 168 | 7 | 0,0031 | 0,28 |

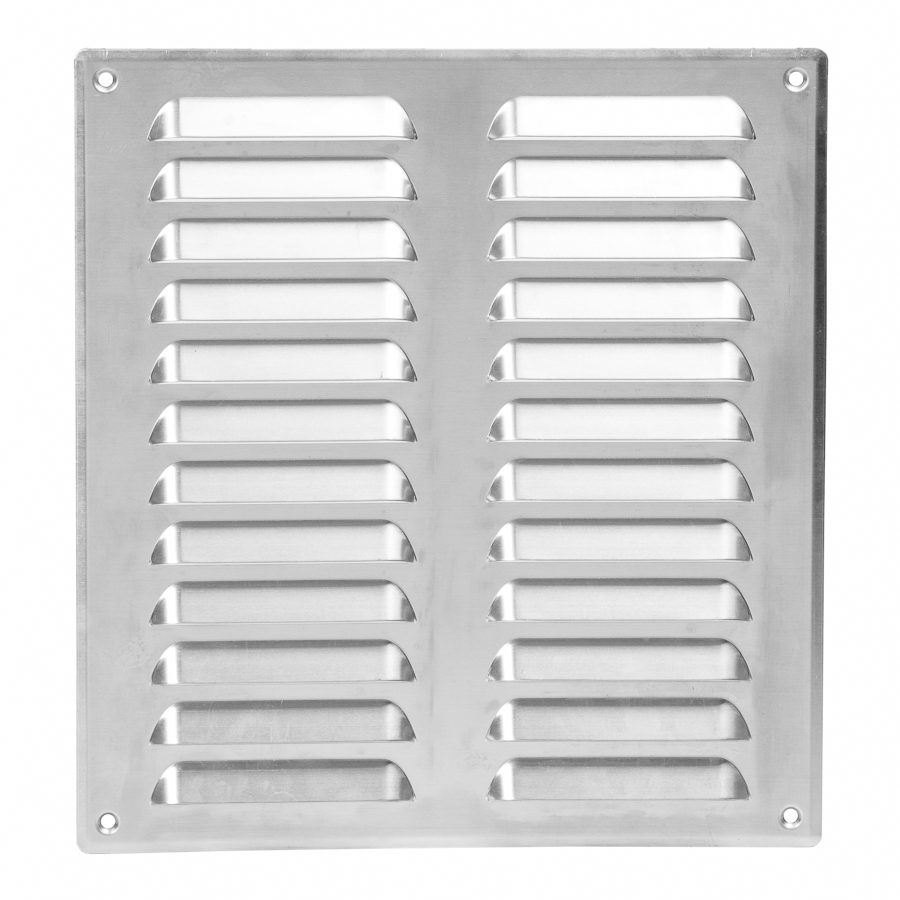

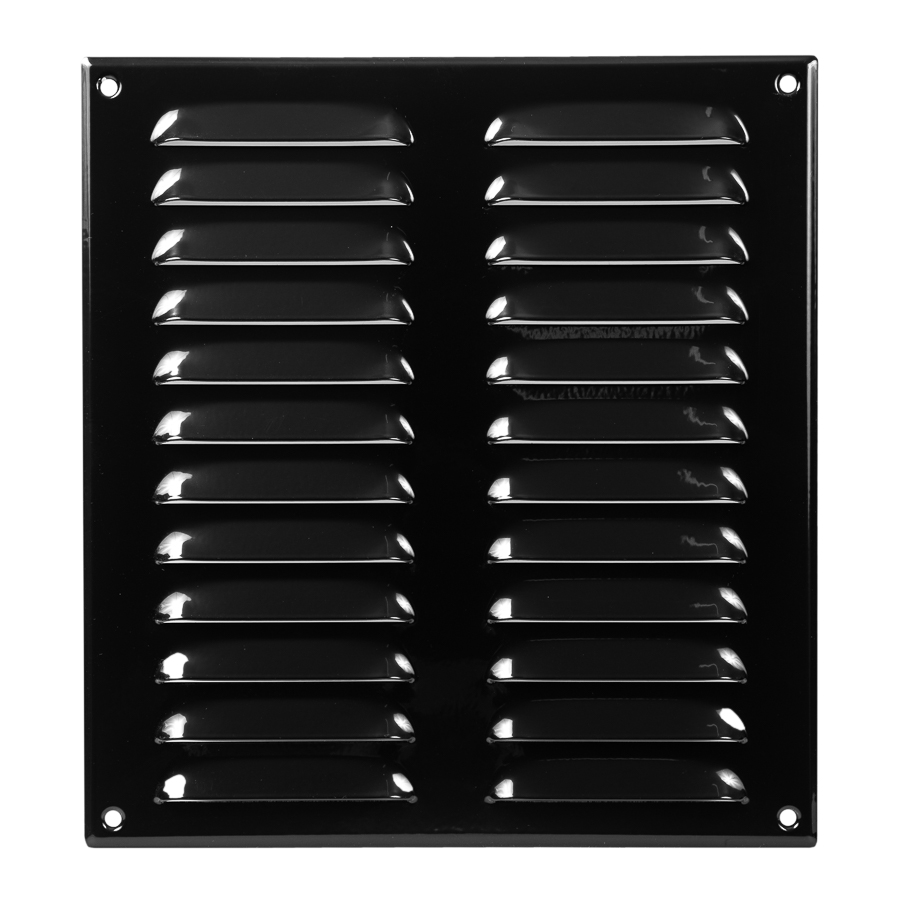

| MR2628 | 260 | 280 | 238 | 258 | 7 | 0,0046 | 0,41 |
