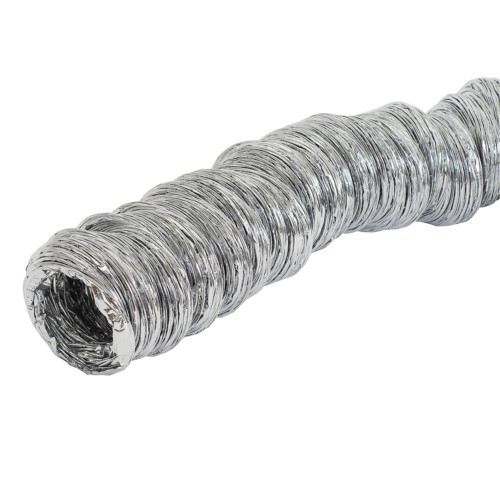

polyflex air ducts FP
Construction:
- Made from metalized polyester sheets with steel wire frame
Instalation:
- For duct fixing can be used special tapes or clamps
Temperature range (°C): -20 ... +80
Max air speed (m/sec): 30
Maximum pressure (Pa): 2000
Min. bend radius: 0,6 Ø
Sizes [mm]: Ø100; Ø125; Ø150; Ø160; Ø200; Ø250; Ø315
Length [m]: 10
Colors: Metallic
Flexible air duct Polyflex for heating, cooling, ventilation and air conditioning systems under low and medium pressure. Easy to install, keep properties during repeated compression.
| Article | Description | EAN | Length | Connection | |
|---|---|---|---|---|---|
|
FP100
|
air duct wire-reinforced Polyflex, Ø100mm-10m
|
4750492105429
|
10 m | Ø 100 mm |
|
FP125
|
air duct wire-reinforced Polyflex, Ø125mm-10m
|
4750492105436
|
10 m | Ø 125 mm |
|
FP160
|
air duct wire-reinforced Polyflex, Ø160mm-10m
|
4750492105450
|
10 m | Ø 160 mm |
|
FP200
|
air duct wire-reinforced Polyflex, Ø200mm-10m
|
4750492105467
|
10 m | Ø 200 mm |
| Type | ØD [mm] |
L [mm] |
m [kg] |
| FP100 | 102 | 10 000 | 0,65 |
| FP125 | 127 | 10 000 | 0,70 |
| FP160 | 162 | 10 000 | 1,10 |
| FP200 | 202 | 10 000 | 1,30 |
