plastic grilles-adapters NA
Construction:
- Made of high-quality ABS plastic
- Upper part for connecting round air ducts
- At the bottom there is a ventilation grille for natural air flow
- With air deflector
Installation:
- Wall mounting
- For indoor or outdoor use
- Screw fixing
Colors: White
The NA adapter-grille is designed to connect a cooker hood to the ventilation opening. The built-in deflector directs the air flow upwards, preventing it from returning indoors. The grille at the bottom allows to work for natural ventilation.
Functions
Insect screen
Product is equipped with an insect mesh, which prevents insects from entering in to the ventilation systems.
| Article | Description | EAN | Width | Height | Connection | Functions | |
|---|---|---|---|---|---|---|---|
|

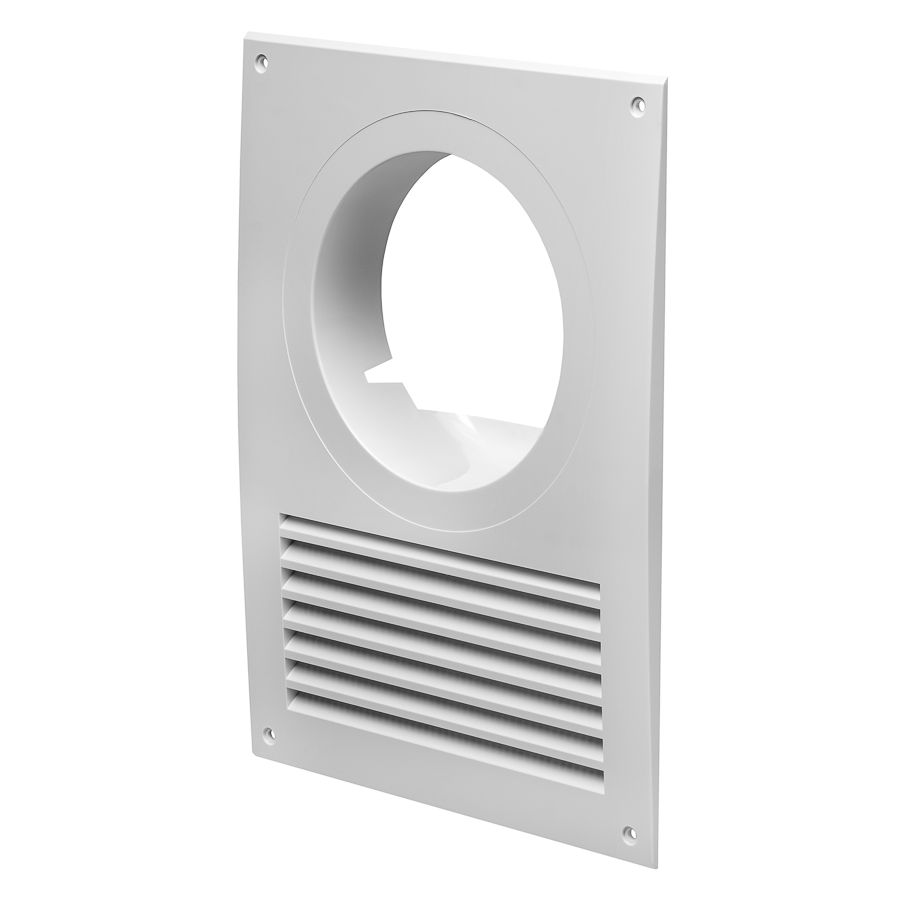

NA10
|
grille-adapter plastic, 250x180mm, Ø100mm
|
4750492104316
|
180 mm | 250 mm | Ø 100 mm |
|
|

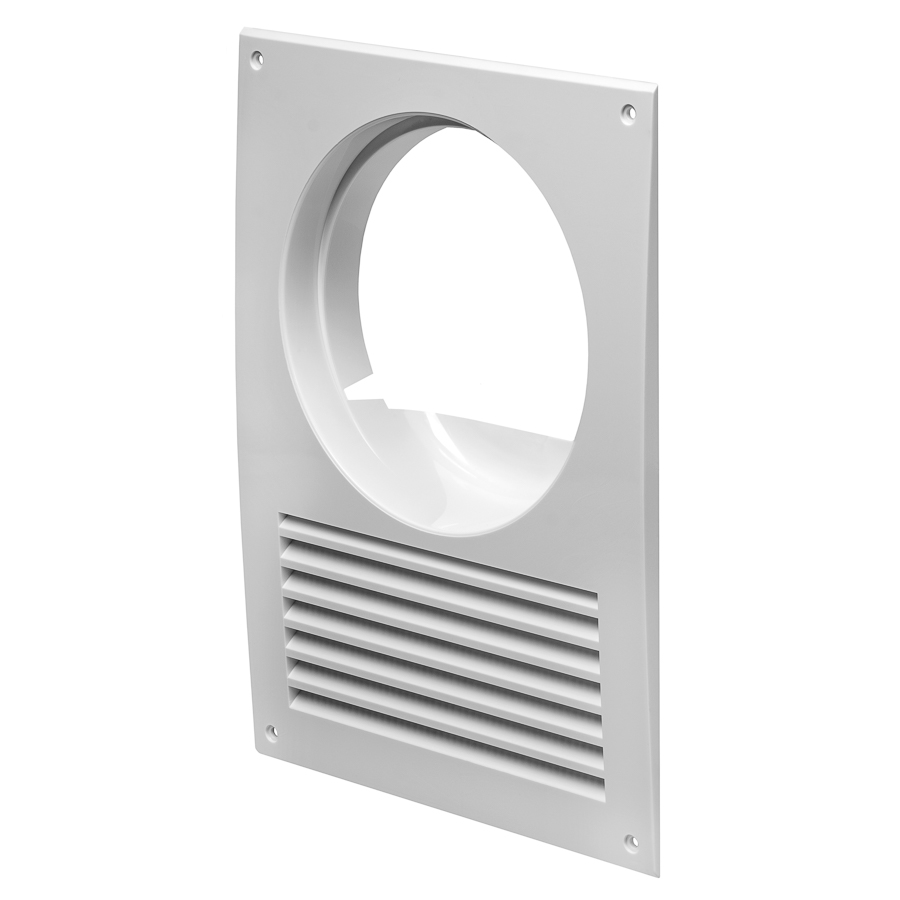

NA12
|
grille-adapter plastic, 250x180mm, Ø120-125mm
|
4750492104323
|
180 mm | 250 mm | Ø 120-125mm |
|

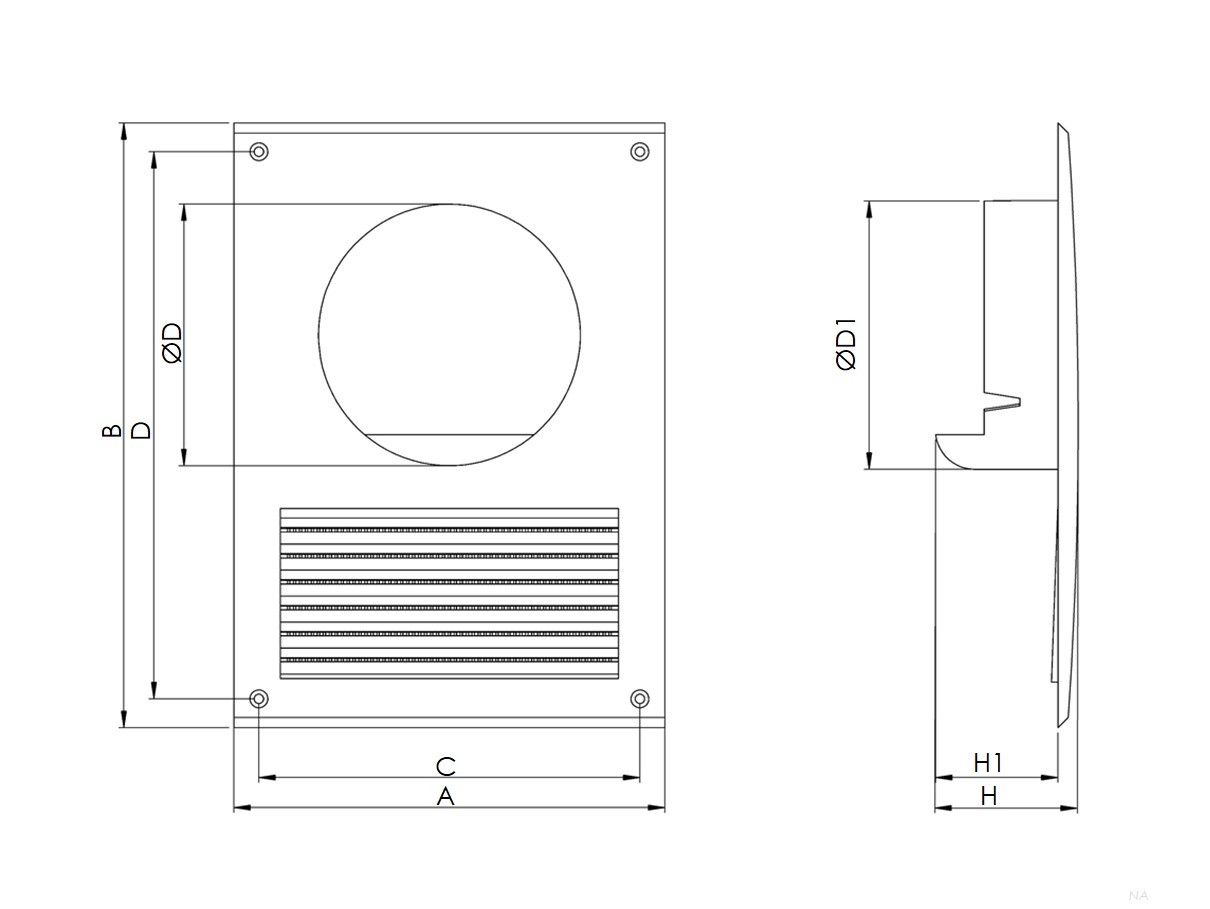

| Type | A [mm] |
B [mm] |
C [mm] |
C [mm] |
H [mm] |
H1 [mm] |
ØD [mm] |
ØD1 [mm] |
m [kg] |
| NA10 | 181 | 254 | 160 | 230 | 60 | 51 | 109 | 110 | 0,10 |
| NA12 | 181 | 254 | 160 | 230 | 60 | 52 | 127, 132 | 130, 134 | 0,10 |
