fireplace grilles MRK
Construction:
- Made of steel
- Coated with white RAL9016 polymer
- Simple removal for cleaning
Instalation:
- Installation springs
- Mounting positions: multiple
- Location: indoors
Temperature range: 0°C to + 180°C
Colors: White, Antique copper
Ventilation grilles are used to distribute the warm air, which is transported either by its own gravitational power or by supporting devices such as turbines. Fireplace grilles are made from steel, couated with special paint. As a result, the color of the ventilation grilles has a high durability and is resistant to thermal influences. Maximal allowable temperature +180°C. Shutters and flange are made of galvanised steel. The grilles can be mounted in chimney hoods or walls as required.
Functions
Adjustable
The product is equipped with a manual regulator that allows you to regulate the air flow volume.
| Article | Description | EAN | Width | Height | Connection | Functions | |
|---|---|---|---|---|---|---|---|
|

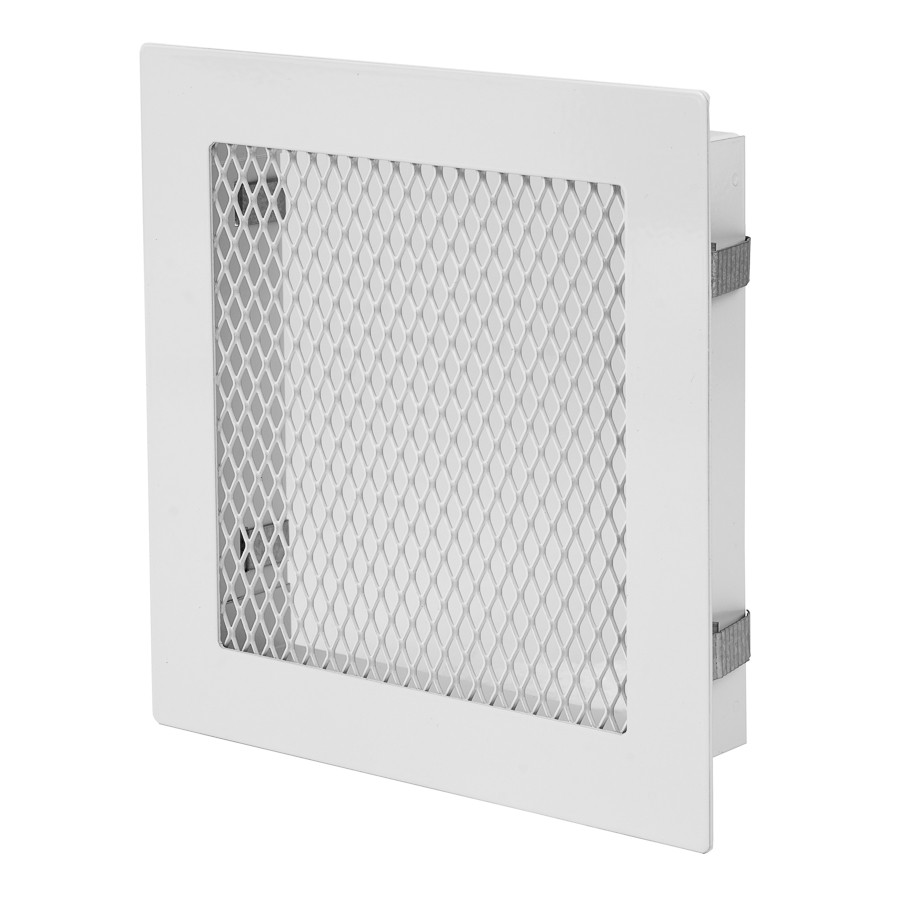

MRK1515
|
grille fireplace, 150x150mm
|
4750492103012
|
150 mm | 150 mm |
|
|
|

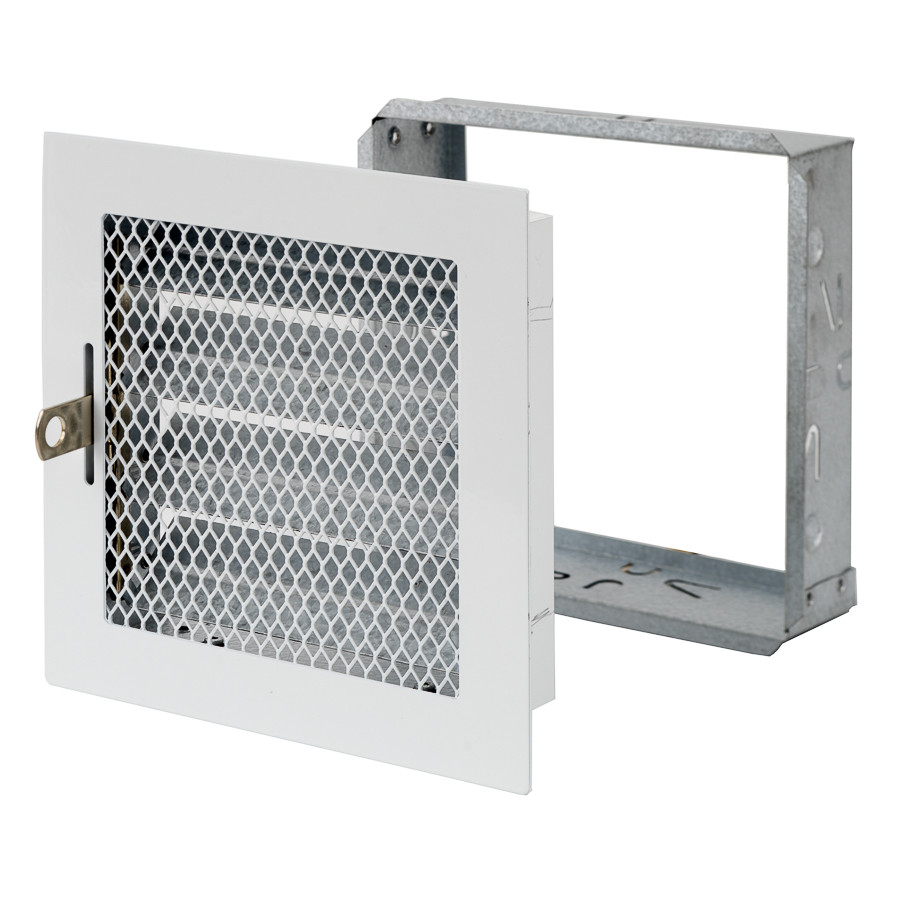

MRK1515R
|
grille fireplace, 150x150mm, adjustable
|
4750492103036
|
150 mm | 150 mm |
|
|
|

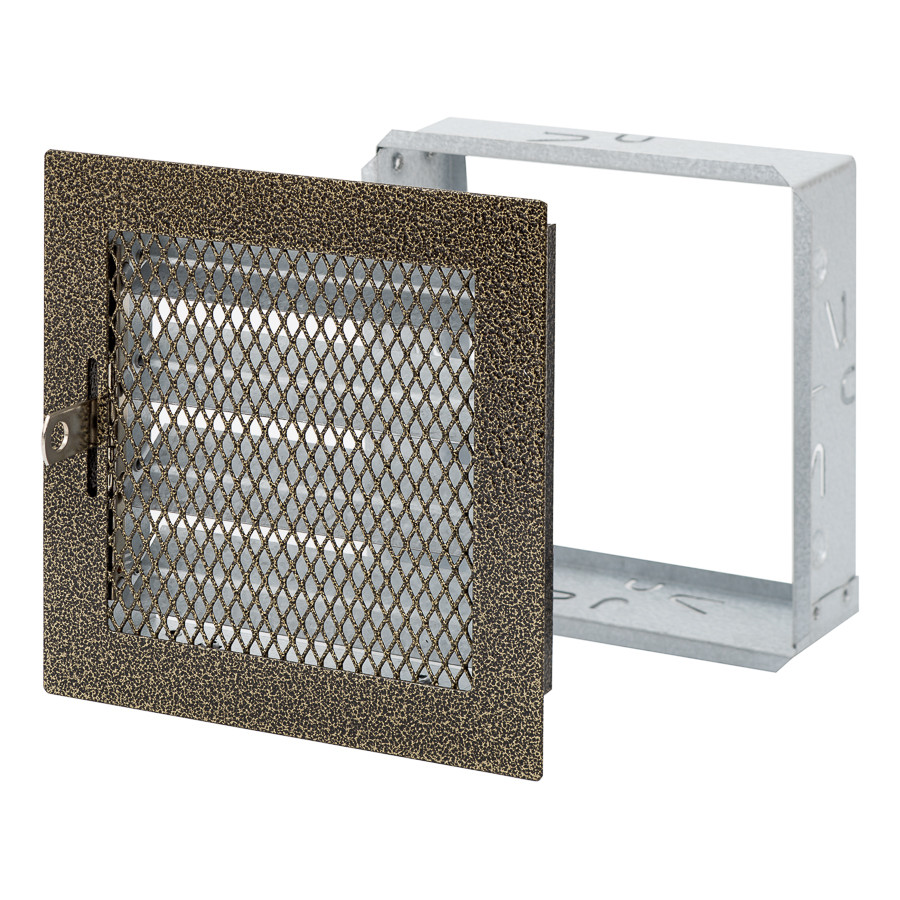

MRK1515RAnG
|
grille fireplace, 150x150mm, adjustable, antique gold
|
4750492212820
|
150 mm | 150 mm |
|
|
|

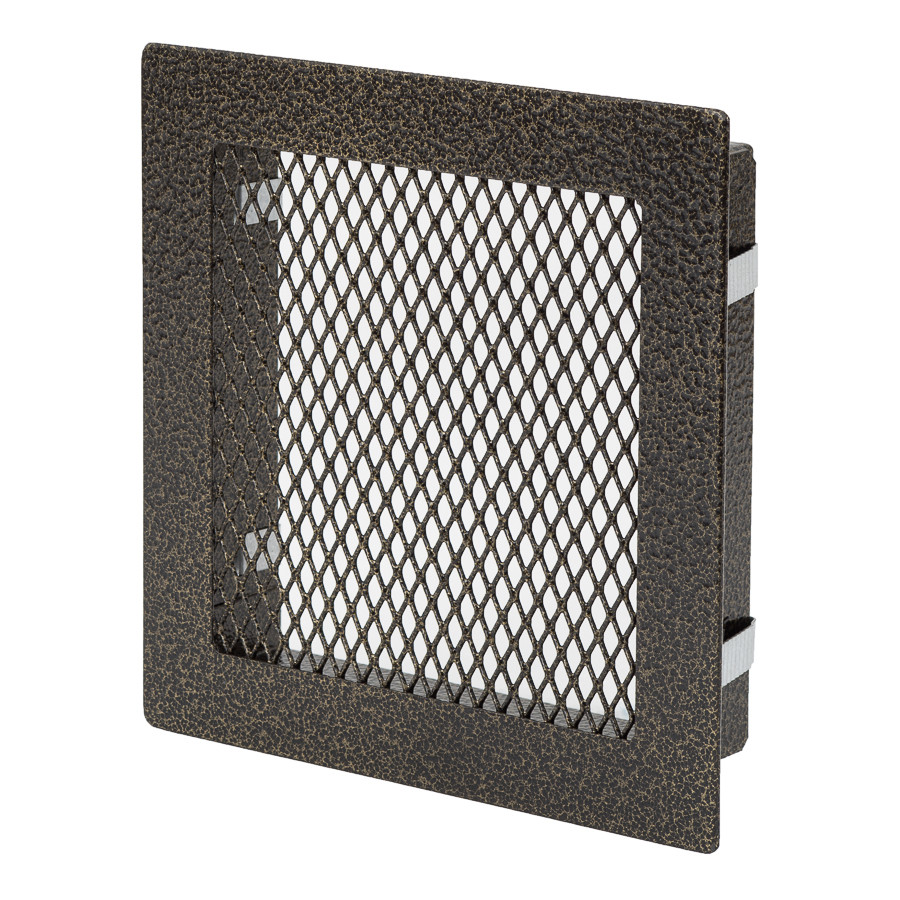

MRK1515AnG
|
grille fireplace, 150x150mm, antique gold
|
4750492212806
|
150 mm | 150 mm |
|
|
|

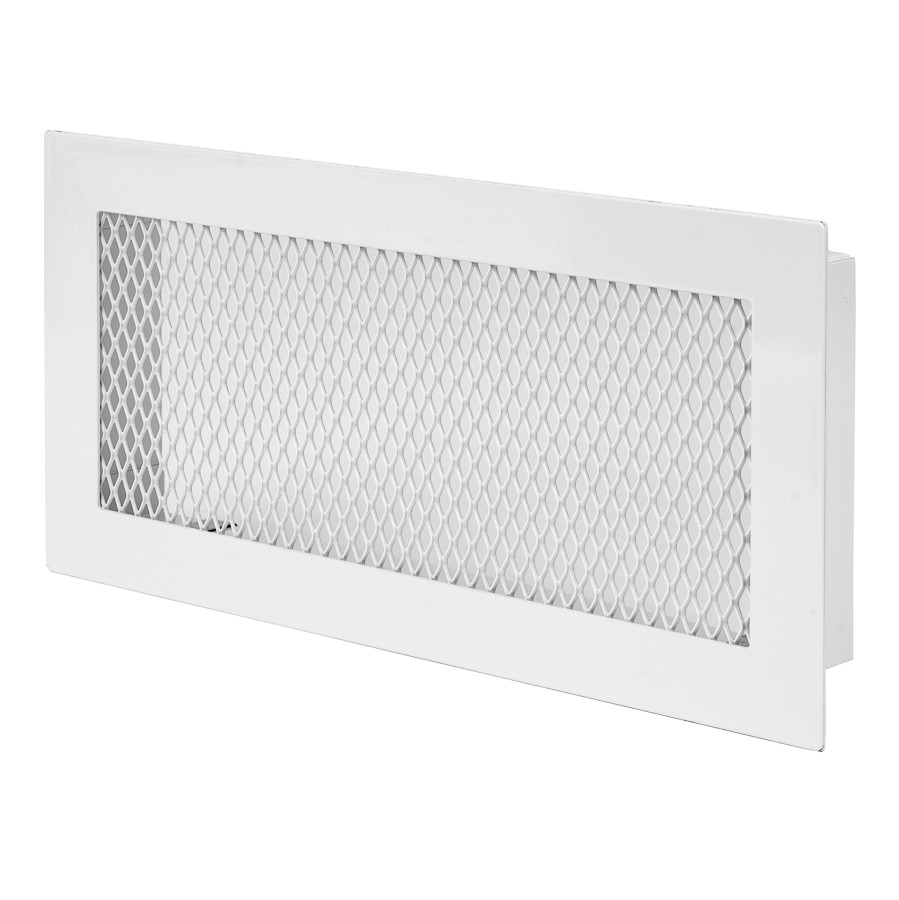

MRK1810
|
grille fireplace, 180x100mm
|
4750492104521
|
180 mm | 100 mm |
|
|
|

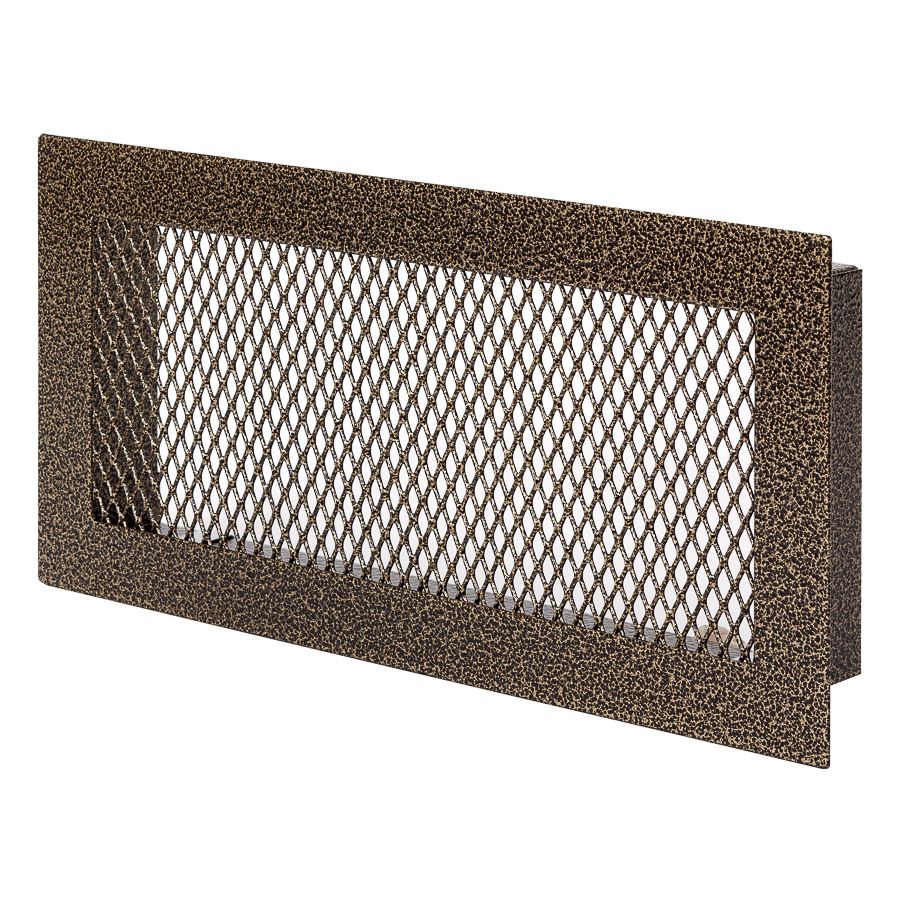

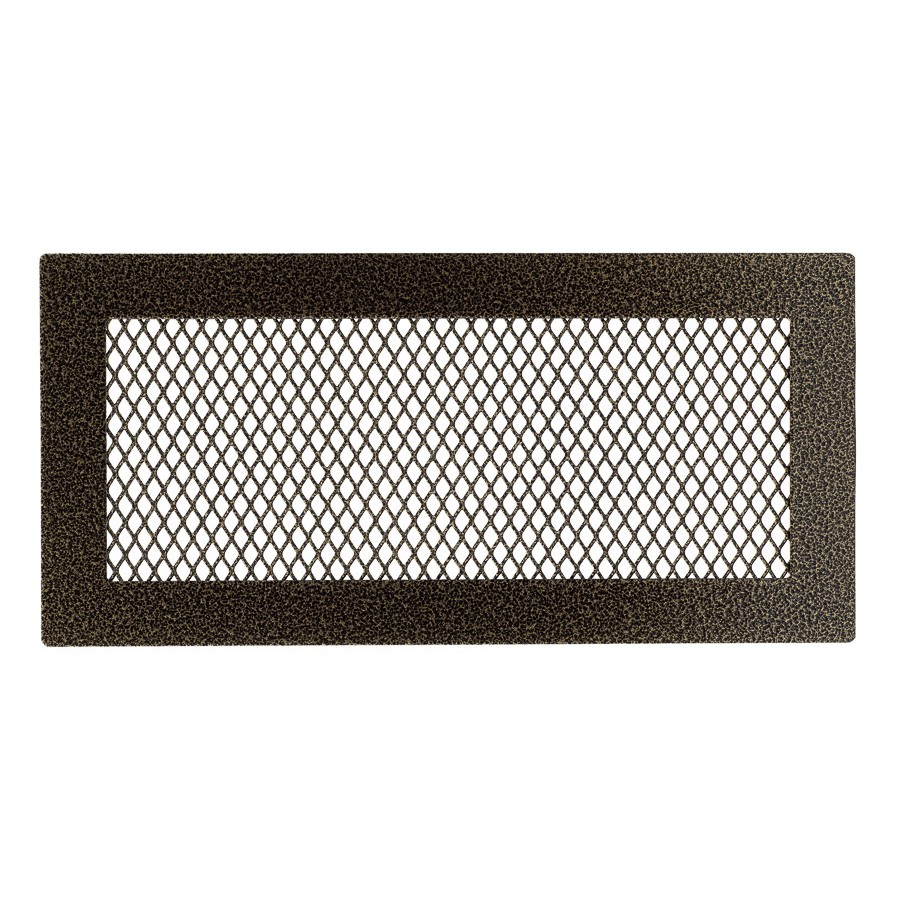

MRK1810AnG
|
grille fireplace, 180x100mm, antique gold
|
4750492212837
|
180 mm | 100 mm |
|
|
|

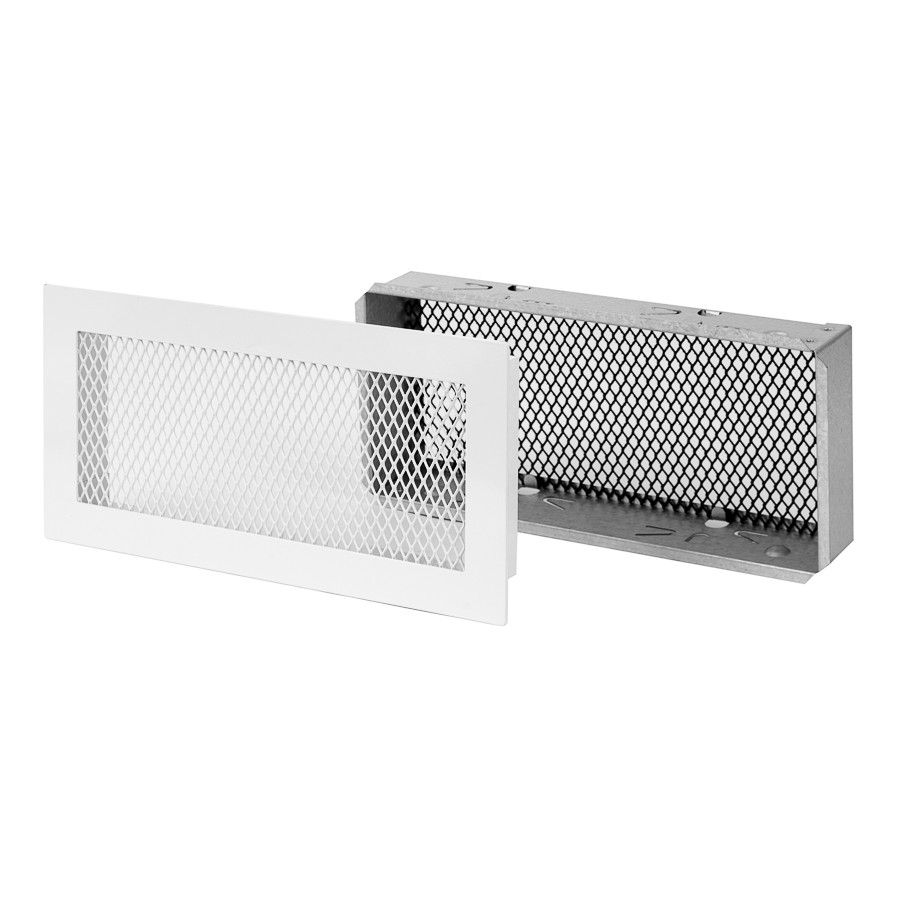

MRK1810S
|
grille fireplace, 180x100mm, with a frame and a mesh
|
4750492104545
|
180 mm | 100 mm |
|
|
|
MRK1818
|
grille fireplace, 180x180mm
|
4750492102978
|
180 mm | 180 mm |
|
|
|
MRK1818R
|
grille fireplace, 180x180mm, adjustable
|
4750492102992
|
180 mm | 180 mm |
|
|
|
MRK1818RAnG
|
grille fireplace, 180x180mm, adjustable, antique gold
|
4750492212875
|
180 mm | 180 mm |
|
| Modifications |
| MRKxxxxA - coated with antique copper polymer |

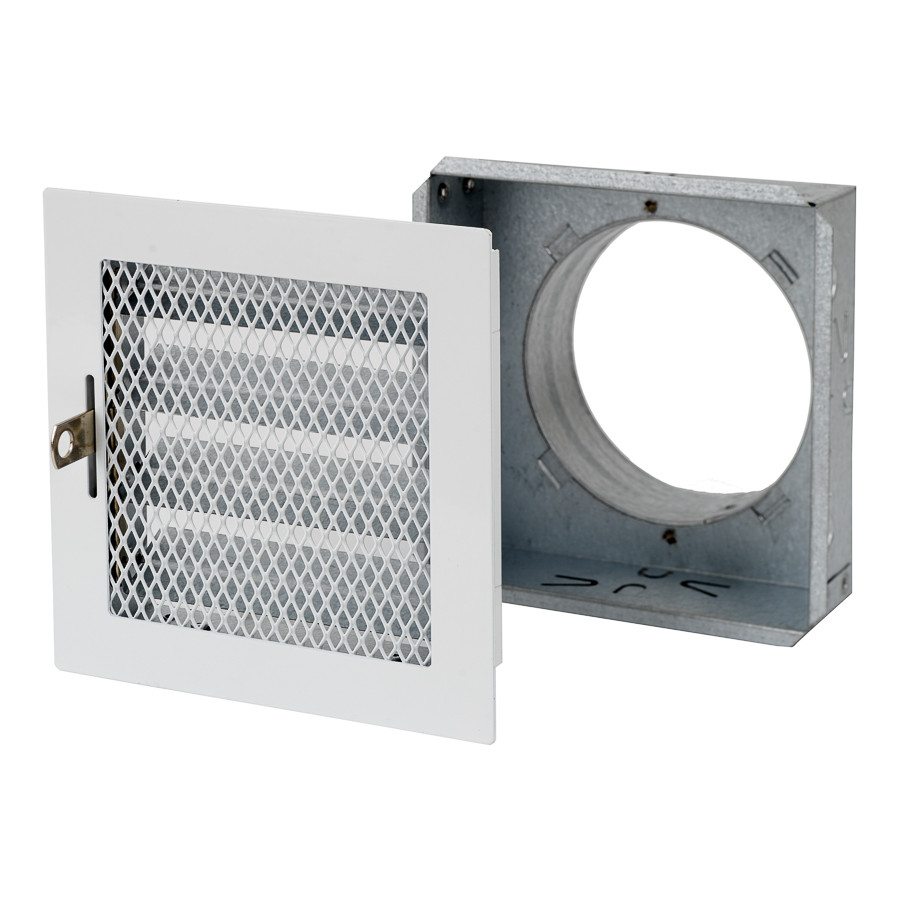

| MRKxxxxD1 - with a flange Ø100mm |
| MRKxxxxD2 - with a flange Ø125mm |

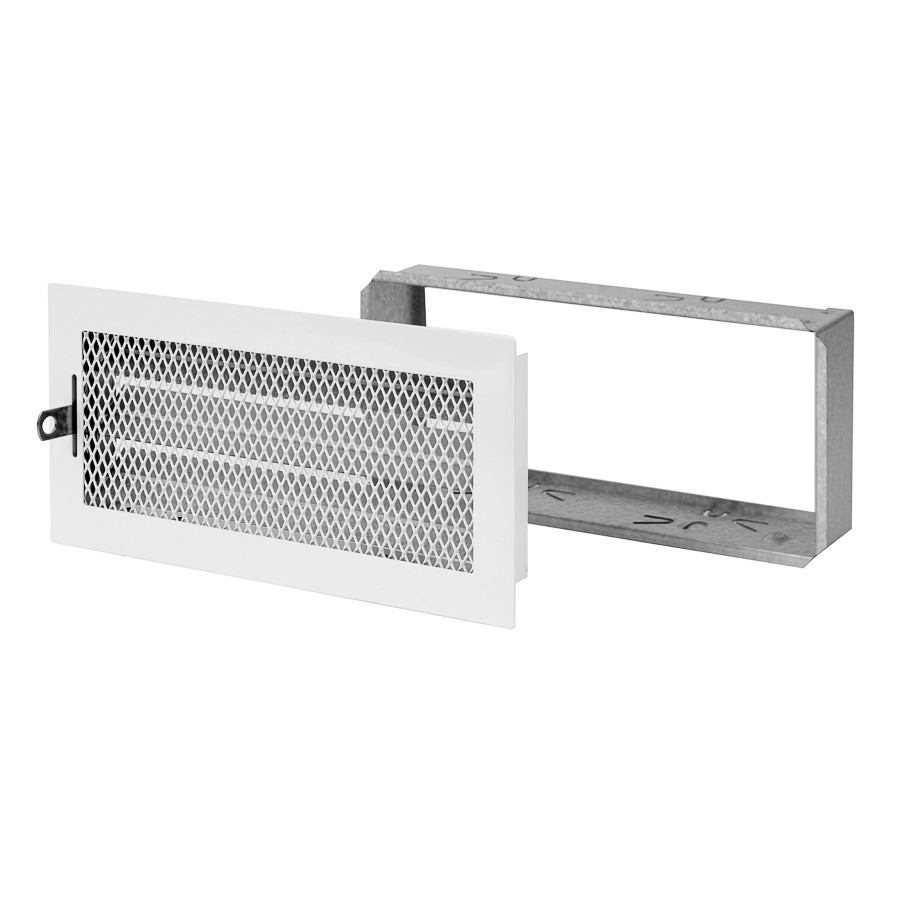

| MRKxxxxR - variable air flow control |

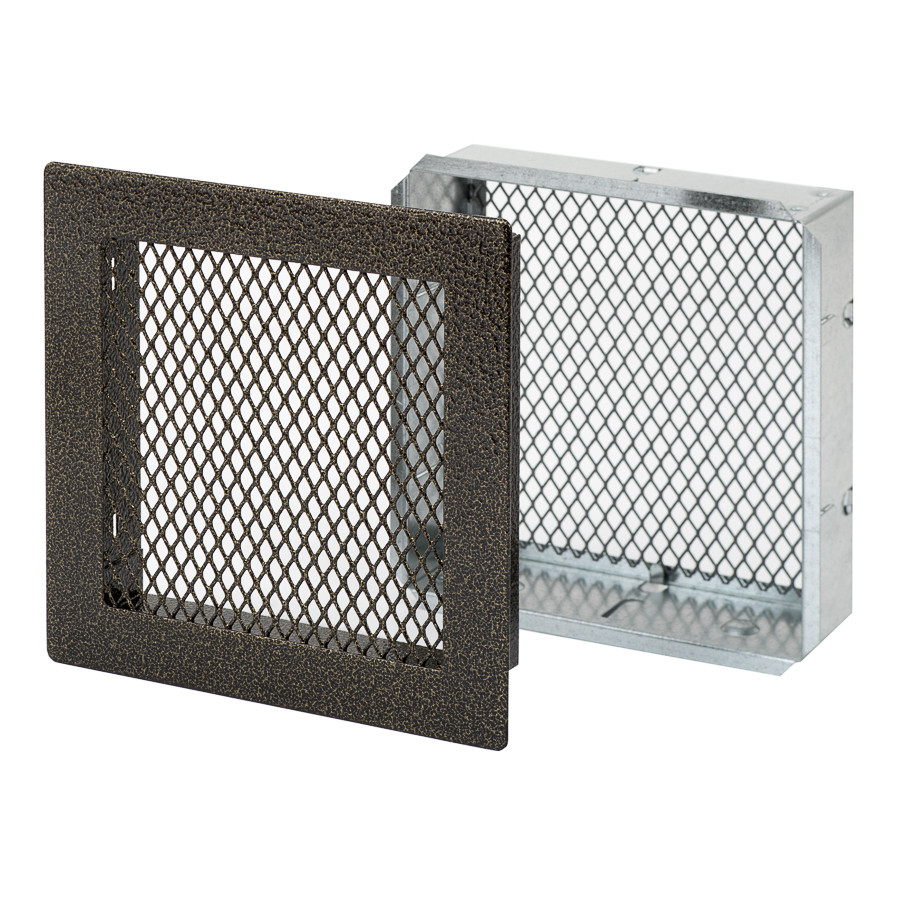

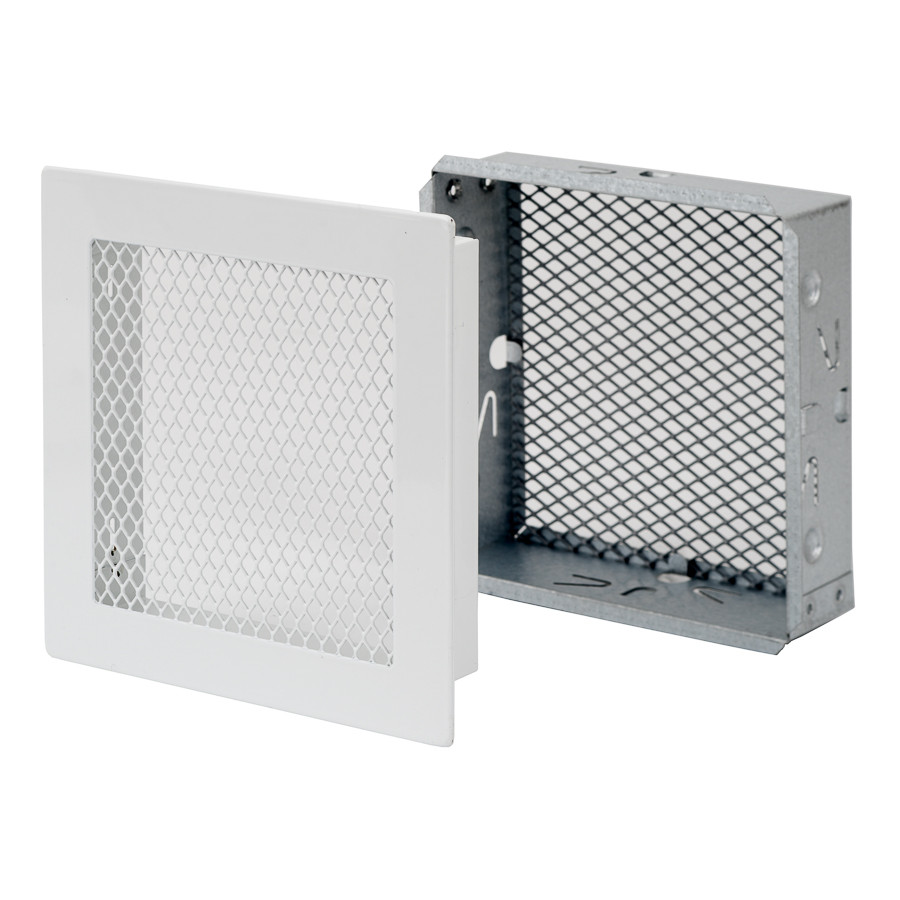

| MRKxxxxS - with a frame and second mesh |
| Type |
Outside dimensions (mm) |
Inside dimension with frame (mm) |
Inside dimension without frame (mm) |
Air pass (m2) |
m (kg) |
| MRK1515 | 150x150 | 131x131 | 128x128 | 0,0009 | 0,23 |
| MRK1810 | 180x100 | 161x81 | 158x78 | 0,0006 | 0,21 |
| MRK1818 | 180x180 | 161x161 | 158x158 | 0,0015 | 0,30 |
| MRK2512 | 250x120 | 231x101 | 228x98 | 0,0013 | 0,30 |
| MRK3015 | 300x150 | 281x131 | 278x128 | 0,0022 | 0,39 |
| MRK4018 | 400x180 | 381x161 | 378x158 | 0,0038 | 0,54 |
