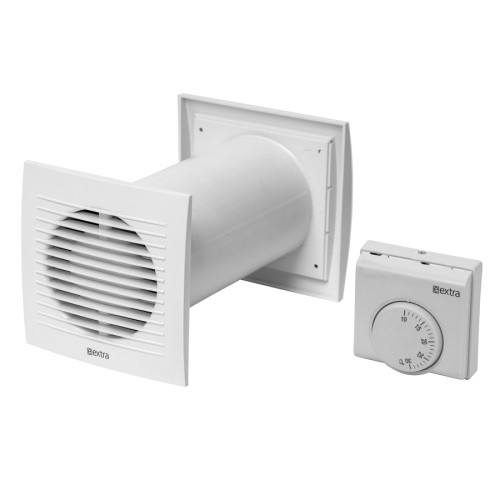

ventilation kits with thermostat SPKT
Construction:
- Fan: axial
- Type of bearing: ball bearing
- Thermostat
- Back draft shutter
- Circular duct plastic
- Ventilation grille plastic
Installation:
- Mounting positions: Multiple
- Location: indoors
Power supply: 230V 50Hz single phase
Temperature range: + 5°C to + 40°C
Sizes: 100, 125 mm
Colors: White
The device is used to transport hot air. The thermostat switches on the fan, which blows the warm air into the adjacent room or outside. The fan turns off when the temperature in the room with the heat source has dropped.
Functions
Ball bearing
The fan motor is equipped with a ball bearing, which ensures better fan operation and also longevity. Thanks to the ball bearing, the fan can also be used for ceiling mounting.
| Article | Description | EAN | Length | Connection | Functions | |
|---|---|---|---|---|---|---|
|
SPKT100
|
ventilation kit with thermostat, Ø100mm
|
4750492010907
|
200 mm | 100 mm |
|
|
SPKT125
|
ventilation kit with thermostat, Ø125mm
|
4750492010914
|
200 mm | 125 mm |
|
| Type | A | B | C | ØD | E | F | G |
| SPKT100 | 140 | 17 | 200 | 103 | 18 | 152 | 147 |
| SPKT125 | 165 | 17 | 200 | 128 | 18 | 190 | 190 |
| Type | Voltage [V / Hz] |
Power [W] |
IP | Speed [RPM] |
Air flow [m3/] |
Noise level: 3m distance, Lp A dB(A) |
Temperature min/max [ C] |
Weight [kg] |
| SPKT100 | 220-240V /50Hz | 7 | IPX4 | 2000 | 65 | 26 | +5/+40 | 0,74 |
| SPKT125 | 220-240V /50Hz | 10 | IPX4 | 1500 | 105 | 30 | +5/+40 | 0,90 |
