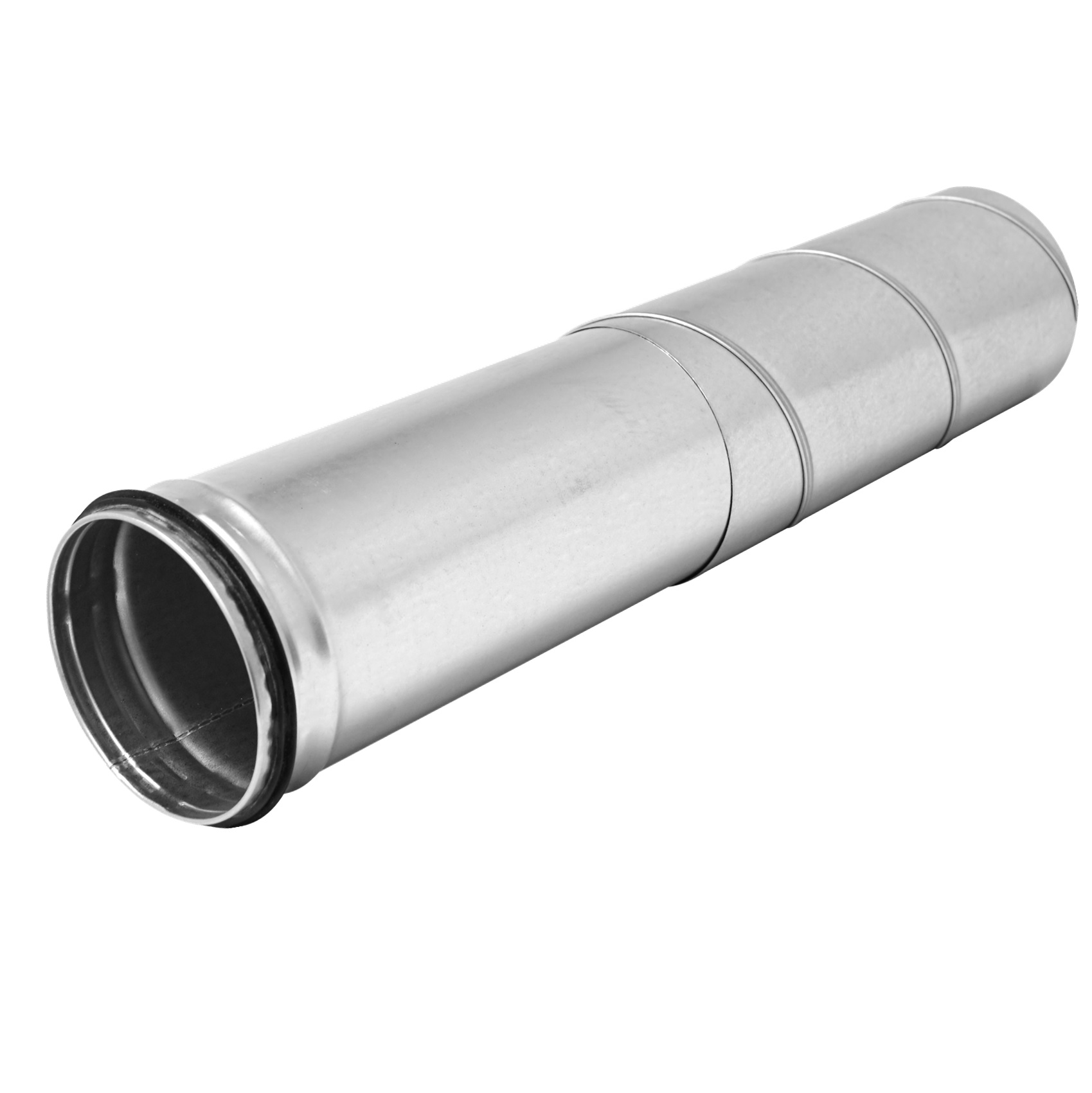

telescopic spiral air ducts SDT
Construction:
- Material galvanized steel or other metal
- Sealing made from EPDM rubber
- Length 0,3 m up to 0,55 m in extended position, optionaly can be ordered in other lengths.
Instalation:
- Easy installation
Metal telescopic spiral air duct with male female type end connections. Quick and easy installation and modification. SDT round telescopic spiral air ducts are used for supply and exhaust vents of public, residential and industrial ventilation systems.
| Article | Description | EAN | Length | Connection | |
|---|---|---|---|---|---|
|
SDT100-0.3
|
telescopic spiral air duct metal, Ø100mm, 0.3-0.55m
|
4750492023310
|
0,3-0,55 m | 100 mm |
|
SDT125-0.3
|
telescopic spiral air duct metal, Ø125mm, 0.3-0.55m
|
4750492023327
|
0,3-0,55 m | 125 mm |
|
SDT160-0.3
|
telescopic spiral air duct metal, Ø160mm, 0.3-0.55m
|
4750492023334
|
0,3-0,55 m | 160 mm |
|
SDT200-0.3
|
telescopic spiral air duct metal, Ø200mm, 0.3-0.55m
|
4750492023341
|
0,3-0,55 m | 200 mm |
|
SDT250-0.3
|
telescopic spiral air duct metal, Ø250mm, 0.3-0.55m
|
20200801
|
0,3-0,55 m | 250 mm |
|
SDT315-0.3
|
telescopic spiral air duct metal, Ø315mm, 0.3-0.55m
|
20200802
|
0,3-0,55 m | 315 mm |
|
SDT80-0.3
|
telescopic spiral air duct metal, Ø80mm, 0.3-0.55m
|
20200788
|
0,3-0,55 m | 80 mm |

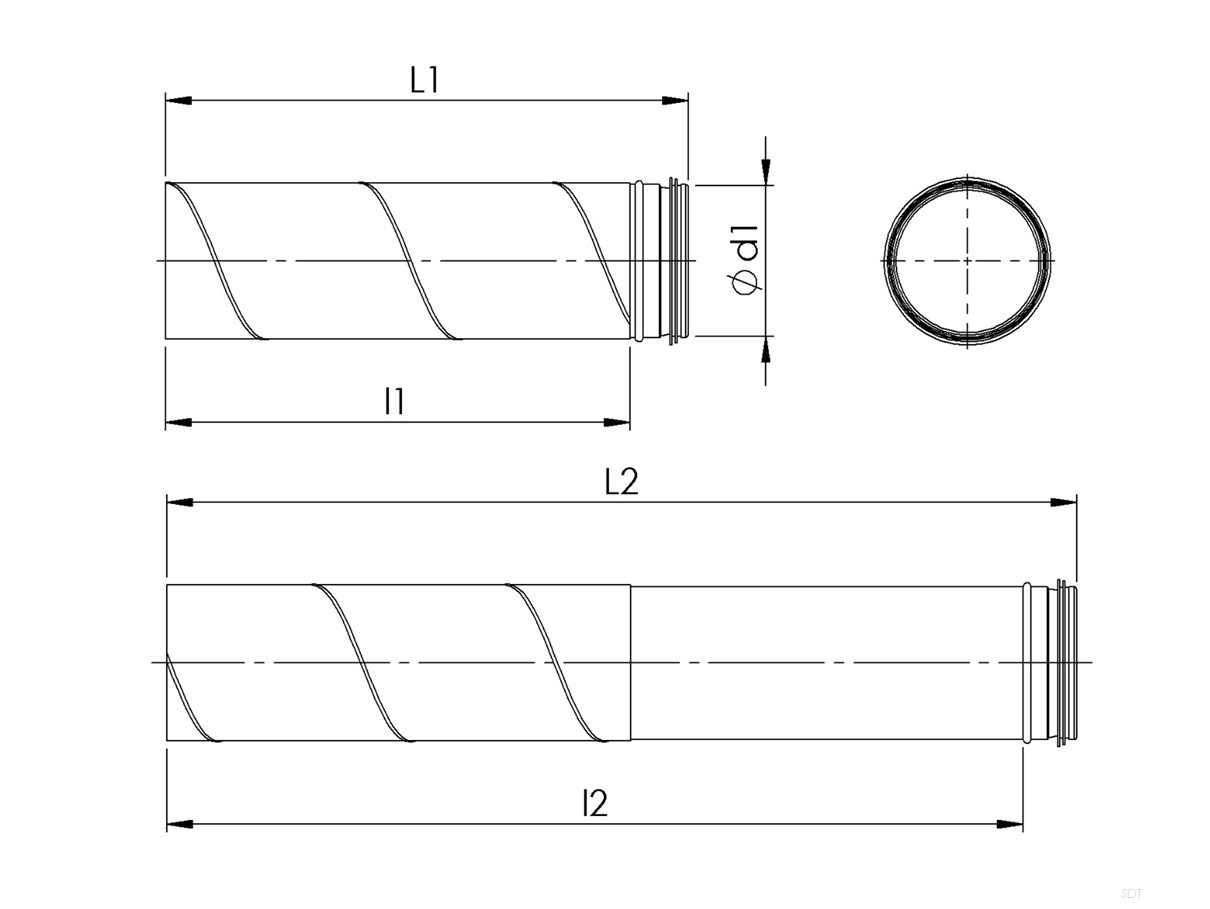

| Type | Ød1 nom (mm) |
L1 (mm) |
l (mm) |
L2 (mm) |
I2 (mm) |
m (kg) |
| SDT80-0.3 | 80 | 338 | 300 | 588 | 550 | 0,65 |
| SDT100-0.3 | 100 | 338 | 300 | 588 | 550 | 0,8 |
| SDT125-0.3 | 125 | 338 | 300 | 588 | 550 | 1,01 |
| SDT160-0.3 | 160 | 338 | 300 | 588 | 550 | 1,29 |
| SDT200-0.3 | 200 | 338 | 300 | 588 | 550 | 1,62 |
| SDT250-0.3* | 250 | 348 | 300 | 598 | 550 | 2,05 |
| SDT315-0.3* | 315 | 348 | 300 | 598 | 550 | 2,58 |
*With profile corrugation.
Ducts can be manufactured in other lenghts, materials and in other thicknesses
