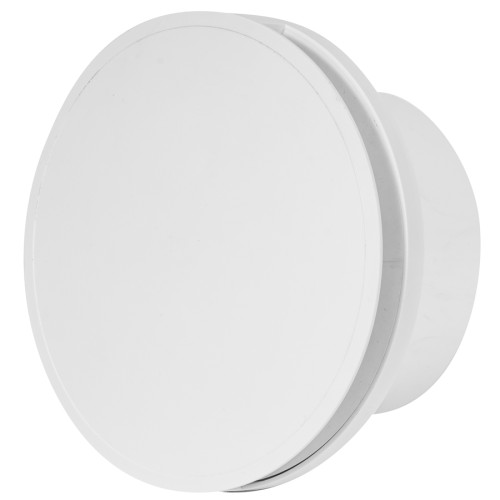

electric fans E-EXTRA series EAT
Construction:
- Circular, equipped with a front panel
- Made from plastic
- Axial fan
- Type of bearing: ball bearing
- Protection against environmental factor: IPX4
- Insulation class: B
Installation:
- Can be connected directly to the ventilation shaft or can be mount with all type round air ducts
- Mounting position: multiple
- Application: indoors
Electrical connection: 220-240V~ 50Hz
Ambient temperature (°C): +5 ... +40
Sizes [mm]: Ø100; Ø125; Ø150
Colors: White, anthracite, golden, silver
EUROPLAST EAT series domestic exhaust fans are equipped with a decorative front panel. They have a more aesthetic appearance and less stand out from the overall design of the room. Fans are efficient, easy to install and operate. These fans are equipped with ball bearings for better performance, durability and the ability to be installed in both walls and ceilings. The fan housing, grille and front panel are made of high-quality and durable ABS plastic that is resistant to temperature and UV rays.
In our assortment, it is possible to choose what you need from a range of sizes that can be connected to 100, 125 and 150 mm round air ducts. It is also possible to choose from various function modifications, from a simple fan to a fan with a timer and a humidity sensor. Fans produced by EUROPLAST are safe because they motor is equipped with thermal fuse.
To ensure protection from air backflow to the room, we recommend equipping the fan with a EUROPLAST EEV series valve.
Functions
Timer
The device is equipped with a timer. After switching off the fan, the timer keeps it running for a specific time interval that is set up by a controller. The set operating time after switching off the fan is from 1 to 30 minutes.
Ball bearing
The fan motor is equipped with a ball bearing, which ensures better fan operation and also longevity. Thanks to the ball bearing, the fan can also be used for ceiling mounting.
Humidity sensor
The fan is equipped with a humidity level control that may be used to set the level of humidity from ~60%RH - ~90%RH and a delay control that may be used to set the delay from 1 to 30 min. The fan is turned on automatically when a certain humidity level is reached in the room or it may be turned on manually by a switch.
| Article | Description | EAN | Connection | Suction power | Functions | |
|---|---|---|---|---|---|---|
|
EAT100
|
electric fan, circular E-EXTRA, Ø100mm with cover, ball bearing
|
4750492009116
|
Ø 100 mm | 100 m3/h |
|
|
EAT100A
|
electric fan, circular E-EXTRA, Ø100mm with cover, ball bearing, anthracite
|
4750492015056
|
Ø 100 mm | 100 m3/h |
|
|
EAT100G
|
electric fan, circular E-EXTRA, Ø100mm with cover, ball bearing, gold
|
4750492009239
|
Ø 100 mm | 100 m3/h |
|
|
EAT100S
|
electric fan, circular E-EXTRA, Ø100mm with cover, ball bearing, silver
|
4750492009208
|
Ø 100 mm | 100 m3/h |
|
|
EAT100T
|
electric fan, circular E-EXTRA, Ø100mm with cover, ball bearing, timer
|
4750492009147
|
Ø 100 mm | 100 m3/h |
|
|
EAT100TA
|
electric fan, circular E-EXTRA, Ø100mm with cover, ball bearing, timer, anthracite
|
4750492024935
|
Ø 100 mm | 100 m3/h |
|
|
EAT100TG
|
electric fan, circular E-EXTRA, Ø100mm with cover, ball bearing, timer, gold
|
4750492009291
|
Ø 100 mm | 100 m3/h |
|
|
EAT100HT
|
electric fan, circular E-EXTRA, Ø100mm with cover, ball bearing, timer, humidity sensor
|
4750492009178
|
Ø 100 mm | 100 m3/h |
|
|
EAT100TS
|
electric fan, circular E-EXTRA, Ø100mm with cover, ball bearing, timer, silver
|
4750492009277
|
Ø 100 mm | 100 m3/h |
|
|
EAT125
|
electric fan, circular E-EXTRA, Ø125mm with cover, ball bearing
|
4750492009123
|
Ø 125 mm | 150 m3/h |
|
| Type | ØA [mm] |
B [mm] |
C [mm] |
ØD [mm] |
| EAT100 | 152 | 80 | 35 | 99 |
| EAT125 | 178 | 80 | 35 | 124 |
| EAT150 | 203 | 80 | 35 | 149 |
| Modifications |
| EATxxx - basic model, white color |
| EATxxxT - with a timer |
| EATxxxHT - with timer and a humidity sensor |
| EATxxxA - anthracite colour |
| EATxxxS - silver colour |
| EATxxxG - golden colour |
| Technical information | EAT100 | EAT125 | EAT150 |
| Voltage (V) | 220 - 240 | ||
| Phase (Hz) | 50 | ||
| Power (W) | 15 | 16 | 20 |
| Suction power (m3/h) | 100 | 150 | 200 |
| Noise level: 3m distance, Lp A dB(A) | 32 | 36 | 40 |
| Protection against environmental factor | IPX4 | ||
| RPM | 2550 | 2360 | 2100 |
| Ambient temperature (°C) | +5 ... +40 | ||
| Weight (kg) | 0,42 | 0,49 | 0,61 |
