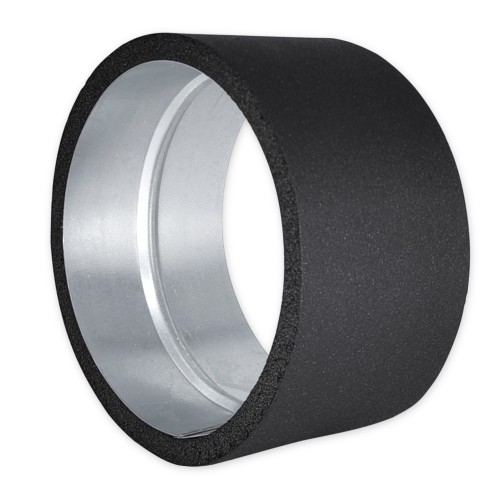

pre-insulated couplings for fittings IF-NF
Construction:
- Made of galvanized steel
- Covered with flexible elastomer foam (FEF) insulation
- Insulation material meets class B fire safety standards
- Air ducts comply with D class airtightness
Installation:
- Easy installation
- Saves installation time and space
- Ensures material savings
Operating temperature: -40°C ... +85°C
Insulation thickness [mm]: 9
Dimensions [mm]: Ø100; Ø125; Ø160; Ø200
Colors: Black
Isolated metal couplings for fittings from EUROPLAST are designed for ventilation, air conditioning, and heat recovery systems with additional requirements for energy efficiency. The applied insulation provides excellent sound insulation, thermal insulation, and protection against condensation formation. The material used complies with Class B fire safety standards. Factory-applied insulation significantly reduces installation time and resources at the site, as well as ensures the quality of insulation.
| Article | Description | EAN | Connection | Class | |
|---|---|---|---|---|---|
|
IF09-NF100
|
pre-insulated coupling for joining fittings metal, Ø100mm, isolation 9mm
|
4750492030011
|
Ø 100 mm | B; D |
|
IF09-NF125
|
pre-insulated coupling for joining fittings metal, Ø125mm, isolation 9mm
|
4750492030028
|
Ø 125 mm | B; D |
|
IF09-NF160
|
pre-insulated coupling for joining fittings metal, Ø160mm, isolation 9mm
|
4750492030035
|
Ø 160 mm | B; D |
|
IF09-NF200
|
pre-insulated coupling for joining fittings metal, Ø200mm, isolation 9mm
|
4750492030042
|
Ø 200 mm | B; D |
| Type | ØDnom [mm] |
L [mm] |
T [mm] |
m [kg] |
| IF09-NF100 | 100 | 76 | 9 | 0,12 |
| IF09-NF125 | 125 | 76 | 9 | 0,15 |
| IF09-NF160 | 160 | 76 | 9 | 0,19 |
| IF09-NF200 | 200 | 76 | 9 | 0,24 |
| Essential characteristics | Performance properties | Testing standards |
| Thermal conductivity coefficient (for all thicknesses) |
-10°C - 0,034 W/m × K 0°C - 0,036 W/m × K 25°C - 0,037 W/m × K 40°C - 0,041 W/m × K |
EN 12667 |
| Reaction to fire | B-s3, d0 | EN 13501-1 |
| Operating temperature | -40°C ... +85°C |
