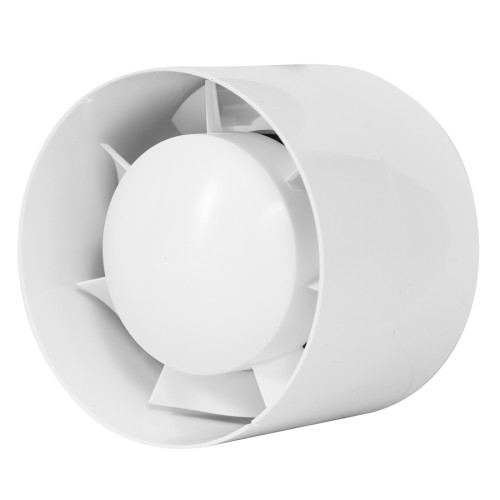

duct fans E-EXTRA series EK
Construction:
- Manufactured from plastic
- Fan: axial
- Type of bearing: slide bearing
- Motor protection class: IPX4
- Insulation class: class B
Installation:
- Mounting with all type round ducts: sheet metal, flexible aluminum, plastic or fabric.
- Mounting positions: horizontal
- Location: indoors
Power supply: 230V 50Hz single phase
Temperature range: + 5°C to + 40°C
Sizes: 100, 125, 150 mm
Colors: White
Kanalventilatoren für Niederdruck-Kanalsysteme von Gebäuden. Zur Verwendung mit Kunststoff-PVC-Kanalsystemen oder flexiblen Luftkanälen. Ausgestattet mit Einphasenmotor 230V-50Hz, Isolationsklasse B, IPX4. Vor Überhitzung geschützt. Geeignet für den Betrieb bei Temperaturen von +5 °C bis +40 °C. Erhältlich in den Größen: 100, 125, 150 mm.
Functions
Timer
The device is equipped with a timer. After switching off the fan, the timer keeps it running for a specific time interval that is set up by a controller. The set operating time after switching off the fan is from 1 to 30 minutes.
| Article | Description | EAN | Connection | Functions | |
|---|---|---|---|---|---|
|
EK100
|
duct fan E-EXTRA, Ø100mm
|
4750492006566
|
100 mm |
|
|
EK100T
|
duct fan E-EXTRA, Ø100mm with a timer
|
4750492006573
|
100 mm |
|
|
EK125
|
duct fan E-EXTRA, Ø125mm
|
4750492006580
|
125 mm |
|
|
EK125T
|
duct fan E-EXTRA, Ø125mm with a timer
|
4750492006597
|
125 mm |
|
|
EK150
|
duct fan E-EXTRA, Ø150mm
|
4750492006603
|
150 mm |
|
|
EK150T
|
duct fan E-EXTRA, Ø150mm with a timer
|
4750492006610
|
150 mm |
|
| Type | A | B |
| EK100 | 99 | 91 |
| EK125 | 124 | 91 |
| EK150 | 149 | 91 |
| Modifications |
| EKxxxT - fan is equipped with a timer function |
| Type | Voltage [V Hz] |
Power [W] |
IP | Speed [RPM] |
Air flow [m3/] |
Noise level: 3m distance, Lp A dB(A) |
Temperature min/max [ C] |
Air duct size (mm) |
Weight [kg] |

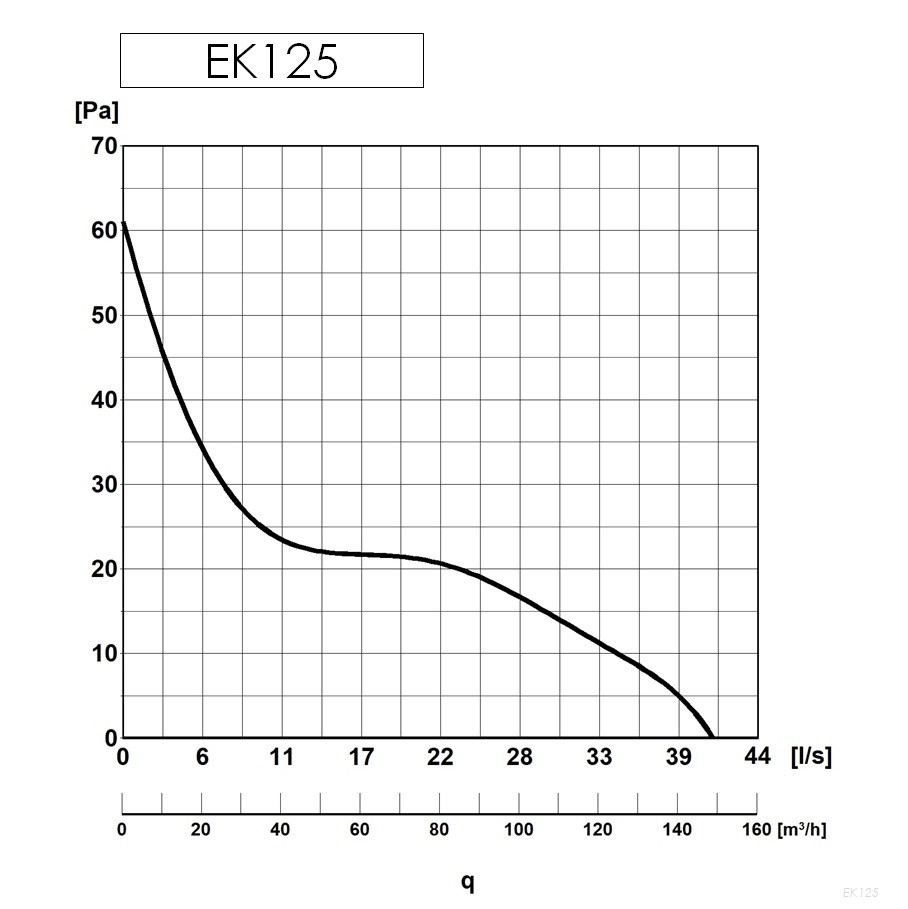

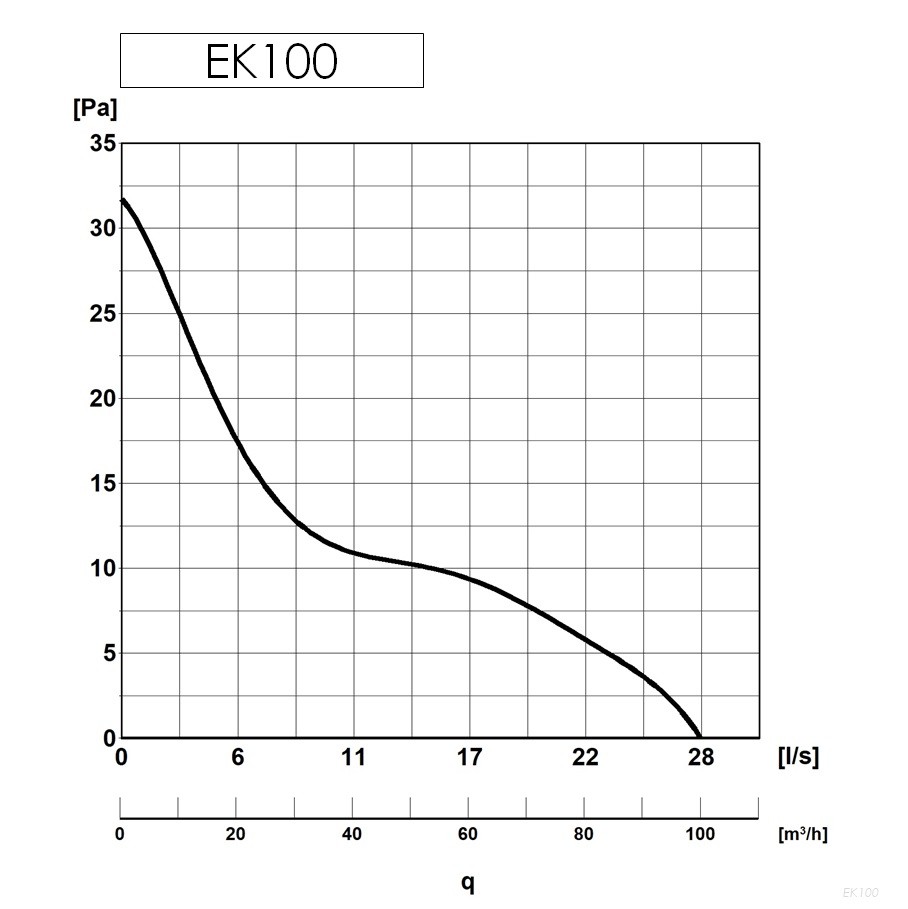

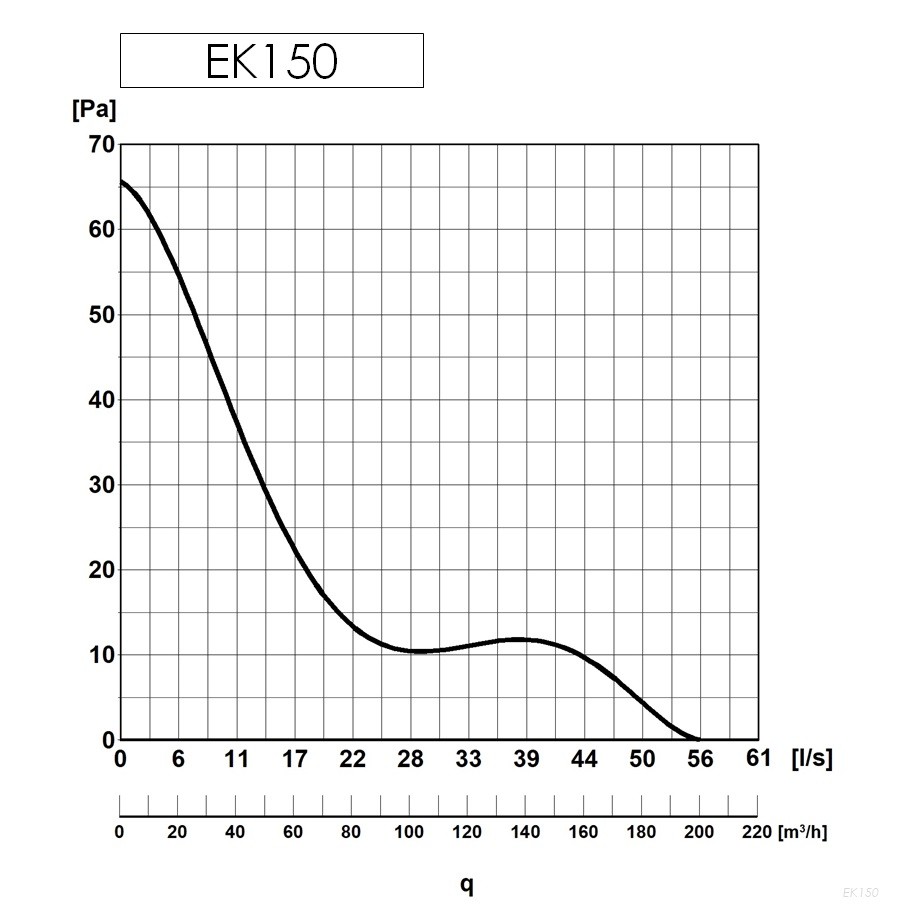

| EK100 | 230V-50Hz | 15 | IPX4 | 2550 | 100 | 32 | +5/+40 | 100 | 0,35 |
| EK125 | 230V-50Hz | 16 | IPX4 | 2360 | 150 | 36 | +5/+40 | 125 | 0,37 |
| EK150 | 230V-50Hz | 20 | IPX4 | 2100 | 200 | 40 | +5/+40 | 150 | 0,47 |
