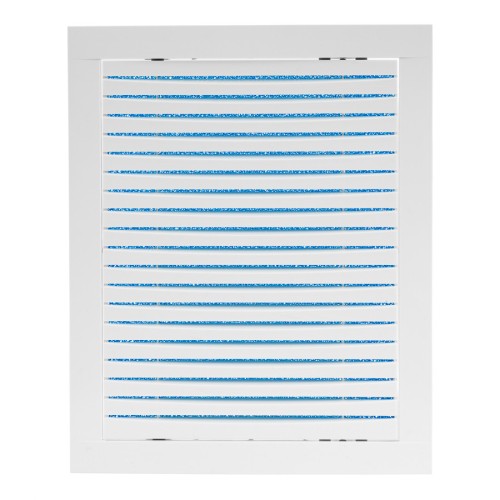

plastic grille-control hatch with filter HYBRID

Construction:

  • Made from high-quality ABS plastic
  • Equipped with a dust filter
  • Opening angle up to 130°



Installation:

  • Wall or ceiling mounting, glue or screw fixing



Colors: White



HYBRID series ventilation grilles-hatches are made of high-quality ABS plastic and are designed in a modern and dynamic design. They are easy to assemble and fasten. Provides easy access to communications due to its functionality. The grilles are equipped with an easy-to-clean filter that absorbs moisture, stops dirty and suspends insects entry.

Functions

Air filter

Air filter

The device is equipped with a filter that provides protection against dust and insects.

Width

Height

Functions

Colour

Sort by

Article Description EAN Width Height Functions
HR1515
HR1515
HYBRID grill-hatch with filter plastic, 150x150mm
4750492219096
150 mm 150 mm
Air filter
HR1520
HR1520
HYBRID grill-hatch with filter plastic, 150x200mm
4750492219102
150 mm 200 mm
Air filter
HR2020
HR2020
HYBRID grill-hatch with filter plastic, 200x200mm
4750492219119
200 mm 200 mm
Air filter
HR2025
HR2025
HYBRID grill-hatch with filter plastic, 200x250mm
4750492219126
200 mm 250 mm
Air filter
HR2030
HR2030
HYBRID grill-hatch with filter plastic, 200x300mm
4750492219133
200 mm 300 mm
Air filter
HR3030
HR3030
HYBRID grill-hatch with filter plastic, 300x300mm
4750492219140
300 mm 300 mm
Air filter
HR4030
HR4030
HYBRID grill-hatch with filter plastic, 400x300mm
4750492219157
400 mm 300 mm
Air filter
HR4040
HR4040
HYBRID grill-hatch with filter plastic, 400x400mm
4750492219164
400 mm 400 mm
Air filter



Modifications
HRxxxx – white colour
* HRxxxxP – grey colour
* HRxxxxB – brown colour
* HRxxxxM – black colour
* HRxxxxY – beige colour
* HRxxxxA – anthracite colour
* HRxxxxS – silver colour
* HRxxxxG – golden colour





* Not included in the main range. Available only on special order with a certain minimum quantity.



Type A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
Air pass
[m2]
m
[kg]
HR1515 165 165 147 147 20 28 0,0029 0,11
HR1520 165 215 147 197 20 28 0,0044 0,12
HR2020 215 215 197 197 20 29 0,0060 0,16
HR2025 215 265 197 247 20 29 0,0076 0,18
HR2030 215 315 197 297 20 28 0,0096 0,22
HR3030 315 315 297 297 20 29 0,0129 0,32
HR4030 415 315 397 297 20 29 0,0207 0,50
HR4040 415 415 397 397 20 29 0,0297 0,63
