kits, supply valves with sound insulation, metal SMK2
Construction:
- Diffuser made of steel with polymer coating, color white (RAL9016)
- Adjustable airflow
- Washable filter

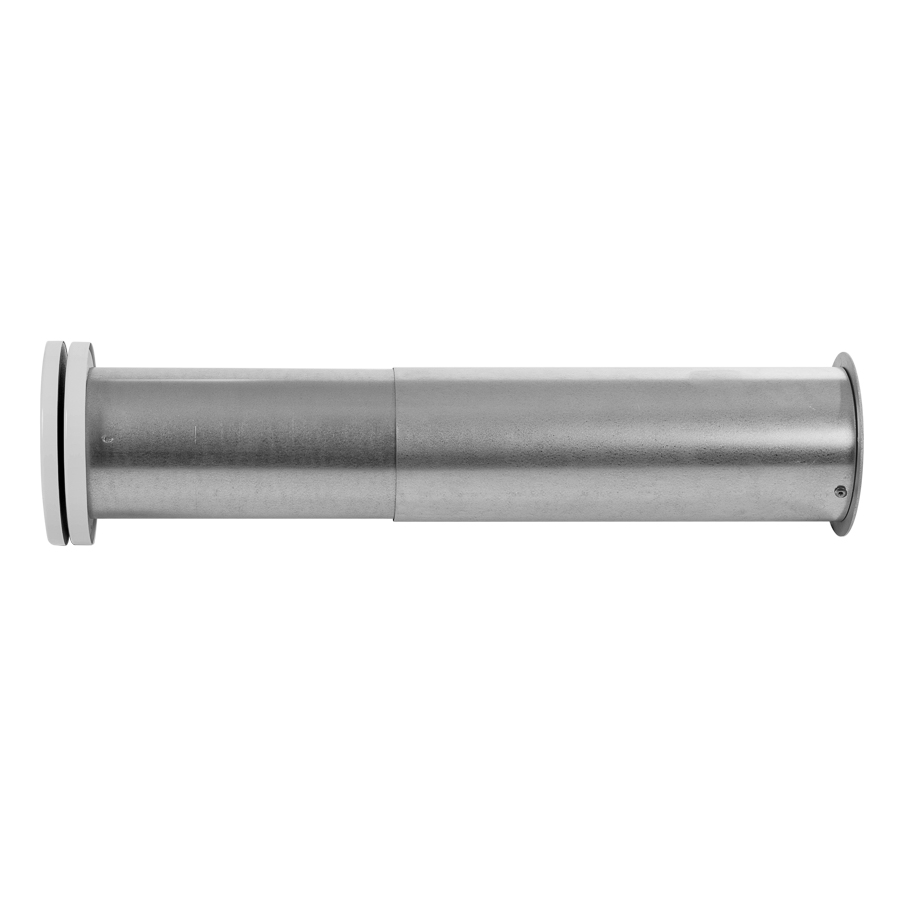

- Telescopic air duct, made of galvanized steel
- Equipped with EPDM rubber gasket

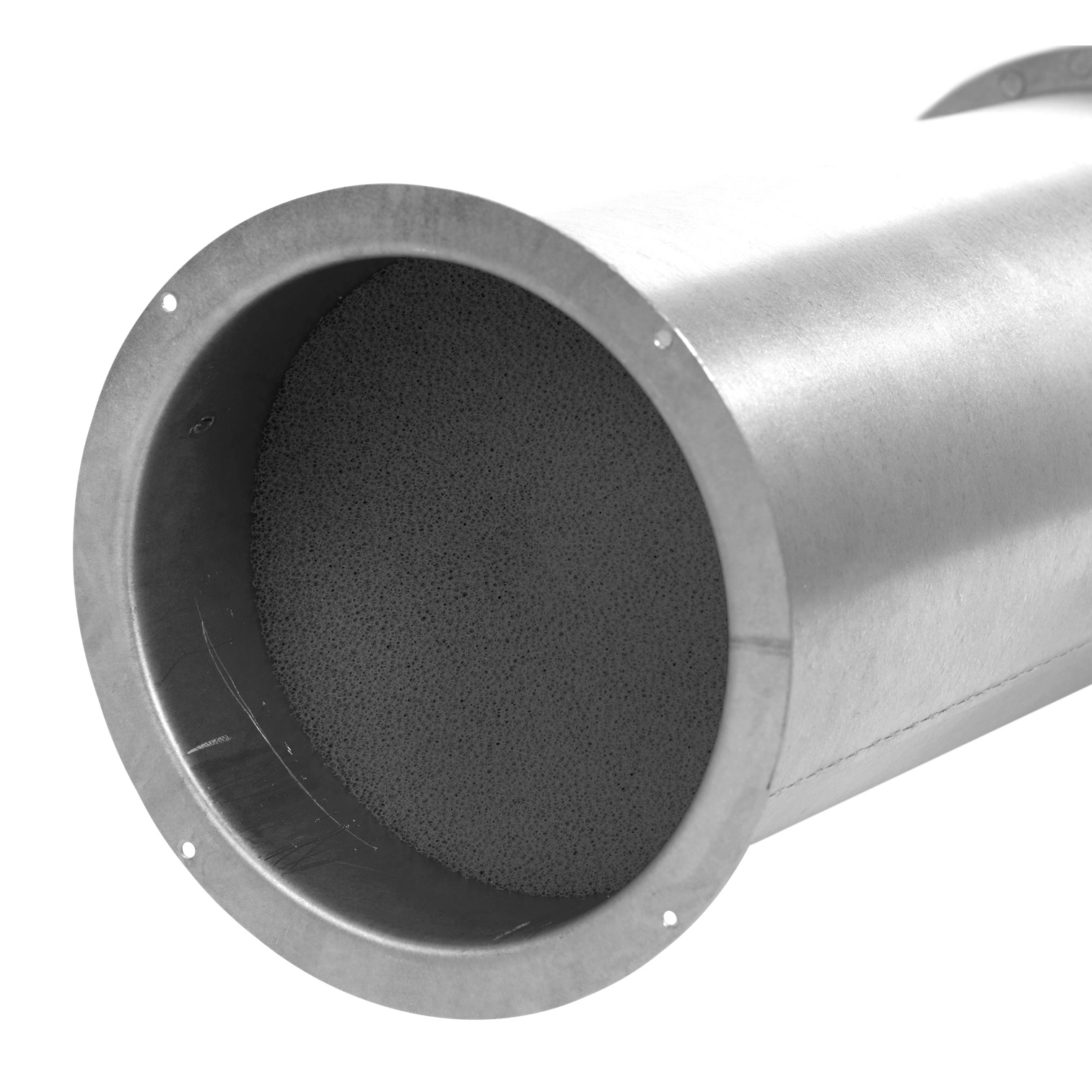

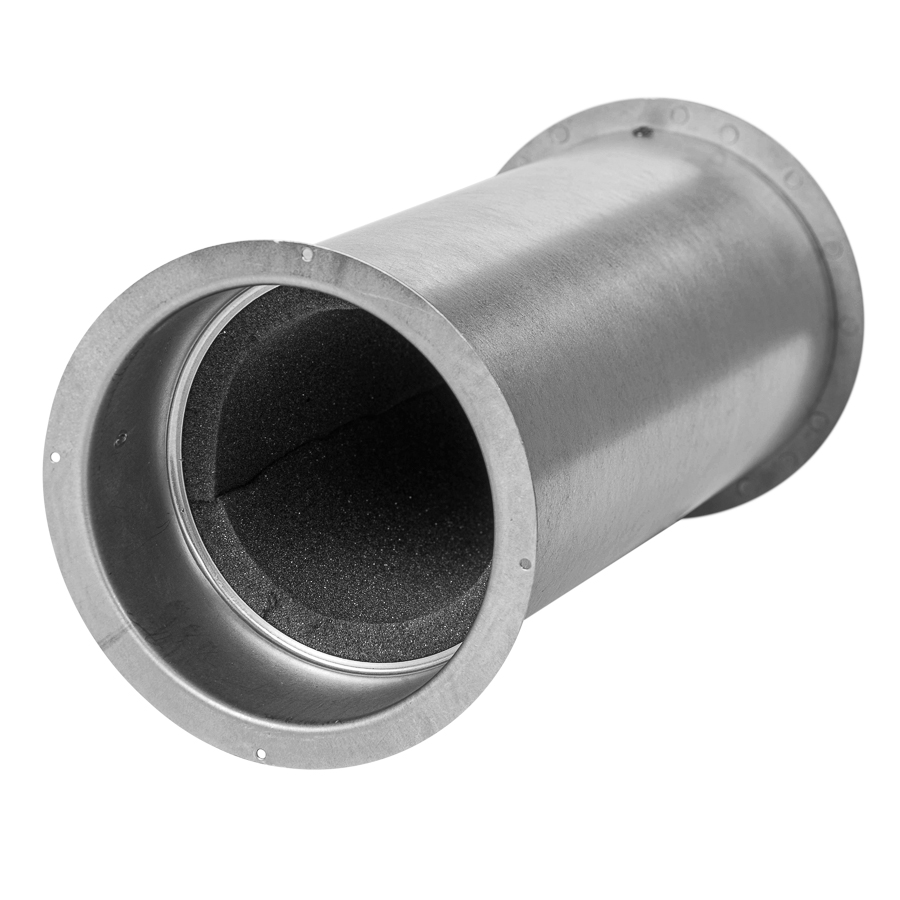

- Sound insulation layer made of polyurethane foam

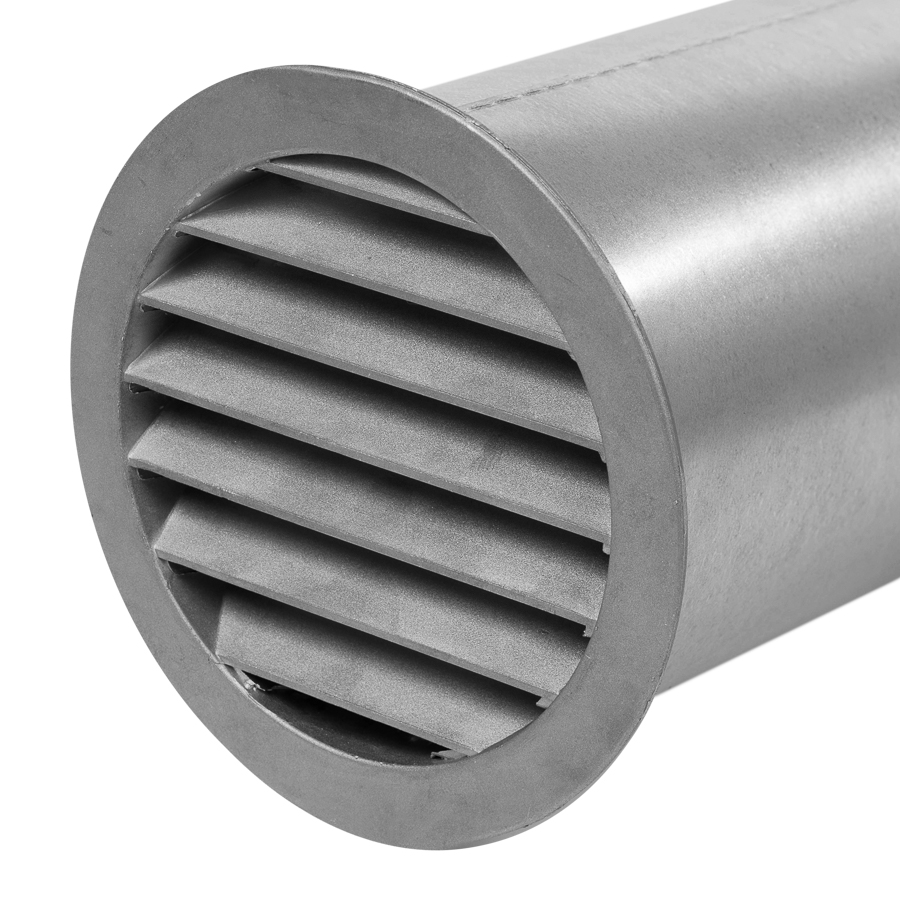

- The external ventilation grill is made of aluminum alloy
- Equipped with a metal insect screen 2x2mm
Installation:
- Through wall mounting, glue or screw fixing

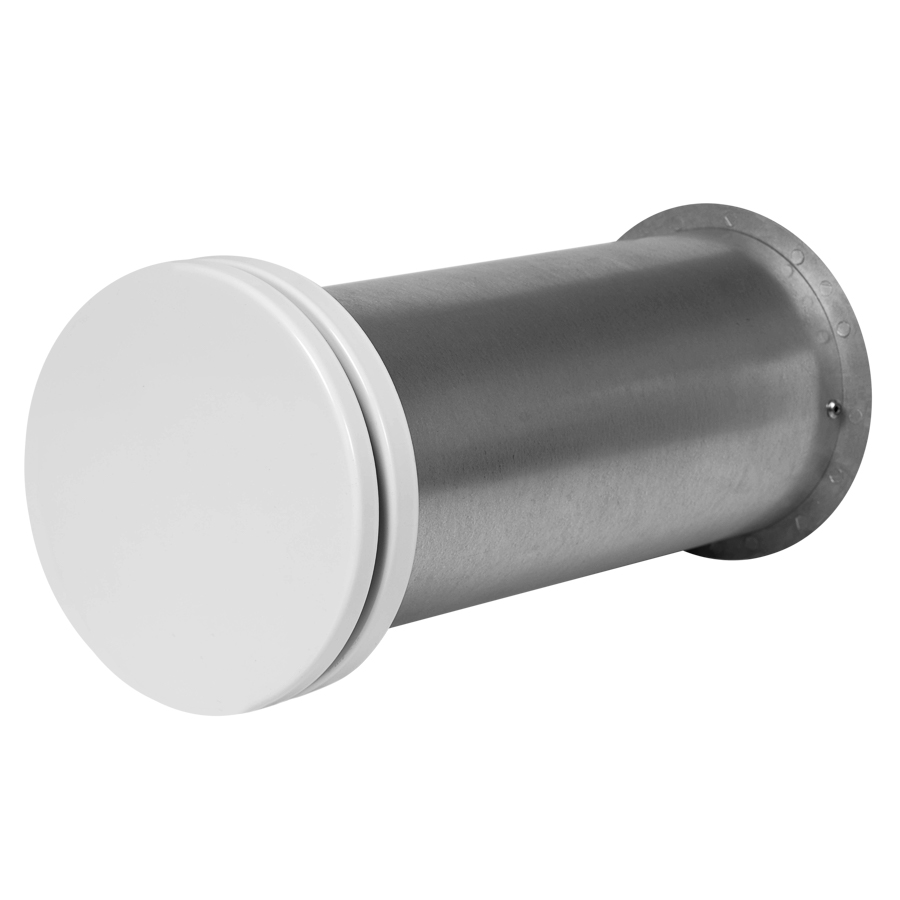

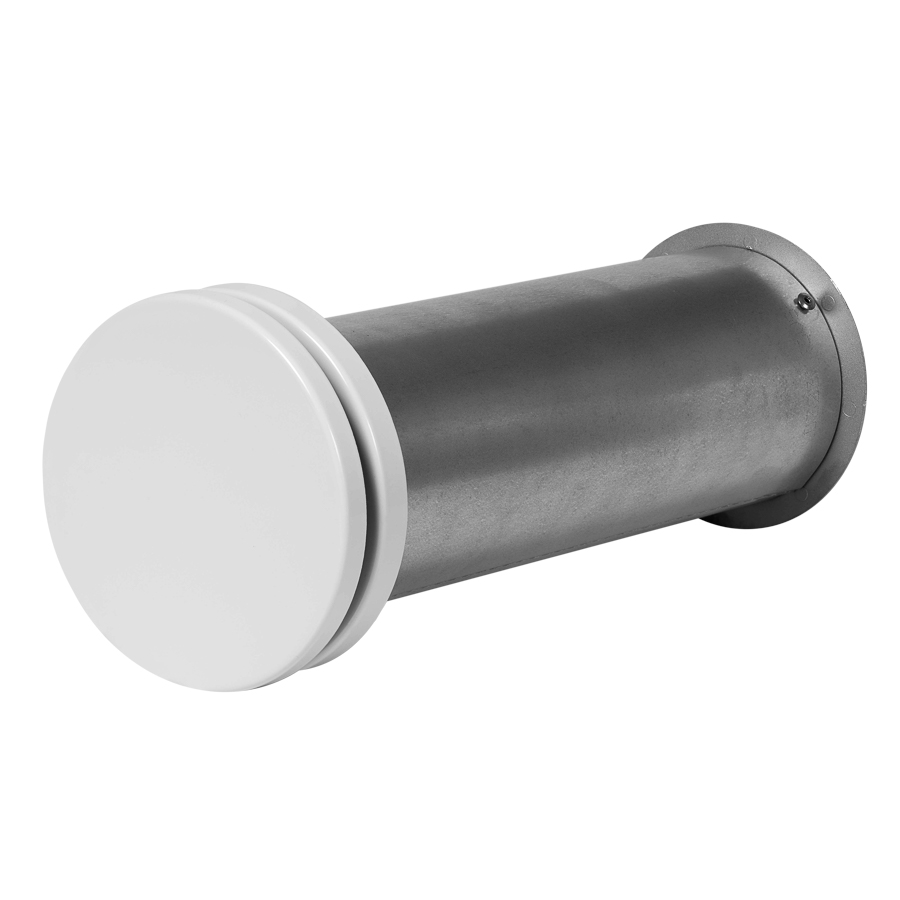

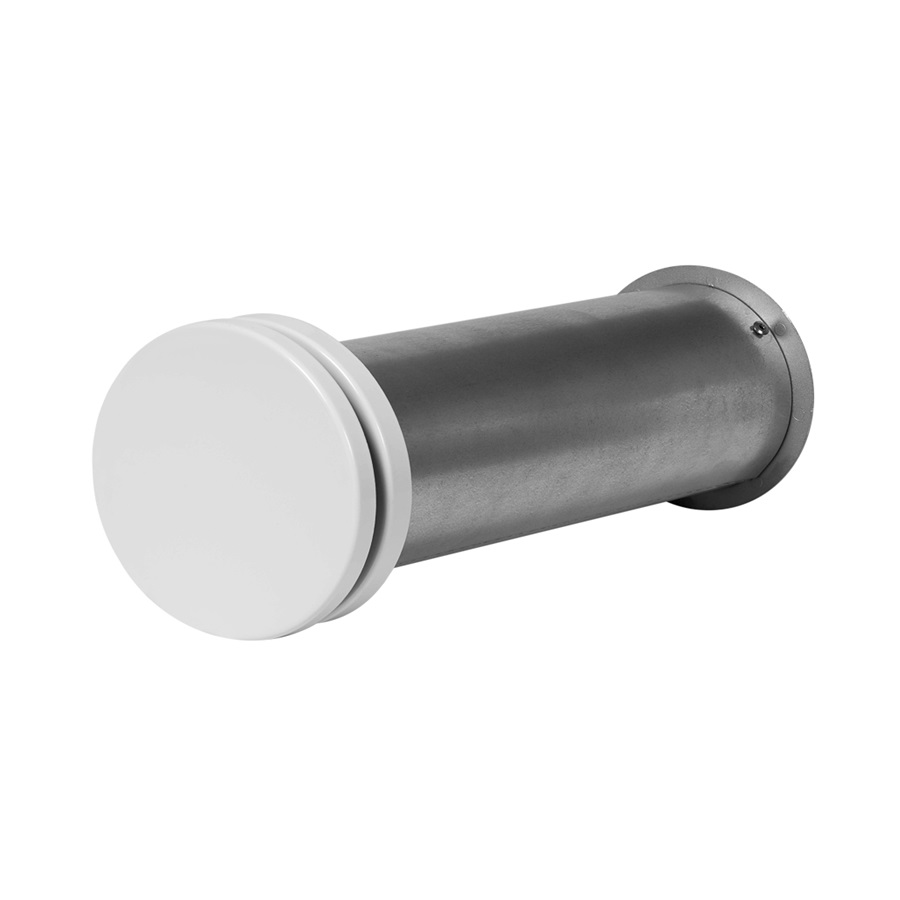

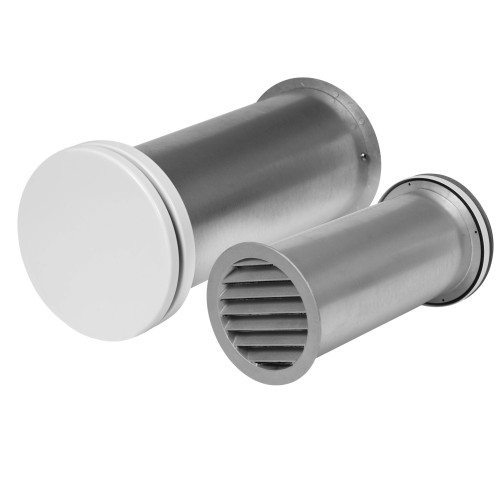

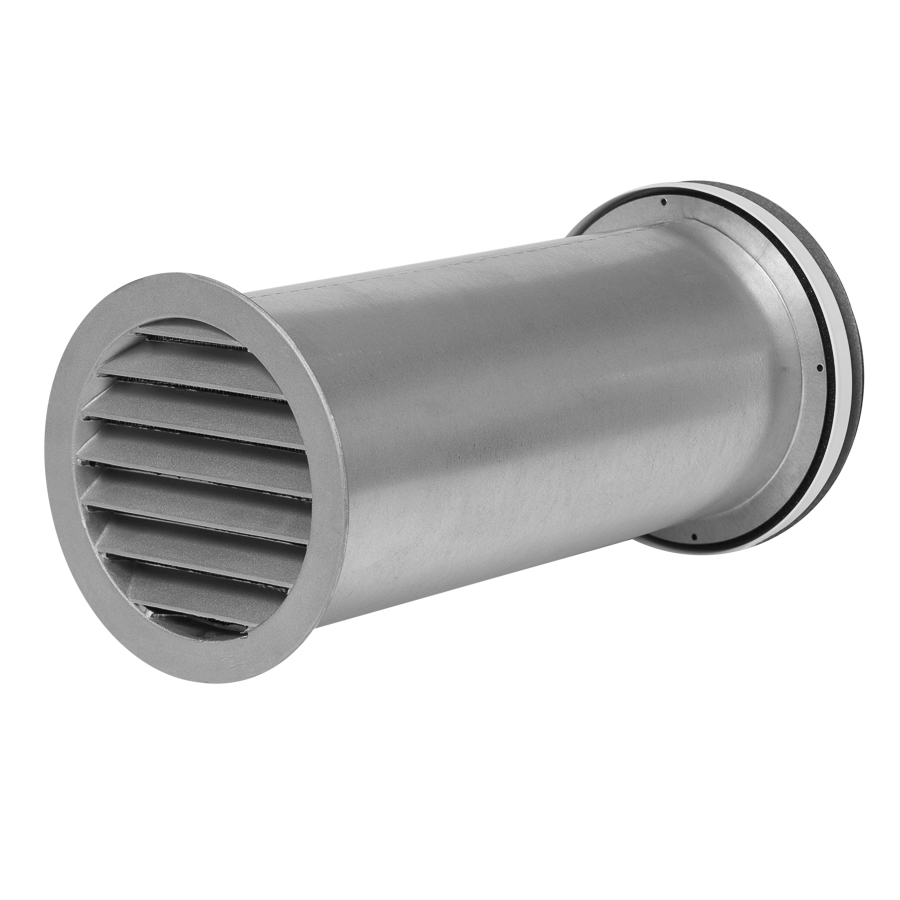

EUROPLAST SMK2 - a kit that provides natural air inflow or outflow from the room.
The system is designed for installation in all types of premises. It is recommended to install next to a heat source or close to the ceiling. The system ensures that warm air is mixed with the air entering the room, guaranteeing maximum comfort.
SMK2 is made fully from quality metal which guarantees its longevity. The SMK2 system is equipped with sound insulation that reduces noise levels in the room, and is equipped with a standard filter that provides protection against dust and insects. Elements are easy to dissamble and clean
Functions
Adjustable

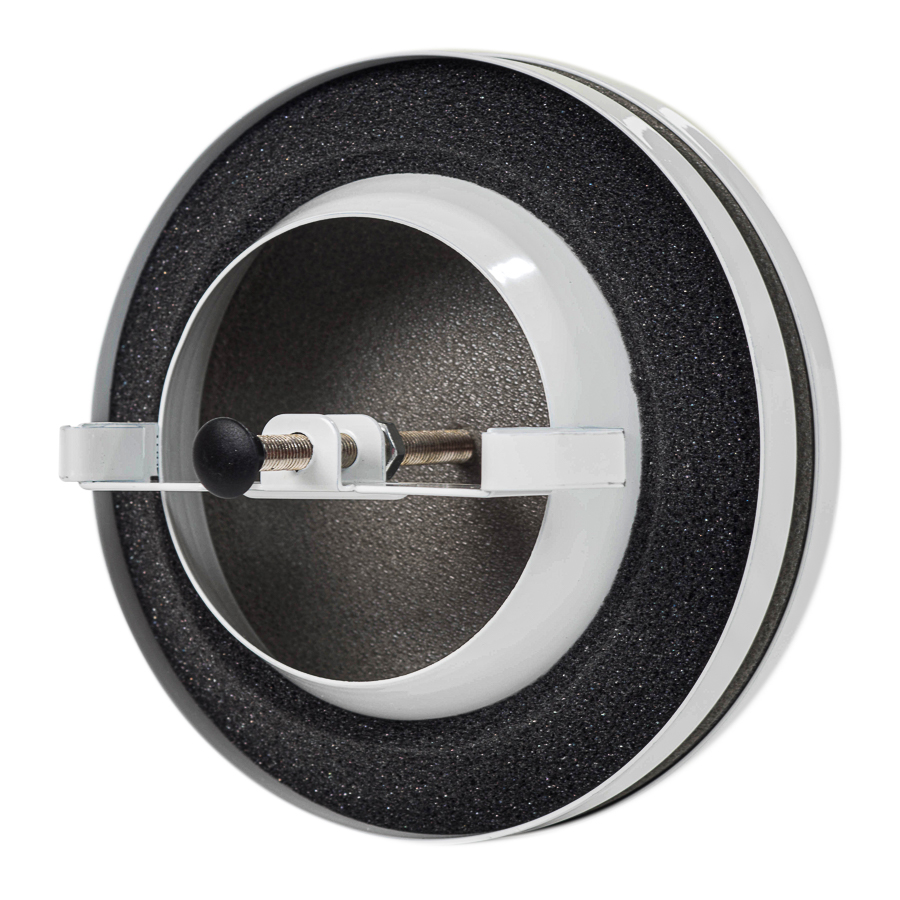

The product is equipped with a manual regulator that allows you to regulate the air flow volume.

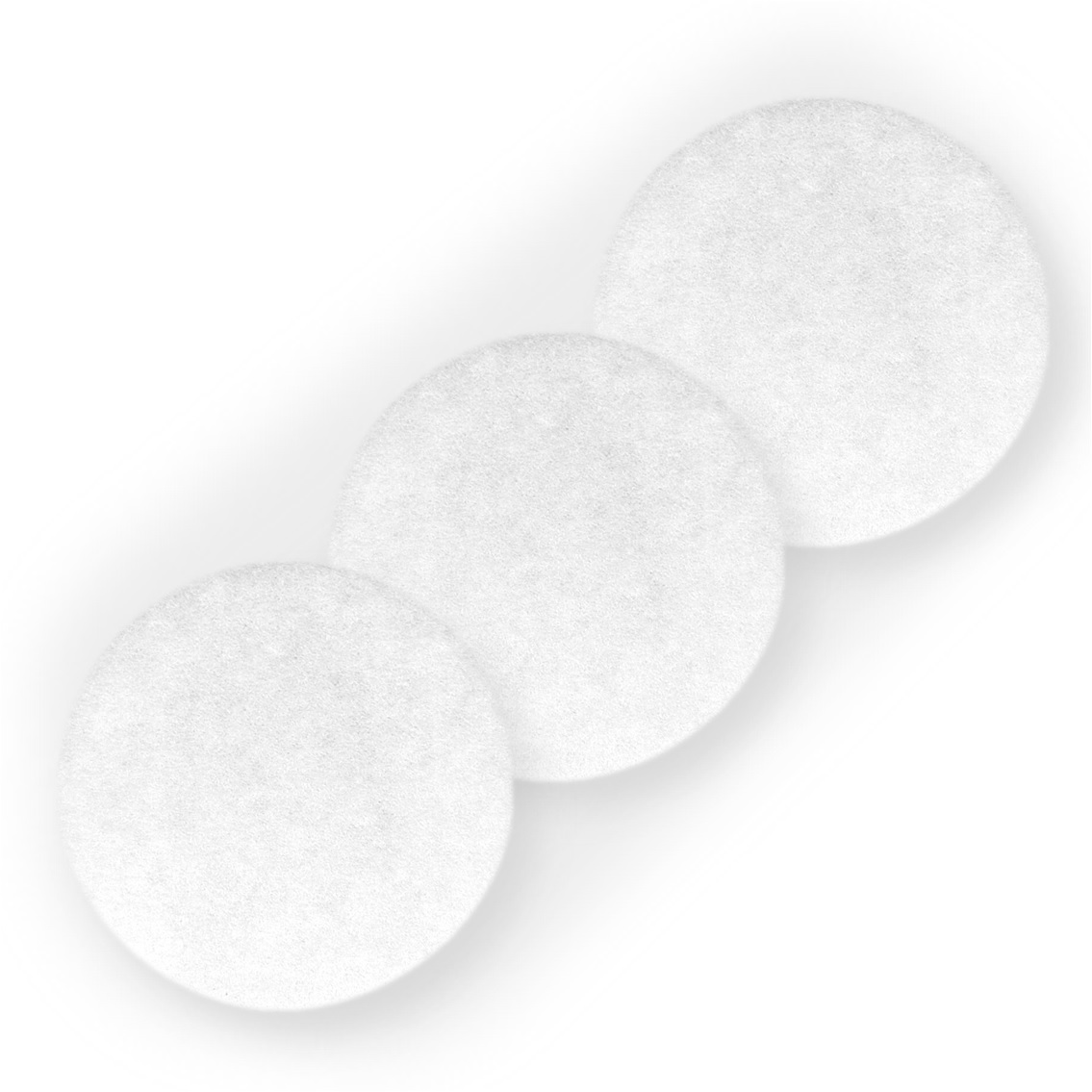

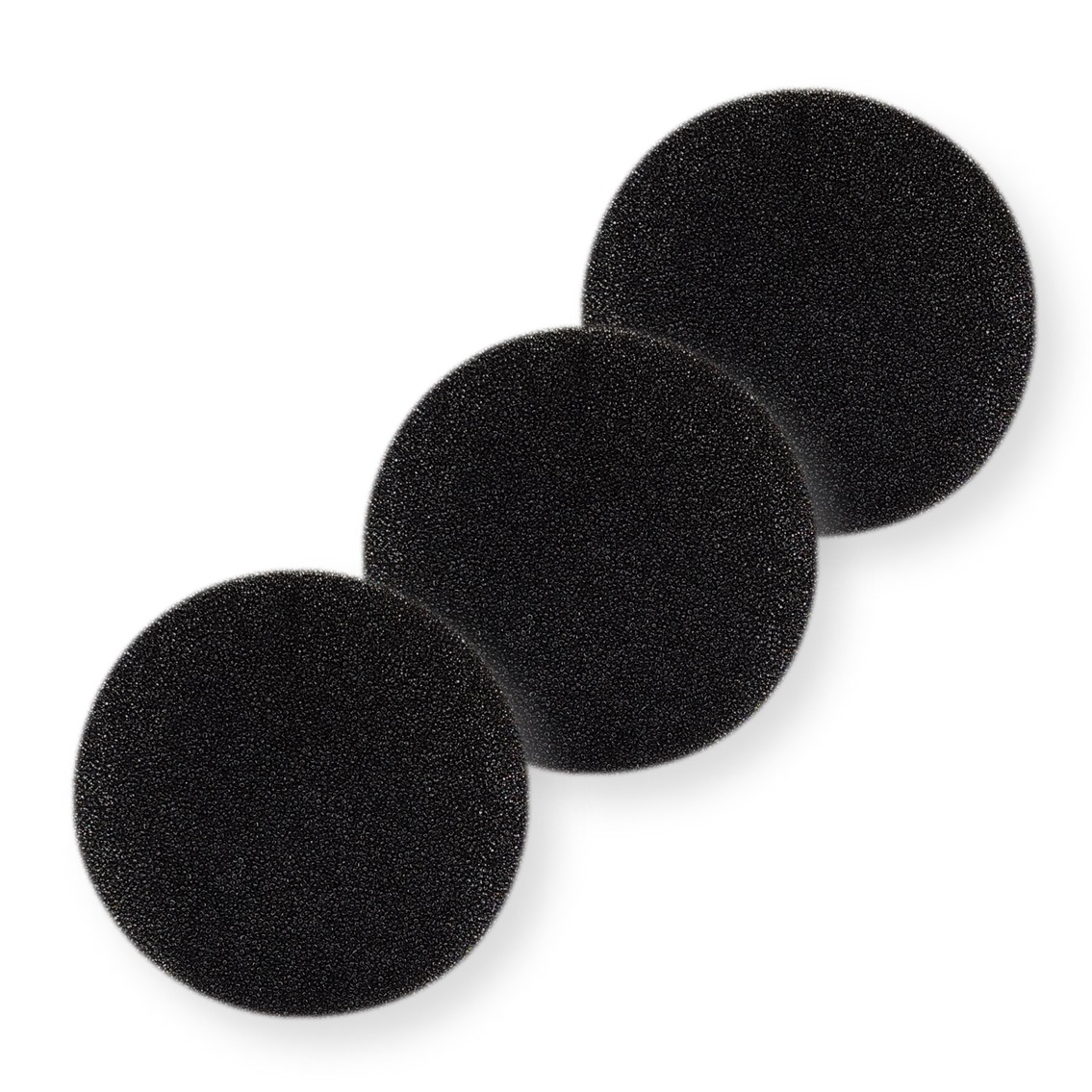

Air filter
The device is equipped with a filter that provides protection against dust and insects.
| Article | Description | EAN | Connection | Telescopic | Functions | |
|---|---|---|---|---|---|---|
|
SMK2-100dB
|
kit, supply valve with sound insulation, metal, Ø100mm, 300-550mm
|
4750492018538
|
Ø 100 mm | 300-550 mm |
|
|
SMK2-125dB
|
kit, supply valve with sound insulation, metal, Ø125mm, 300-550mm
|
4750492018545
|
Ø 125 mm | 300-550 mm |
|
|
SMK2-80dB
|
kit, supply valve with sound insulation, metal, Ø80mm, 300-550mm
|
4750492019757
|
Ø 80 mm | 300-550 mm |
|

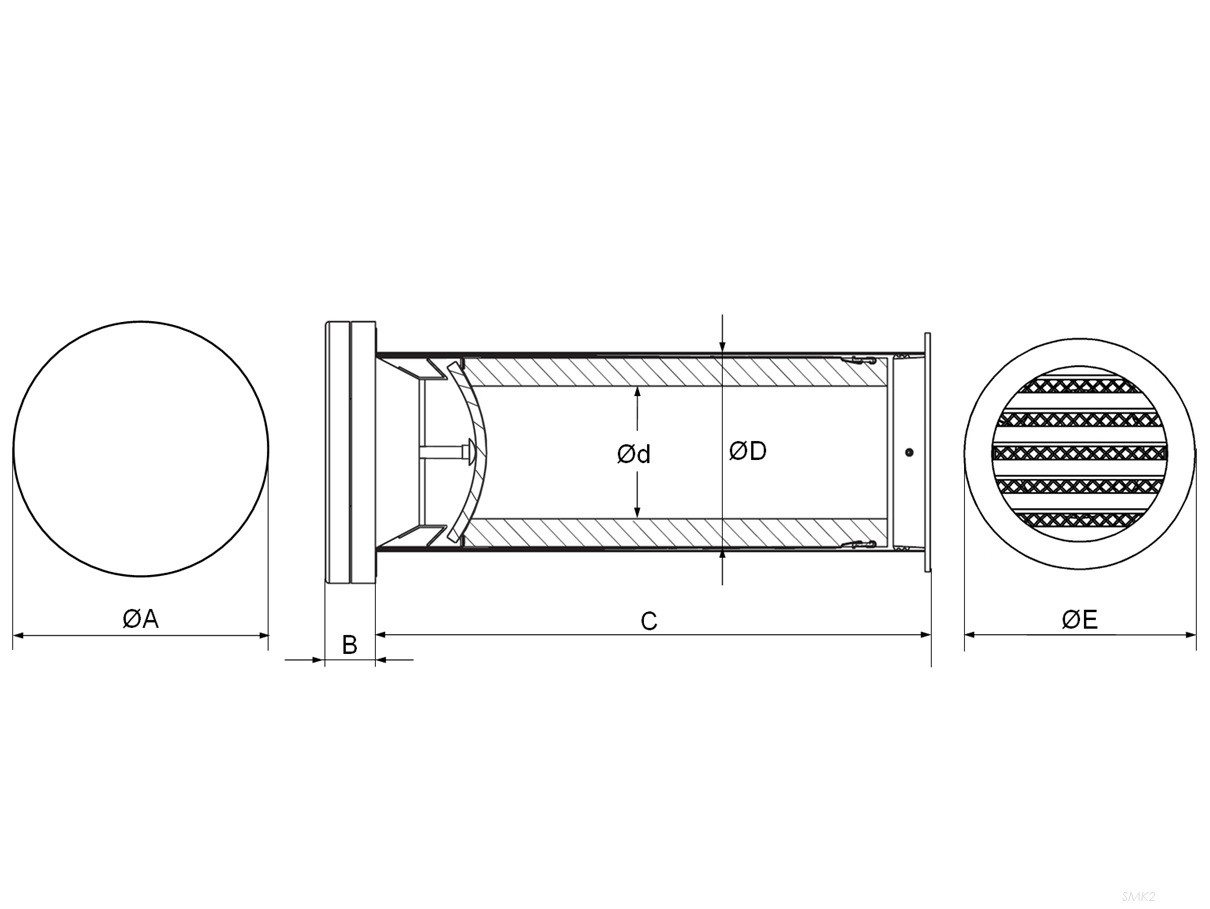

| Type | ØA [mm] |
B [mm] |
C [mm] |
ØD [mm] |
Ød [mm] |
ØE [mm] |
| SMK2-80dB | 107 | 25 | 300-550 | 83 | 49 | 96 |
| SMK2-100dB | 135 | 25 | 300-550 | 103 | 69 | 125 |
| SMK2-125dB | 160 | 25 | 300-550 | 128 | 94 | 150 |

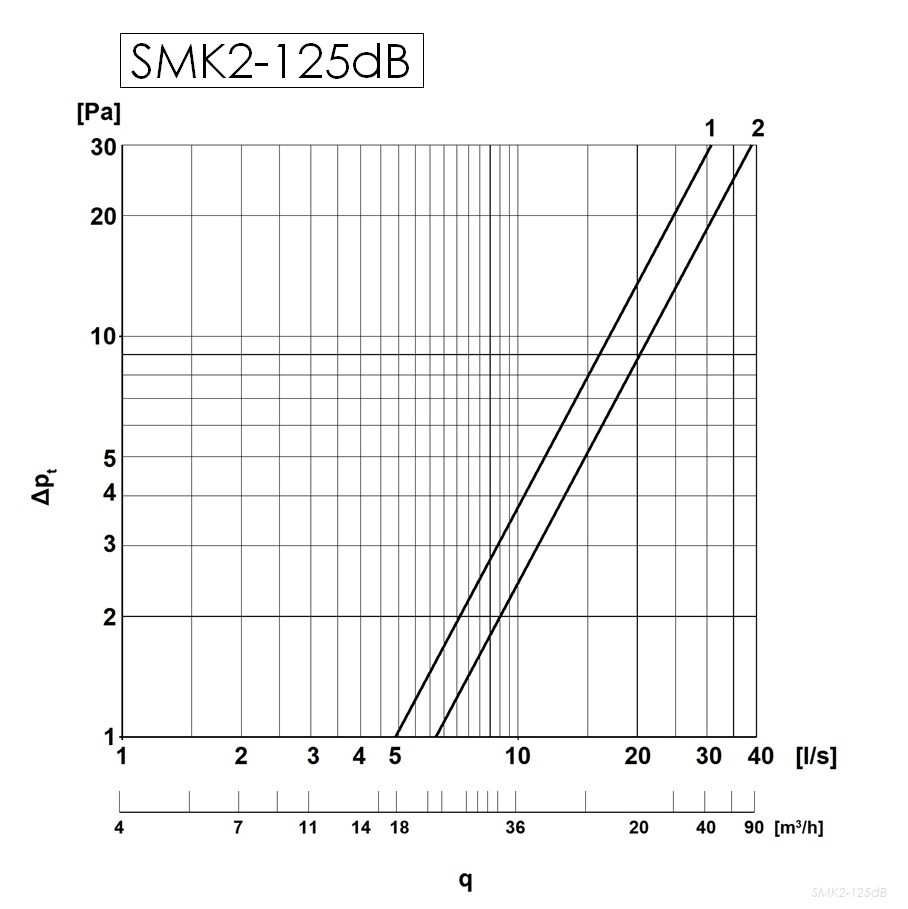

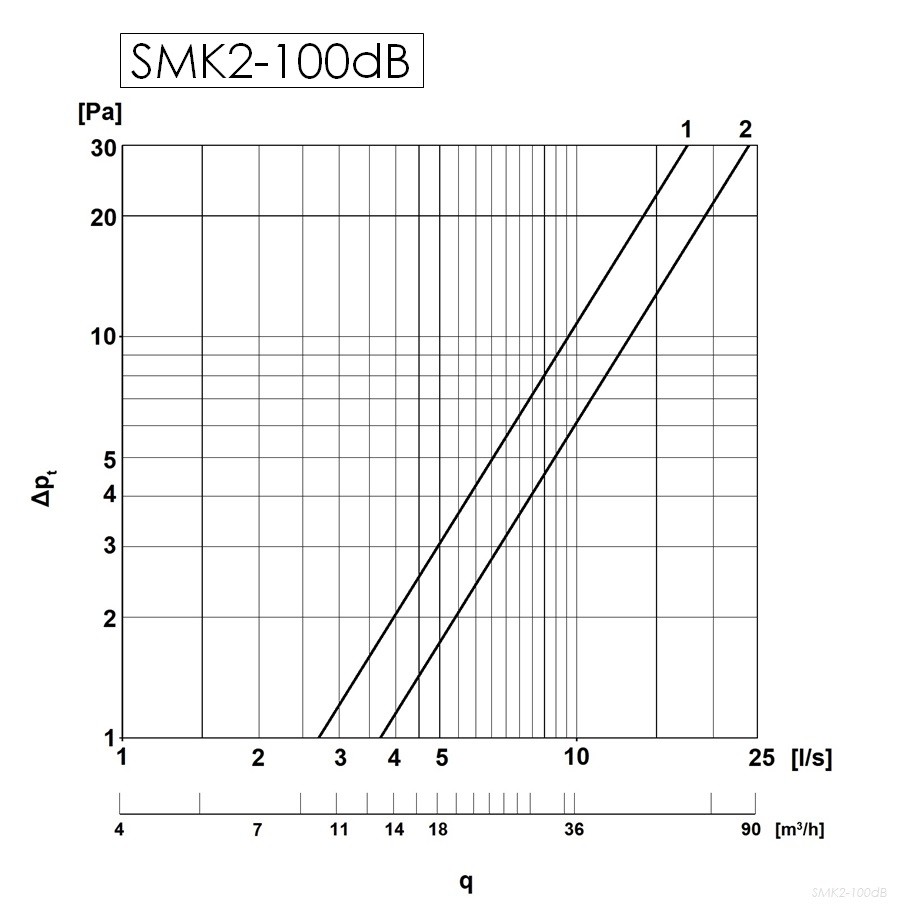

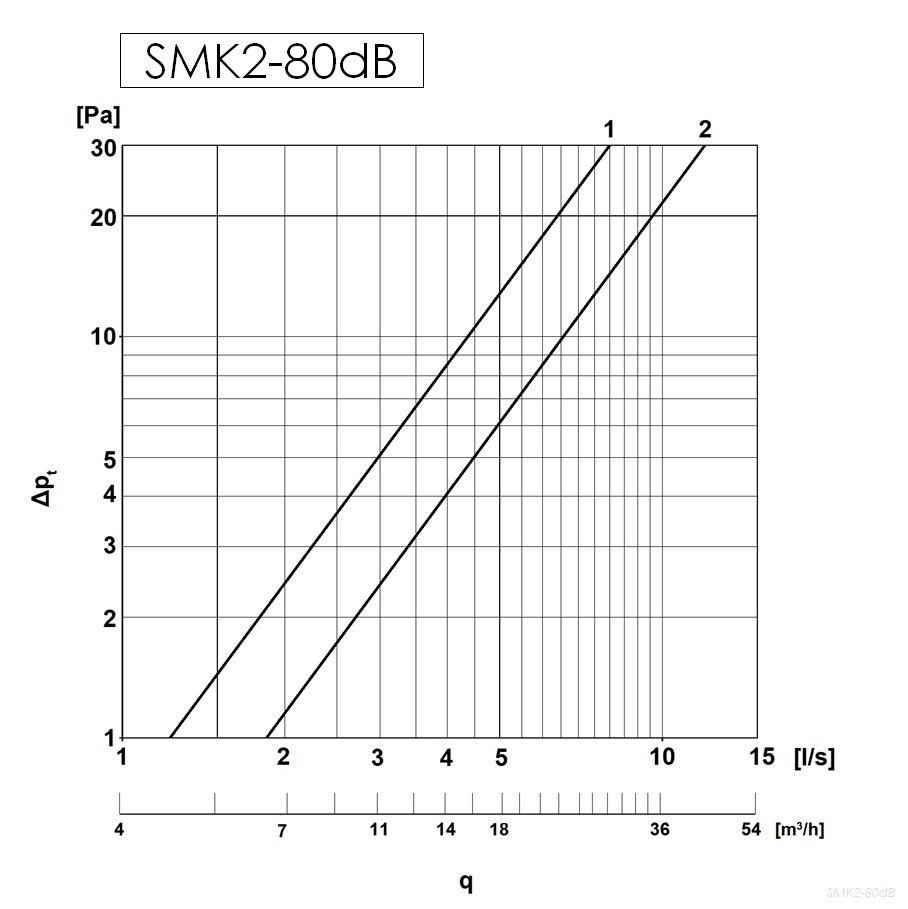

Pressure drop

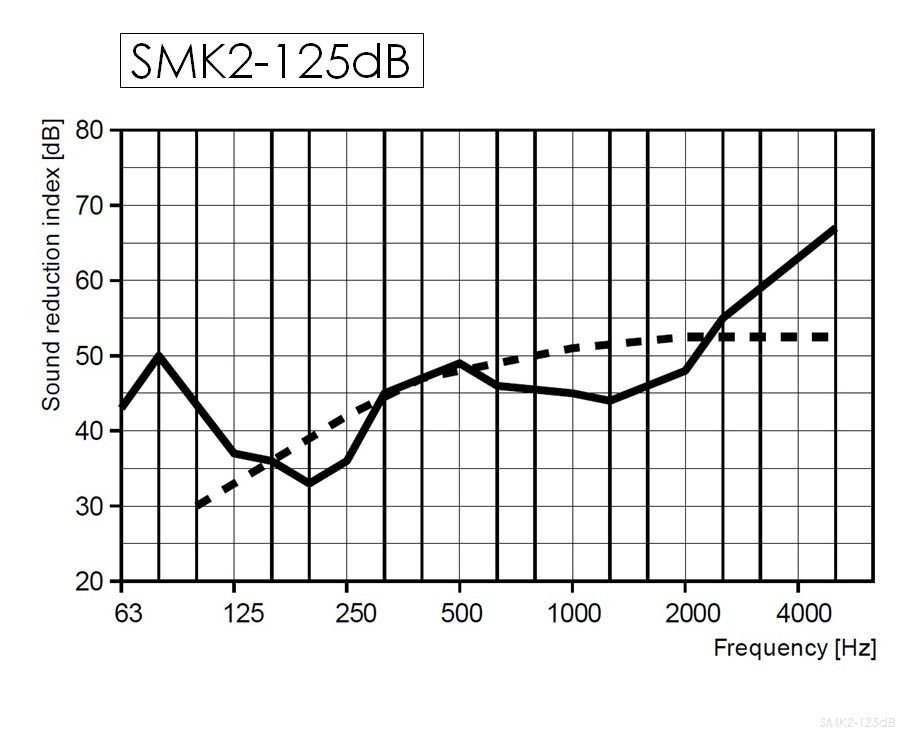

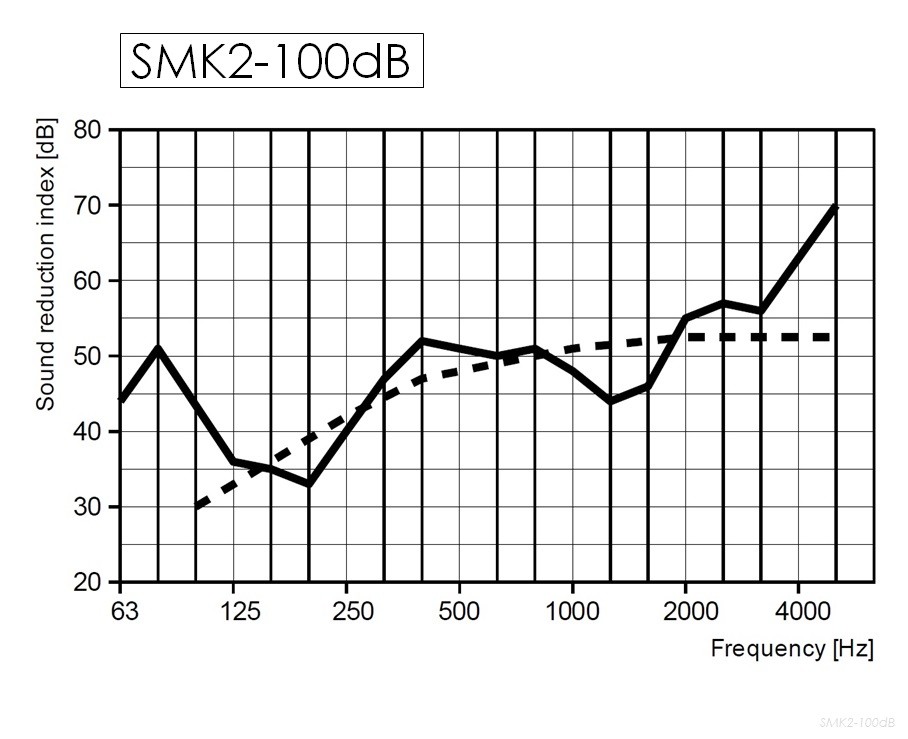

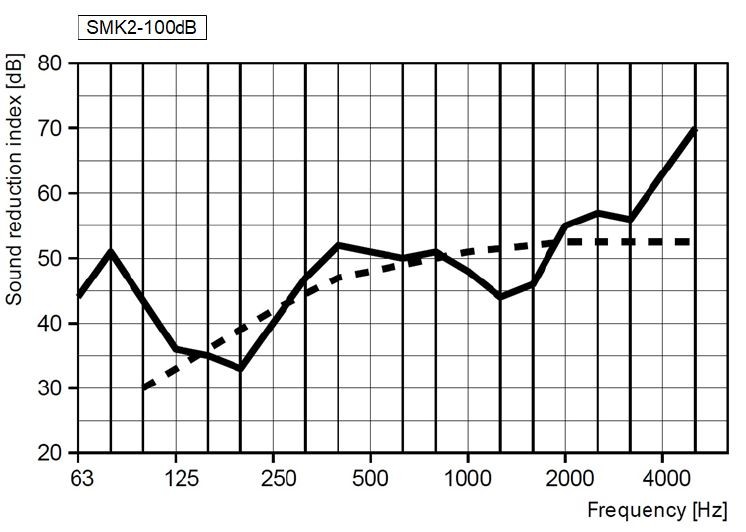

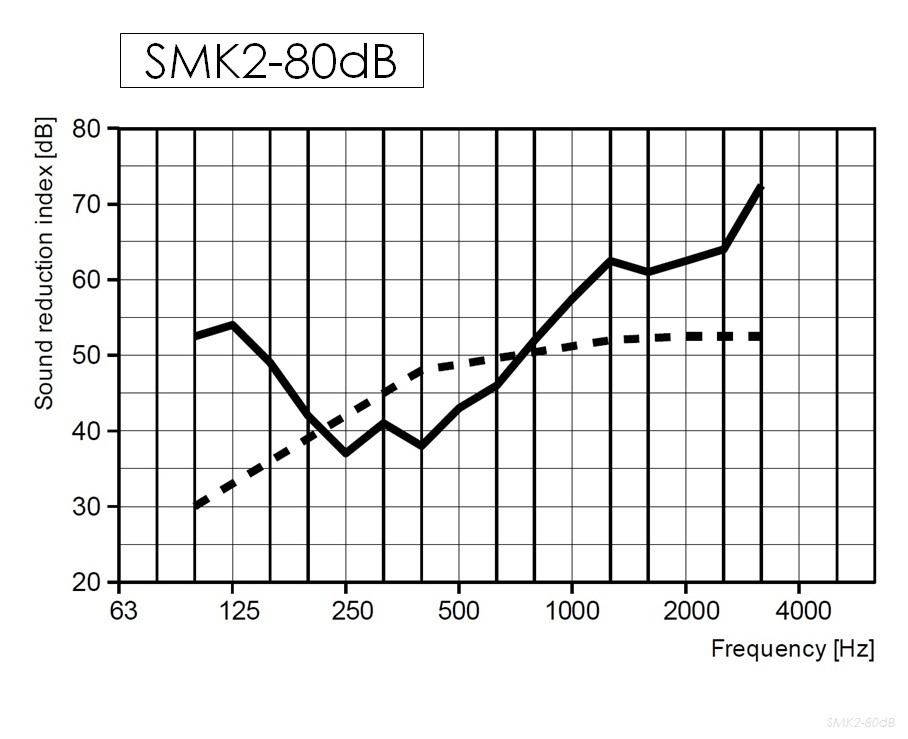

Sound attenuation (dB) at frequency (Hz)
Curves:
1 – with sound insulation layer
2 – without sound insulation layer
1 – with sound insulation layer
2 – without sound insulation layer
Diagrams shows sound reduction with fully opened diffuser and 300mm wall.
Calculating on 10m2
Calculating on 10m2
