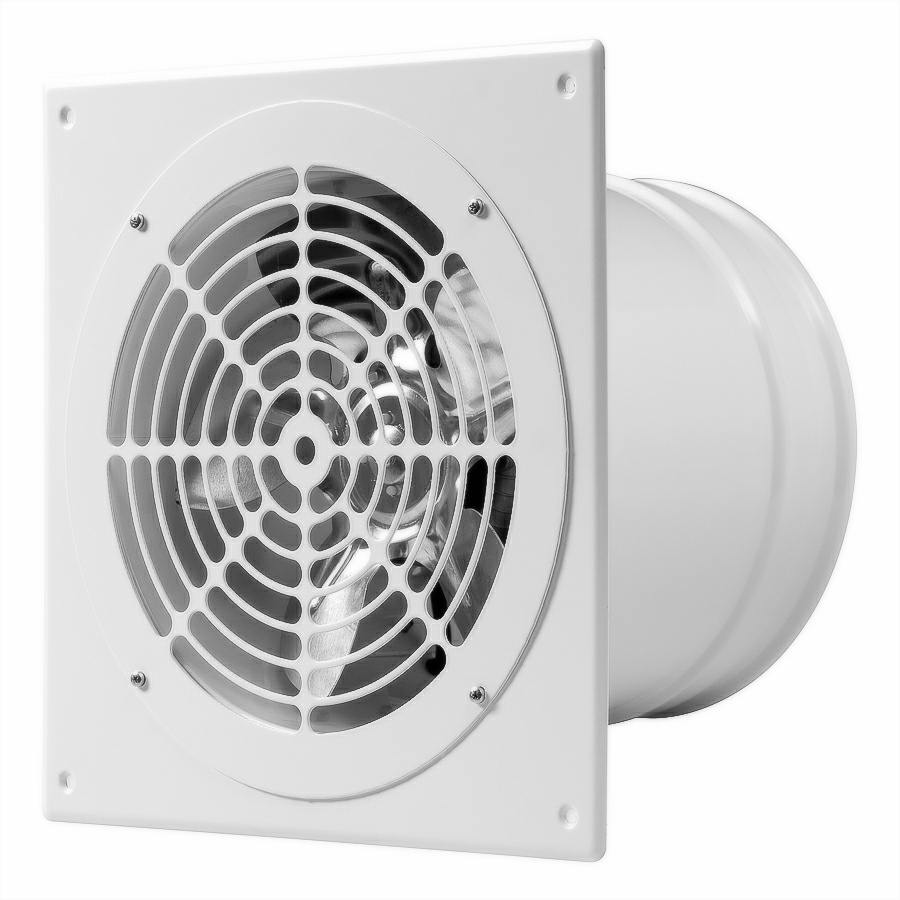

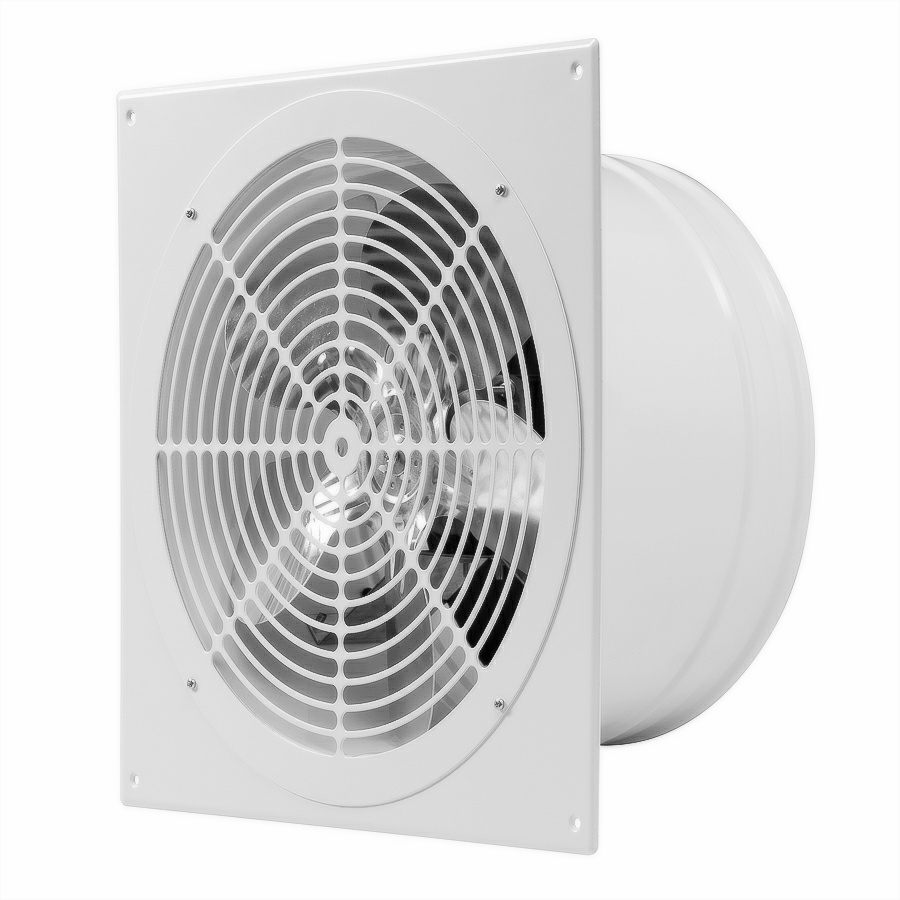

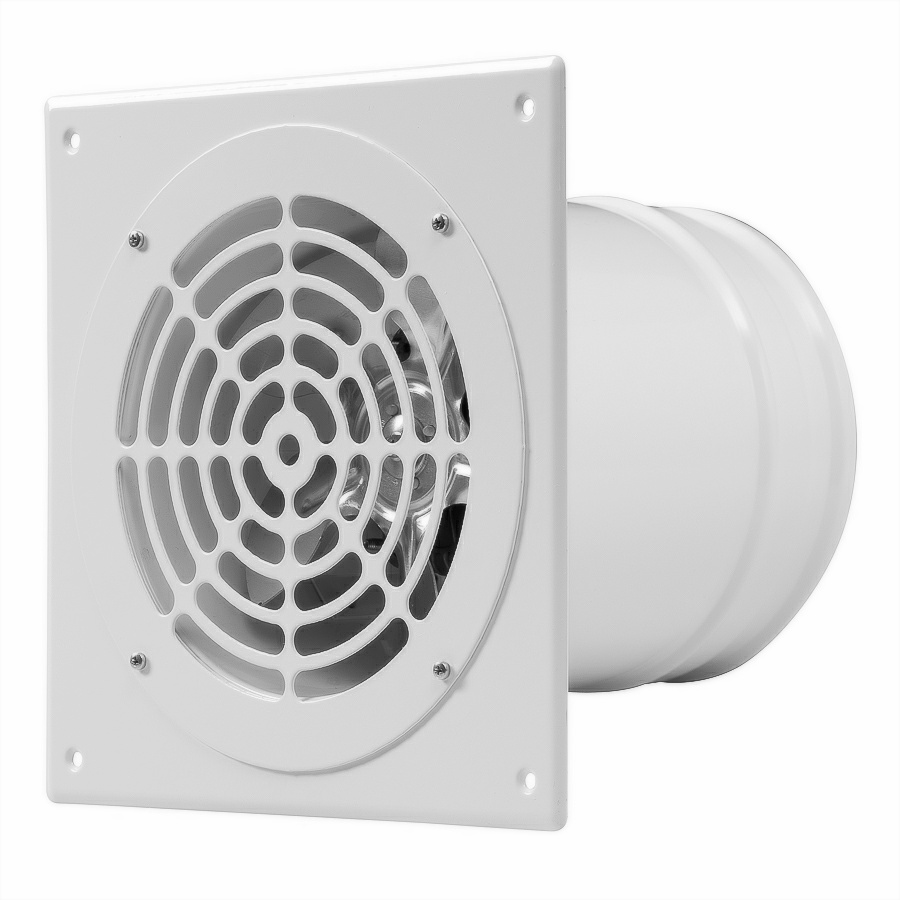

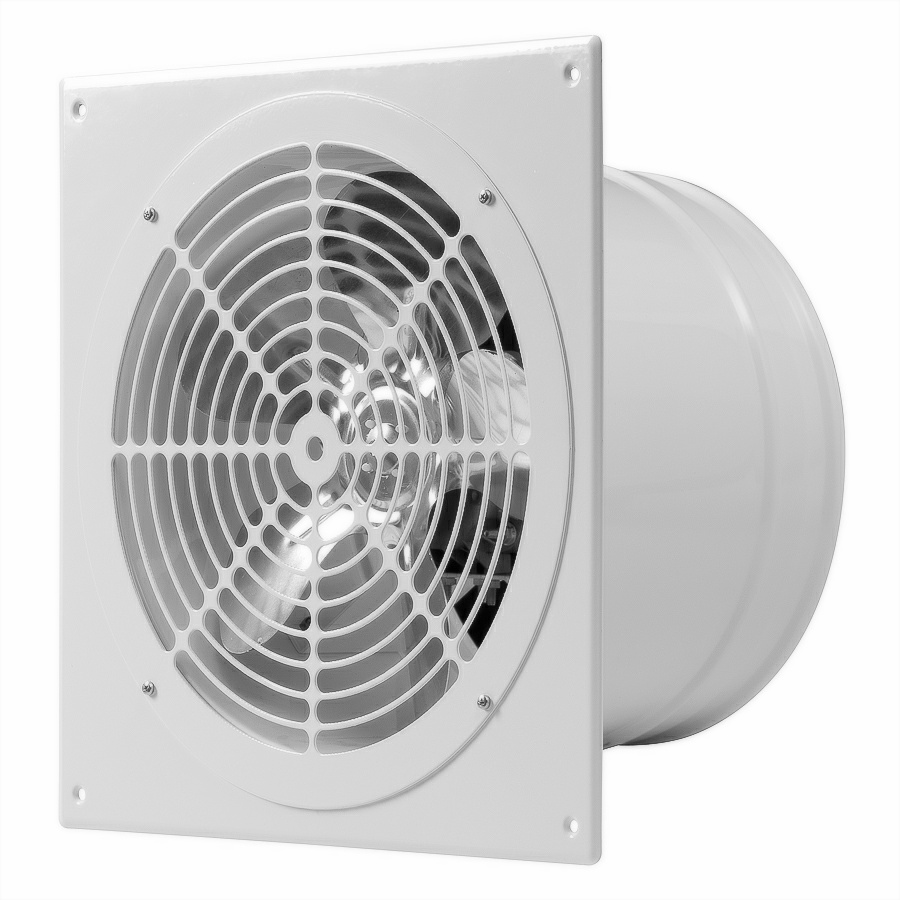

square wall low pressure fans ZSMK
Construction:
- Manufactured from galvanized steel
- Powder paint RAL9016
- Protection against environmental factor: IPX4
- Insulation class: class B
Installation:
- Mounting with all type round ducts
- Screw fixing
Power supply: 220-240V 50Hz single phase
Temperature range: + 0°C up to + 40°C
Sizes: 160, 200, 250, 315 mm
Europlast low pressure duct fan ZSMK comes in 160mm, 200mm, 250mm and 315mm sizes. Balanced metal blades are ideal for boosting air supply and venting exhaust air.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
ZSMK160
|
square wall low pressure fan, Ø160mm, metal
|
4750492009369
|
160 mm |
|
ZSMK200
|
square wall low pressure fan, Ø200mm, metal
|
4750492009376
|
200 mm |
|
ZSMK250
|
square wall low pressure fan, Ø250mm, metal
|
4750492009383
|
250 mm |
|
ZSMK315
|
square wall low pressure fan, Ø315mm, metal
|
4750492009390
|
315 mm |

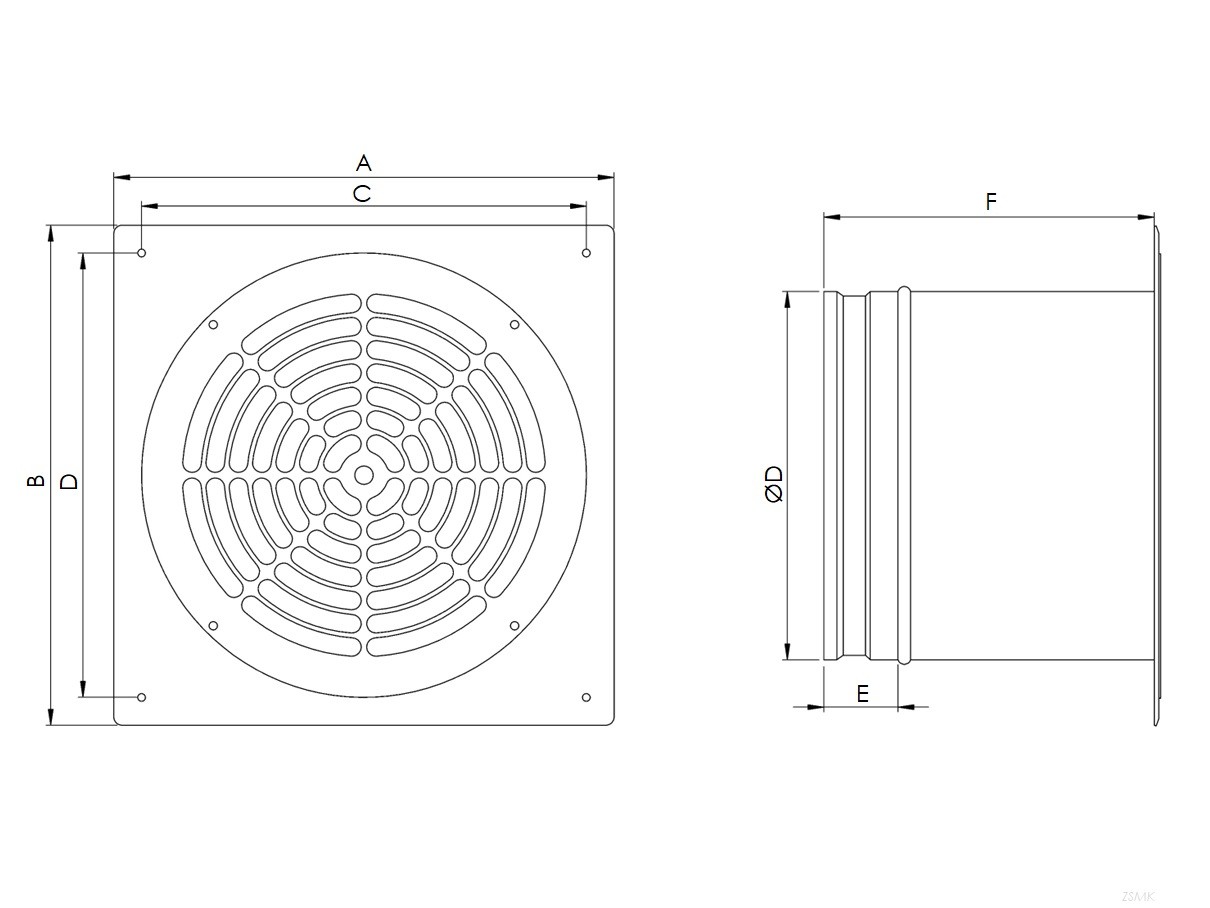

| Type | A | B | D |
| ZSMK160 | 230 | 184 | 159 |
| ZSMK200 | 270 | 184 | 199 |
| ZSMK250 | 320 | 184 | 249 |
| ZSMK315 | 383 | 184 | 314 |
| Type | Voltage [V / Hz] |
Power [W] |
IP | Speed [RPM] |
Suction power [m3/h] |
Noise level: 3m distance, Lp A dB(A) |
Temperature (°C) |
Air duct size (mm) |
Weight [kg] |
| ZSMK160 | 220-240V-50Hz | 21 | IPX4 |
1300 |
183 | 43 | 0 up to +40 | 160 | 1,86 |
| ZSMK200 | 220-240V-50Hz | 29 | IPX4 | 1300 | 340 | 47 | 0 up to +40 |
200 |
2,38 |
| ZSMK250 | 220-240V-50Hz | 70 | IPX4 | 1300 | 800 | 48 | 0 up to +40 | 250 | 3,30 |
| ZSMK315 | 220-240V-50Hz | 110 | IPX4 | 1300 | 1325 | 55 | 0 up to +40 | 315 | 4,56 |
