Products PRE-INSULATED METAL ROUND SYSTEM insulation joint gaskets IF-U

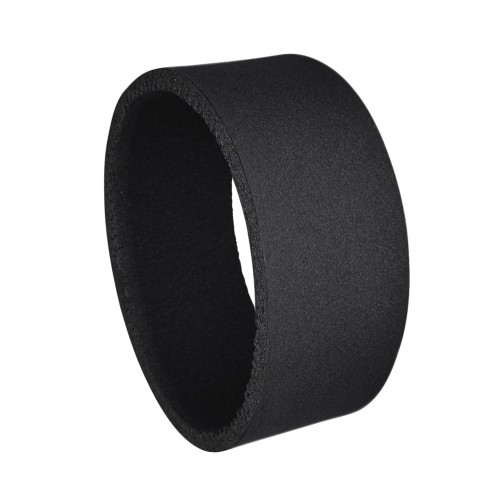

insulation joint gaskets IF-U

Construction:

Made of flexible elastomer foam (FEF) insulation
Insulation material meets class B fire safety standards

Installation:

Easy installation
Saves installation time and space
Ensures material savings

Operating temperature: -40°C ... +85°C
Dimensions [mm]: Ø100; Ø125; Ø160; Ø200
Colors: Black

View products

Joint gaskets are designed to cover insulation joints. Joint gaskets not only provide sound and thermal insulation, but also serve as a protective barrier against of formation of thermal bridges and condensation. The properties of elastomeric foam allow gaskets to be easy application various joint configurations, ensuring a tight fit.

	Description	Width	Connection	Class
IF-U100	insulation joint gasket, Ø100mm, 2 pcs	50 mm	Ø 100 mm	B
IF-U125	insulation joint gasket, Ø125mm, 2 pcs	50 mm	Ø 125 mm	B
IF-U160	insulation joint gasket, Ø160mm, 2 pcs	50 mm	Ø 160 mm	B
IF-U200	insulation joint gasket, Ø200mm, 2 pcs	50 mm	Ø 200 mm	B

Type	ØD_nom [mm]	H [mm]	T [mm]	m [kg]
IF09-U100	100	50	6	0,007
IF09-U125	125	50	6	0,008
IF09-U160	160	50	6	0,010
IF09-U200	200	50	6	0,013

Essential characteristics	Performance properties	Testing standards
Thermal conductivity coefficient (for all thicknesses)	-10°C - 0,034 W/(mK) 0°C - 0,036 W/(mK) 25°C - 0,037 W/(mK) 40°C - 0,041 W/(mK)	EN 12667
Reaction to fire	B-s3, d0	EN 13501-1
Operating temperature	-40°C ... +85°C
