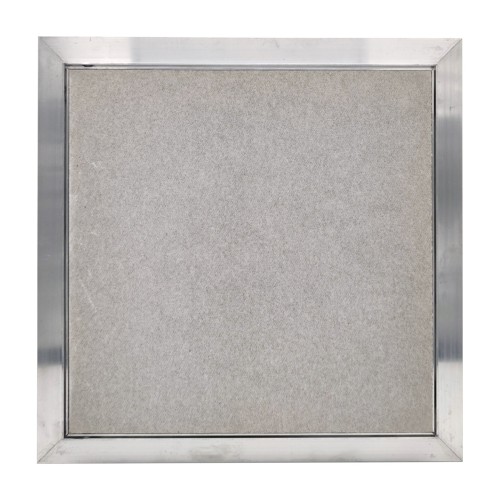

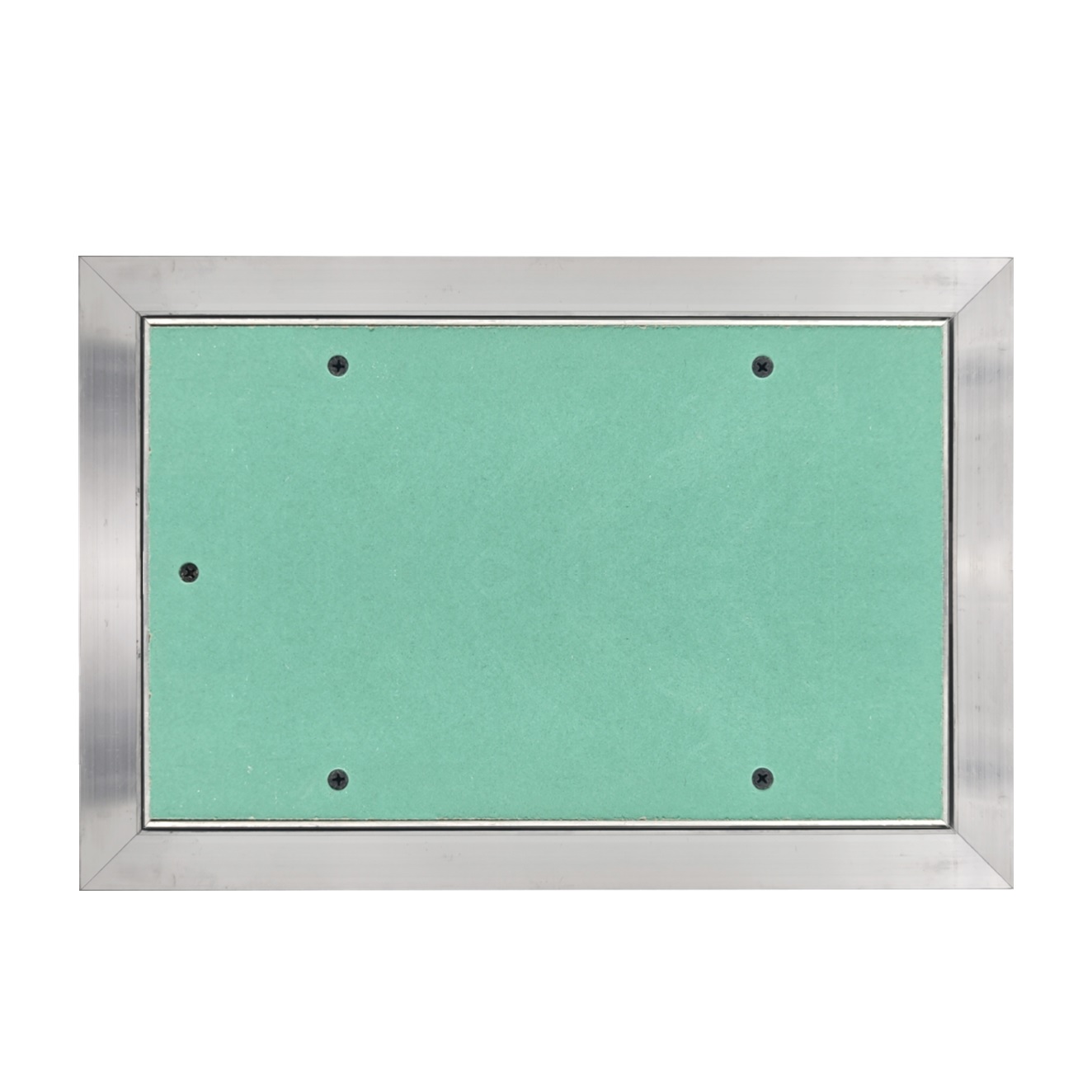

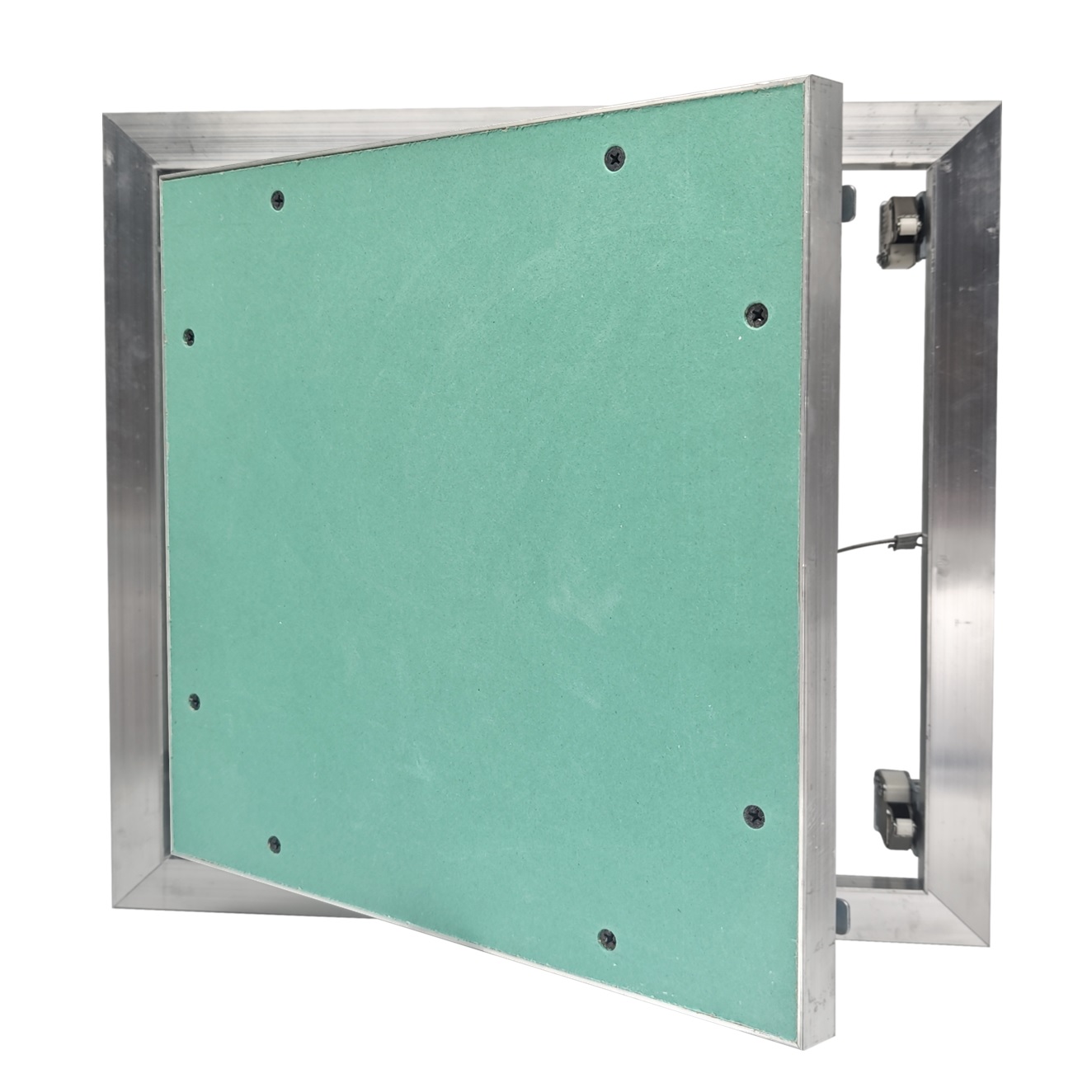

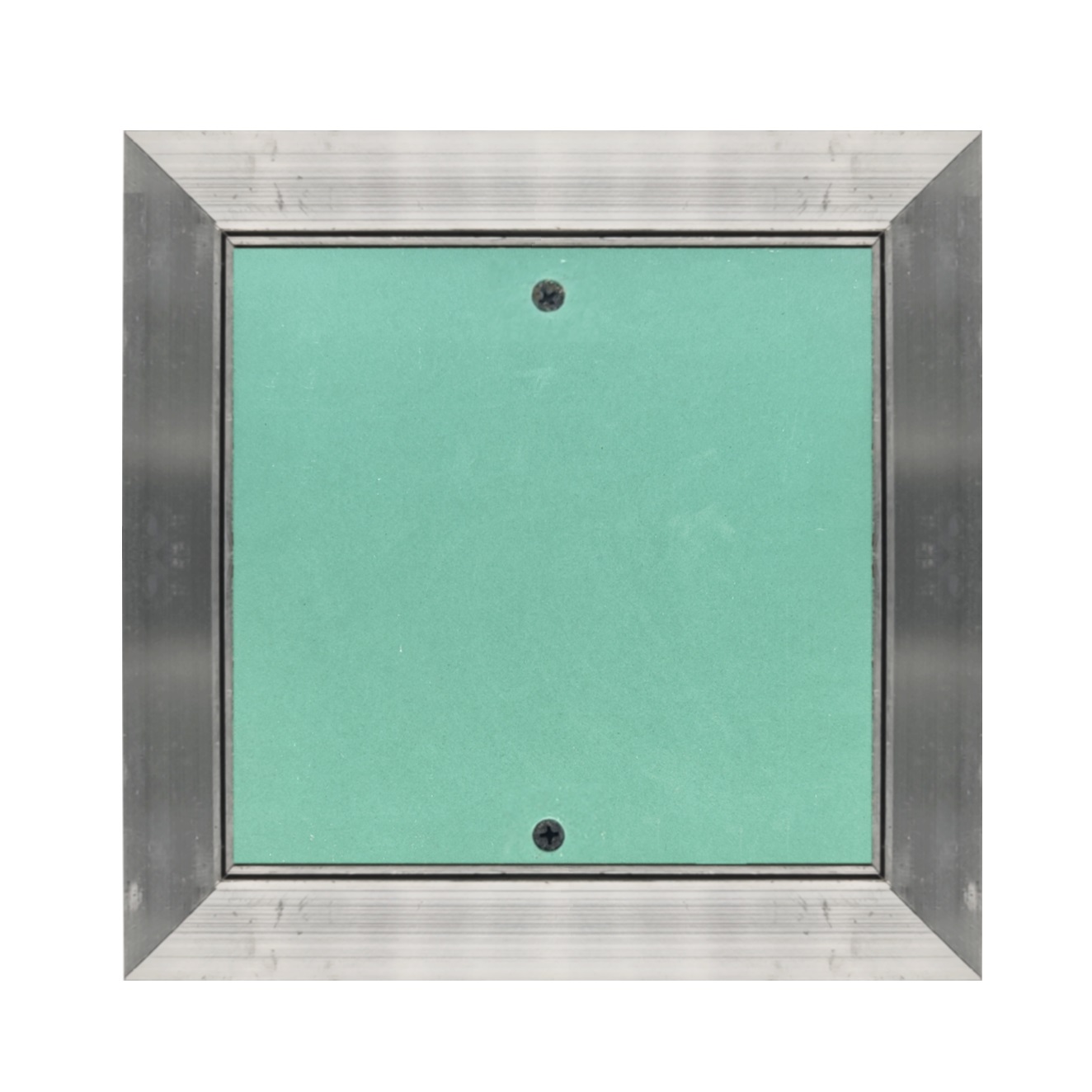

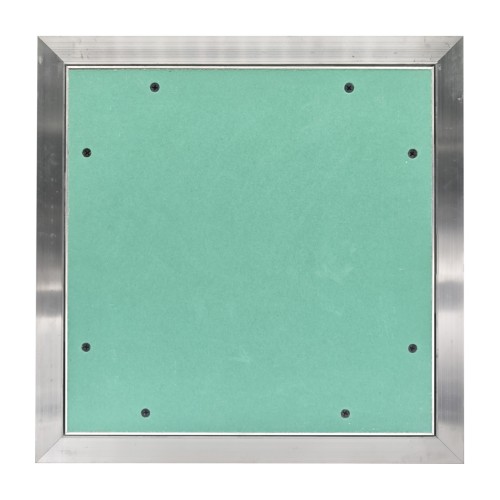

control hatch for plasterboard RLR
Construction:
- Made from aluminium with drywall insert.
Installation:
- Wall or ceiling mounting
- Glue or screw fixing.
Colors: Aluminum

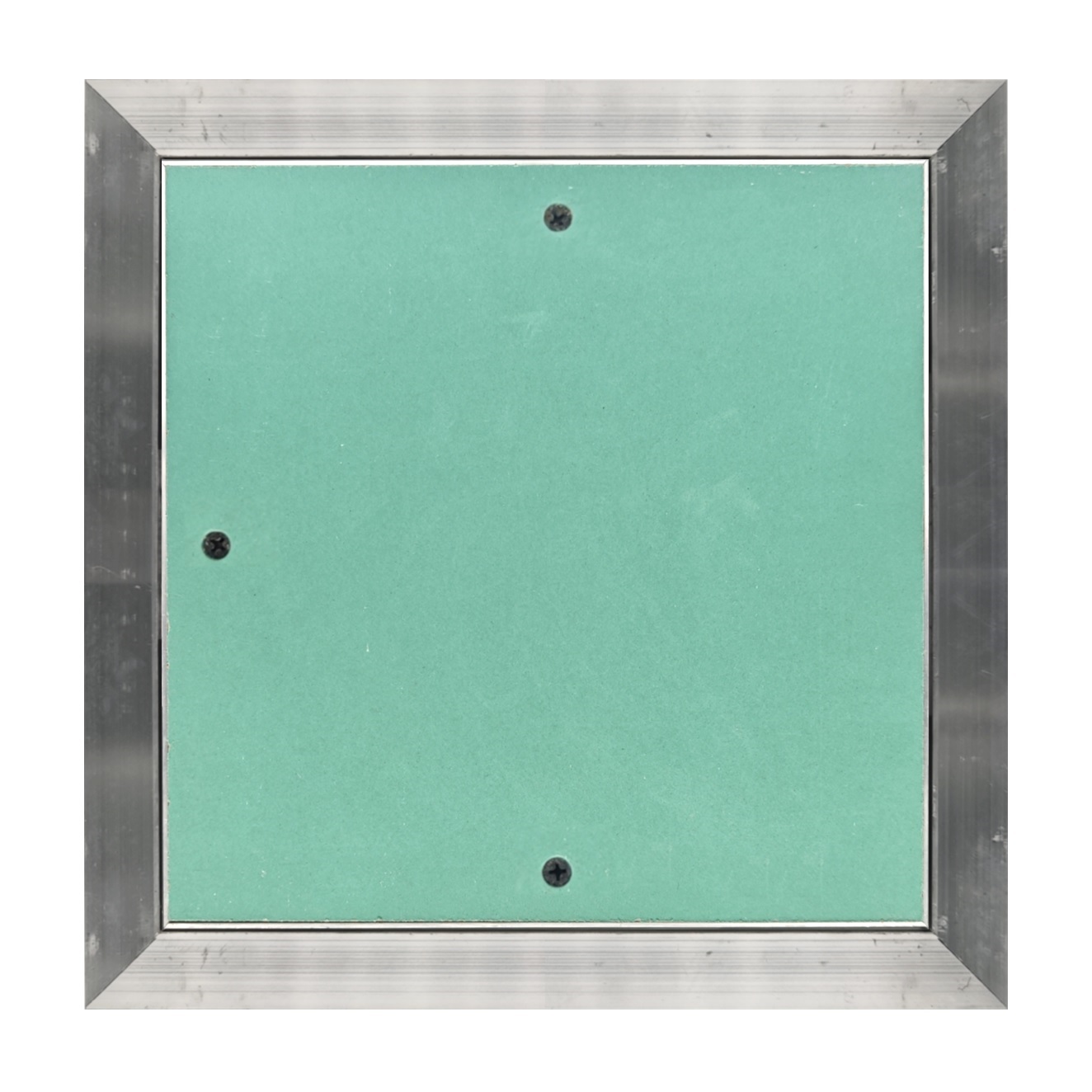

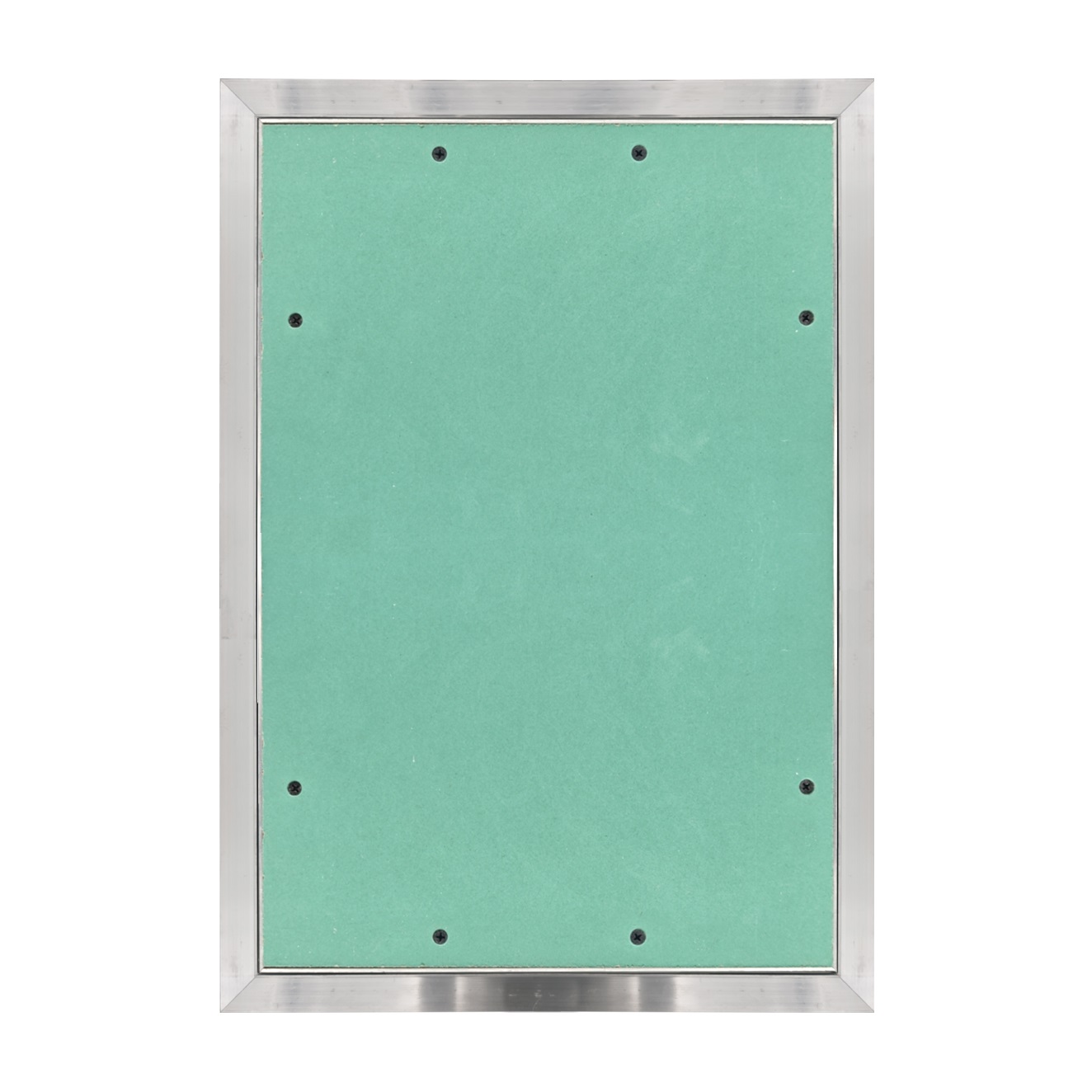

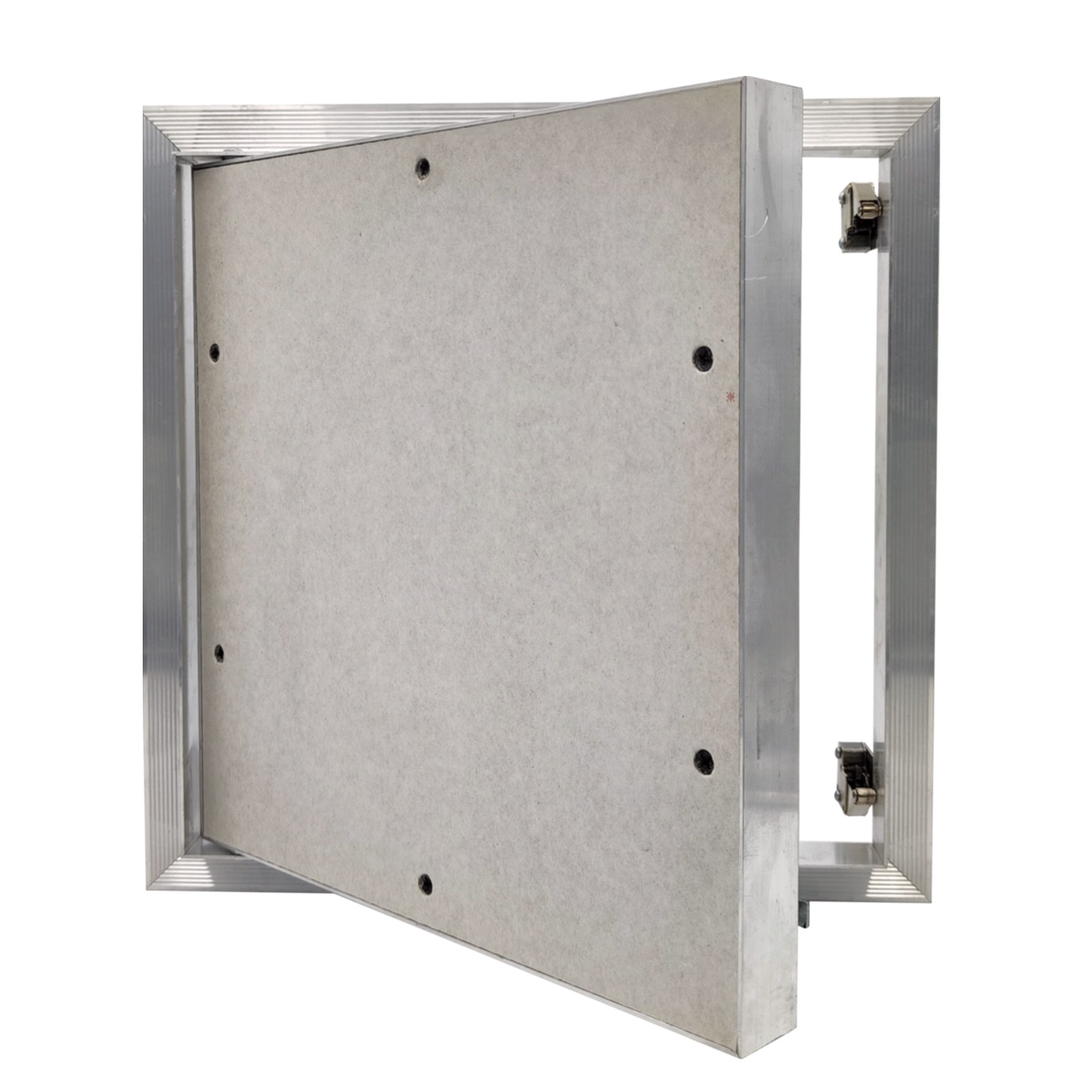

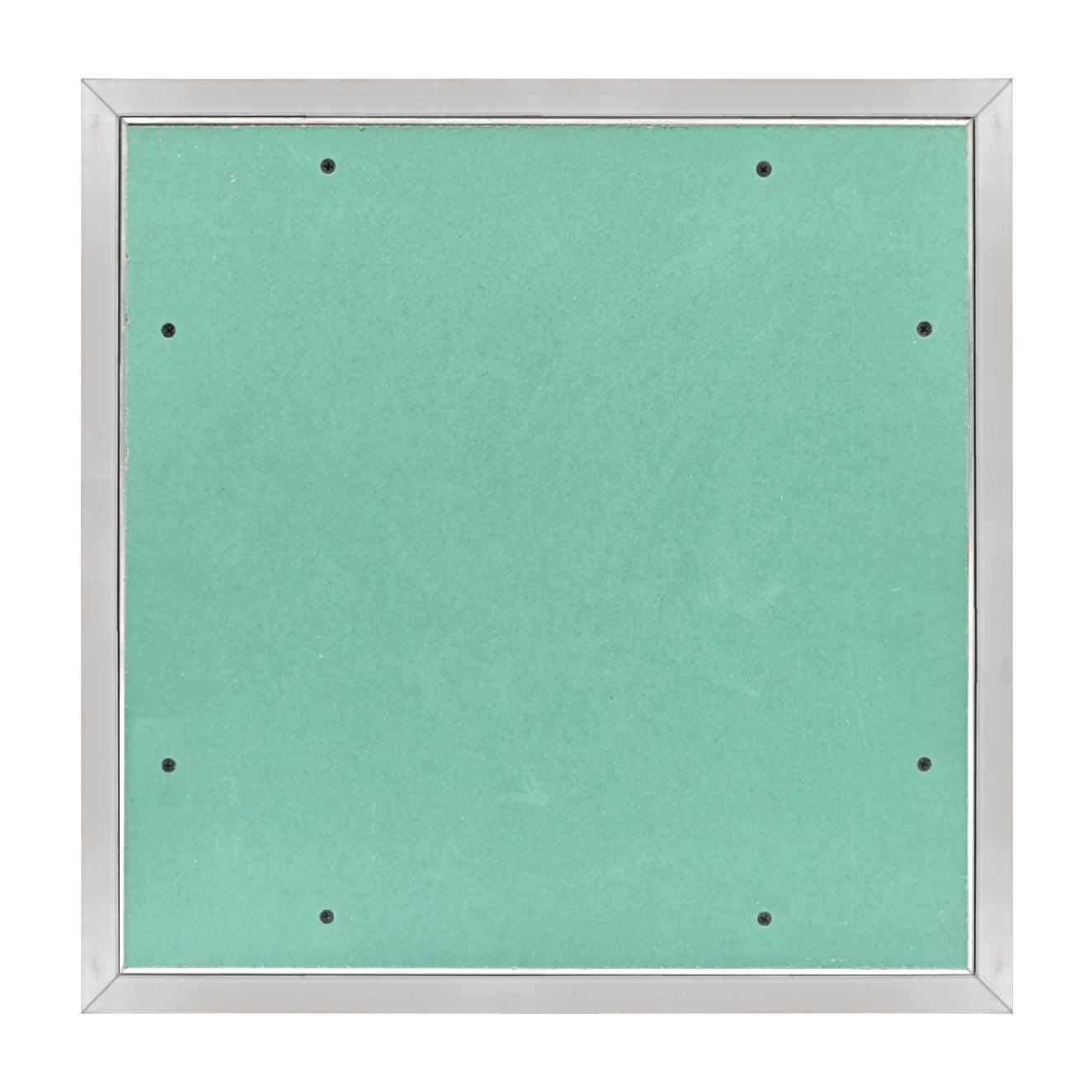

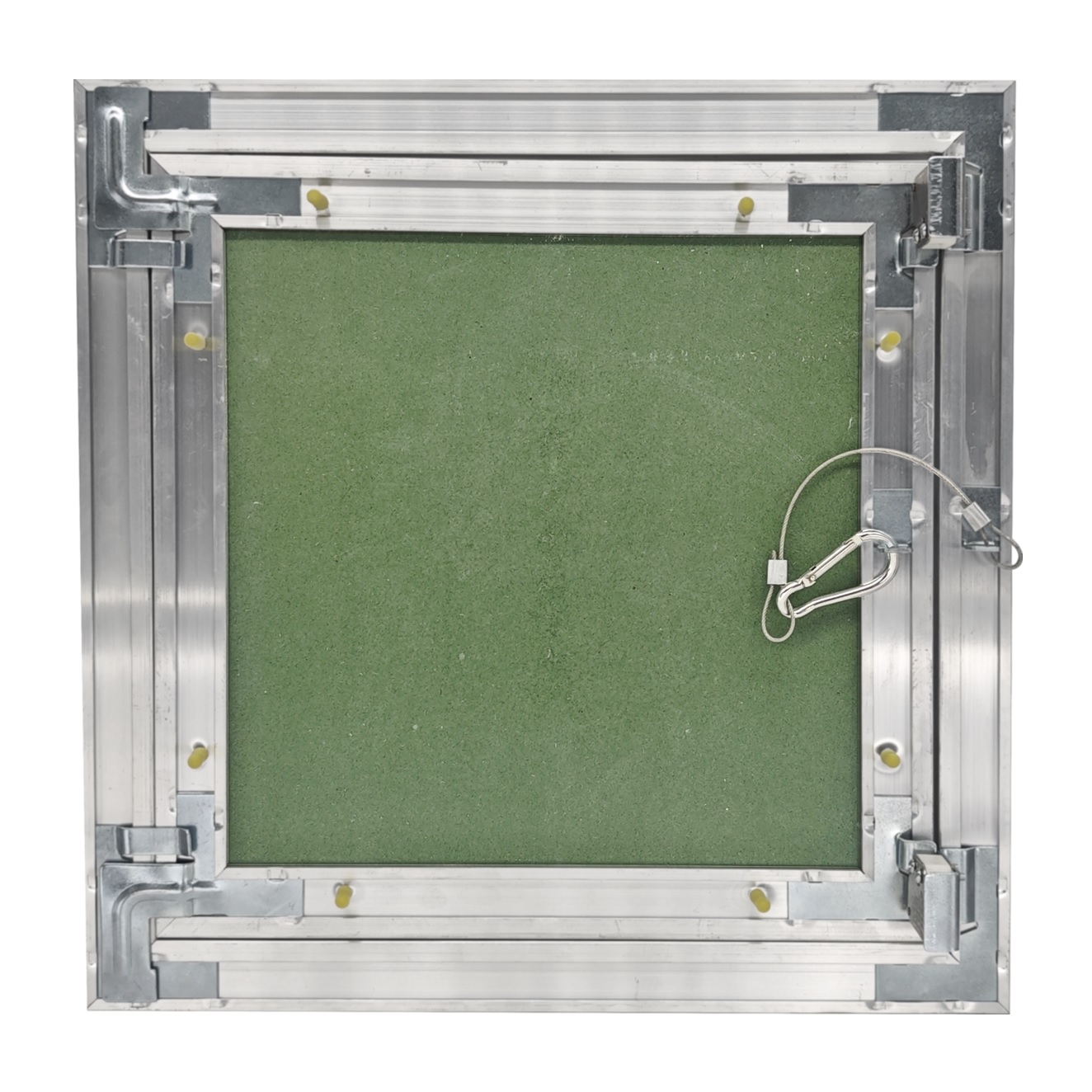

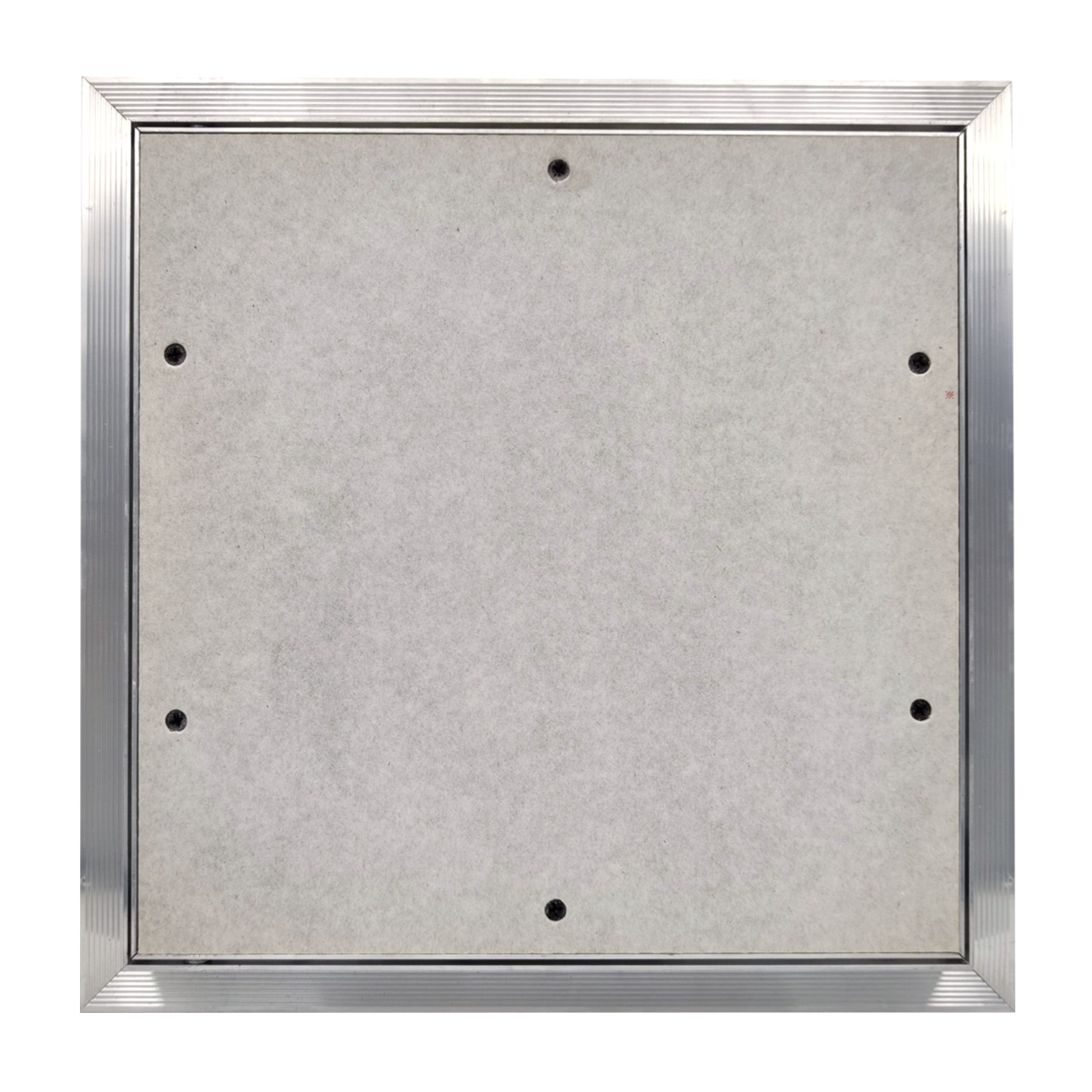

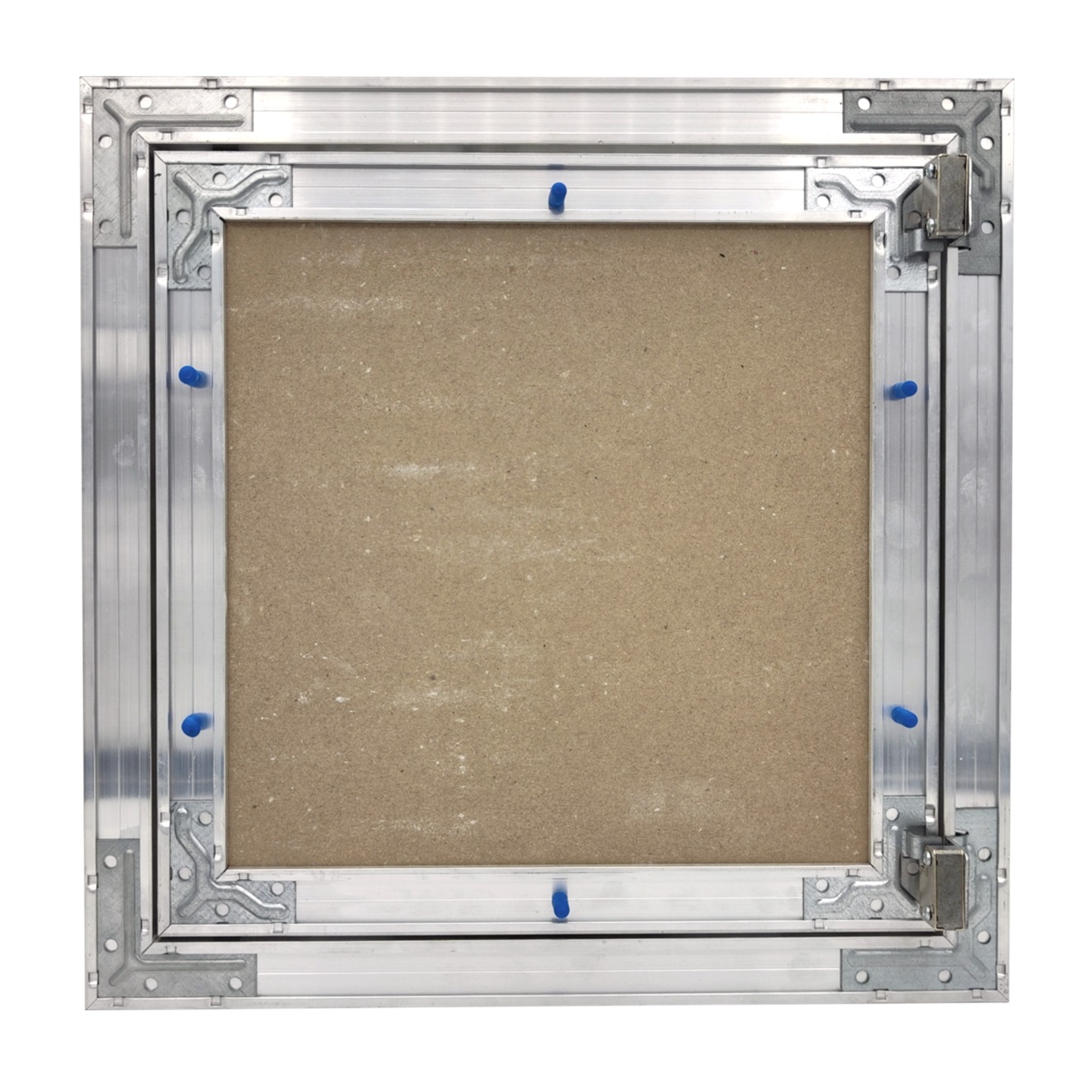

Aluminium drywall inspection door allows easy access to built in inspection openings.
| Article | Description | EAN | Width | Height | Depth | |
|---|---|---|---|---|---|---|
|
RLR2020
|
inspection hatch metal, for drywal, 200x200mm
|
4750492219881
|
200 mm | 200 mm | 17 mm |
|
RLR2020-25
|
inspection hatch metal, for drywal, 200x200x25mm
|
4750492019801
|
200 mm | 200 mm | 28 mm |
|
RLR3030
|
inspection hatch metal, for drywal, 300x300mm
|
4750492219898
|
300 mm | 300 mm | 17 mm |
|
RLR3030-25
|
inspection hatch metal, for drywal, 300x300x25mm
|
4750492019818
|
300 mm | 300 mm | 28 mm |
|
RLR4040
|
inspection hatch metal, for drywal, 400x400mm
|
4750492219904
|
400 mm | 400 mm | 17 mm |
|
RLR4040-25
|
inspection hatch metal, for drywal, 400x400x25mm
|
4750492019825
|
400 mm | 400 mm | 28 mm |
|
RLR5050
|
inspection hatch metal, for drywal, 500x500mm
|
4750492219911
|
500 mm | 500 mm | 17 mm |
|
RLR5050-25
|
inspection hatch metal, for drywal, 500x500x25mm
|
4750492020098
|
|||
|
RLR6060
|
inspection hatch metal, for drywal, 600x600mm
|
4750492219928
|
600 mm | 600 mm | 17 mm |
|
RLR6060-25
|
inspection hatch metal, for drywal, 600x600x25mm
|
4750492020104
|
| Type |
A [mm] |
B [mm] |
C [mm] |
D [mm] |
E [mm] |
F [mm] |
m [kg] |
| RLR2020 | 252 | 252 | 204 | 204 | 17 | 43 | 0,83 |
| RLR2020-25 | 255 | 255 | 204 | 204 | 30 | 54 | 1,2 |
| RLR3030 | 352 | 352 | 304 | 304 | 17 | 43 | 1,4 |
| RLR3030-25 | 355 | 355 | 304 | 304 | 30 | 54 | 2,3 |
| RLR4040 | 452 | 452 | 404 | 404 | 17 | 43 | 2,2 |
| RLR4040-25 | 455 | 455 | 404 | 404 | 30 | 54 | 3,8 |
| RLR5050 | 552 | 552 | 504 | 504 | 17 | 43 | 3,1 |
| RLR5050-25 | 555 | 555 | 504 | 504 | 30 | 54 | 5,6 |
| RLR6060 | 652 | 652 | 604 | 604 | 17 | 43 | 4,2 |
| RLR6060-25 | 655 | 655 | 604 | 604 | 30 | 54 | 7,8 |
