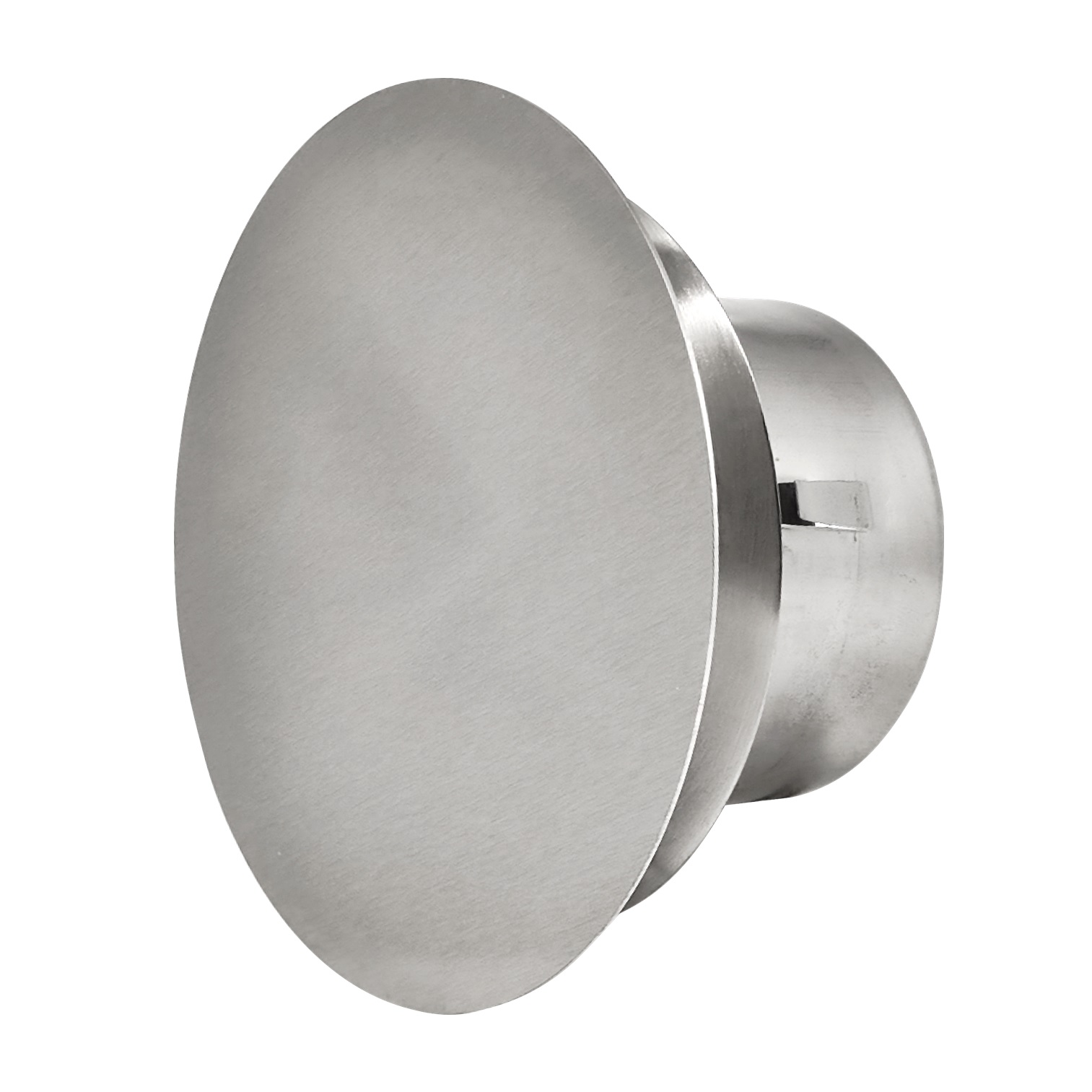

metal all-purpose diffusers DMT
Construction:
- Made from polymer coated steel
- Adjustable air flow
- With mounting collar
Installation:
- Wall or ceiling mounting with all types of circular ducts
Colors: White RAL9016, anthracite
Universal metal diffusers for exhaust or supply ventilation with a laconic, straight front cover.
Functions
Adjustable
The product is equipped with a manual regulator that allows you to regulate the air flow volume.
| Article | Description | EAN | Connection | Functions | |
|---|---|---|---|---|---|
|
DMT100A
|
diffuser metal, all-purpose, Ø100mm, anthracite
|
4750492027783
|
Ø 100 mm |
|
|
DMT100
|
diffuser metal, all-purpose, Ø100mm, white
|
4750492027745
|
Ø 100 mm |
|
|
DMT125A
|
diffuser metal, all-purpose, Ø125mm, anthracite
|
4750492027790
|
Ø 125 mm |
|
|
DMT125
|
diffuser metal, all-purpose, Ø125mm, white
|
4750492027752
|
Ø 125 mm |
|
|
DMT150
|
diffuser metal, all-purpose, Ø150mm, white
|
4750492027769
|
Ø 150 mm |
|
|
DMT160
|
diffuser metal, all-purpose, Ø160mm, white
|
4750492027776
|
Ø 160 mm |
|
|
DMT200
|
diffuser metal, all-purpose, Ø200mm, white
|
4750492027851
|
Ø 200 mm |
|
|
DMT80
|
diffuser metal, all-purpose, Ø80mm, white
|
4750492027738
|
Ø 80 mm |
|
| Type | ØD [mm] |
ØD1 [mm] |
ØD2 [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| DMT80 | 79 | 115 | 138 | 55 | 8 | 0,26 |
| DMT100 | 98 | 140 | 168 | 55 | 8 | 0,33 |
| DMT125 | 124 | 166 | 197 | 59 | 9 | 0,44 |
| DMT150 | 148 | 201 | 241 | 58 | 8 | 0,61 |
| DMT160 | 158 | 207 | 248 | 58 | 8 | 0,63 |
| DMT200 | 198 | 248 | 298 | 61 | 12 | 0,84 |
| Modifications |
| DMTxxx – white colour |
| DMTxxxA – anthracite colour |
