electric fans E-EXTRA series EET
Construction:
- Square shaped, equipped with a front panel
- Made from plastic
- Axial fan
- Type of bearing: slide bearing
- Protection against environmental factor: IPX4
- Insulation class: B
Installation:
- Can be connected directly to the ventilation shaft or can be mount with all type round air ducts
- Mounting position: horizontal, in wall
- Application: indoors
Electrical connection: 220-240V~ 50Hz
Ambient temperature (°C): +5 ... +40
Sizes [mm]: Ø100, Ø120, Ø125, Ø150
Colors: White, anthracite, golden, silver, stainless steel
EET series exhaust fans are stylish and efficient! Just look at these modern shapes and colors! You can choose classic white or maybe golden or silver color, but maybe you would like in elegant anthracite color or even with stainless steel cover – we have them all in our assortment.
EUROPLAST EET series domestic exhaust fans are equipped with a decorative front panel. They have a more aesthetic appearance and less stand out from the overall design of the room. Fans are efficient, easy to install and operate. The fan housing, grille and front panel are made of high-quality and durable ABS plastic that is resistant to temperature and UV rays.
In our assortment, it is possible to choose what you need from a range of sizes that can be connected to 100, 120, 125 and 150 mm round air ducts. It is also possible to choose from various function modifications, from a simple fan to a fan with a timer and a humidity sensor. Fans produced by EUROPLAST are safe because they motor is equipped with thermal fuse.
To ensure protection from air backflow to the room, we recommend equipping the fan with a EUROPLAST EEV series valve.
Functions
Timer
The device is equipped with a timer. After switching off the fan, the timer keeps it running for a specific time interval that is set up by a controller. The set operating time after switching off the fan is from 1 to 30 minutes.
Humidity sensor
The fan is equipped with a humidity level control that may be used to set the level of humidity from ~60%RH - ~90%RH and a delay control that may be used to set the delay from 1 to 30 min. The fan is turned on automatically when a certain humidity level is reached in the room or it may be turned on manually by a switch.
| Article | Description | EAN | Connection | Functions | |
|---|---|---|---|---|---|
|
EET100
|
electric fan E-EXTRA, Ø100mm with cover
|
4750492008805
|
Ø 100 mm |
|
|
EET100A
|
electric fan E-EXTRA, Ø100mm with cover, anthracite
|
4750492012581
|
Ø 100 mm |
|
|
EET100G
|
electric fan E-EXTRA, Ø100mm with cover, gold
|
4750492008812
|
Ø 100 mm |
|
|
EET100i
|
electric fan E-EXTRA, Ø100mm with cover, inox
|
4750492016787
|
Ø 100 mm |
|
|
EET100S
|
electric fan E-EXTRA, Ø100mm with cover, silver
|
4750492008843
|
Ø 100 mm |
|
|
EET100T
|
electric fan E-EXTRA, Ø100mm with cover, timer
|
4750492008874
|
Ø 100 mm |
|
|
EET100TA
|
electric fan E-EXTRA, Ø100mm with cover, timer, anthracite
|
4750492014929
|
Ø 100 mm |
|
|
EET100TG
|
electric fan E-EXTRA, Ø100mm with cover, timer, gold
|
4750492009086
|
Ø 100 mm |
|
|
EET100HT
|
electric fan E-EXTRA, Ø100mm with cover, timer, humidity sensor
|
4750492009048
|
Ø 100 mm |
|
|
EET100HTA
|
electric fan E-EXTRA, Ø100mm with cover, timer, humidity sensor, anthracite
|
4750492014912
|
Ø 100 mm |
|
| Type | A | B | C | D | E |
| EET100 | 145 | 145 | 80 | 99 | 35 |
| EET125 | 170 | 170 | 80 | 124 | 35 |
| EET150 | 195 | 195 | 80 | 149 | 35 |
| Modifications |
| EETxxxT - fan is equipped with a timer function |
| EETxxxHT - fan is equipped with a humidity level control function |
| Type | Voltage [V / Hz] |
Power [W] |
IP | Speed [RPM] |
Air flow [m3/h] |
Noise level: 3m distance, Lp A dB(A) |
Temperature min/max (°C) |
Air duct size (mm) |
Weight [kg] |

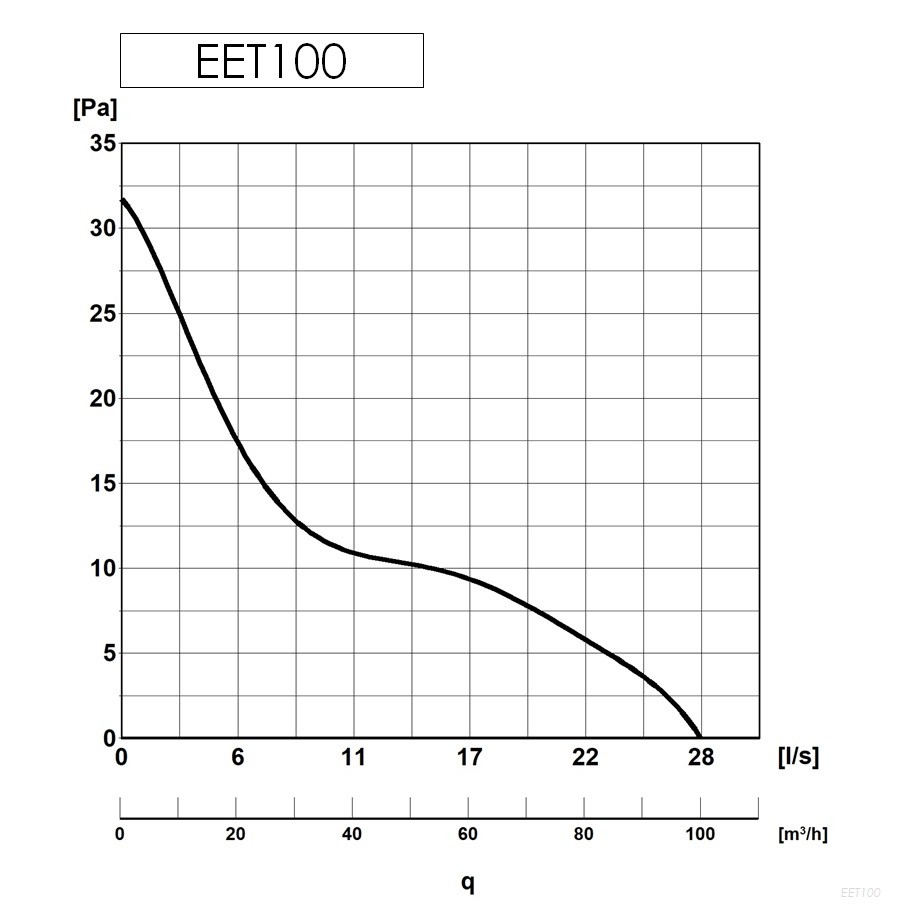

| EET100 | 220-240V-50Hz | 15 | IPX4 | 2550 | 100 | 32 | +5/+40 | 100 | 0,43 |

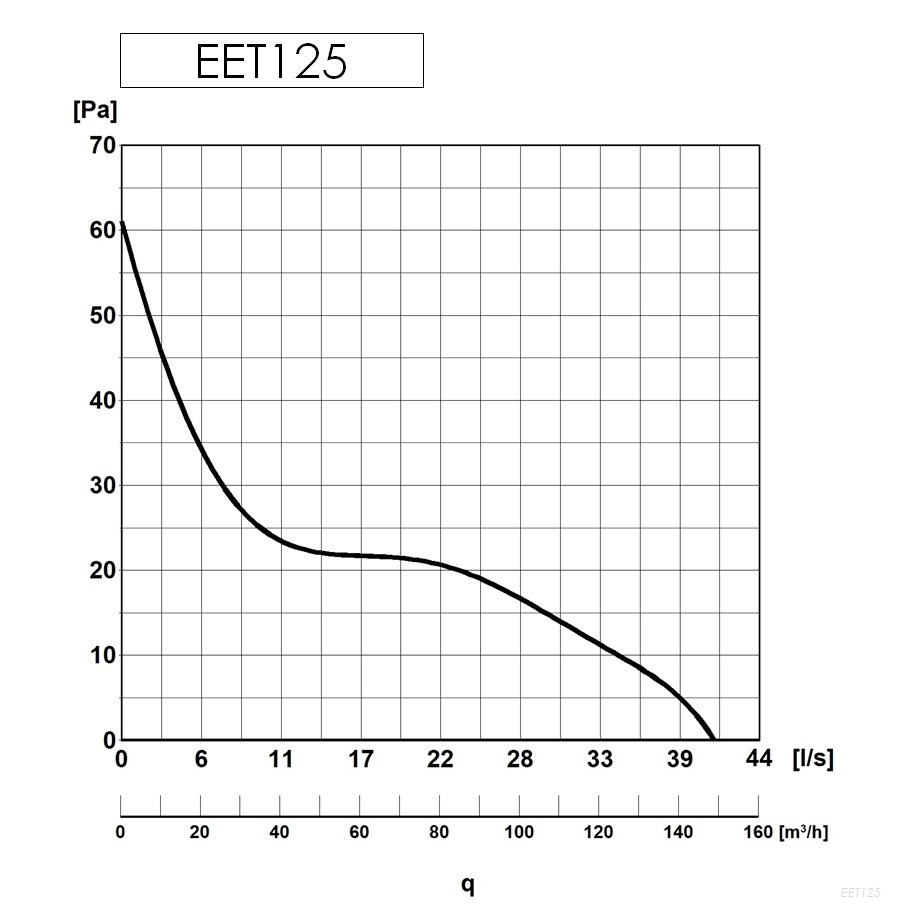

| EET125 | 220-240V-50Hz | 16 | IPX4 | 2360 | 150 | 36 | +5/+40 | 125 | 0,52 |

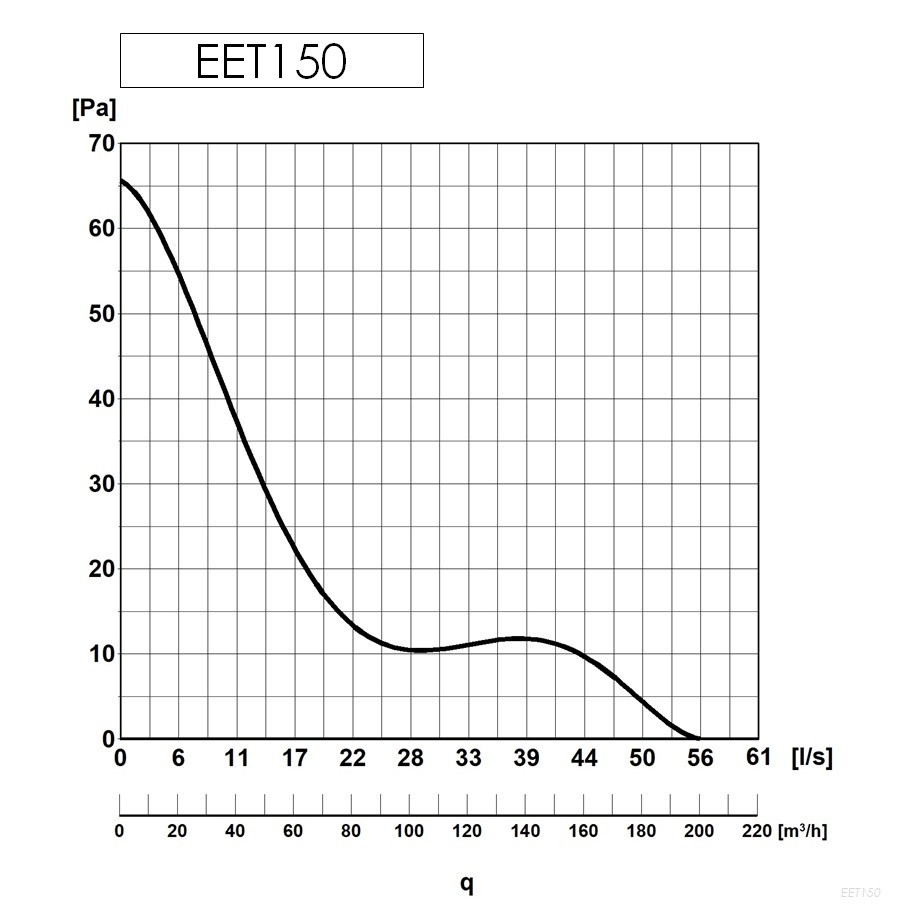

| EET150 | 220-240V-50Hz | 20 | IPX4 | 2100 | 200 | 40 | +5/+40 | 150 | 0,66 |
