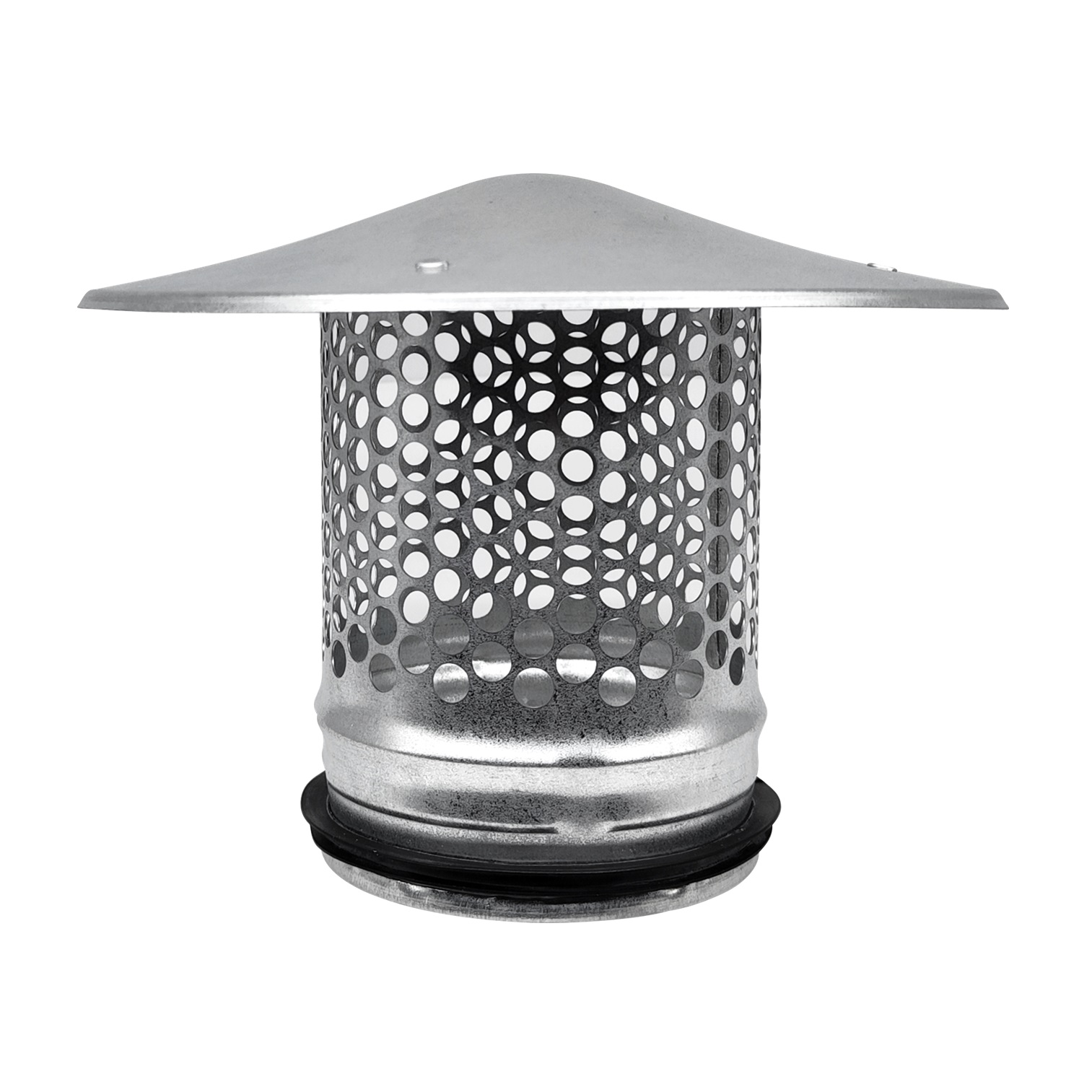

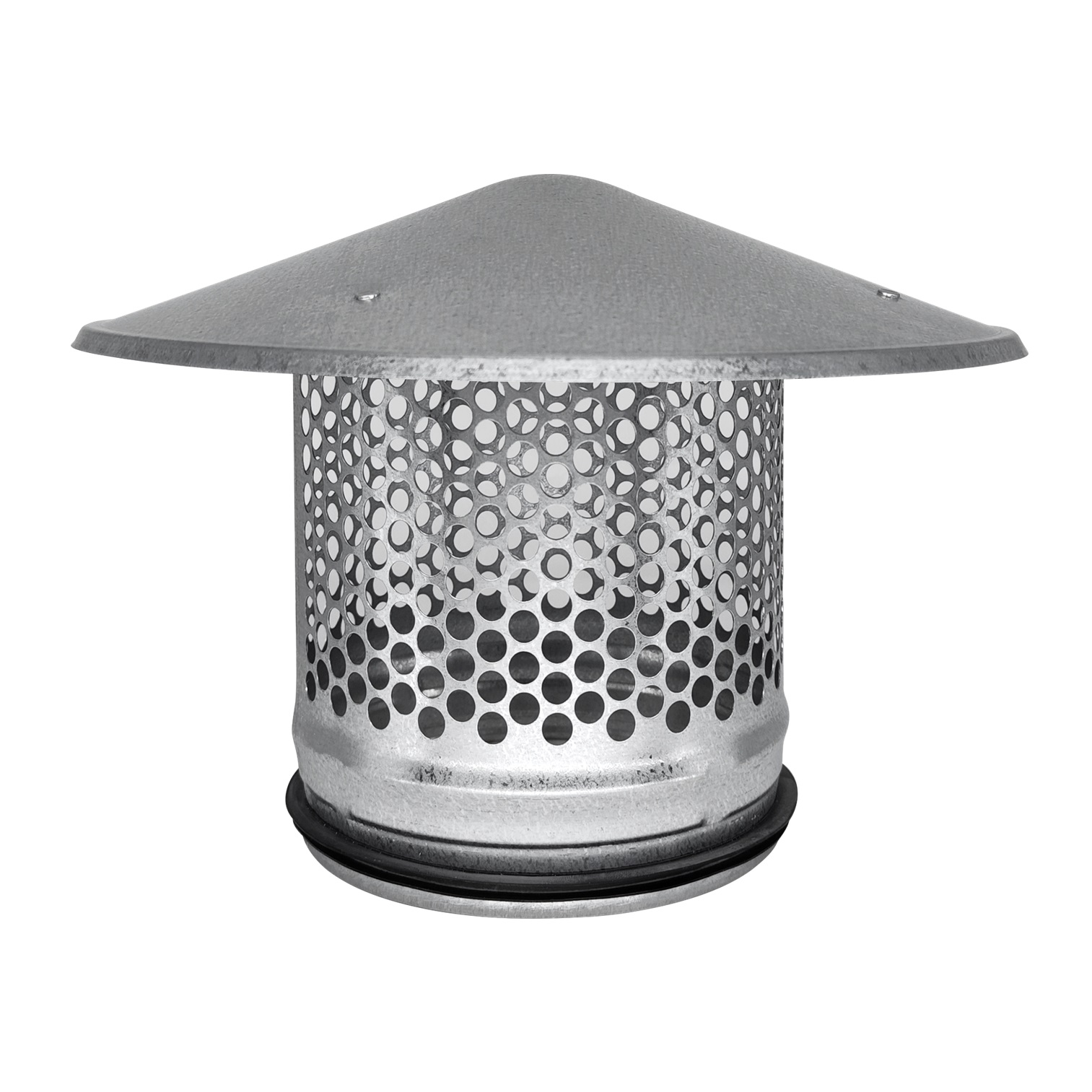

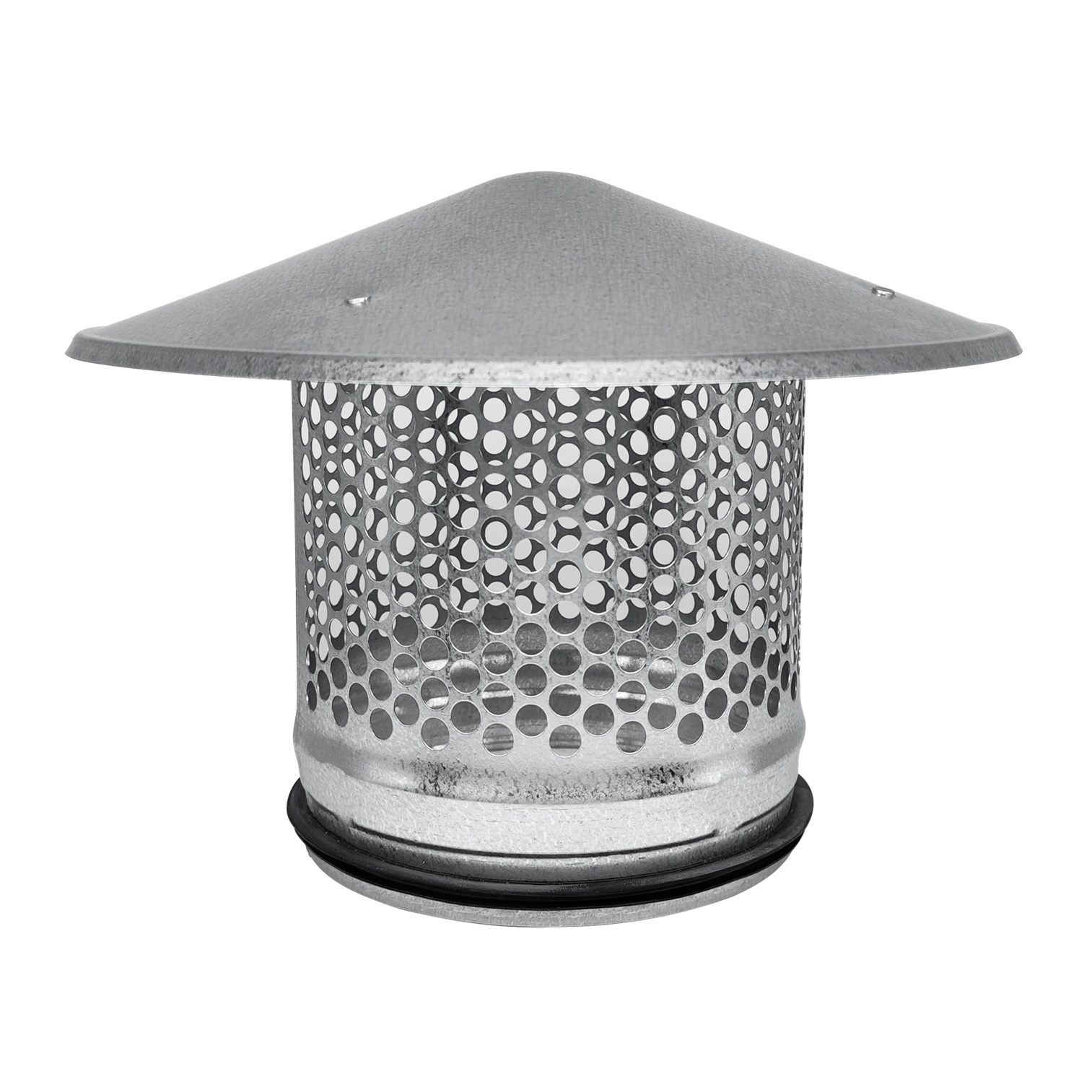

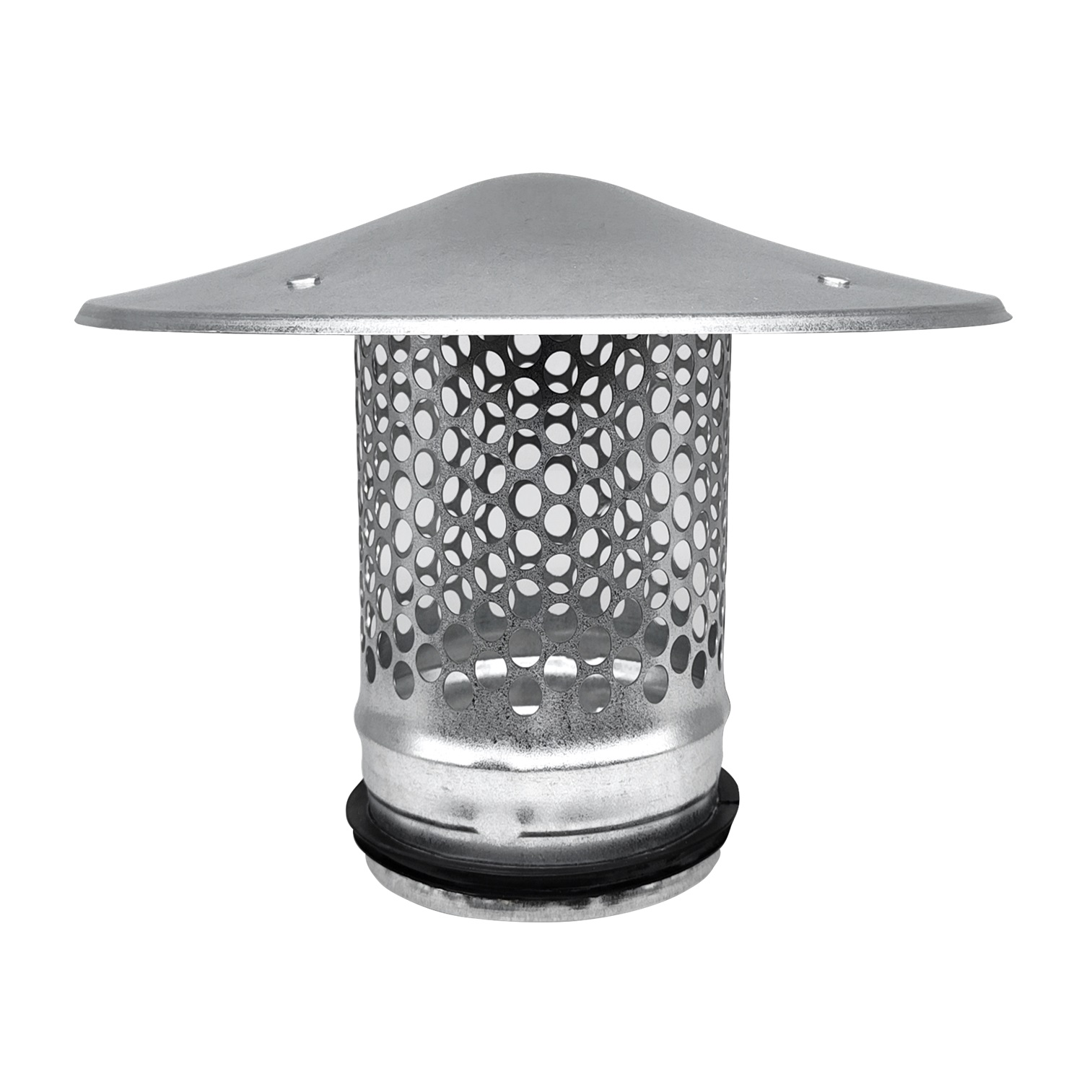

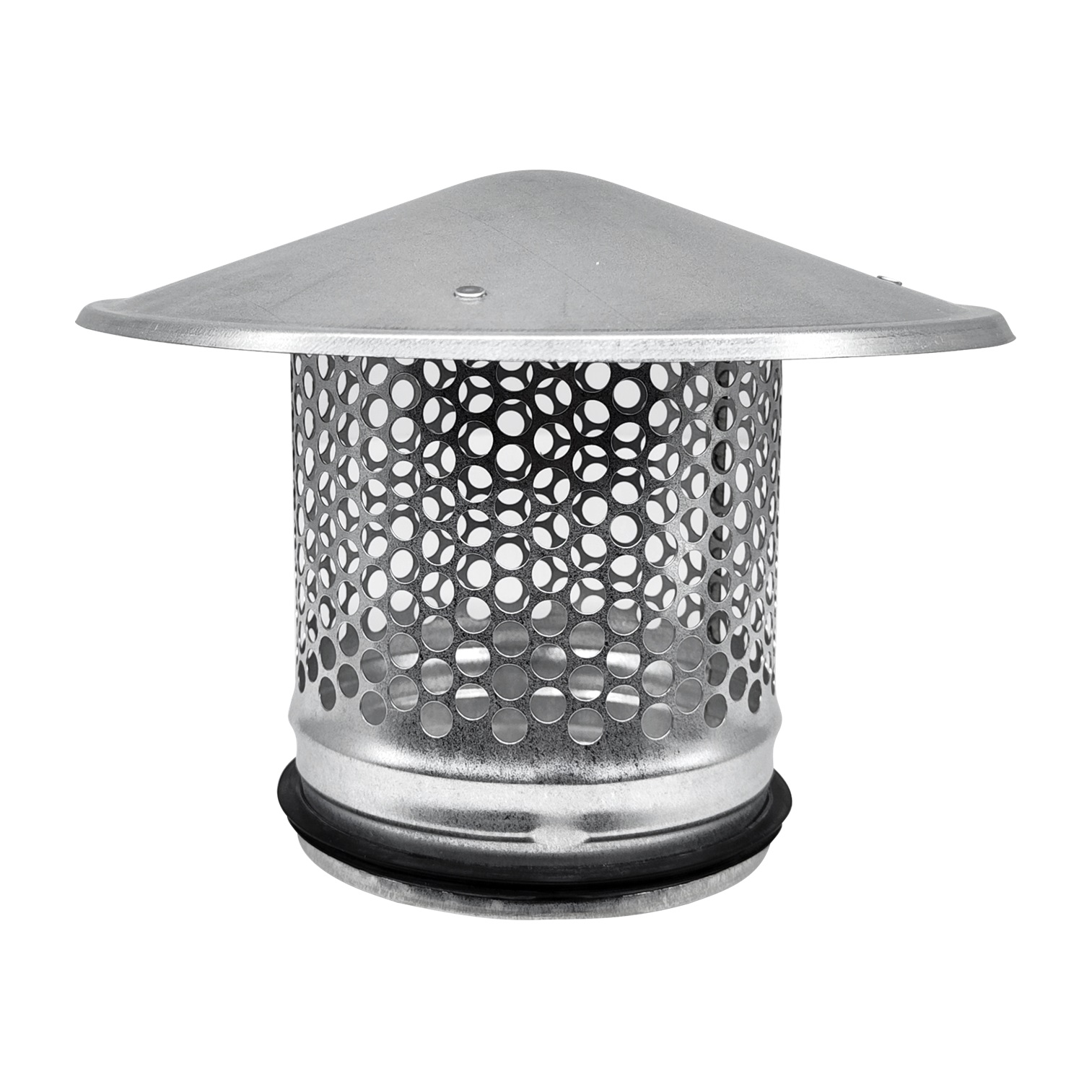

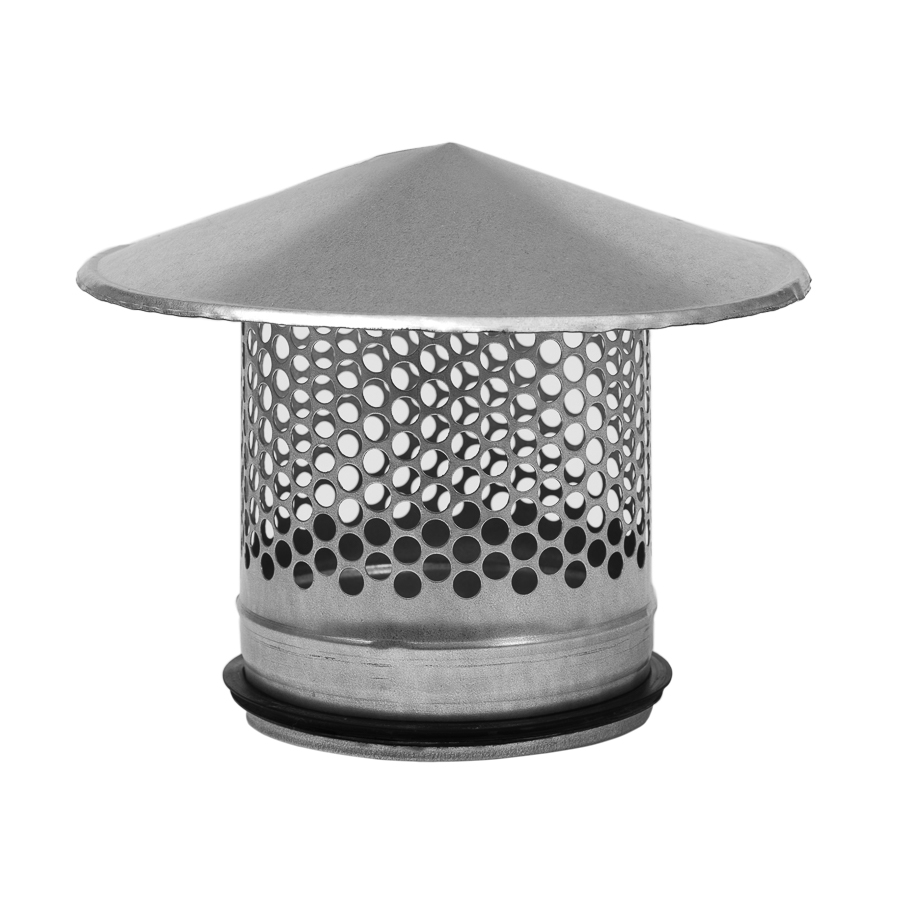

roof caps VH
Construction:
- Material galvanized steel or other metal
- EPDM seals
- With cone-type precipitation cover
Instalation:
- Easy installation.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
VH100
|
roof cap metal, Ø100mm with rubber
|
4750492001363
|
100 mm |
|
VH125
|
roof cap metal, Ø125mm with rubber
|
4750492001370
|
125 mm |
|
VH150
|
roof cap metal, Ø150mm with rubber
|
4750492028971
|
150 mm |
|
VH160
|
roof cap metal, Ø160mm with rubber
|
4750492001387
|
160 mm |
|
VH200
|
roof cap metal, Ø200mm with rubber
|
4750492001394
|
200 mm |
|
VH250
|
roof cap metal, Ø250mm with rubber
|
4750492106730
|
250 mm |
|
VH315
|
roof cap metal, Ø315mm with rubber
|
4750492106747
|
315 mm |
|
VH80
|
roof cap metal, Ø80mm with rubber
|
4750492220221
|
80 mm |

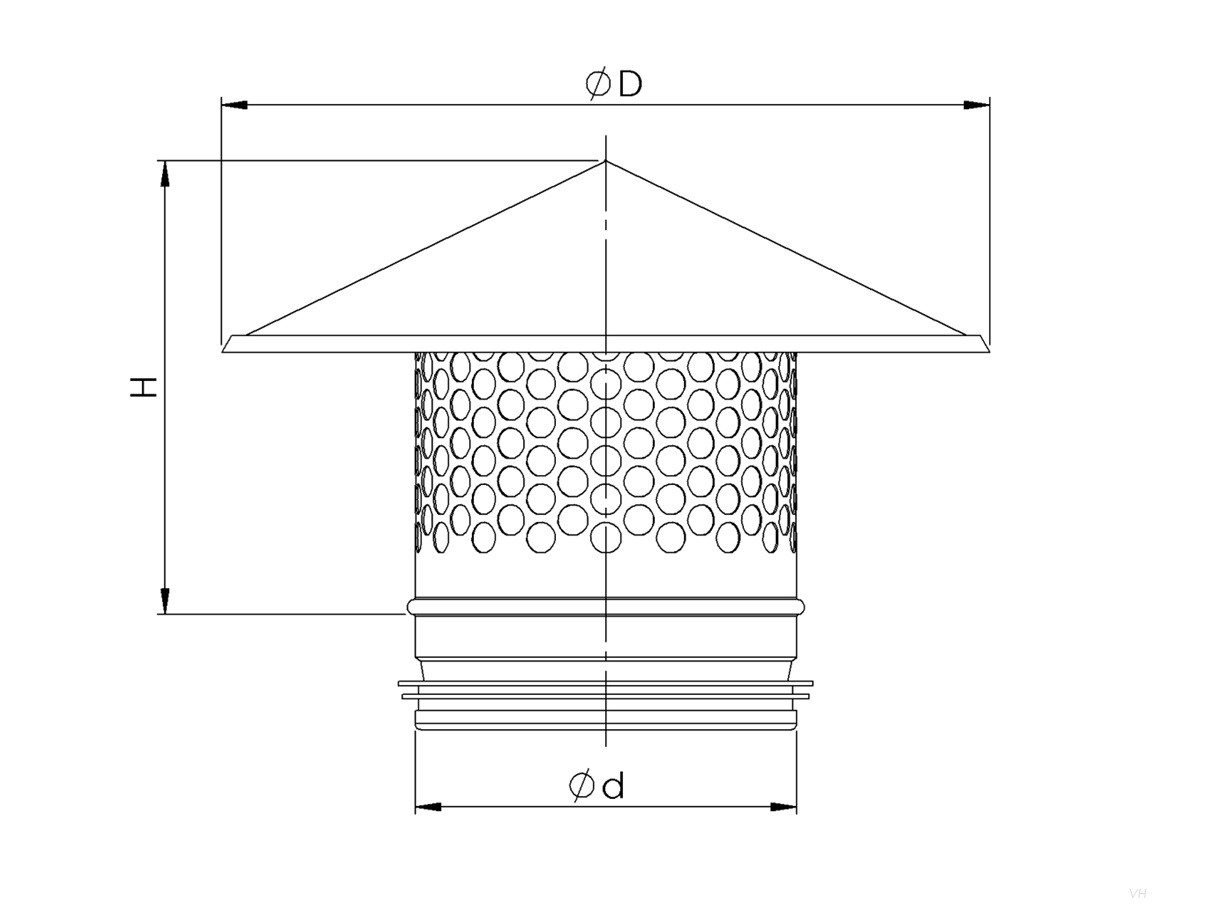

| Type |
ØD [mm] |
Ød [mm] |
H [mm] |
m [kg] |
| VH80 | 180 | 80 | 120 | 0,21 |
| VH100 | 200 | 100 | 120 | 0,25 |
| VH125 | 225 | 125 | 140 | 0,35 |
| VH150 | 260 | 150 | 150 | 0,44 |
| VH160 | 260 | 160 | 150 | 0,45 |
| VH200 | 320 | 200 | 160 | 0,63 |
| VH250 | 400 | 250 | 170 | 0,93 |
| VH315 | 470 | 315 | 190 | 1,25 |
