Products METAL ROUND SYSTEM silencers straight round silencers with insulation layer 50mm SRS-50

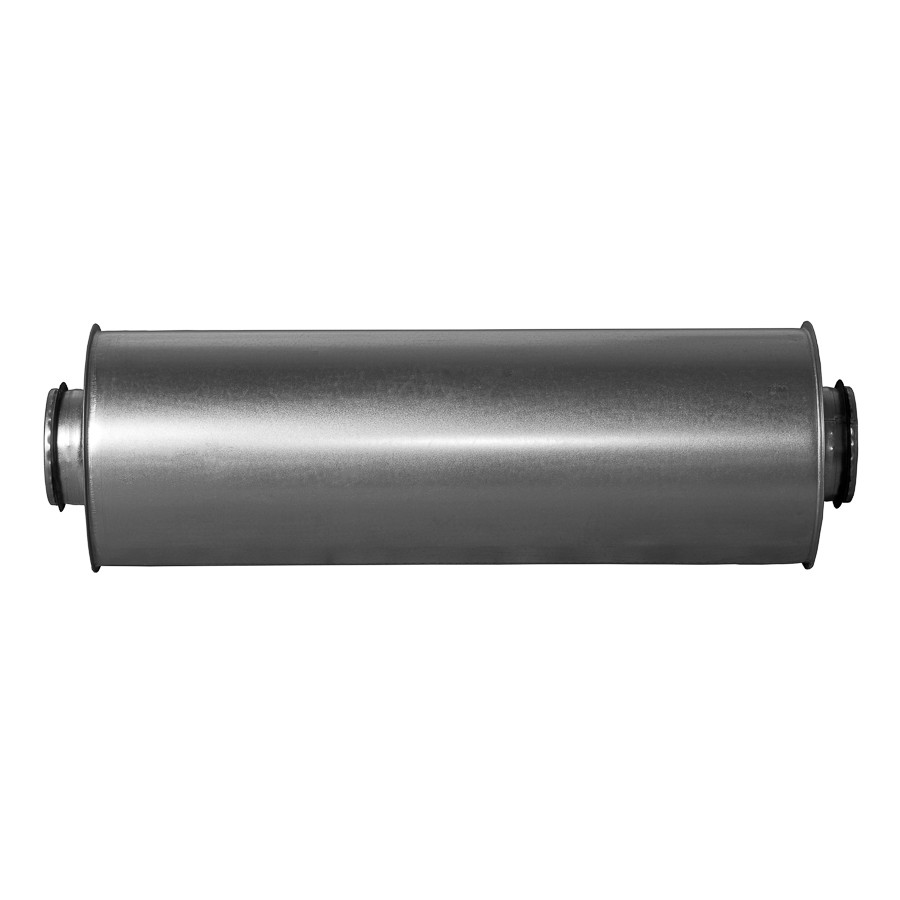

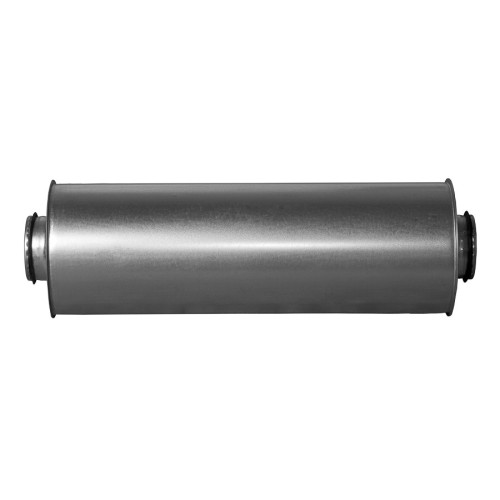

straight round silencers with insulation layer 50mm SRS-50

  • Gallery
  • Gallery

Construction:

  • Outer shell manufactured of galvanized steel
  • Perforated inner tube manufactured of galvanized steel
  • 50 mm sound absorption
  • Sound absorption material is mineral wool
  • Fabric to prevent wool particles from entering the duct system
  • Equipped with rubber gaskets

Installation:

  • Mounting with all type metal round ducts
  • Location: indoors
View products

EUROPLAST duct silencers are used for the attenuation of noise produced by ventilation systems and spread along ventilation ductwork. Silencers are used for installation in between air ducts. Europlast manufactured round duct silencers offer minimal resistance to airflow and can be used in a variety of noise control applications: Small fan system attenuation, Cross-talk attenuation, system noise regeneration attenuation and system terminal unit attenuation. If a higher noise attenuation is needed, multiple silencers can be mounted successively.

Length

Connection

Sort by

Article Description EAN Length Connection
SRS100-0.3
SRS100-0.3
silencer metal, Ø100mm-0.3m, insulation 50mm
20003651
 0,3 m 100 mm
SRS100-0.6
SRS100-0.6
silencer metal, Ø100mm-0.6m, insulation 50mm
4750492222355
 0,6 m 100 mm
SRS100-0.9
SRS100-0.9
silencer metal, Ø100mm-0.9m, insulation 50mm
4750492212097
 0,9 m 100 mm
SRS100-1.2
SRS100-1.2
silencer metal, Ø100mm-1.2m, insulation 50mm
4750492005262
 1,2 m 100 mm
SRS125-0.3
SRS125-0.3
silencer metal, Ø125mm-0.3m, insulation 50mm
20003652
 0,3 m 125 mm
SRS125-0.6
SRS125-0.6
silencer metal, Ø125mm-0.6m, insulation 50mm
4750492212042
 0,6 m 125 mm
SRS125-0.9
SRS125-0.9
silencer metal, Ø125mm-0.9m, insulation 50mm
4750492212103
 0,9 m 125 mm
SRS125-1.2
SRS125-1.2
silencer metal, Ø125mm-1.2m, insulation 50mm
4750492005279
 1,2 m 125 mm
SRS150-0.3
SRS150-0.3
silencer metal, Ø150mm-0.3m, insulation 50mm
20003653
 0,3 m 150 mm
SRS150-0.6
SRS150-0.6
silencer metal, Ø150mm-0.6m, insulation 50mm
20000365
 0,6 m 150 mm

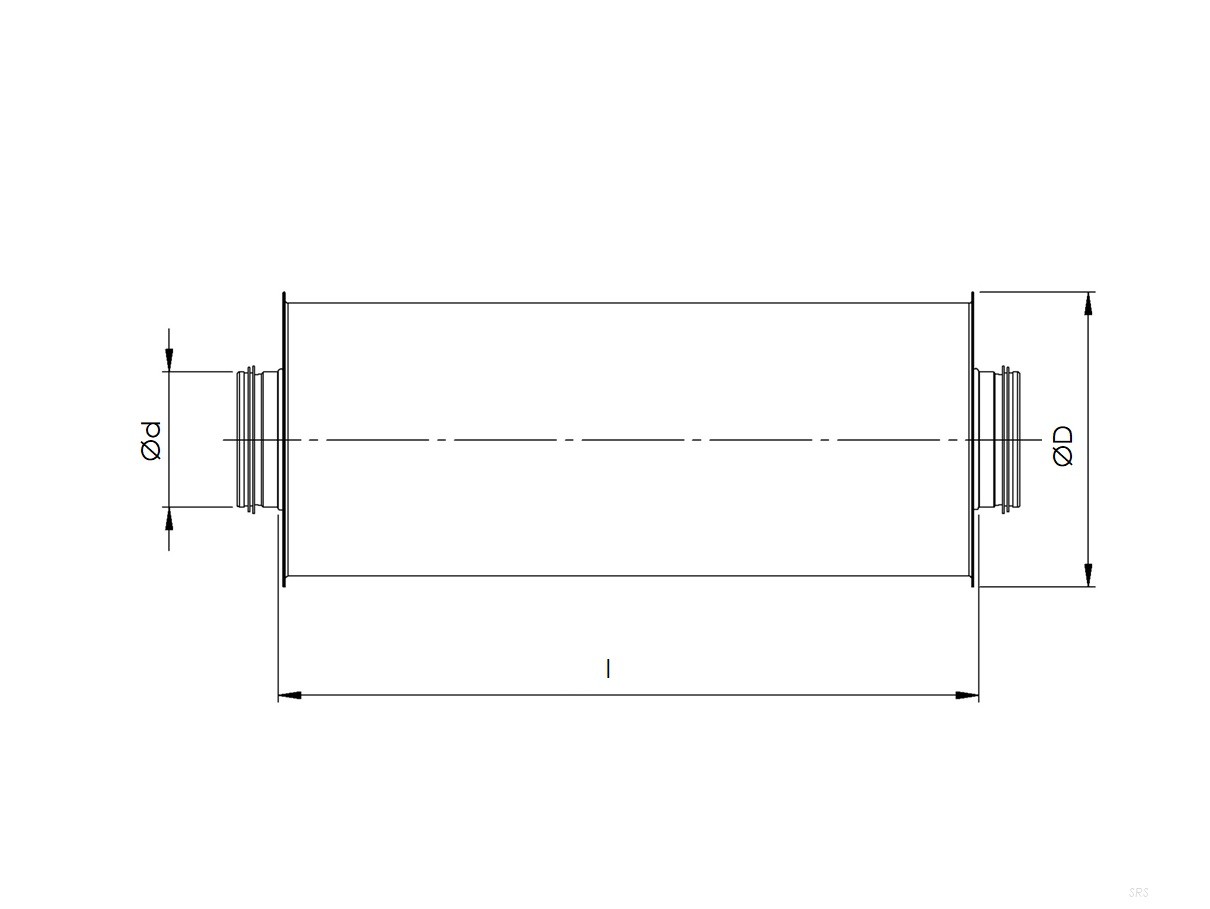

Type Ødnom
[mm]		 lmin
[mm]		 ØD
[mm]		 Sound attenuation (dB) at frequency (Hz) m
[kg]
63 125 250 500 1000 2000 4000 8000
SRS80-0.3 80 300 180 2 5 9 14 24 25 20 16 1,5
SRS80-0.6 80 600 180 2 7 12 26 50 50 46 23 2,3
SRS80-0.9 80 900 180 3 11 22 41 48 49 48 34 3,9
SRS80-1.2 80 1200 180 4 13 27 49 50 51 49 41 5,5
SRS100-0.3 100 300 200 2 5 8 13 22 24 19 12 1,7
SRS100-0.6 100 600 200 2 6 11 25 43 48 35 21 2,6
SRS100-0.9 100 900 200 3 10 19 36 46 4846 4631 314 4,6
SRS100-1.2 100 1200 200 3 12 24 46 49 49 48 37 6,3
SRS125-0.3 125 300 225 1 4 7 13 21 22 17 11 2,7
SRS125-0.6 125 600 225 2 5 10 23 41 41 28 17 3,8
SRS125-0.9 125 900 225 2 8 16 32 45 47 36 21 5,6
SRS125-1.2 125 1200 225 2 7 19 41 49 48 46 24 6,9
SRS160-0.3 160 300 260 0 3 5 12 20 18 11 8 2,9
SRS160-0.6 160 600 260 1 4 8 20 34 32 19 13 4,1
SRS160-0.9 160 900 260 1 6 14 27 44 35 24 16 6,4
SRS160-1.2 160 1200 260 2 6 16 35 48 45 30 19 7,9
SRS200-0.3 200 300 300 0 2 4 10 19 14 10 7 4,1
SRS200-0.6 200 600 300 1 3 8 17 27 24 14 10 5,6
SRS200-0.9 200 900 300 2 4 13 23 37 28 19 14 7,5
SRS200-1.2 200 1200 300 2 5 15 29 45 41 23 15 9,7
SRS250-0.6 250 600 350 1 2 7 15 23 19 9 7 6,3
SRS250-0.9 250 900 350 1 3 11 20 35 24 12 11 9,1
SRS250-1.2 250 1200 350 2 4 13 26 42 31 14 13 11,5
SRS315-0.6 315 600 415 0 2 6 12 19 13 8 7 7,3
SRS315-0.9 315 900 415 1 3 9 16 28 15 11 10 10,3
SRS315-1.2 315 1200 415 1 3 10 20 33 19 13 11 14,2
SRS400-0.6 400 600 500 0 1 3 7 15 9 7 6 9,6
SRS400-0.9 400 900 500 0 2 7 10 15 10 9 9 12,9
SRS400-1.2 400 1200 500 0 2 6 12 24 14 13 10 16,9
SRS500-0.6 500 600 600 0 1 3 7 10 10 8 3 12,4
SRS500-0.9 500 900 600 0 1 4 10 11 11 10 4 16,5
SRS500-1.2 500 1200 600 0 1 5 11 12 12 11 5 19,9
