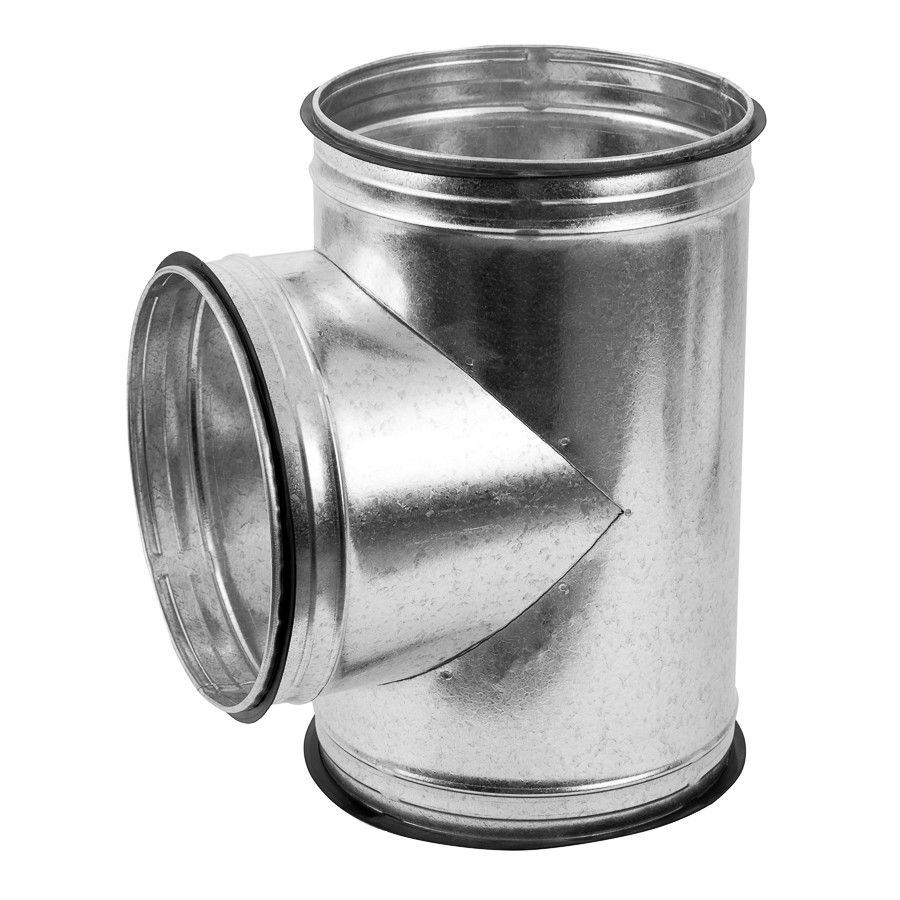

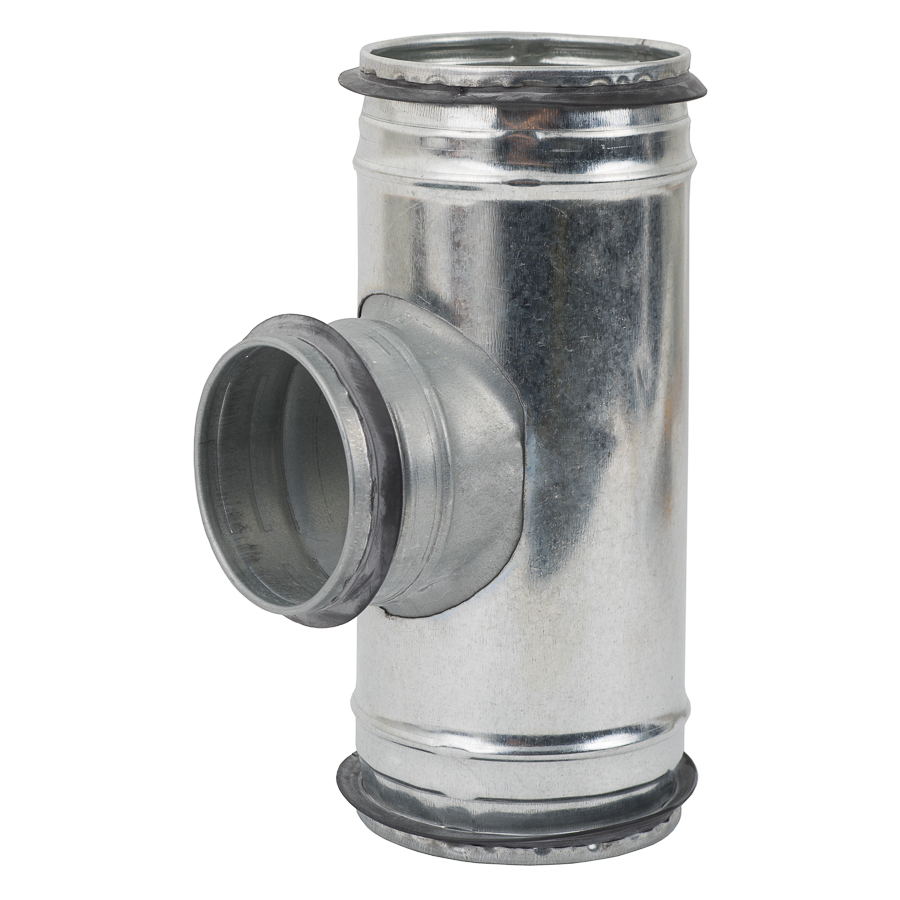

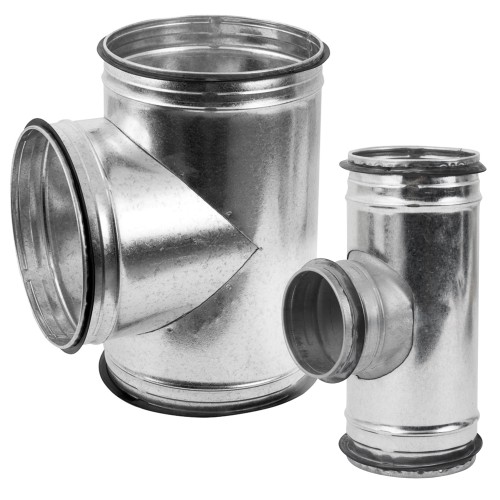

T-pieces with gaskets TCPS

Construction:

  • Material galvanized steel or other metal
  • EPDM seals
  • Pressed
  • Segmented
  • Manufactured according "D" class



Instalation:

  • Easy installation.



Connection

Class

Sort by

Article Description EAN Connection Class
TCPS100-100
TCPS100-100
T-joint metal, Ø100-Ø100mm with rubber, extruded
4750492001110
100-100 mm M1
TCPS100-80
TCPS100-80
T-joint metal, Ø100-Ø80mm with rubber, extruded
4750492211410
100-80 mm M1
TCPS125-100
TCPS125-100
T-joint metal, Ø125-Ø100mm with rubber, extruded
4750492001127
125-100 mm M1
TCPS125-125
TCPS125-125
T-joint metal, Ø125-Ø125mm with rubber, extruded
4750492001134
125-125 mm M1
TCPS125-80
TCPS125-80
T-joint metal, Ø125-Ø80mm with rubber
20001116
TCPS150-100
TCPS150-100
T-joint metal, Ø150-Ø100mm with rubber
20001119
TCPS150-125
TCPS150-125
T-joint metal, Ø150-Ø125mm with rubber
20001120
TCPS150-150
TCPS150-150
T-joint metal, Ø150-Ø150mm with rubber
20001121
TCPS150-80
TCPS150-80
T-joint metal, Ø150-Ø80mm with rubber
20001122
TCPS160-100
TCPS160-100
T-joint metal, Ø160-Ø100mm with rubber, extruded
4750492107171
160-100 mm M1

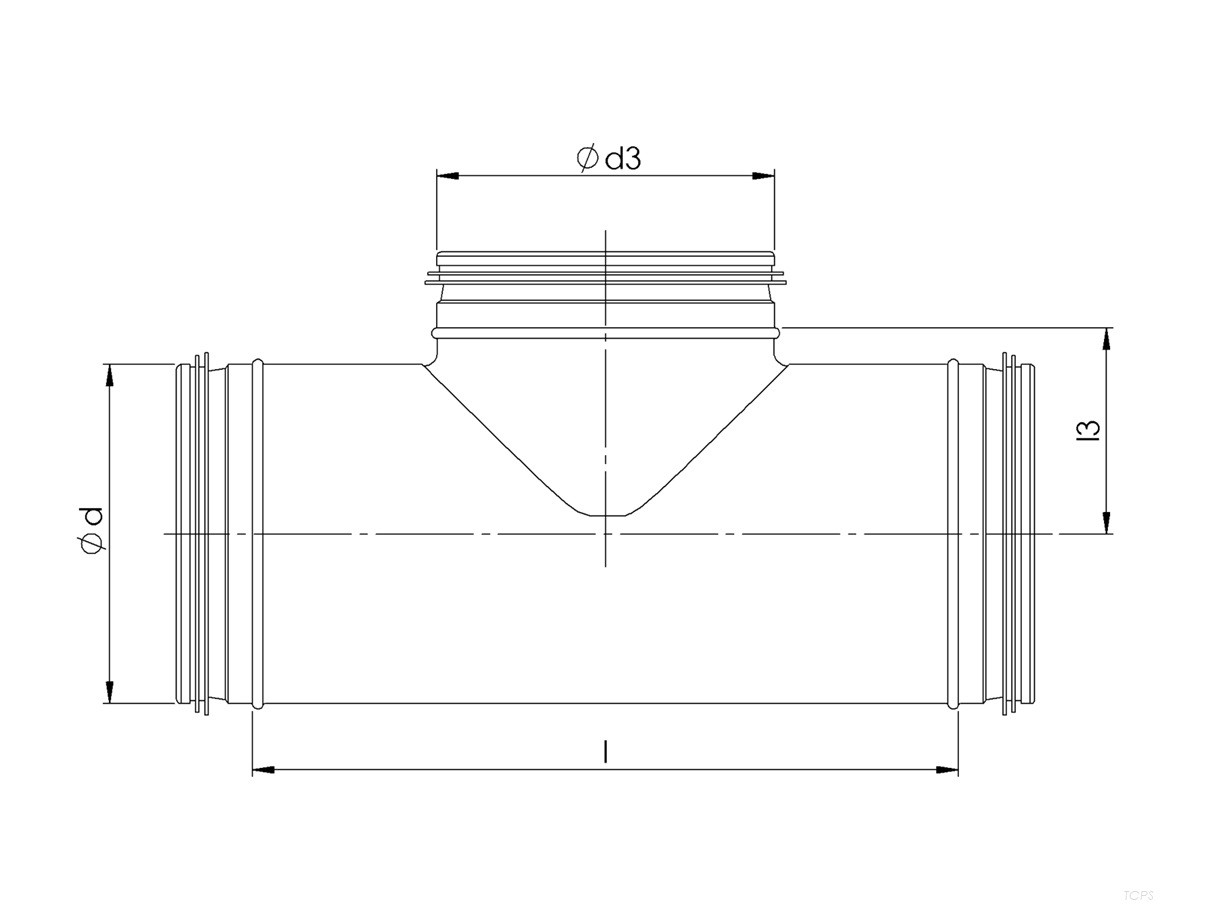

Type

Ød

[mm]

Ød3

[mm]

I

[mm]

l3

[mm]

m
[kg]
TCPS80-80 80 80 160 54 0,35
TCPS100-80 100 80 175 64 0,41
TCPS100-100 100 100 195 71 0,49
TCPS125-80 125 80 175 77 0,43
TCPS125-100 125 100 195 79 0,56
TCPS125-125 125 125 220 82 0,64
TCPS150-80 150 80 150 85 0,54
TCPS150-100 150 100 170 85 0,56
TCPS150-125 150 125 195 85 0,62
TCPS150-150 150 150 245 104 0,67
TCPS160-80 160 80 175 94 0,53
TCPS160-100 160 100 195 97 0,67
TCPS160-125 160 125 220 99 0,76
TCPS160-150 160 150 220 90 0,73
TCPS160-160 160 160 255 99 0,97
TCPS180-80 180 80 150 100 0,58
TCPS180-100 180 100 170 100 0,64
TCPS180-125 180 125 195 100 0,72
TCPS180-150 180 150 220 100 0,79
TCPS180-160 180 160 230 100 0,83
TCPS180-180 180 180 250 100 0,92
TCPS200-80 200 80 185 114 0,65
TCPS200-100 200 100 205 117 0,85
TCPS200-125 200 125 230 118 0,92
TCPS200-150 200 150 255 130 0,98
TCPS200-160 200 160 265 129 1,17
TCPS200-180 200 180 250 110 0,98
TCPS200-200 200 200 270 110 1,00
TCPS250-80 250 80 185 139 0,86
TCPS250-100 250 100 205 146 1,11
TCPS250-125 250 125 230 150 1,11
TCPS250-150 250 150 255 154 1,11
TCPS250-160 250 160 265 154 1,19
TCPS250-180 250 180 250 135 1,33
TCPS250-200 250 200 270 135 1,29
TCPS250-250 250 250 320 135 1,49
TCPS315-80 315 80 185 173 1,07
TCPS315-100 315 100 205 173 1,15
TCPS315-125 315 125 230 173 1,26
TCPS315-150 315 150 220 168 1,44
TCPS315-160 315 160 265 173 1,41
TCPS315-180 315 180 250 168 1,55
TCPS315-200 315 200 270 168 1,66
TCPS315-250 315 250 320 168 1,88
TCPS315-315 315 315 385 168 2,22

T-joints can be manufactured in other diameters by choice.
