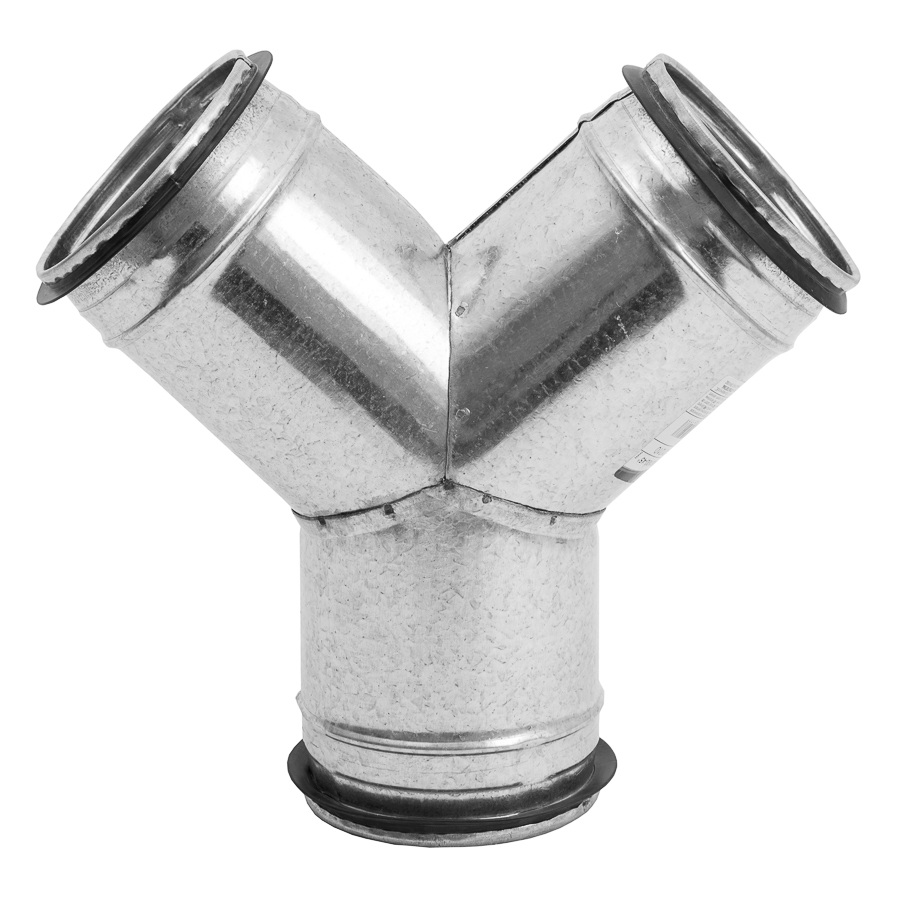

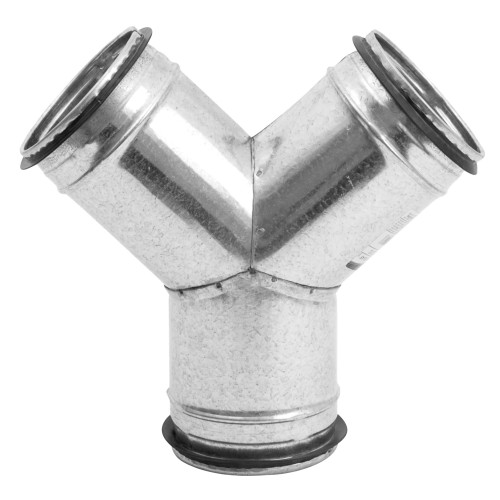

Y-pieces with gaskets YVS
Construction:
- Material galvanized steel or other metal
- EPDM seals
- Segmented
- Manufactured according "D" class
Instalation:
- Easy installation.
| Article | Description | EAN | Connection | Class | |
|---|---|---|---|---|---|
|
YVS100-100-100
|
Y-joint with seal Ø100/Ø100/Ø100mm-45°
|
4750492105177
|
100-100 mm | M1 |
|
YVS100-80-80
|
Y-joint with seal Ø100/Ø80/Ø80mm-45°
|
20004119
|
||
|
YVS125-100-100
|
Y-joint with seal Ø125/Ø100/Ø100mm-45°
|
4750492211649
|
||
|
YVS125-125-125
|
Y-joint with seal Ø125/Ø125/Ø125mm-45°
|
4750492105184
|
125 mm | M1 |
|
YVS150-100-100
|
Y-joint with seal Ø150/Ø100/Ø100mm-45°
|
20002953
|
||
|
YVS150-125-125
|
Y-joint with seal Ø150/Ø125/Ø125mm-45°
|
20000062
|
||
|
YVS150-150-150
|
Y-joint with seal Ø150/Ø150/Ø150mm-45°
|
20003773
|
||
|
YVS160-100-100
|
Y-joint with seal Ø160/Ø100/Ø100mm-45°
|
20003774
|
||
|
YVS160-125-125
|
Y-joint with seal Ø160/Ø125/Ø125mm-45°
|
4750492210574
|
160-125 mm | M1 |
|
YVS160-160-160
|
Y-joint with seal Ø160/Ø160/Ø160mm-45°
|
4750492105191
|
160 mm | M1 |

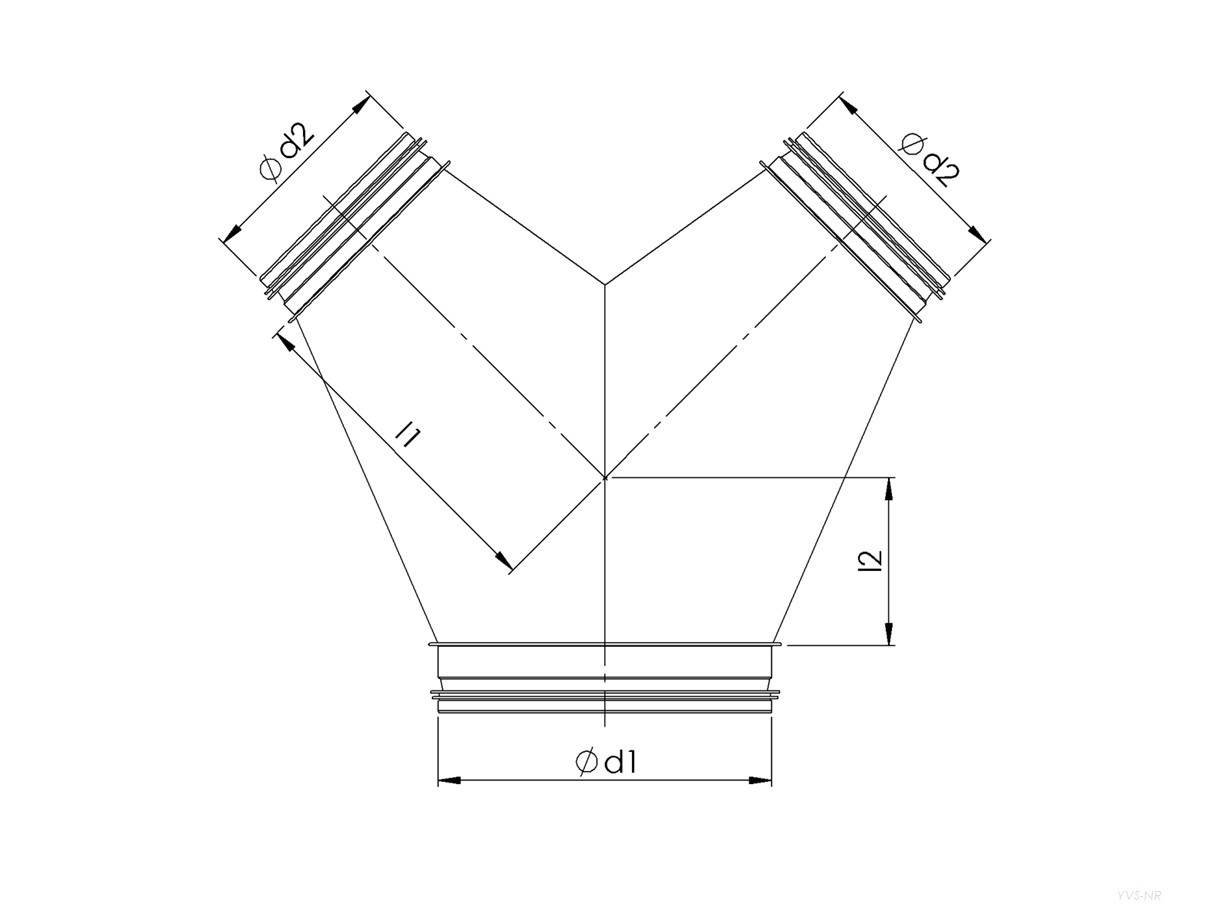

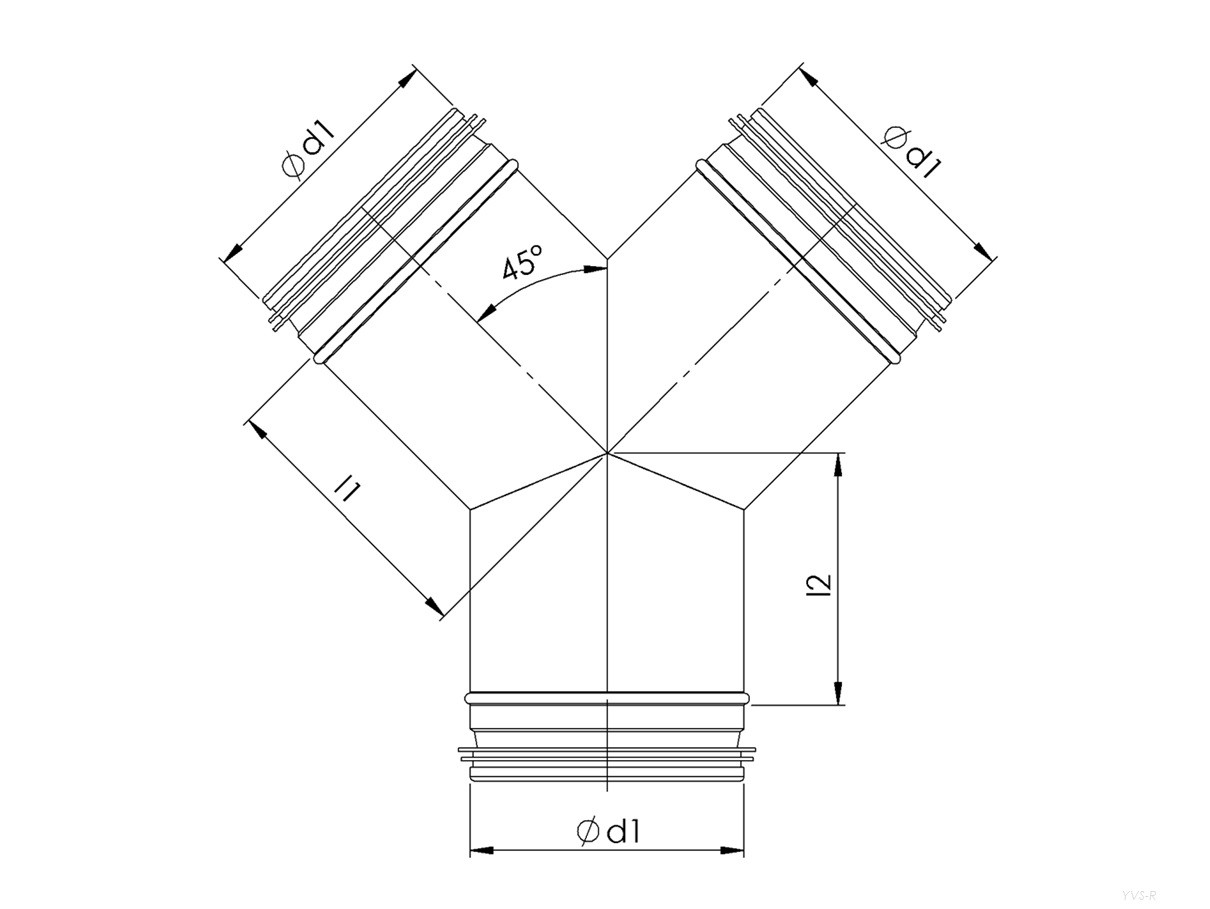

| Type |
Ød1 [mm] |
Ød2 [mm] |
l1 [mm] |
l2 [mm] |
m [kg] |
| YVS80-80-80 | 80 | - | 90 | 67 | 0,29 |
| YVS100-80-80 | 100 | 80 | 125 | 50 | 0,35 |
| YVS100-100-100 | 100 | - | 100 | 71 | 0,40 |
| YVS125-100-100 | 125 | 100 | 125 | 62,5 | 0,50 |
| YVS125-125-125 | 125 | - | 113 | 76 | 0,50 |
| YVS150-100-100 | 150 | 100 | 150 | 75 | 0,55 |
| YVS150-125-125 | 150 | 125 | 150 | 75 | 0,56 |
| YVS150-150-150 | 150 | - | 125 | 81 | 0,64 |
| YVS160-100-100 | 160 | 100 | 160 | 80 | 0,61 |
| YVS160-125-125 | 160 | 125 | 160 | 80 | 0,63 |
| YVS160-160-160 | 160 | - | 130 | 83 | 0,69 |
| YVS180-125-125 | 180 | 125 | 180 | 90 | 0,77 |
| YVS180-150-150 | 180 | 150 | 180 | 90 | 0,79 |
| YVS180-160-160 | 180 | 160 | 180 | 90 | 0,80 |
| YVS180-180-180 | 180 | - | 140 | 83 | 0,81 |
| YVS200-125-125 | 200 | 125 | 200 | 100 | 0,93 |
| YVS200-150-150 | 200 | 150 | 200 | 100 | 0,95 |
| YVS200-160-160 | 200 | 160 | 200 | 100 | 0,96 |
| YVS200-200-200 | 200 | - | 150 | 92 | 0,94 |
| YVS250-125-125 | 250 | 125 | 250 | 125 | 1,40 |
| YVS250-160-160 | 250 | 160 | 250 | 125 | 1,50 |
| YVS250-200-200 | 250 | 200 | 250 | 125 | 1,50 |
| YVS250-250-250 | 250 | - | 185 | 112 | 1,50 |
| YVS315-125-125 | 315 | 125 | 315 | 157,5 | 2,20 |
| YVS315-160-160 | 315 | 160 | 315 | 157,5 | 2,30 |
| YVS315-200-200 | 315 | 200 | 315 | 157,5 | 2,30 |
| YVS315-250-250 | 315 | 250 | 315 | 157,5 | 2,40 |
| YVS315-315-315 | 315 | - | 218 | 125 | 2,10 |
Y-joints can be manufactured in other diameters by choice.
