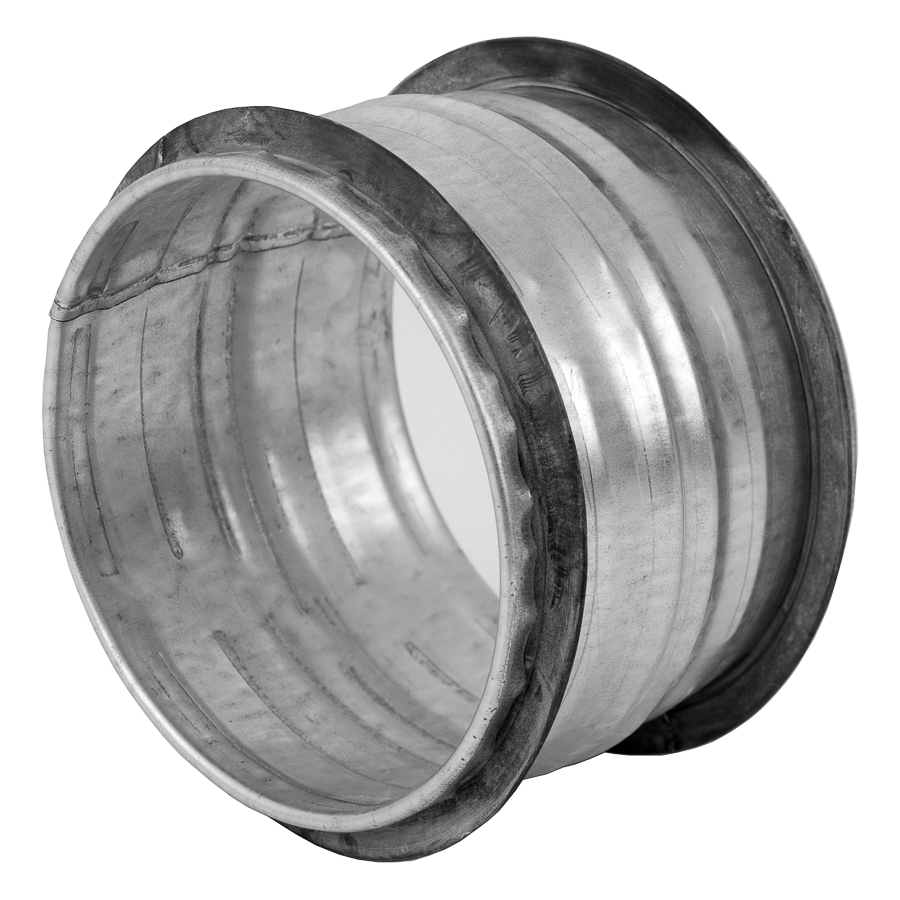

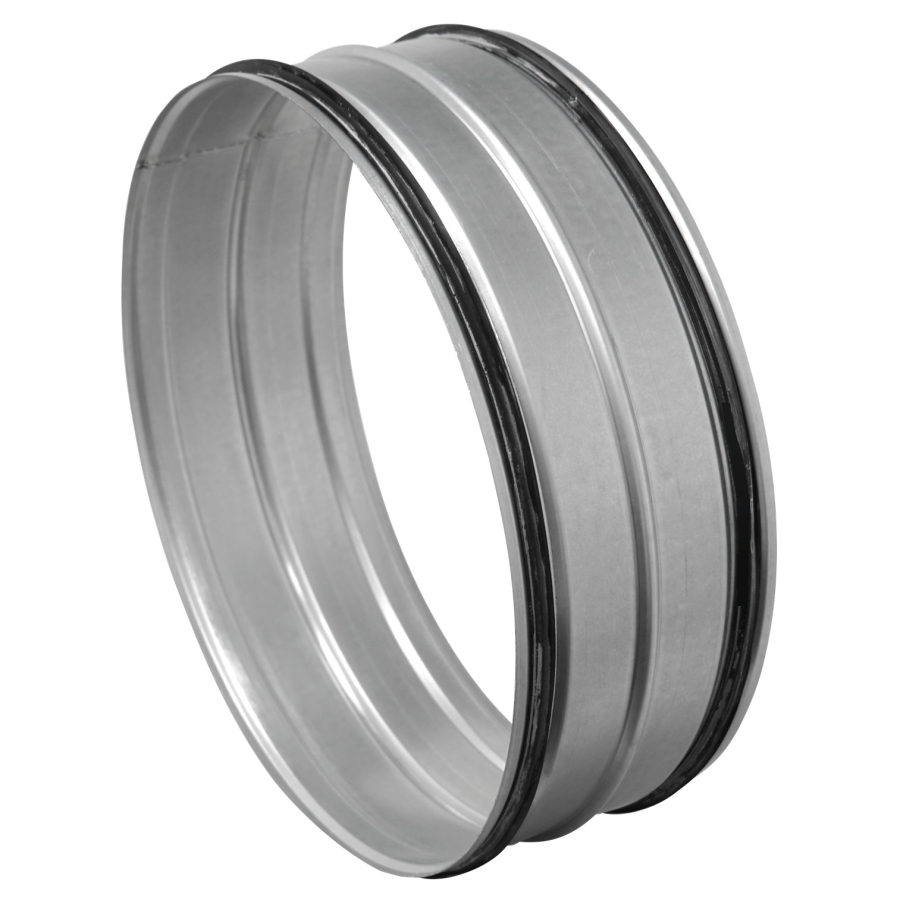

couplings for ducts with gaskets NPS
Construction:
- Material galvanized steel or other metal
- EPDM seals
- Manufactured according "D" class
Instalation:
- Easy installation.
| Article | Description | EAN | Connection | Class | |
|---|---|---|---|---|---|
|
NPS100
|
connector metal, Ø100mm with rubber
|
4750492001257
|
100 mm | M1 |
|
NPS125
|
connector metal, Ø125mm with rubber
|
4750492001264
|
125 mm | M1 |
|
NPS150
|
connector metal, Ø150mm with rubber
|
4750492222492
|
150 mm | M1 |
|
NPS160
|
connector metal, Ø160mm with rubber
|
4750492001271
|
160 mm | M1 |
|
NPS180
|
connector metal, Ø180mm with rubber
|
20000891
|
||
|
NPS200
|
connector metal, Ø200mm with rubber
|
4750492001288
|
200 mm | M1 |
|
NPS250
|
connector metal, Ø250mm with rubber
|
4750492106983
|
250 mm | M1 |
|
NPS315
|
connector metal, Ø315mm with rubber
|
4750492106990
|
315 mm | M1 |
|
NPS80
|
connector metal, Ø80mm with rubber
|
4750492211304
|
80 mm | M1 |

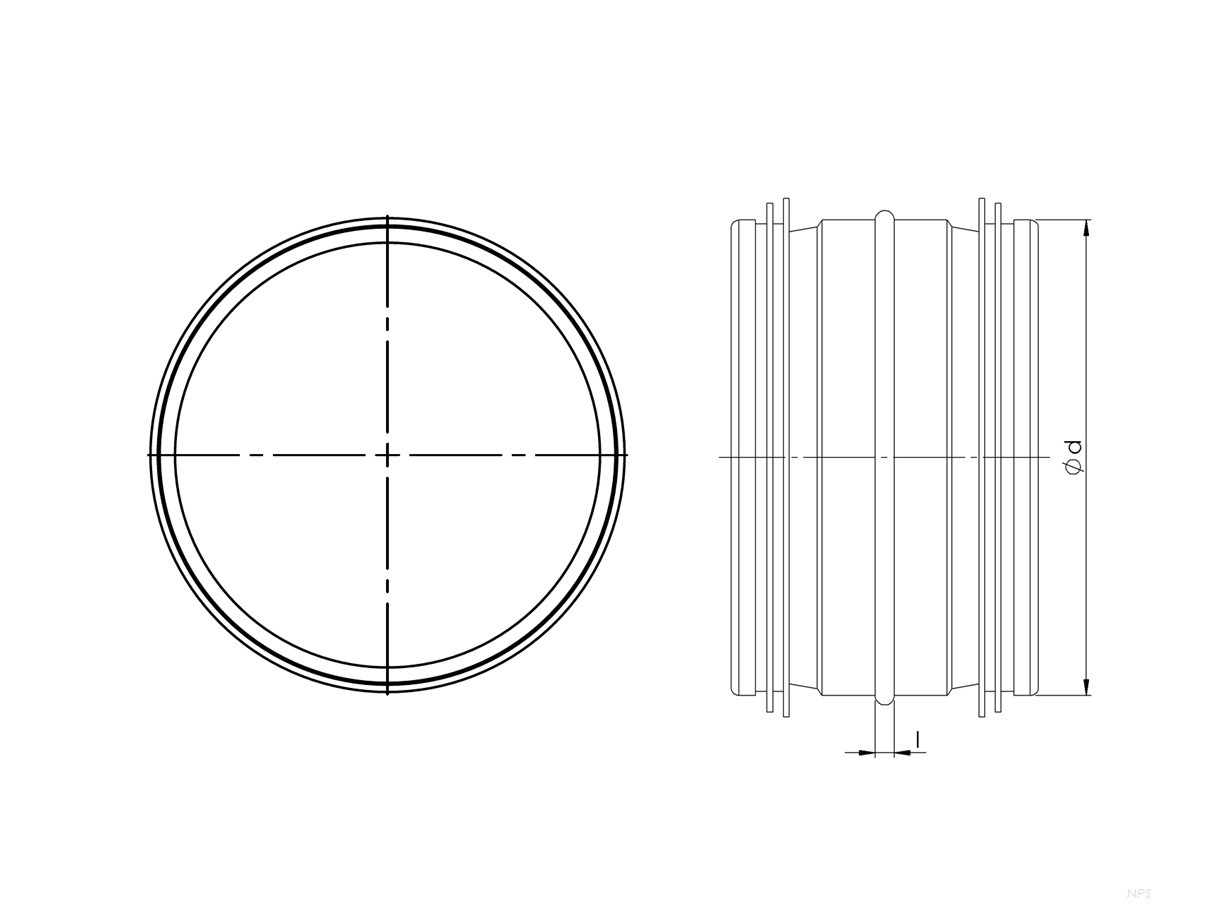

| Type |
Ød [mm] |
I [mm] |
m [kg] |
| NPS80 | 80 | 6 | 0,10 |
| NPS100 | 100 | 6 | 0,13 |
| NPS125 | 125 | 6 | 0,14 |
| NPS150 | 150 | 6 | 0,17 |
| NPS160 | 160 | 6 | 0,18 |
| NPS180 | 180 | 6 | 0,21 |
| NPS200 | 200 | 6 | 0,24 |
| NPS250 | 250 | 8 | 0,36 |
| NPS315 | 315 | 8 | 0,46 |
