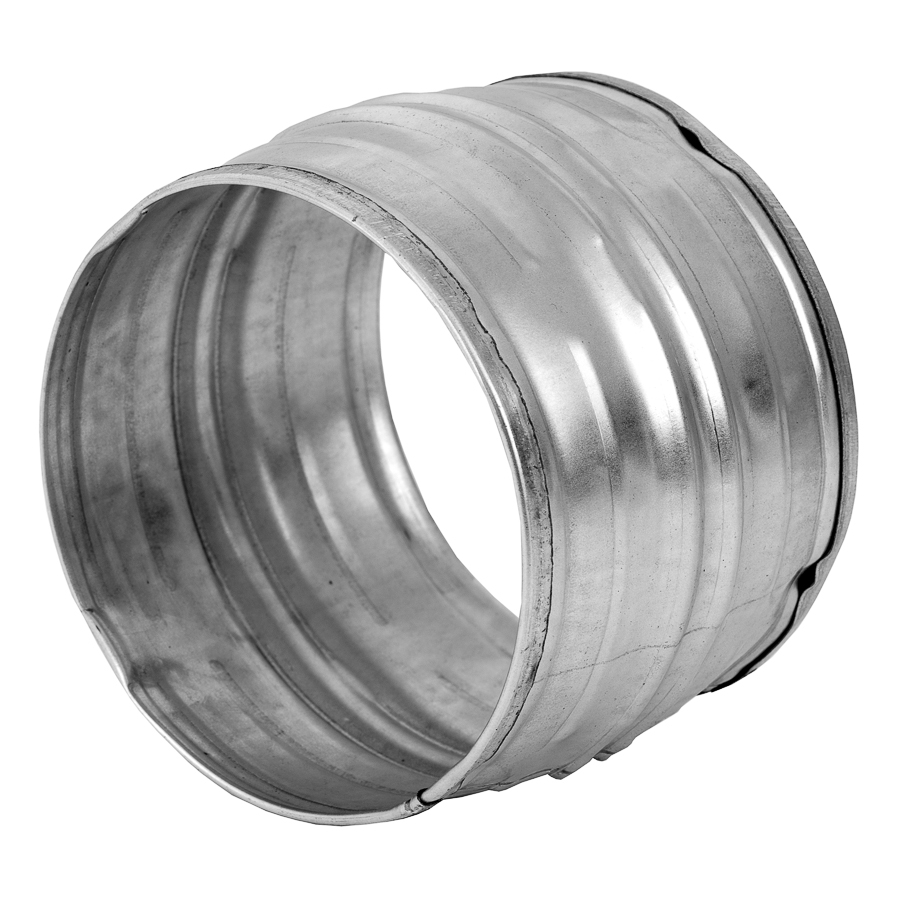

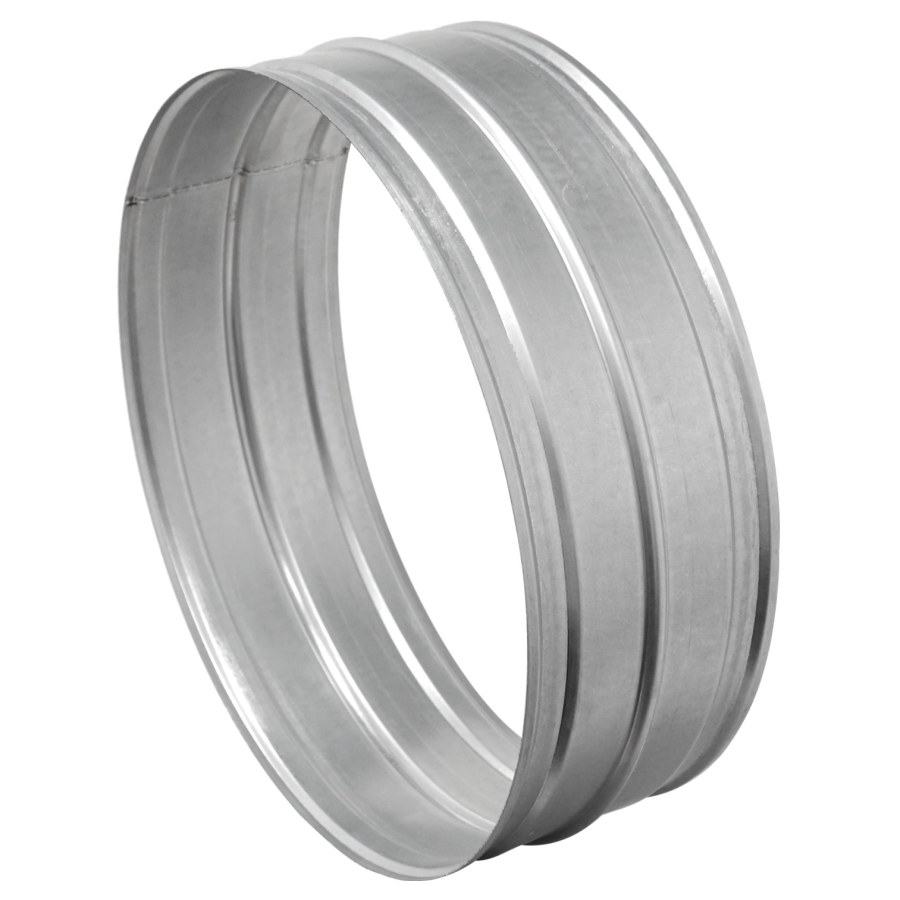

couplings for ducts without gaskets NP
Construction:
- Material galvanized steel or other metal
- Other diameters can also be ordered optionally.
Instalation:
- Easy installation.
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
NP100
|
connector metal, Ø100mm without rubber
|
4750492001295
|
100 mm |
|
NP120
|
connector metal, Ø120mm without rubber
|
4750492001806
|
120 mm |
|
NP125
|
connector metal, Ø125mm without rubber
|
4750492001301
|
125 mm |
|
NP150
|
connector metal, Ø150mm without rubber
|
4750492001745
|
150 mm |
|
NP160
|
connector metal, Ø160mm without rubber
|
4750492001318
|
160 mm |
|
NP180
|
connector metal, Ø180mm without rubber
|
20003367
|
|
|
NP200
|
connector metal, Ø200mm without rubber
|
4750492001325
|
200 mm |
|
NP250
|
connector metal, Ø250mm without rubber
|
4750492107003
|
|
|
NP315
|
connector metal, Ø315mm without rubber
|
4750492107010
|
|
|
NP80
|
connector metal, Ø80mm without rubber
|
4750492001813
|
80 mm |

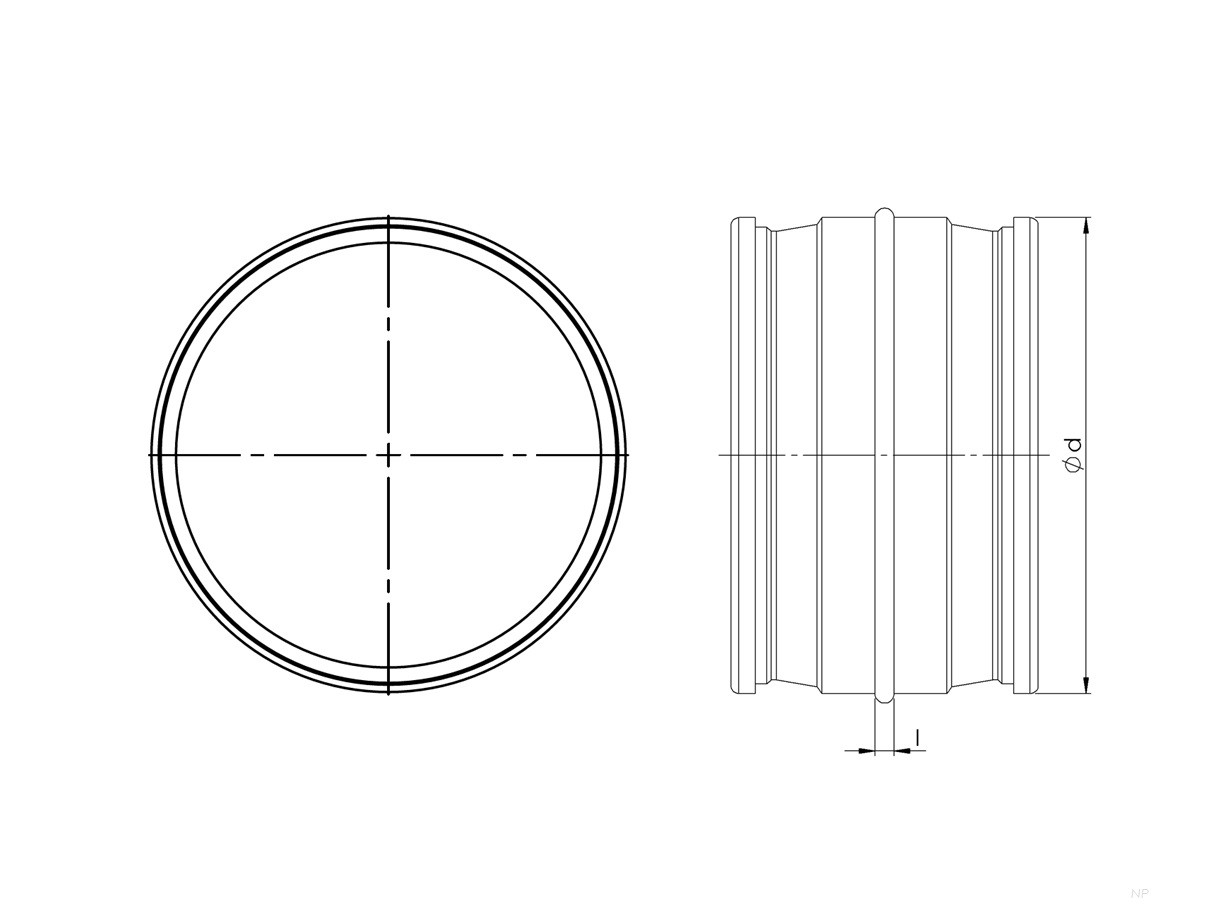

| Type |
Ød [mm] |
I [mm] |
m [kg] |
| NP80 | 80 | 6 | 0,07 |
| NP100 | 100 | 6 | 0,10 |
| NP120 | 120 | 6 | 0,12 |
| NP125 | 125 | 6 | 0,12 |
| NP150 | 150 | 6 | 0,14 |
| NP160 | 160 | 6 | 0,15 |
| NP180 | 180 | 6 | 0,17 |
| NP200 | 200 | 6 | 0,20 |
| NP250 | 250 | 8 | 0,31 |
| NP315 | 315 | 8 | 0,38 |
